Description

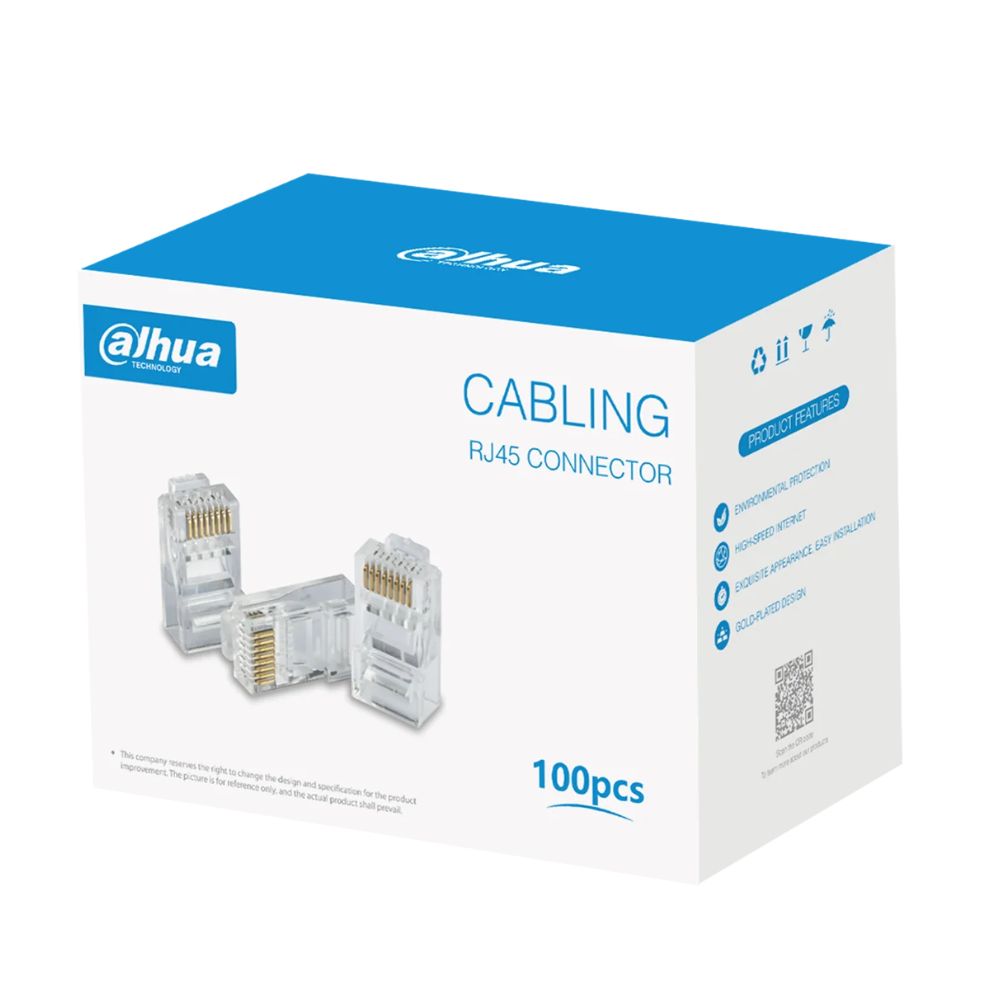

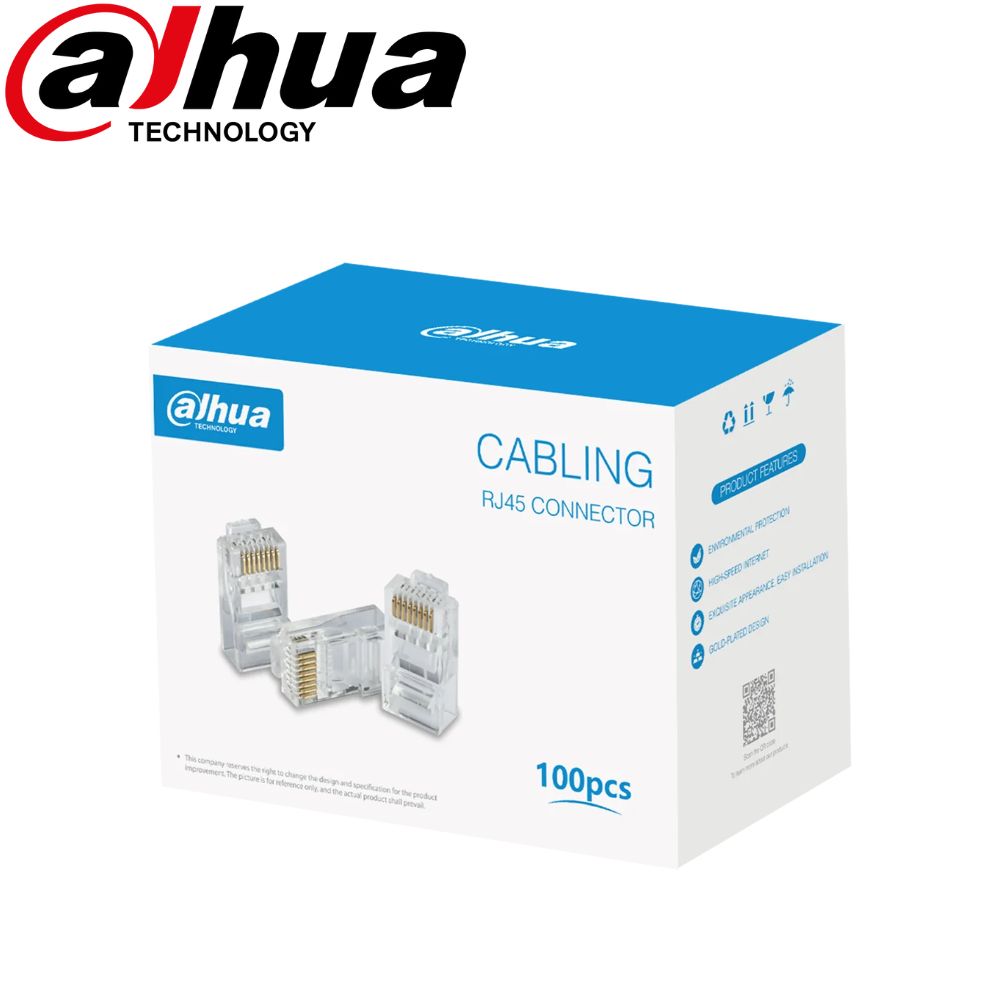

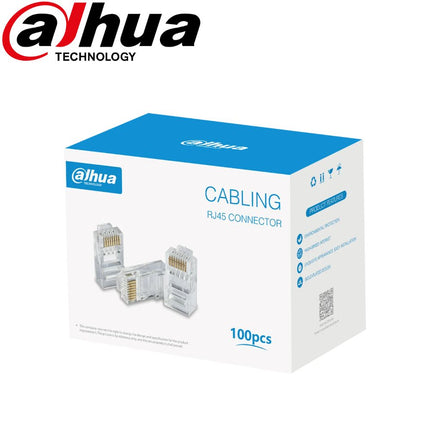

Cat6 RJ45 Network Plug (100pcs/Pack)
Features

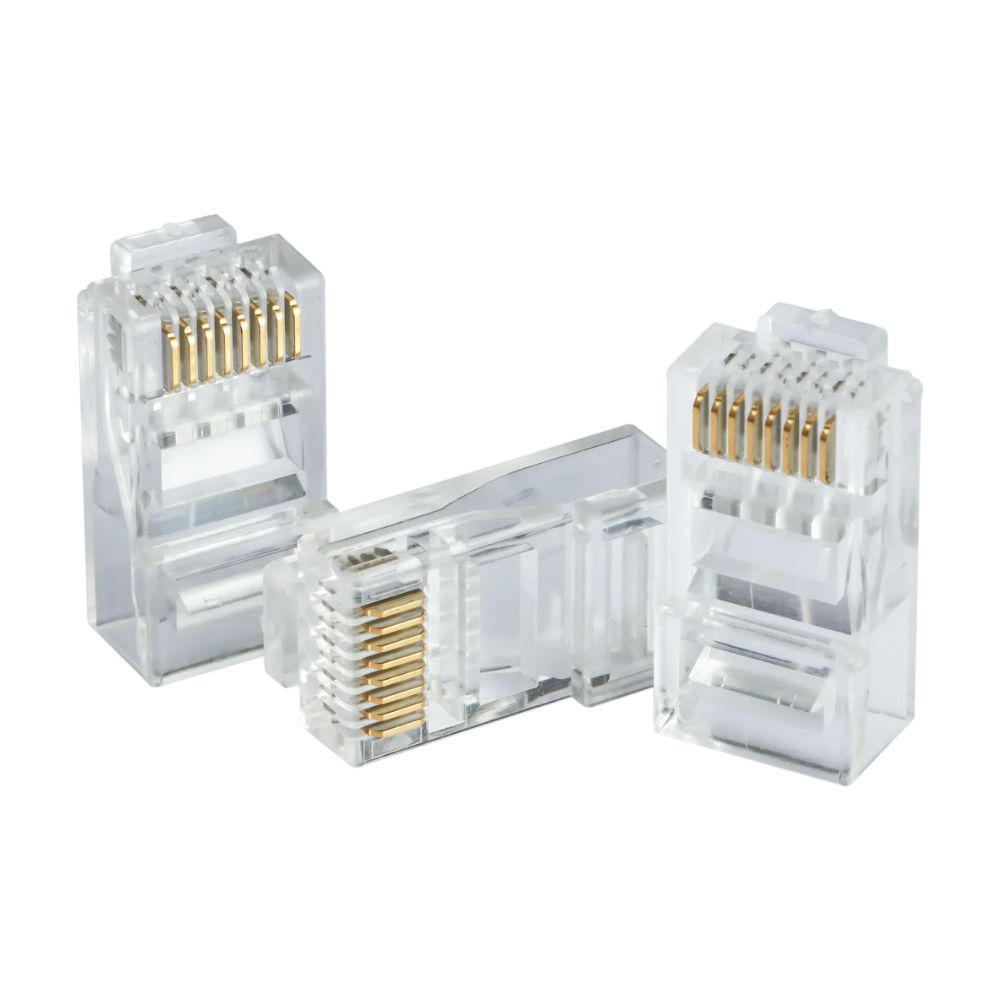

- Unshielded CAT5E RJ-45 connector.
- Designed with a through hole for cables to be fed through.
- Built with trident brass sheet and 15U" gold plating.
- Lifespan of 750 cycles.
Downloads
Tech Specs
Material |
Material |
PC + brass |
Gold Plating Thickness |
15U" |
Flammability Rating |
UL94V-2 |
Electrical |
Operating Voltage |
150 VAC RMS |
Operating Current |
1.5 AMP |
Contact Resistance |
≤ 20 mΩ |
Insulation Resistance |
≥1000 MΩ@500 VDC |
Withstands Voltage between Terminals |
1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute |
Mechanical |
Retention Strength |
50 N for 60 s ± 5 s |
Lifespan |
750 times |
Insertion Force |
≤ 30 N |
Environmental |
Operating Temperature |
–25 °C to +55 °C (–13 °F to +131 °F) |
Storage Temperature |
–10 °C to +40 °C (+14 °F to +104 °F) |
Storage Humidity |
≤ 80% |
Storage Time |
12 months |
Structural |
Single Strand Cable Diameter |
23 AWG–24 AWG |
Single Strand Insulated Cable Diameter |
0.89 mm–1.00 mm (0.035"–0.039") |
Outer Sheath Diameter |
≤ 5.4 mm (0.21") |
Packaging Dimensions |
120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54") |
Transport Package Dimensions |
500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63") |
Packaging Method |
100 pcs in 1 carton, and 50 cartons in 1 package |
Net Weight |
0.17 kg (0.37 lb) |
Gross Weight |
0.21 kg (0.46 lb) |
