2-wire video intercom systems remain demanded as long as there are so many houses left with old wiring in the walls, which is indeed problematic to replace. Akuvox came up with a solution to address the issue to allow you to get the benefits of IP network-type system, but with old wiring and with no replacements done
The Akuvox C313W-2 multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving
design featuring a brilliant 7-inch capacitive touch screen display.
Features
- Single speed-dial button with blue backlight
- Linux operation system
- Wide-angle camera:110 (H), 58 (V)
- Two-pin wire for power supply and network access
- Two-way audio communication over IP networks with Echo cancellation and Noise suspension
- Flush-mounted and surface-mounted
- Complies with SIP and ONVIF

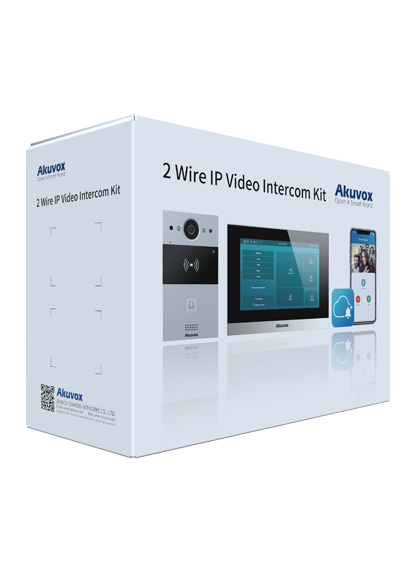

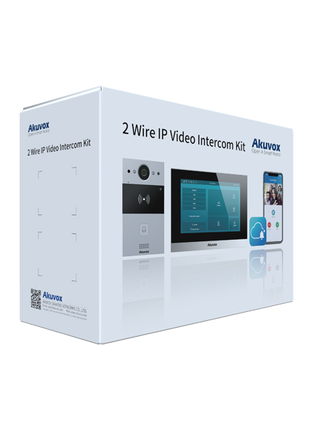

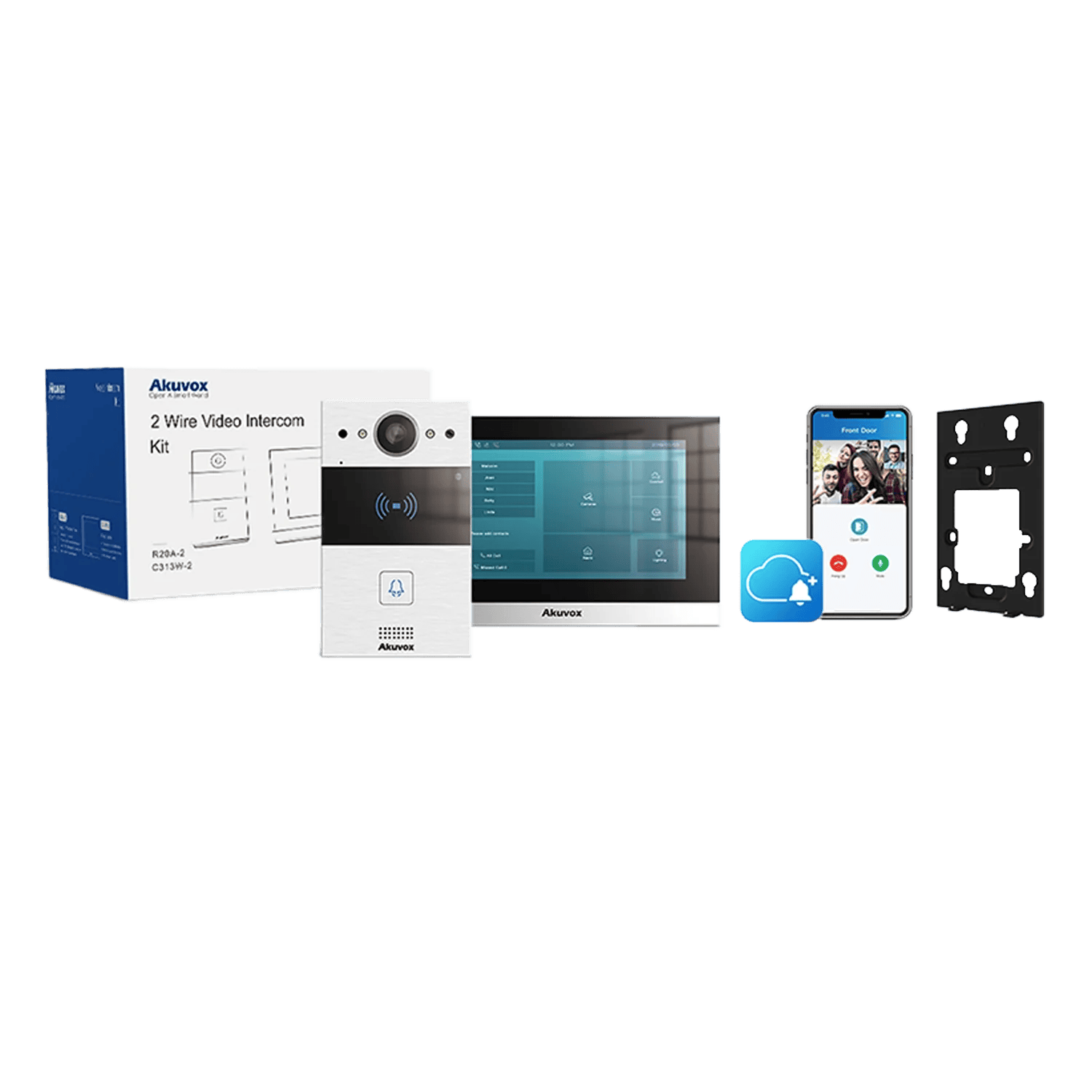

Akuvox 2-Wire IP Intercom Kit includes:
1 X R20A-2
1 X C313W-2
4 X free App accounts
1 X 2-wire IP network switch
upgrade analogue intercom systems, super long transmission distance & good compatibility with existing lines makes it fit for most of old buildings
Datasheet
Tech Specs
Akuvox R20A Video Intercom With Card Reader - AK-R20A
| Physical & Power |
- Front panel: Aluminum alloy
|
- Camera: 2M pixels, automatic lighting
|
|
|
|
|
|
- RF card reader: 13.56MHz (with NFC) & 125kH
|
|
|
|
|
- Ethernet port: RJ45, 10/100Mbps adaptive
|
- 802.3af Power-over-Ethernet
|
- 12V DC connector (if not using PoE)
|
- Water-proof & Dust-proof: IP65
|
- Installation: Flush-mounted or Wall-mounted
|
- Flush-mounted DIM: 189x120x56.5mm
|
- Wall-mounted DIM: 145x85x27.5mm
|
|
- Working Temperature: -40°C ~ +65°C
|
- Storage Temperature: -40°C ~ +70°C
|
| Audio |
- SIP v1 (RFC2543), SIP v2 (RFC3261)
|
- Narrowband audio codec: G.711a, G.711μ, G.729
|
- Broadband audio codec: G.722
|
- DTMF: In-band, out-of-band DTMF (RFC2833),
SIP Info
|
|
- Voice Activation Detection
|
|
| Video |
|
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
|
- Video codec: H.264, H.265
|
- Video resolution: up to 1920x1080p
|
- Max. image transfer rate: 1080p – 25fps
|
- Viewing angle: 110°(H) / 58°(V)
|
- High intensity IR LEDs for picture lighting during
dark hours with internal light senso
|
- Compatible to 3rd
-Party-Video components,
e.g. NVRs
|
| Door Entry Feature |
- Relays controlled individually by DTMF tones
|
- Camera permanently operational
|
- Auto-night mode with LED illumination
|
|
- Minimum illumination: 0.1LUX
|
| Networking & Protocol |
- Protocols support: IPv4, HTTP, HTTPS, FTP,
SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,
DHCP, ARP
|
| Deployment & Maintenance |
|
|
|
- Configuration backup / restore
|
|
- Access table export / import
|
|
- System logs (include door access logs)
|
| Application Scenario |
- Office door phone with on-site or hosted IP-PBX
|
- Remote site entry over Internet
|
- Apartment/flat intercom with door access control
|
