Name: ZKTeco USB Enrollment for Card Reader - CR20MW
Brand: ZKTeco
SKU: CR20MW
Price: 129.0 AUD

ZKTeco USB Enrollment for Card Reader - CR20MW

VendorZKTeco
Share
- WhatsApp
- Deel
- Messenger
- Email

Description

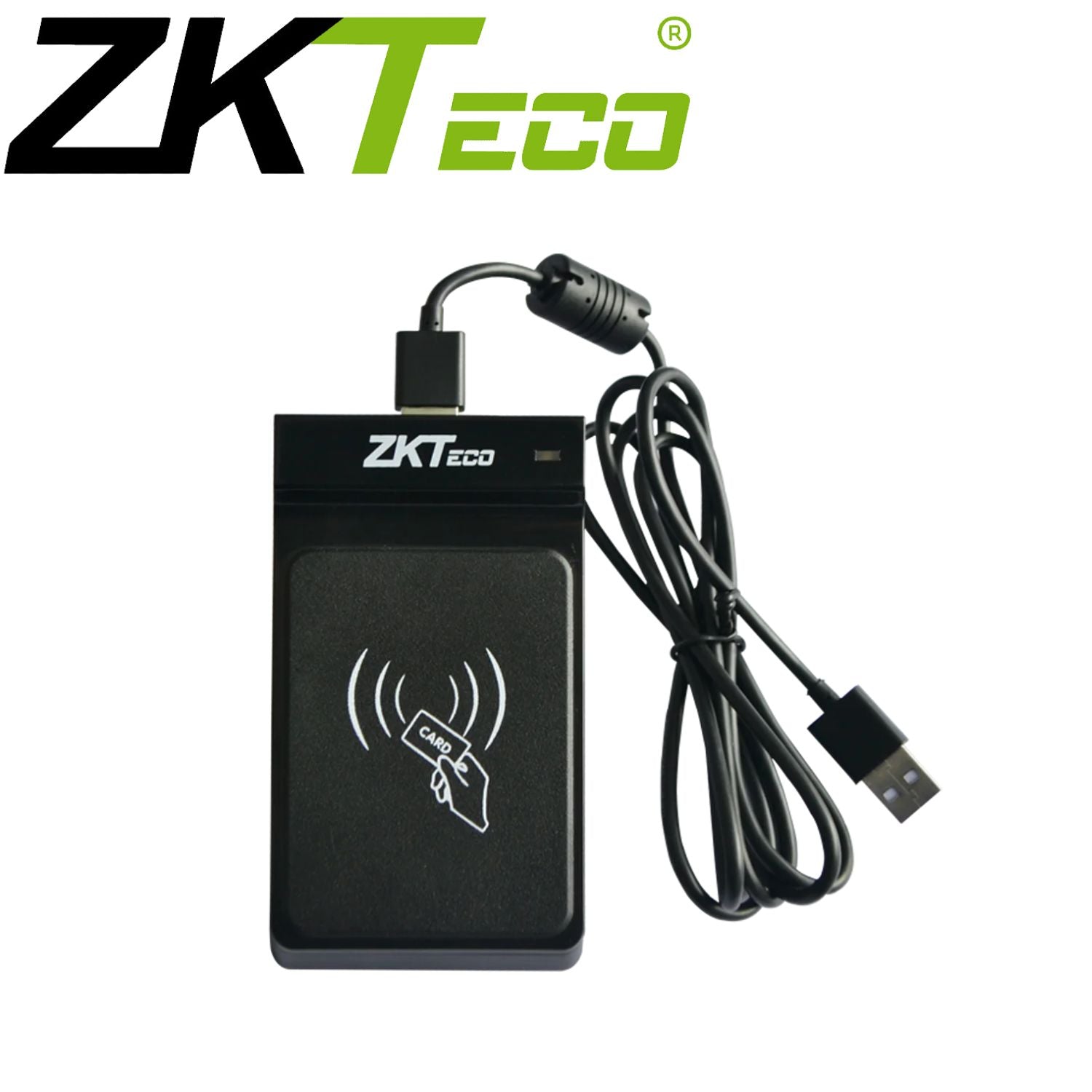

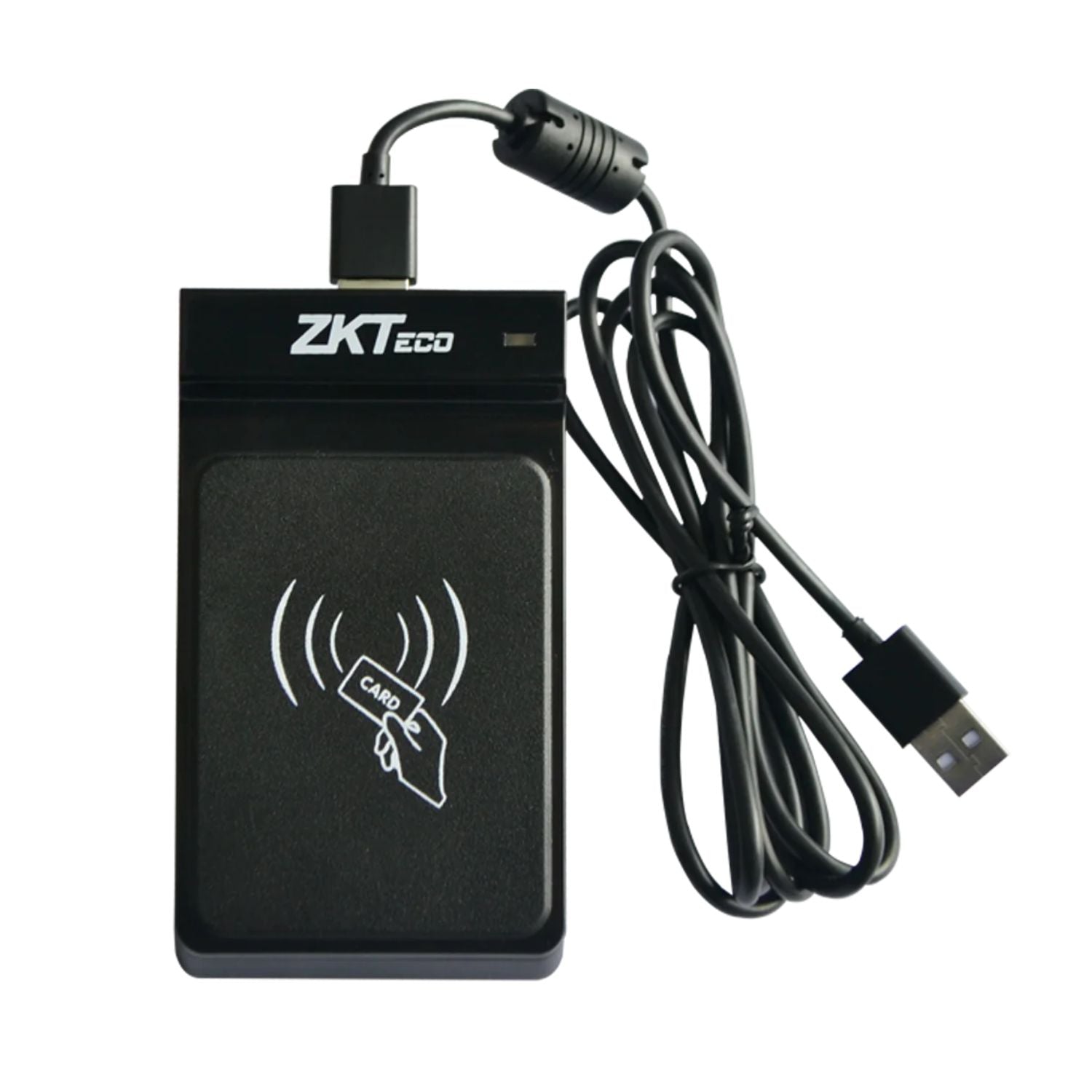

CR20 Series are desktop enrollment devices designed to read (CR20/CR20M) & write (CR20MW) proximity cards for streamlining sign-in process and enhances contactless access control. They are connected to a PC through a USB interface, allowing high-speed data transmission. CR20E and CR20M read the same serial number as ZKTeco devices CR20MW comes with read-and-write functionality and includes a communication protocol for development.

Features

Operating System: Windows, Android, Linux
Frequency: 13.56MHz
Read Range: Up to 5 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback

Datasheet

ZKTeco USB Enrollment for Card Reader - CR20MW

Tech Specs

Model	CR20E	CR20M	CR20M/W
Read Range	Up to 5cm	Up to 3cm	Up to 3cm
Power/Current	USB 5V DC / Max. 80mA	USB 5V DC / Max. 60mA	USB 5V DC / Max. 102mA
LED indicator	2 Color LED Indicators (Red&Green)	2 Color LED Indicators (Red&Green)	2 Color LED Indicators (Red&Green)
Beeper	Yes	Yes	Yes
Operating Frequency	125KHz	13.56MHz	13.56MHz
Operating temperature	-10º to +70º	-10º to +70º	0º to +70º
Operating Humidity	10% to 90% ( relative humidity non- considered)	10% to 90% ( relative humidity non- considered)	10% to 90% ( relative humidity non- considered)
Color	Black	Black	Black
Material	ABS+PC with texture	ABS+PC with texture	ABS+PC with texture
Dimension: (WxHxT) mm	117.2x66.2x17	117.2x66.2x17	117.2x66.2x17
Weight	120g	120g	120g
Operating system support	Emulation Keypad (Compatible with WIN98/2000/XP/VISTA/7)	Emulation Keypad (Compatible with WIN98/2000/XP/VISTA/7)	Communication protocol available for development

ZKTeco USB Enrollment for Card Reader - CR20MW

VendorZKTeco
Share
- WhatsApp
- Deel
- Messenger
- Email

Product form

SKU: CR20MW

$129.00 Incl. GST

Guaranteed secure & safe checkout.

FREE Express Courier Shipping for all orders over $100

30-Day Returns Policy

Back to Base Australian Warranty & Tech Support

Australian Stock, No Grey Import Products

Product Datasheet

Description

CR20 Series are desktop enrollment devices designed to read (CR20/CR20M) & write (CR20MW) proximity cards for streamlining sign-in process and enhances contactless access control. They are connected to a PC through a USB interface, allowing high-speed data transmission. CR20E and CR20M read the same serial number as ZKTeco devices CR20MW comes with read-and-write functionality and includes a communication protocol for development.

Features

Operating System: Windows, Android, Linux
Frequency: 13.56MHz
Read Range: Up to 5 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback

Datasheet

ZKTeco USB Enrollment for Card Reader - CR20MW

Tech Specs

Model	CR20E	CR20M	CR20M/W
Read Range	Up to 5cm	Up to 3cm	Up to 3cm
Power/Current	USB 5V DC / Max. 80mA	USB 5V DC / Max. 60mA	USB 5V DC / Max. 102mA
LED indicator	2 Color LED Indicators (Red&Green)	2 Color LED Indicators (Red&Green)	2 Color LED Indicators (Red&Green)
Beeper	Yes	Yes	Yes
Operating Frequency	125KHz	13.56MHz	13.56MHz
Operating temperature	-10º to +70º	-10º to +70º	0º to +70º
Operating Humidity	10% to 90% ( relative humidity non- considered)	10% to 90% ( relative humidity non- considered)	10% to 90% ( relative humidity non- considered)
Color	Black	Black	Black
Material	ABS+PC with texture	ABS+PC with texture	ABS+PC with texture
Dimension: (WxHxT) mm	117.2x66.2x17	117.2x66.2x17	117.2x66.2x17
Weight	120g	120g	120g
Operating system support	Emulation Keypad (Compatible with WIN98/2000/XP/VISTA/7)	Emulation Keypad (Compatible with WIN98/2000/XP/VISTA/7)	Communication protocol available for development
