Description

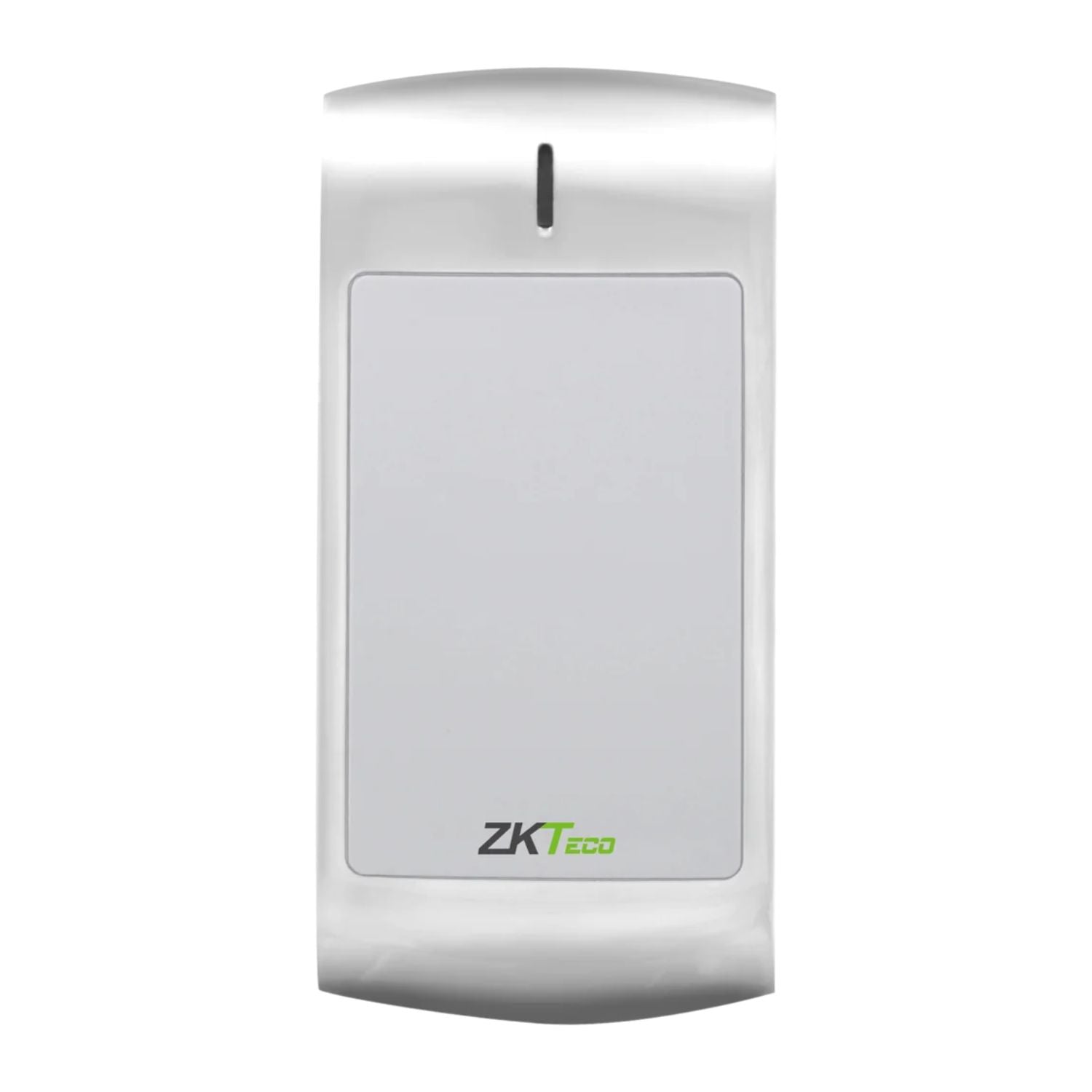

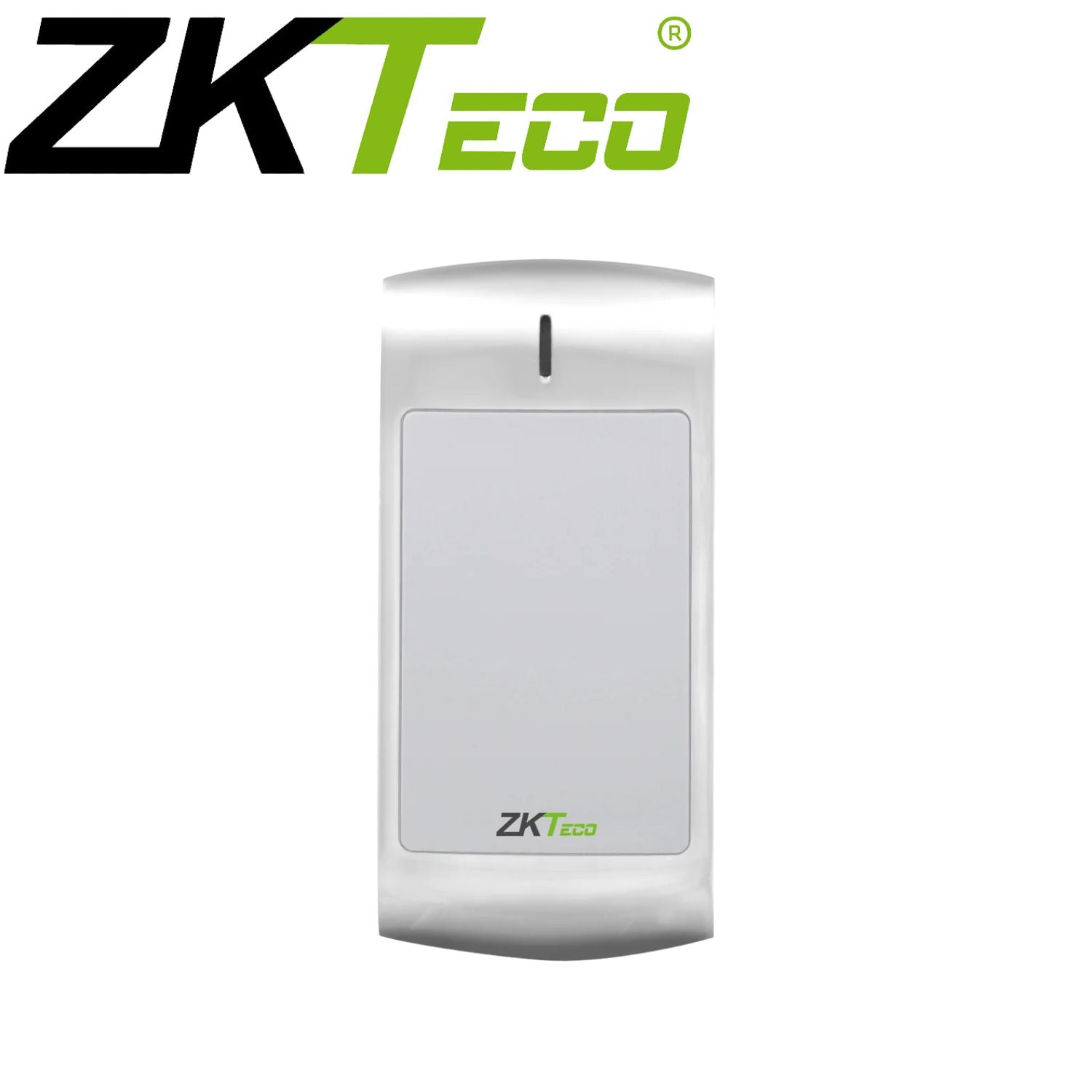

MR1010 and MR1020 are advanced access control readers with 125kHz & 13.56MHz RFID technology, respectively. It’s an ideal choice for high-security appliacations. They are attractively designed to withstand harsh environments - to operate outside (IP66) and to offer a high vandal proof resistance (IK10).
Features
- IK10 (vandal-proof ) and IP66 (waterproof and dust-proof )
- Metal casing
- Operating frequency: 125kHz & 13.56MHz
- Operating temperature: - 40°C ~ 60°C
- Wiegand outputs 26 / 34bits
- Reading distance: 2 ~ 6cm
Datasheet
Tech Specs
| Model |
MR1010 / MR1020 |
| Power Supply |
9 - 24V DC |
| Operating Current |
≤ 50mA |
| Card Frequency |
125KHz & 13.56MHz |
| Card Type |
EM card, S50, S70 |
| Card Reading Distance |
2 ~ 6cm |
| Dimension |
105 * 49 * 21 (mm) (W*H*D) |
| Wiegand Output |
26 / 34bits |
| Weight |
240g |
| Weight of the Device with Packaging |
270g |
| Ingress Protection Rating |
IK10 & IP66 |
| Operating Temperature |
- 40°C ~ 60°C |
| Operating Humidity |
20% ~ 80% |
