Description
ZKTeco launches the QR600 Series, a new range of outdoor QR Code/Barcode and RFID Readers for any kind of purpose including access control visitor management or ticketing, with IP65 protection, and an optional keyboard.
The QR600 Series is part of our latest generation of high-speed readers that improve intelligence in access control systems, offering compatibility with dynamic QR Codes and encrypted solutions, providing a versatile access choice for a great variety of scenarios.
This new series consists of 8 models with different layouts and features. The main advantage over our previous QR Readers (QR500/QR50) is the compact and waterproof design (IP65). Also the series is equipped with a metal frame with a premium feel.
Features
- Outdoor waterproof QR Code & Card Readers
- IP65 waterproof protection
- Keypad (QR600-HK and QR600-VK)
- Compatible with Dynamic QR codes Solutions on ZKBioSecurity and Atlas Series
QR code, PDF417, Data Matrix, MicroPDF417, Aztec
- Communication Wiegand & RS485
- RFID 125kHz ID cards / 13.56MHz IC Cards
- USB connection for configuration & firmware updates
Datasheet
Tech Specs
| Model |
QR600-HK |
QR600-H |
QR600-VK |
QR600-V |
| QR Sensor |
QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 / Code 93 etc. |
| RFID |
125kHz ID Cards / 13.56MHz IC Cards |
| Reading Distance |
QR Code: Up to 5cm; RFID Card: Up to 4cm |
| Password |
Yes |
No |
Yes |
No |
| Communication |
Wiegand & RS485 |
| Protection |
IP65 |
| Power |
DC 12V (±5%) |
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-20°C to 80°C |
| Operating Humidity |
20% to 80% (assuming the working environment temp. is 25°C)" |
| Dimensions (L*W*H) |
120*80*16 (mm) |
120*80*16 (mm) |
138*58*16 (mm) |
138*58*16 (mm) |

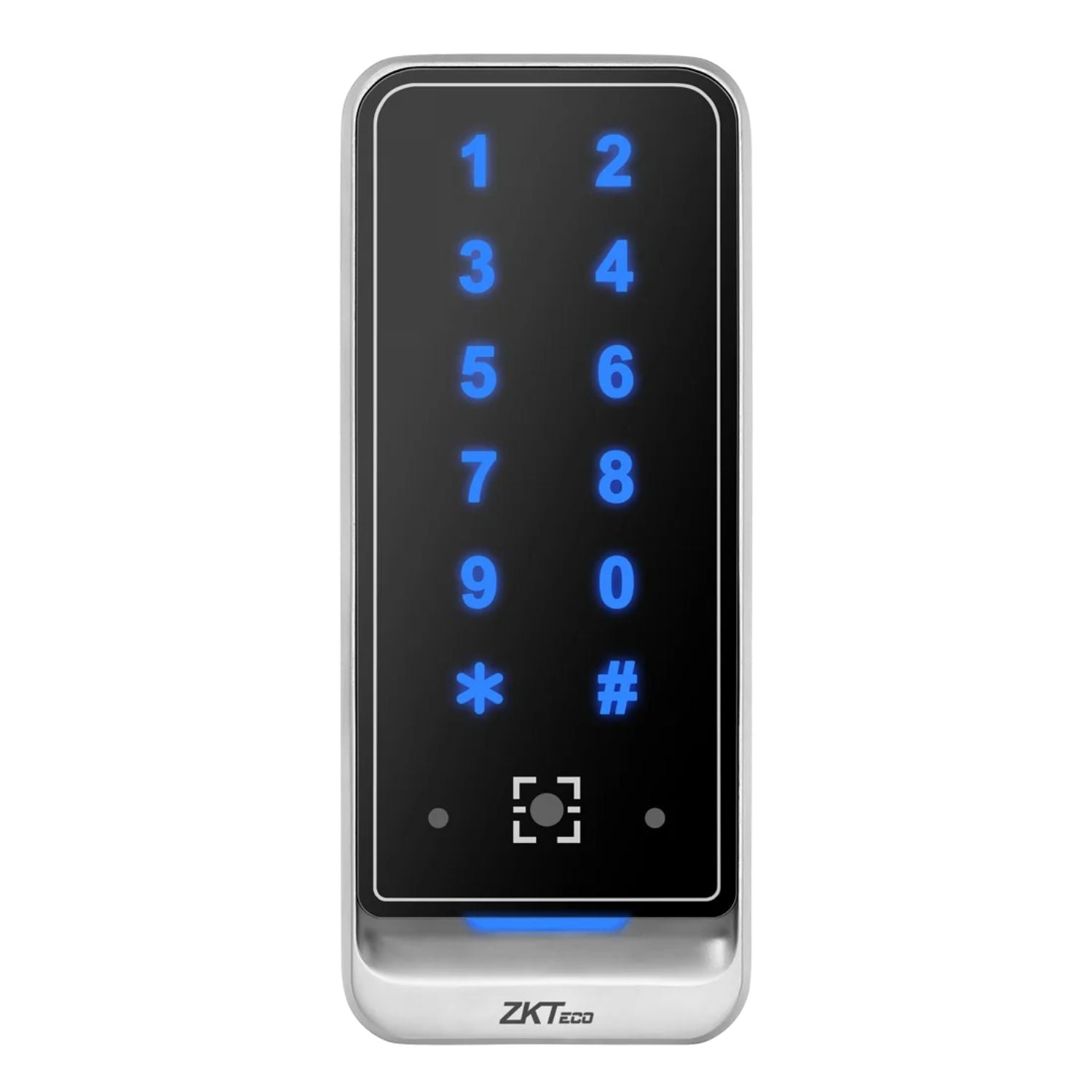

![ZKTeco Keypad QR Code Reader Card Reader - QR600-VK[MF]](http://www.spymonkey.com.au/cdn/shop/files/ZKTecoQR600-VK_MF_1.jpg?v=1701321816)

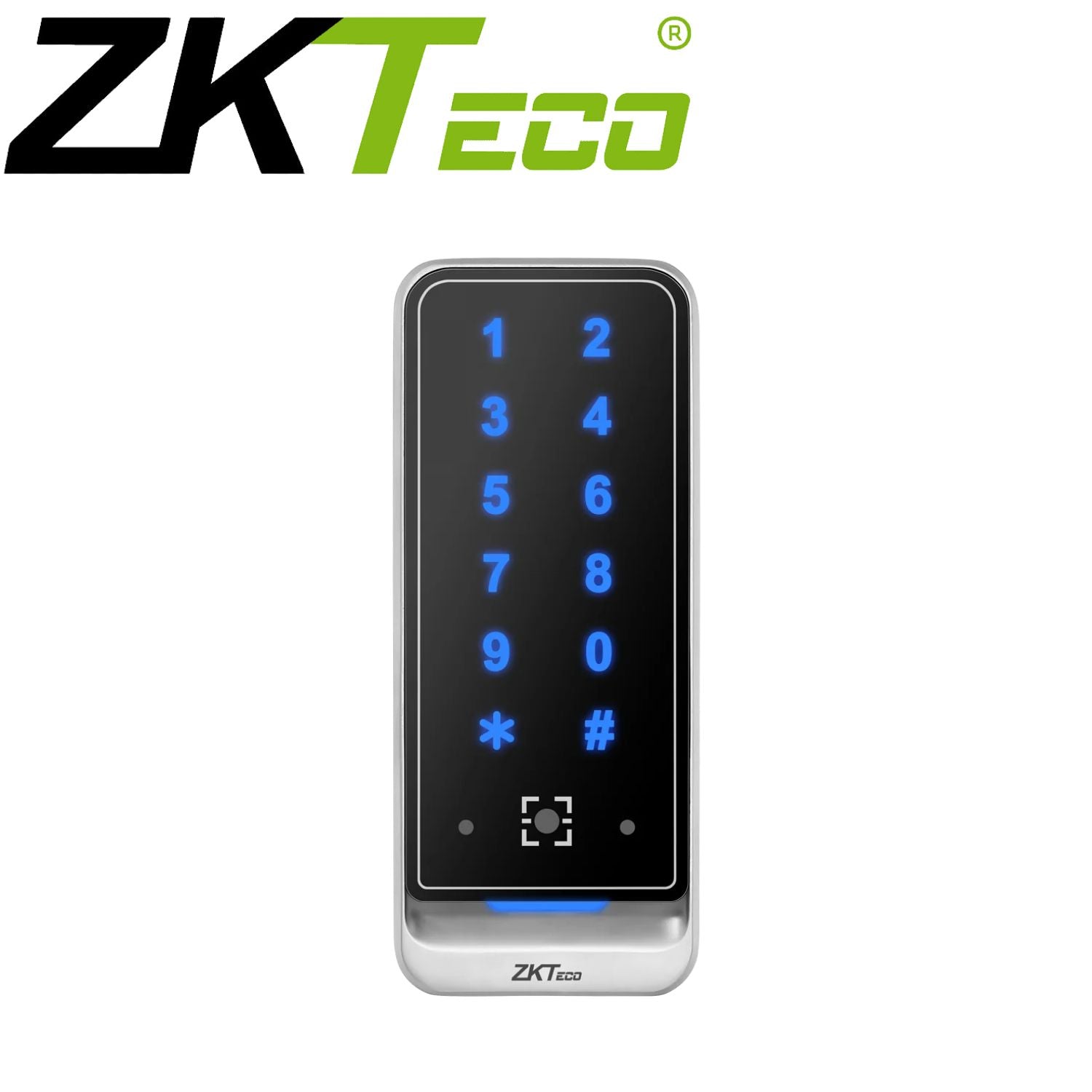

![ZKTeco Keypad QR Code Reader Card Reader - QR600-VK[MF]](http://www.spymonkey.com.au/cdn/shop/files/ZKTecoQR600-VK_MF.jpg?v=1701321816)
