Description
KF1000 series is the innovative visible light facial recognition reader dedicated to InBio series biometric controller to adopt facial recognition technology, offering one of the fastest, most stable, most accurate facial recognition experiences in the industry.
As a new-era biometric reader, KF1000 series is equipped with a 100Mb/s high-speed TCP/IP port for face templates and data synchronization. Wiegand and RS485 (coming soon) available to communicate with InBio Controllers for authentication use. The whole system is compiled with the ZKTeco Cyber Security Base Line (ZKCSBL) to ensure that users’data is under the finest protection that ZKTeco can offer.
Features
- Equipped with ZKTeco visible light facial recognition, offering one of the best facial recognition technologies in the industry
- Supports up to 1,500 facial/30,000 cards/100,000 records
- Supports multiple communication ports, TCP/IP, Wiegand output, RS485 (coming soon), Wi-Fi (coming soon)
- User-friendly on-board web server for quick system configuration
- Fully compatible with inBio Series controller and ZKBio Access IVS security platform
- Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line). Standard to provide advance protection
Datasheet
Tech Specs
| Biometric Method |
Visible light facial |
| RFID |
ID card standard & IC card (Optional) |
| User Capacity |
30,000 |
| Card Capacity |
30,000 |
| Face Capacity |
1,500 |
| Logs Capacity |
100,000 |
| Facial Recognition Algorithm |
ZKFace V3.5 |
| Facial Recognition Speed |
< 0.3s |
| Facial Recognition Distance |
30cm ~ 50cm |
| Facial Recognition Rate |
FAR ≤ 0.001%; FRR ≤ 1% |
| Mounting |
KF1100: Wall Mount ( Compatible with Asian gang - box )
KF1200: Wall Mount ( Compatible with Single gang - box ) |
| Communication |
TCP/IP, Wiegand / RS485 (Coming soon) / Wi-Fi |
| Operation System |
Linux |
| Power Supply |
≤ 12V 500mA |
| Operating Temperature |
-10°C to 50°C ( 14°F to 122°F) |
| Storage Temperature |
-20°C to 60°C ( -4°F to 140°F ) |
| Dimension |
W*H*D
KF1100: 91*91*13.8 mm
KF1200: 121*80*13.8 mm |
| Operating Humidity |
10% to 90%RH |
| Supported Softwares |
ZKBio Access IVS |

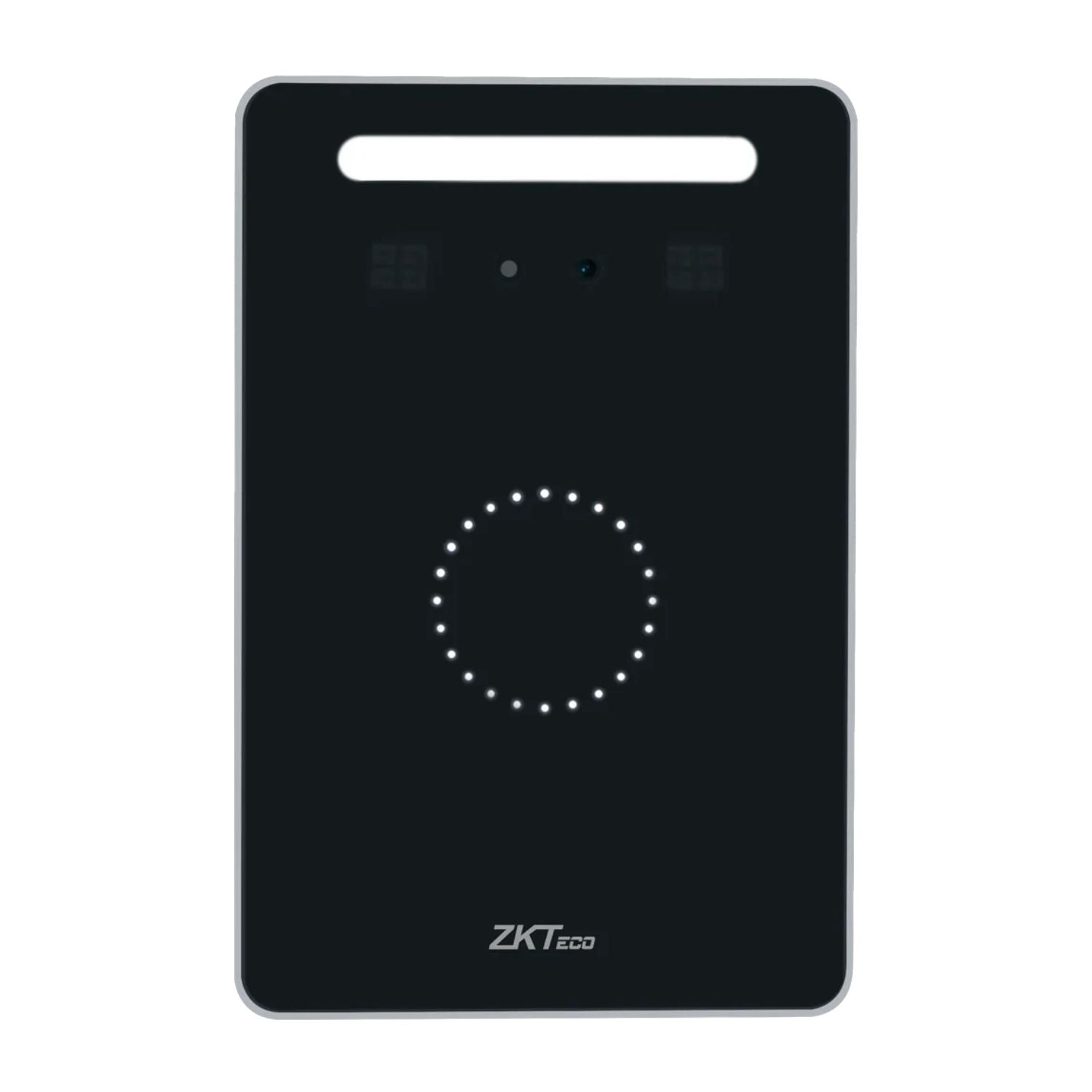

![ZKTeco Face Recognition and Card Reader - KF 1200[IC]](http://www.spymonkey.com.au/cdn/shop/files/ZKTecoKF1200_IC_1.jpg?v=1701321571)

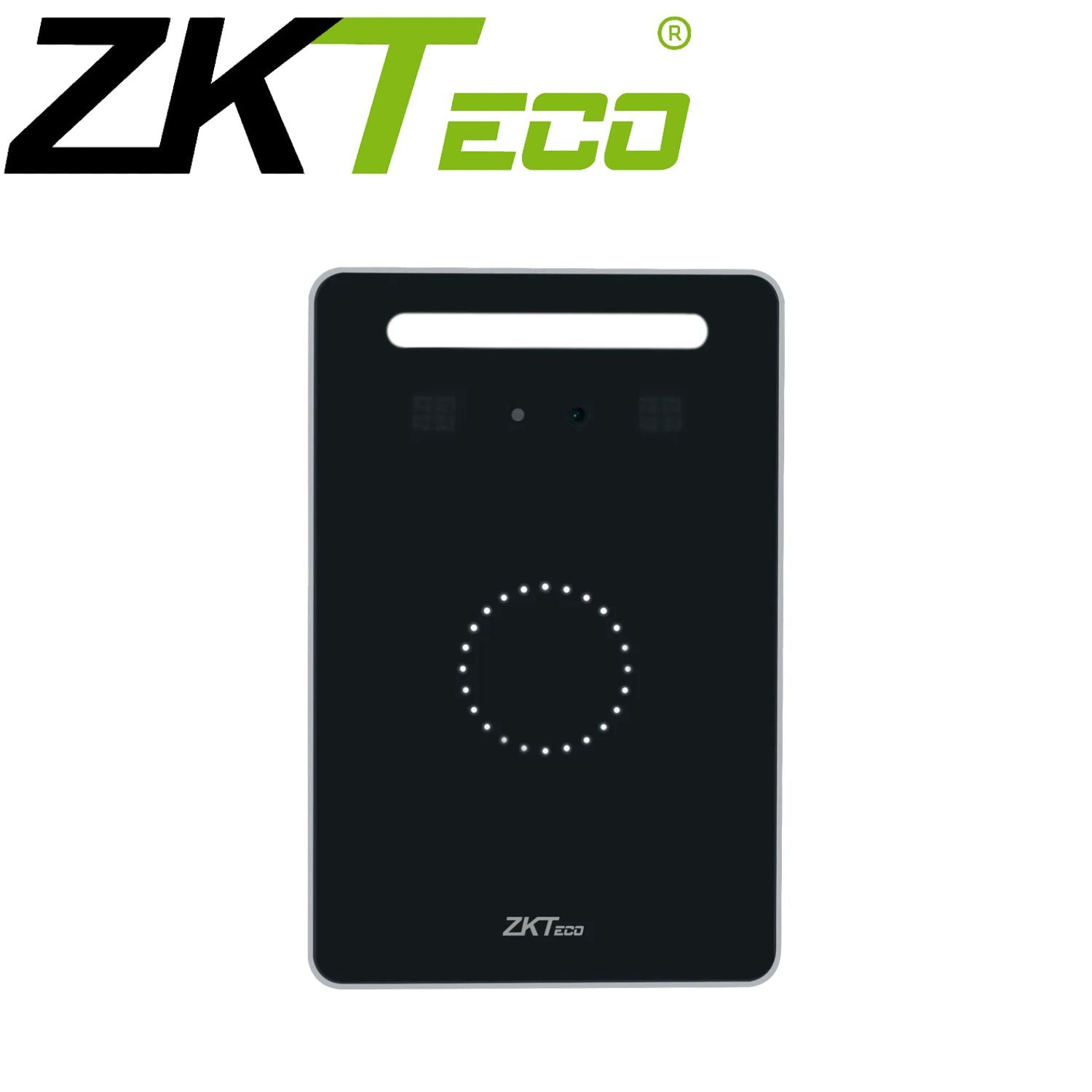

![ZKTeco Face Recognition and Card Reader - KF 1200[IC]](http://www.spymonkey.com.au/cdn/shop/files/ZKTecoKF1200_IC.jpg?v=1701321571)
