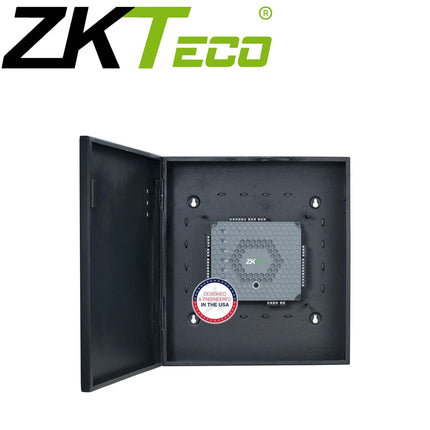

ZKTeco 1-door Network Controller Wi-Fi Panel - ATLAS 160

Description

Description

Atlas Series are State-of-the-art 1 door biometric access control panels with built-in Web Application that eliminates the need for any management software. Atlas Series supports any 3rd-party readers which communicates with Wiegand, RS485 or OSDP v2.1.7 (updated Nov. 2022) communication protocols.

Features

  • Advanced Access Control Features – built-in Web Application provides such features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
  • Choice of Readers – supports ZKTeco FR1500A fingerprint readers and additionally any 3rd-party readers with Wiegand or OSDP communication protocols.
  • Door Control and More – user-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device controlled by a switch.
  • Capacity – 1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Bio Series panel can store up to 5,000 users & 10,000 transactions.
  • Communication – Atlas Bio Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.
  • Mobile App – numerous features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
  • Power – Atlas Bio Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).
  • Lowest Total Cost of Ownership – Atlas Bio Series panels
Datasheet
Tech Specs

ZKTECO 1-door Network Controller Wifi Panel - ATLAS 160

Number of Doors Controlled 1 Door
Number of Readers Supported 2 (Fingerprint Readers), 2 (Wiegand or OSDP Readers)
Types of Readers Supported ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS485 readers
Number of Inputs 4 (Exit Device, Door Contact and 2 Aux)
Number of Outputs 2 (1 Form C relay for lock and 1 Form C relay for Aux output)
User Capacity 5000 (Fingerprint and/or card users)
Fingerprint Template Capacity 5000 (up to 10 fingerprints per user)
Logs 10, 10000 transactions plus unlimited archive downloads
Weight 3.8kg (9lbs)
Communication OSDP, TCP/IP, Wi-Fi, Wiegand
Browsers Supported Chrome, Edge, Firefox
Enclosure Powder Coated Aluminium
Mounting Wall Mount
Recommended Power Supply 12V DC, 3A (PoE)
Dimensions (Bundle Only) 380*80*280mm (15*3.15*11in (l*w*h)
Dimensions (Board Only) 160*106mm (6.3*4.17in)

Read more

ZKTeco 1-door Network Controller Wi-Fi Panel - ATLAS 160

Product form

SKU: ATLAS 160

$952.00 $841.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    Atlas Series are State-of-the-art 1 door biometric access control panels with built-in Web Application that eliminates the need for any management software. Atlas Series supports any 3rd-party readers which communicates with Wiegand, RS485 or OSDP v2.1.7 (updated Nov. 2022) communication protocols.

    Features

    • Advanced Access Control Features – built-in Web Application provides such features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
    • Choice of Readers – supports ZKTeco FR1500A fingerprint readers and additionally any 3rd-party readers with Wiegand or OSDP communication protocols.
    • Door Control and More – user-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device controlled by a switch.
    • Capacity – 1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Bio Series panel can store up to 5,000 users & 10,000 transactions.
    • Communication – Atlas Bio Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.
    • Mobile App – numerous features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
    • Power – Atlas Bio Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).
    • Lowest Total Cost of Ownership – Atlas Bio Series panels
    Datasheet
    Tech Specs

    ZKTECO 1-door Network Controller Wifi Panel - ATLAS 160

    Number of Doors Controlled 1 Door
    Number of Readers Supported 2 (Fingerprint Readers), 2 (Wiegand or OSDP Readers)
    Types of Readers Supported ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS485 readers
    Number of Inputs 4 (Exit Device, Door Contact and 2 Aux)
    Number of Outputs 2 (1 Form C relay for lock and 1 Form C relay for Aux output)
    User Capacity 5000 (Fingerprint and/or card users)
    Fingerprint Template Capacity 5000 (up to 10 fingerprints per user)
    Logs 10, 10000 transactions plus unlimited archive downloads
    Weight 3.8kg (9lbs)
    Communication OSDP, TCP/IP, Wi-Fi, Wiegand
    Browsers Supported Chrome, Edge, Firefox
    Enclosure Powder Coated Aluminium
    Mounting Wall Mount
    Recommended Power Supply 12V DC, 3A (PoE)
    Dimensions (Bundle Only) 380*80*280mm (15*3.15*11in (l*w*h)
    Dimensions (Board Only) 160*106mm (6.3*4.17in)

    Read more
