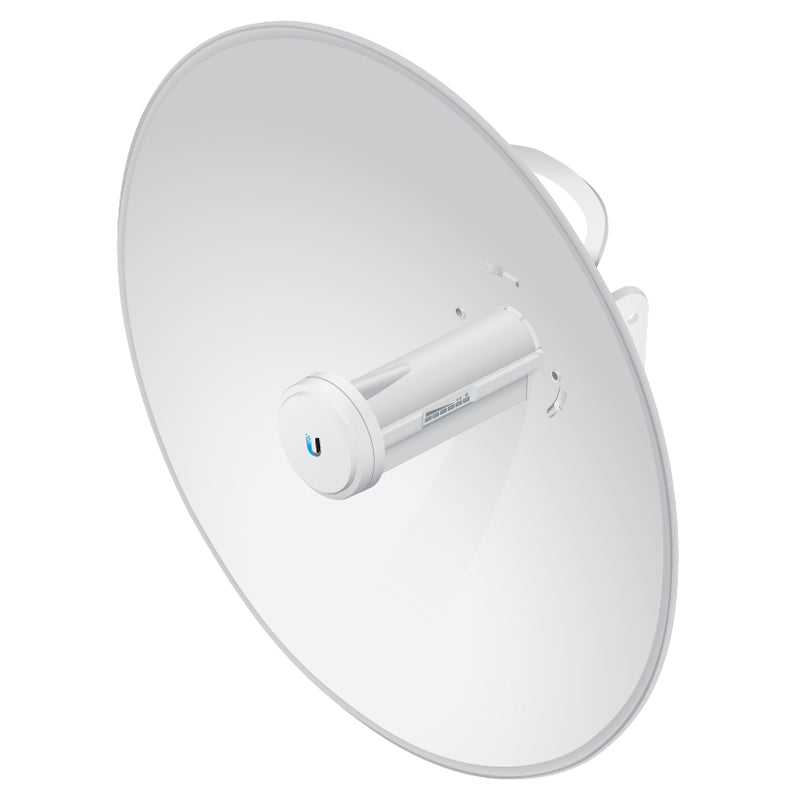

Incorporating a dish reflector design with proprietary technology, the WT5-UPBAC52 is ideal for CPE deployments requiring maximum performance. Its excellent beam directivity provides excellent performance in high-noise environments.
Features:
• Built-in mechanical ±20° up/down tilt
• Easy removal with a detachable antenna feed
• Extensive transmission range, exceeding 25km in ideal conditions
• Breakthrough throughput supports up to 450+ Mbps
• Operates with a gain measuring 25dBi
• Frequency range reaching 5Ghz
• Galvanised steel dish reflector for corrosion resistance
• Protective for further weather protection
• Configure via smartphone over WiFi
Downloads
Tech Specs
| Specification |
Details |
| Channel Sizes |
PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Dimensions |
420 x 420 x 230mm |
| Enclosure |
Outdoor UV Stabilized Plastic |
| ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
| Gain |
25 dBi |
| LED |
Power, Ethernet, Signal strength |
| Management Radio |
2412-2472Mhz |
| Max. Power Consumption |
8.5W |
| Max. VSWR |
1.5:1 |
| Memory |
64MB |
| Mounting |
Pole-Mount (Kit Included) |
| Networking Interface |
(1) 10/100/1000 Ethernet Port |
| Operating Frequency |
Worldwide: 5150 - 5875 MHz |
| Operating Humidity |
5 to 95% Noncondensing |
| Operating Temperature |
-40 to 70° C |
| Polarization |
Dual Linear |
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
| Processor Specs |
MIPS 74Kc |
| RoHS Compliance |
Yes |
| Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Signal Strength LEDs |
Software-Adjustable to Correspond to Custom RSSI Levels |
| Supported Voltage Range |
20 to 26VDC |
| Temperature Shock Test |
IEC 68-2-14 |
| UV Test |
IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4 |
| Vibration Test |
IEC 68-2-6 |
| Weight |
2.22kg |
| Wind Loading |
380 N @ 200 km/h |
| Wind Survivability |
200 km/h |
| Wind-Driven Rain Test |
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Wireless Approvals |
FCC, IC, CE |
2-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
