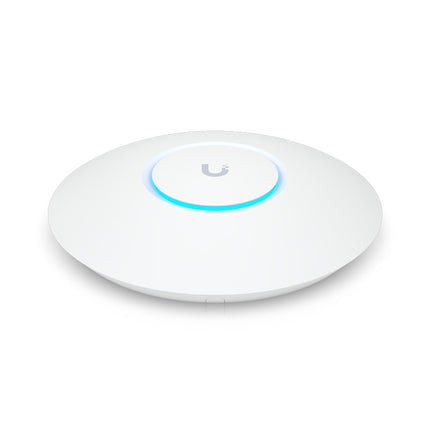

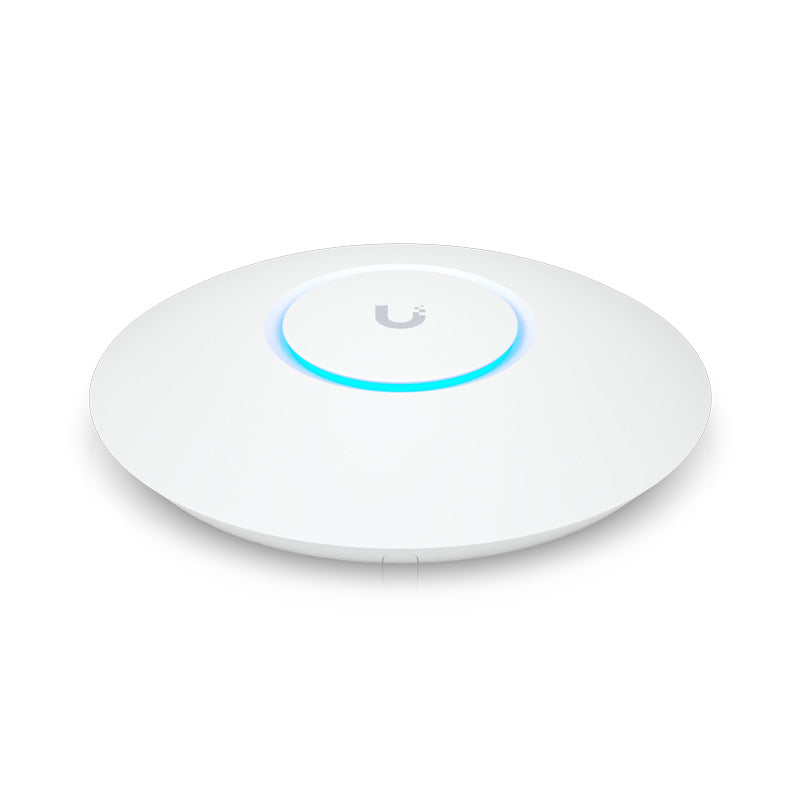

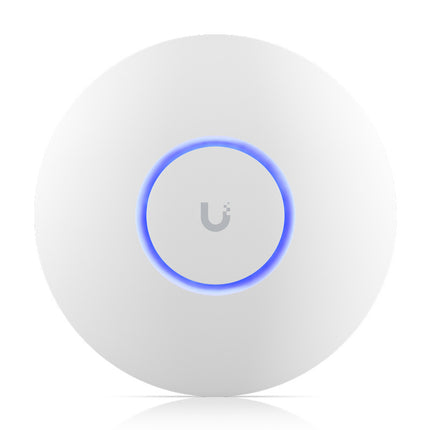

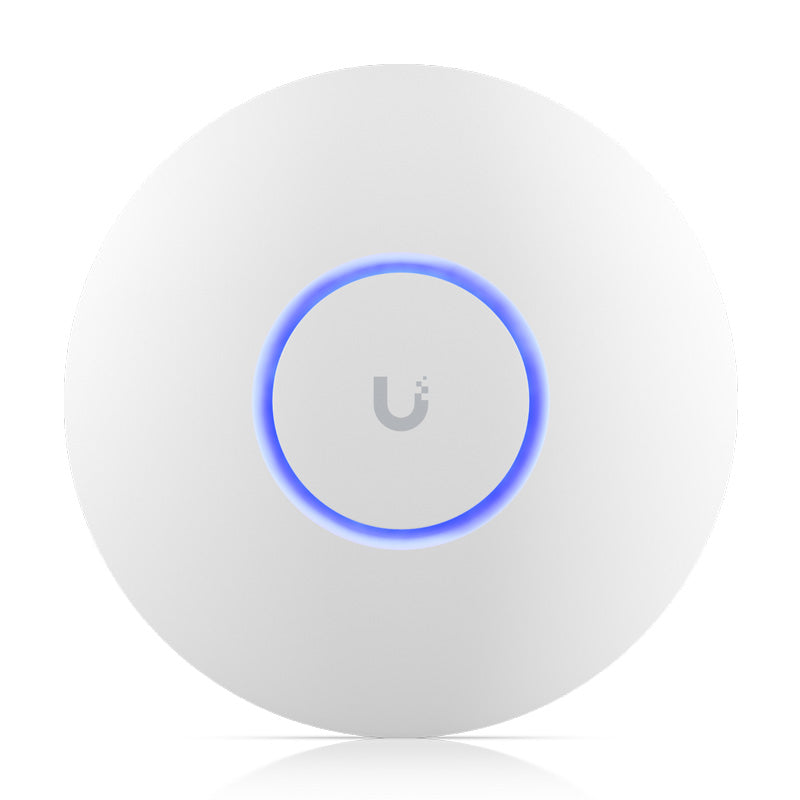

The WT5-U6P, Ubiquiti U6+ is a compact, high speed access point, delivering dual band WiFi 6 up to 115m² .
The WT5-U6P is an ideal access point for residential and small to medium sized commercial applications.
• 802.11a/b/g, WiFi 4/5/6 supported WiFi standards
• 2x2 MIMO 2.4GHz and 2x2 MIMO 5GHz 23dBm antennas
• High throughput rates up to 573Mbps (2.4GHz) and 2402Mbps (5GHz)
• Supports over 300 connected devices; concurrent clients
• Gigabit Ethernet (1000M) RJ45 uplink/networking interface
• PoE powered; 44~57V DC supported voltage (PoE switch or injector sold separately)
• UniFi 7.3 and later for management and AP configuration (QoS, VLAN)
• Polycarbonate and aluminium construction; ABS & steel mount plate
• Overall dimensions Ø160mm x 33mm, 413g total weight
• For indoor use only
Downloads
Tech Specs
Specification |
Details |
Advanced QoS |
Per-user Rate Limiting |
Antenna Gain |
3dBi (2.4GHz), 5.4dBi (5GHz) |
BSSID |
8 per Radio |
Buttons |
Factory Reset Button |
Certifications |
CE, FCC, IC |
Concurrent Clients |
300+ |
Dimensions |
Ø160mm x 33mm |
Enclosure |
Polycarbonate & Aluminium Enclosure, ABS and Steel Mount Plate |
Guest Traffic Isolation |
Supported |
LED Indicators |
White/Blue LED |
Management |
Ethernet |
Management Application |
UniFi Network Version 6.0.34 and later |
Max. Coverage |
115m² |
Max. Power Consumption |
9W |
Max. Transmission Power |
23dBm (2.4GHz, 5GHz) |
MIMO Configuration |
2 x 2 (2.4GHz, 5GHz) |
Mounting Components |
Wall, Ceiling Mount (included) |
Network |
1 x GbE RJ45 port |
Operating Humidity |
5 ~ 95% (non-condensing) |
Operating Temperature |
-30 ~ 60°C |
Power Method |
PoE |
Power Supply |
N/A |
Supported Voltage Range |
44 ~ 57VDC |
Throughput Rate |
573Mbps (2.4GHz), 2402Mbps (5GHz) |
VLAN |
802.1Q |
Weather Resistance |
Indoor Only |
Weight |
338g, 413g with mount |
WiFi Standards |
802.11a/b/g/n/ac/ax |
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
Zero-wait DFS |
Supported* (firmware dependent) |
1-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
