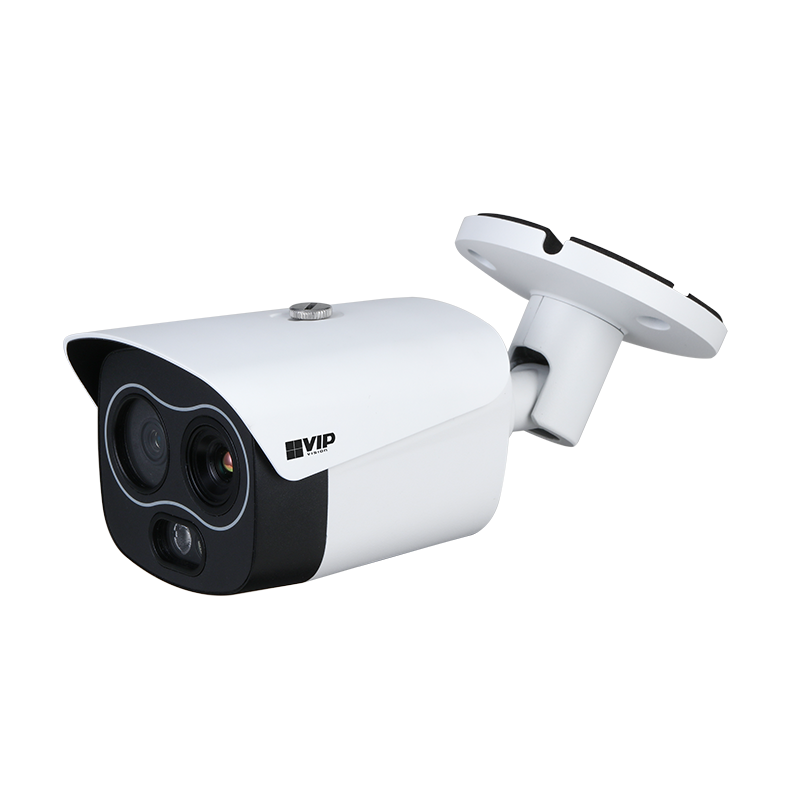

By combining traditional image & thermal sensors, VIP Vision hybrid thermal cameras redefine your expectations of surveillance. Enhance images with Image Fusion thermal overlay, achieve excellent motion detection accuracy, setup thermal perimeters using IVS, and detect fires before they spread, all in a compact weather rated chassis.
| Specification |
Details |
| Alarm Interface |
1 Input / 1 Output |
| Aperture |
Thermal: F1.0 Visible: F1.6 |
| Audio Interface |
1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Close Focus Distance |
Thermal: 0.5m Visible: 1.0m |
| Colour Palettes |
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.) |
| Day/Night |
Auto (ICR) / Color / B&W |
| Dimensions & Weight |
206mm x 91mm x 91mm. 0.90kg |
| Edge Storage |
MicroSD Card (up to 128GB) / NAS / Local PC |
| Effective pixel (Thermal) |
256 (H) x 192 (V), 12μm Pixel Pitch |
| Effective pixel (Visible) |
2336 (H) x 1752 (V) |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Field of View |
Thermal: 50° Visible: 71° |
| Focal Length |
Thermal: 3.5mm Visible: 4.0mm |
| Gain Control |
Auto / Manual |
| Housing |
Full Metal Enclosure |
| Image Fusion Modes |
Warm Colour, Cool Colour, Ironred |
| Image Sensor (Thermal) |
Vanadium oxide uncooled focal plane detector |
| Image Sensor (Visible) |
1/2.7’’ 4.0MP Progressive Scan CMOS |
| Image Settings |
Digital Detail Enhancement, Auto Gain Control, 2D/3D Noise Reduction |
| Infrared System |
1 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Tripwire Rules, Intrusion Rules, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Interoperability |
ONVIF / CGI |
| Lighting Compensation |
BLC / HLC / Digital WDR |
| Max. Resolution |
4.0 Megapixel |
| Max. User Access |
10 Users / 20 Users |
| Min Illumination |
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on) |
| Network Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Noise Reduction |
3D DNR |
| Operating Conditions |
-30° ~ +50° C / Less than 95% RH |
| Picture Control |
90° / 180° / 270° |
| Power Consumption |
<8W~14W (12VDC), 4.8~12.3W (PoE) |
| Power Supply |
12VDC / PoE |
| Range & Sensitivity |
Range: 8~14um Sensitivity (NETD): <40mK (at f/1.0, 25 Hz, 300 K) |
| Resolution & Frame Rate (Main) |
Thermal: 1280 x 960 to 256 x 192 at 1~25fps Visible: 4.0MP (2336 x 1752) ~ D1 (704 x 576) at 1~25fps |
| Resolution & Frame Rate (Sub) |
Thermal: VGA (640 x 480) to 256 x 192 at 1~25fps Visible: 720p (1280 x 720) to CIF (352 x 288) at 1~25fps |
| Series |
Hybrid Vision Thermal Series |
| Thermal Functions |
Heat Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Mobile Phone Use Detection |
| Vandal Resistance |
N/A |
| Video Compression |
H.265; H.264M; H.264H; H.264B; MJEPG |
| White Balance |
Auto / Natural / Street Lamp / Tracking / Outdoor / Manual |
