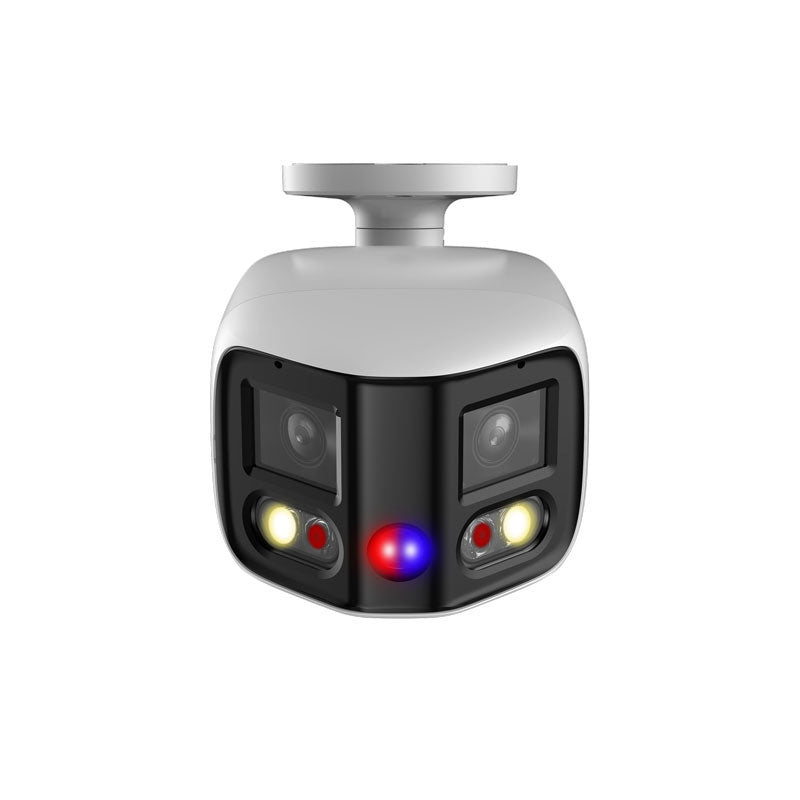

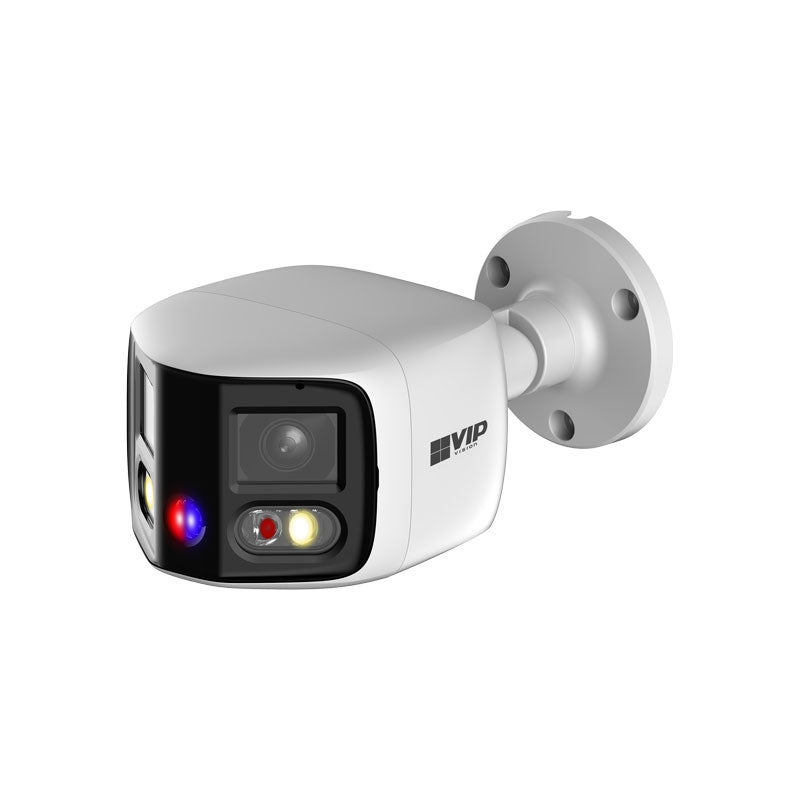

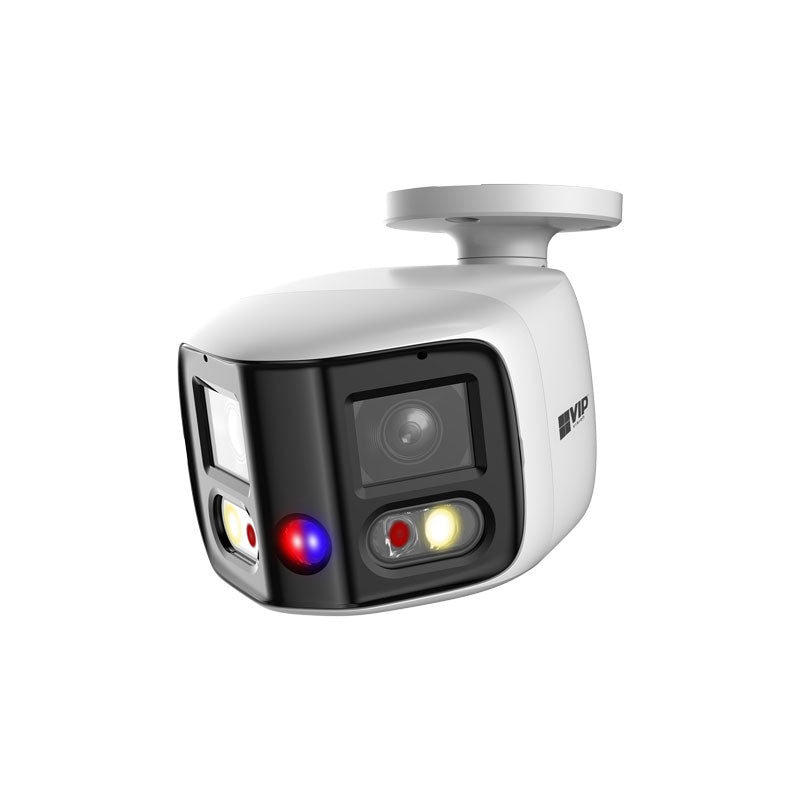

The VIP Vision VSIPP-8BD-ID3 in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and business. Perform the job of multiple cameras in a single camera with panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.
This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.
Features:
• Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
• Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
• 24/7 Colour low light performance at with colour 0.005lx minimum illumination
• 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
• Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Built-in microphone and loudspeaker for 2-way talking
• 1 Audio In/Output (RCA)
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use
Downloads
Tech Specs
| Specification |
Details |
| Active Deterrence |
1 x Red & Blue Strobe, 1 x Siren Loudspeaker |
| Alarm Interface |
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC |
| Audio Interface |
Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723 |
| Bit Rate |
H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
51m |

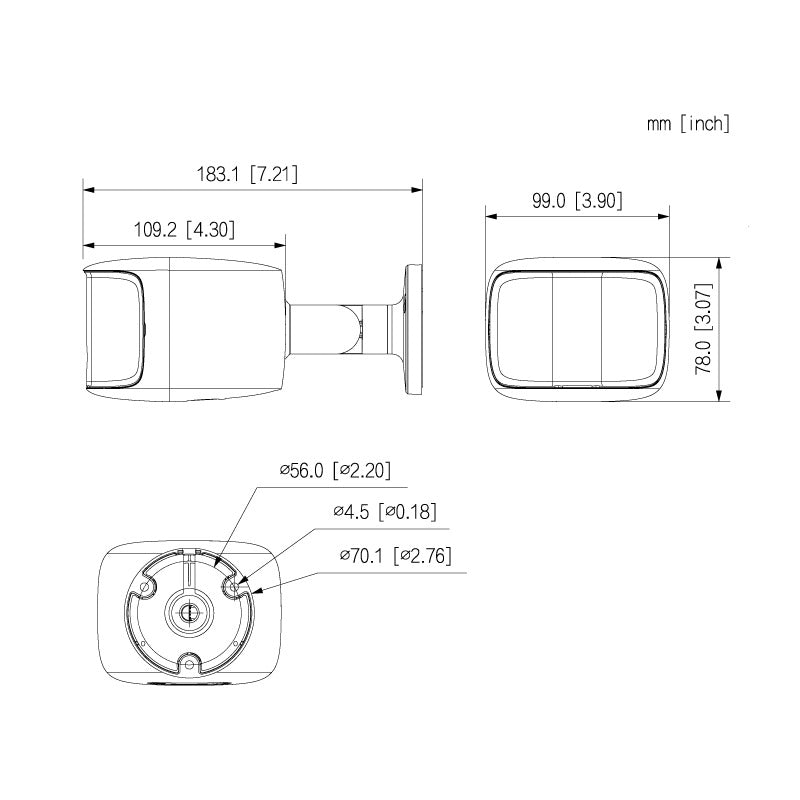

| Dimensions |
Ø 183mm x 99mm x 78mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
| Effective Pixels |
4096 (H) x 1860 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
Horizontal: 180°, Vertical: 86° |
| Focus |
Auto Focus / 0.8m Min. Focus Distance |
| Frame Rate (Main) |
8.0MP (1 ~ 20fps) |
| Frame Rate (Sub) |
1200 x 530 (1 ~ 20fps) |
| Frame Rate (Third) |
1920 x 860 (1 ~ 20fps) |
| Gain Control |
Auto |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
5m |
| Image Sensor |
Dual 1/2.7” 8.0MP Progressive Scan CMOS |
| Infrared System |
2 x Infrared LED, 25m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle |
| Interoperability |
ONVIF (Profile S, Profile G, Profile T) / CGI |
| Lens / Iris |
2.8mm F1.4 Fixed Focal Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
8.0 Megapixel |
| Max. User Access |
20 Users (Total bandwidth: 64MB) |
| Min Illumination |
0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR) |
| Net Weight |
0.69kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
20m |
| Operating Conditions |
-40°C ~ +60°C / ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360°, Tilt: 0° ~ 77°, Rotation: 0° ~ 360° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles) |
| Picture Control |
N/A |
| Power Consumption |
Deterrence: <9W (12VDC), <10.35W (PoE) |
| Power Supply |
12VDC / PoE (802.3af) |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| RAM / ROM |
1GB / 128MB |
| Recognise (125px/m) |
10m |
| Resolution |
8.0MP (4096 x 1860) to 960 x 432 |
| RS485 |
N/A |
| S/N Ratio |
> 56dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Multicast |
| Vandal Resistance |
N/A |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| White Light LED |
2 x Warm White LED, 20m range, Auto/manual on/off control |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
