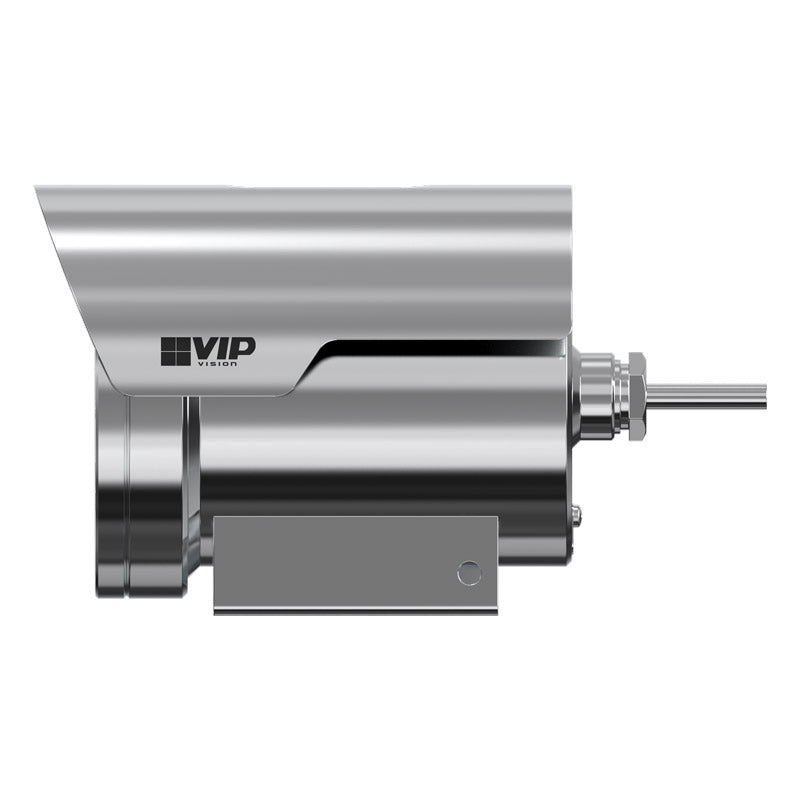

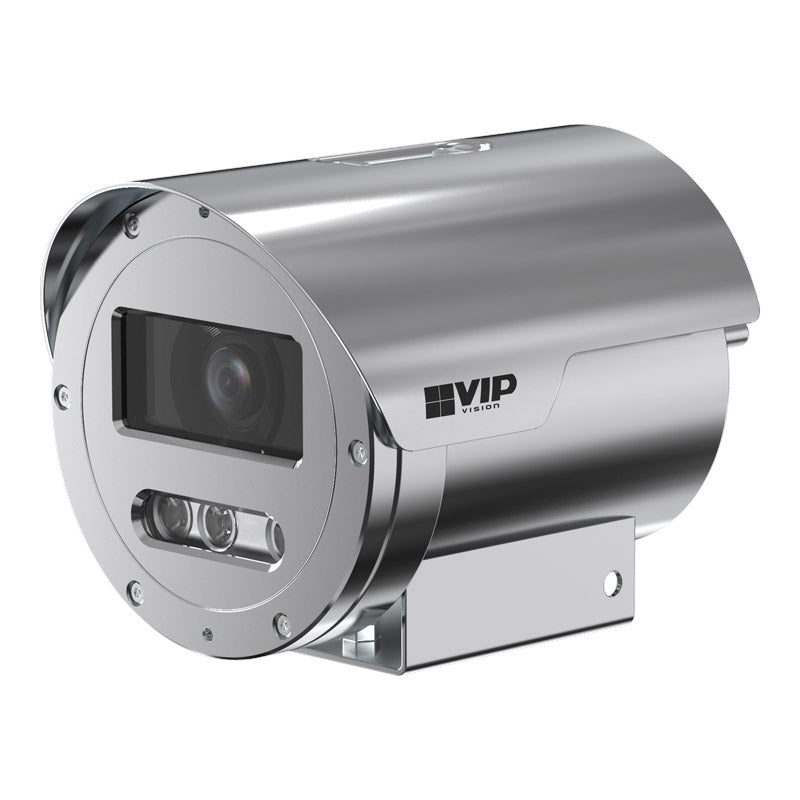

The Explosion Rated Series offers ATEX and IECEx rated varifocal cameras for CCTV monitoring in hazardous environments where ignition sources must be strictly controlled. Built for energy & manufacturing industries, models in this range deliver superb video surveillance with AI functions, in a heavy duty, IP68 stainless steel chassis.
Features:
• Stream up to 8.0MP@25fps (3840 x 2160), AI H.265
• ATEX/IECEx: Zone 1/2 Gas (IIC); Zone 21/22 dust (IIIC)
• Up to 50m infrared range; true day/night (auto ICR)
• AI people counting via tripwire with data export
• AI human/vehicle detection up to 99% accuracy
• 2.7~13.5mm motorised lens (H: 109°~30°), fixed iris
• True WDR (120dB) & electronic image stabilisation
• Audio I/O (RCA), 1/1 alarm I/O and 1 x RS485 port
• MicroSD (up to 512GB); powered via PoE/12VDC
• IP68 rated stainless steel chassis (304, 316L optional)

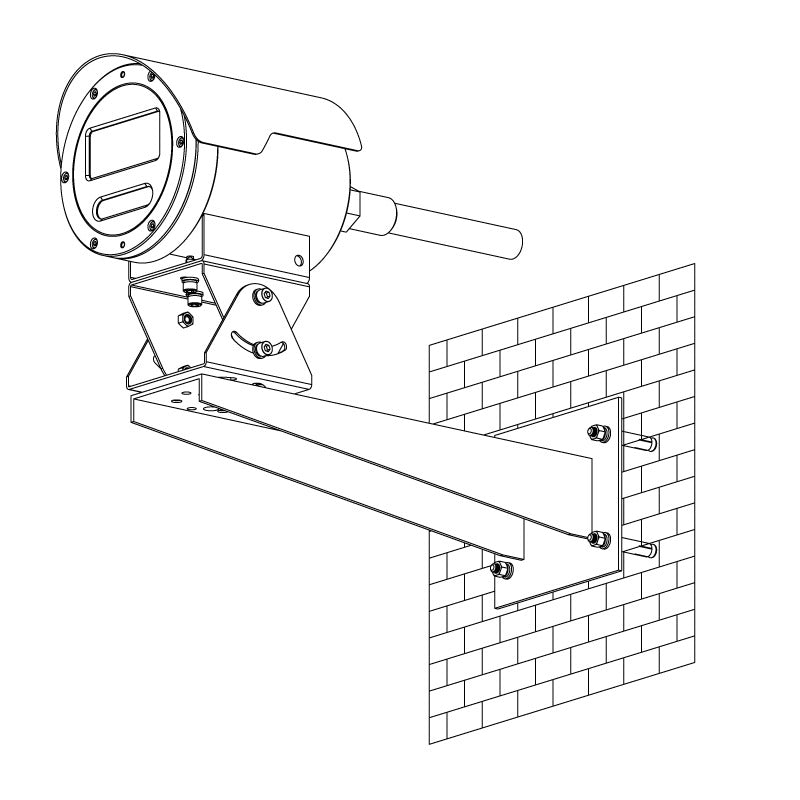

Additional mount adapter/wall mount bracket (VSIPEX-BU, VSIPEX-BW) sold separately.
Downloads
Tech Specs
| Specification |
Details |
| Alarm Interface |
1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC) |
| Audio Interface |
1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC |
| Bit Rate |
H.264 / H.265: 32 ~ 16,384Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
88m (wide) / 290m (tele) |

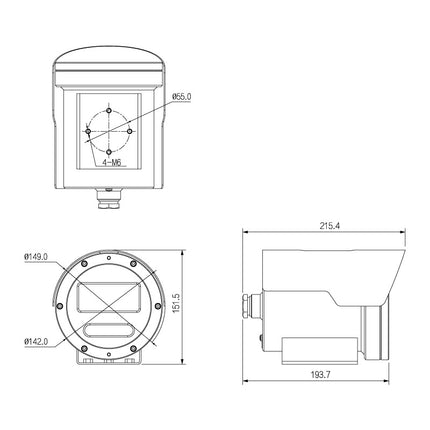

| Dimensions |
215mm x 149mm x 151mm |
| Edge Storage |
MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP |
| Effective Pixels |
3840 (H) x 2160 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (100/1000 Base-T) |
| Field of View |
Horizontal: 109~30°, Vertical: 56~17° |
| Focus |
Fixed |
| Frame Rate (Main) |
8.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
2.0MP / 1080p (1 ~ 25fps) |
| Gain Control |
Auto |
| Housing |
Stainless Steel (SUS304, SUS316L optional) |
| Identify (250px/m) |
8.8m (wide) / 29m (tele) |
| Image Sensor |
1/2.8’’ 4.0MP Progressive Scan CMOS |
| Infrared |
Yes |
| Infrared System |
3 x Infrared LED, 50m range, Auto/manual on/off control |
| Ingress Protection |
IP68 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map |
| Interoperability |
ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; Genetec |
| IVS |
Yes |
| Lens / Iris |
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
8.0 Megapixel |
| Max. User Access |
20 (Total bandwidth: 80Mbps) |
| Min Illumination |
0.007 Lux/F1.5 (Colour), 0.0007 Lux/F1.5 (B&W), 0 Lux (IR on) |
| Net Weight |
5kg (Net) |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
35m (wide) / 116m (tele) |
| Operating Conditions |
-30° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation |
N/A |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 4.0MP resolution and lower) |
| Power Consumption |
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE) |
| Power Supply |
12VDC / PoE |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| RAM / ROM |
1GB / 128MB |
| Recognise (125px/m) |
18m (wide) / 58m (tele) |
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| RS485 |
1 port (1200~115,200bps baud rate) |
| RTMP Support |
Yes |
| S/N Ratio |
> 56dB |
| Series |
Specialty Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
N/A |
| Tri-Axis Mounting |
N/A |
| Ultra Low Light Colour |
N/A |
| Vandal Resistance |
N/A |
| Video Compression |
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG |
| Video Interface |
N/A |
| Weather Resistance |
Yes |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
