Special Order
Please check with our team for information on availability.

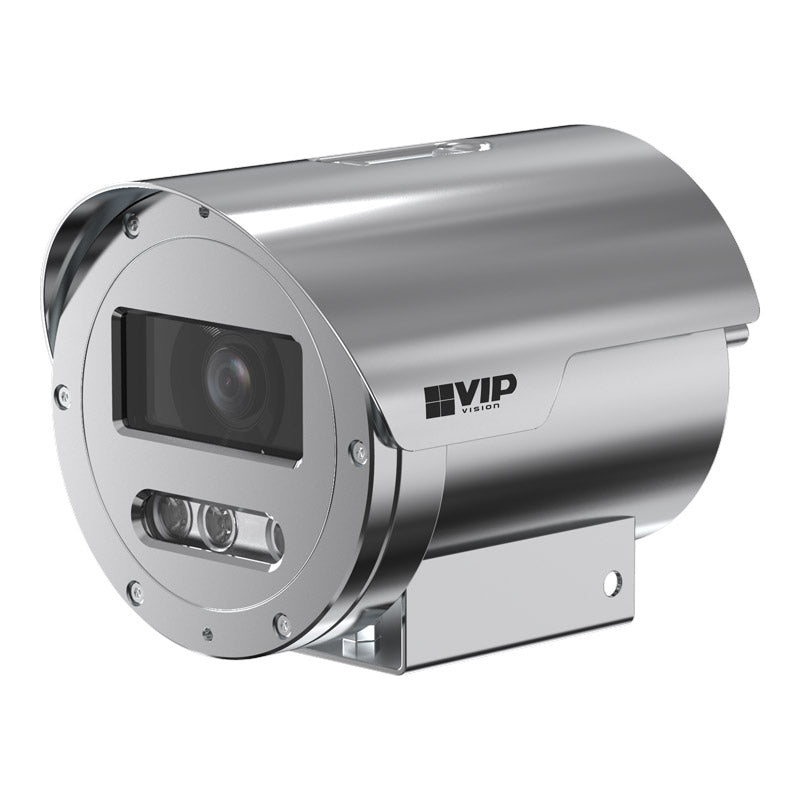

The Explosion Rated Series offers ATEX and IECEx rated varifocal cameras for CCTV monitoring in hazardous environments where ignition sources must be strictly controlled. Built for energy & manufacturing industries, models in this range deliver superb video surveillance with AI functions, in a heavy duty, IP68 stainless steel chassis.
Features:
• Stream up to 4.0MP@25fps (2688 x 1520), AI H.265
• ATEX/IECEx: Zone 1/2 Gas (IIC); Zone 21/22 dust (IIIC)
• Up to 50m infrared range; true day/night (auto ICR)
• AI people counting via tripwire with data export
• AI human/vehicle detection up to 99% accuracy
• 2.7~13.5mm motorised lens (H: 99~29°), fixed iris
• True WDR (120dB) & electronic image stabilisation
• Audio I/O (RCA), 1/1 alarm I/O and 1 x RS485 port
• MicroSD (up to 512GB); powered via PoE/12VDC
• IP68 rated stainless steel chassis (304, 316L optional)

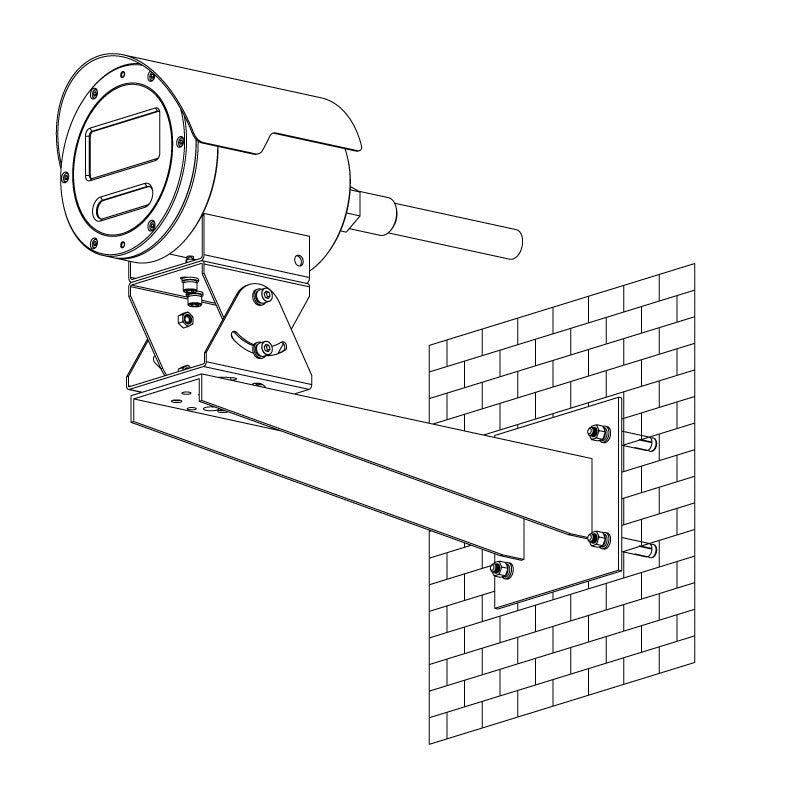

Additional mount adapter/wall mount bracket (VSIPEX-BU, VSIPEX-BW) sold separately.
Downloads
Tech Specs
| Specification |
Details |
| Alarm Interface |
1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC) |
| Audio Interface |
1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC |
| Bit Rate |
H.264 / H.265: 32 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
64m (wide) / 210m (tele) |

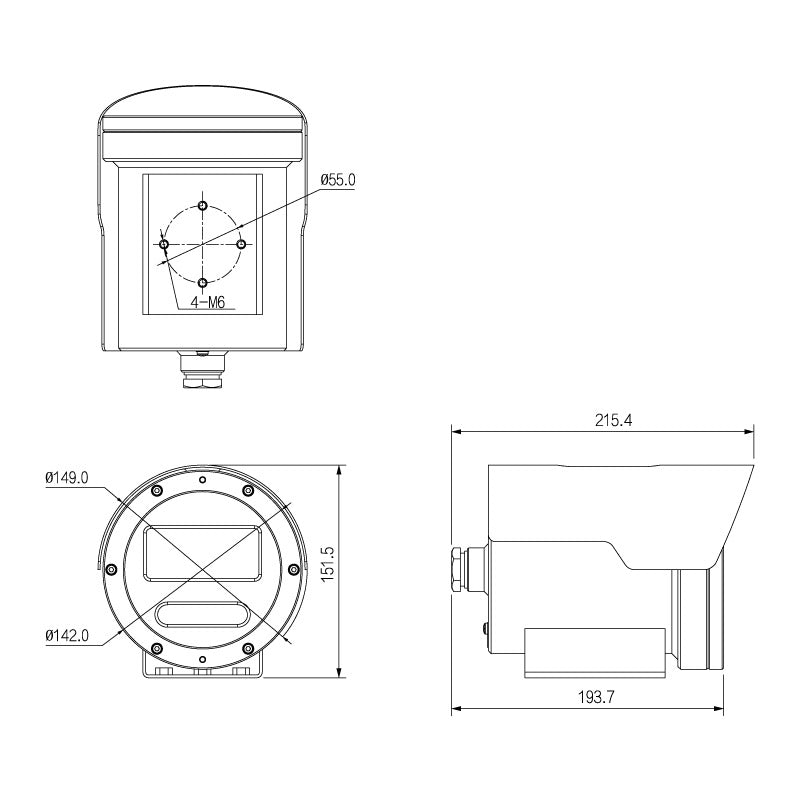

| Dimensions |
215mm x 149mm x 151mm |
| Edge Storage |
MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP |
| Effective Pixels |
2688 (H) x 1520 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (100/1000 Base-T) |
| Field of View |
Horizontal: 99~29°, Vertical: 53~16° |
| Focus |
Fixed |
| Frame Rate (Main) |
4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
2.0MP / 1080p (1 ~ 25fps) |
| Gain Control |
Auto |
| Housing |
Stainless Steel (SUS304, SUS316L optional) |
| Identify (250px/m) |
6.4m (wide) / 21m (tele) |
| Image Sensor |
1/2.8’’ 4.0MP Progressive Scan CMOS |
| Infrared |
Yes |
| Infrared System |
3 x Infrared LED, 50m range, Auto/manual on/off control |
| Ingress Protection |
IP68 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map |
| Interoperability |
ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; Genetec |
| IVS |
Yes |
| Lens / Iris |
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
4.0 Megapixel |
| Max. User Access |
20 (Total bandwidth: 80Mbps) |
| Min Illumination |
0.005 Lux/F1.5 (Colour), 0.0005 Lux/F1.5 (B&W), 0 Lux (IR on) |
| Net Weight |
5kg (Net) |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
25m (wide) / 84m (tele) |
| Operating Conditions |
-30° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation |
N/A |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 4.0MP resolution and lower) |
| Power Consumption |
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE) |
| Power Supply |
12VDC / PoE |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| RAM / ROM |
512MB / 128MB |
| Recognise (125px/m) |
13m (wide) / 42m (tele) |
| Resolution |
4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 |
1 port (1200~115,200bps baud rate) |
| RTMP Support |
Yes |
| S/N Ratio |
> 56dB |
| Series |
Specialty Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
N/A |
| Tri-Axis Mounting |
N/A |
| Ultra Low Light Colour |
N/A |
| Vandal Resistance |
N/A |
| Video Compression |
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG |
| Video Interface |
N/A |
| Weather Resistance |
Yes |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
