Description

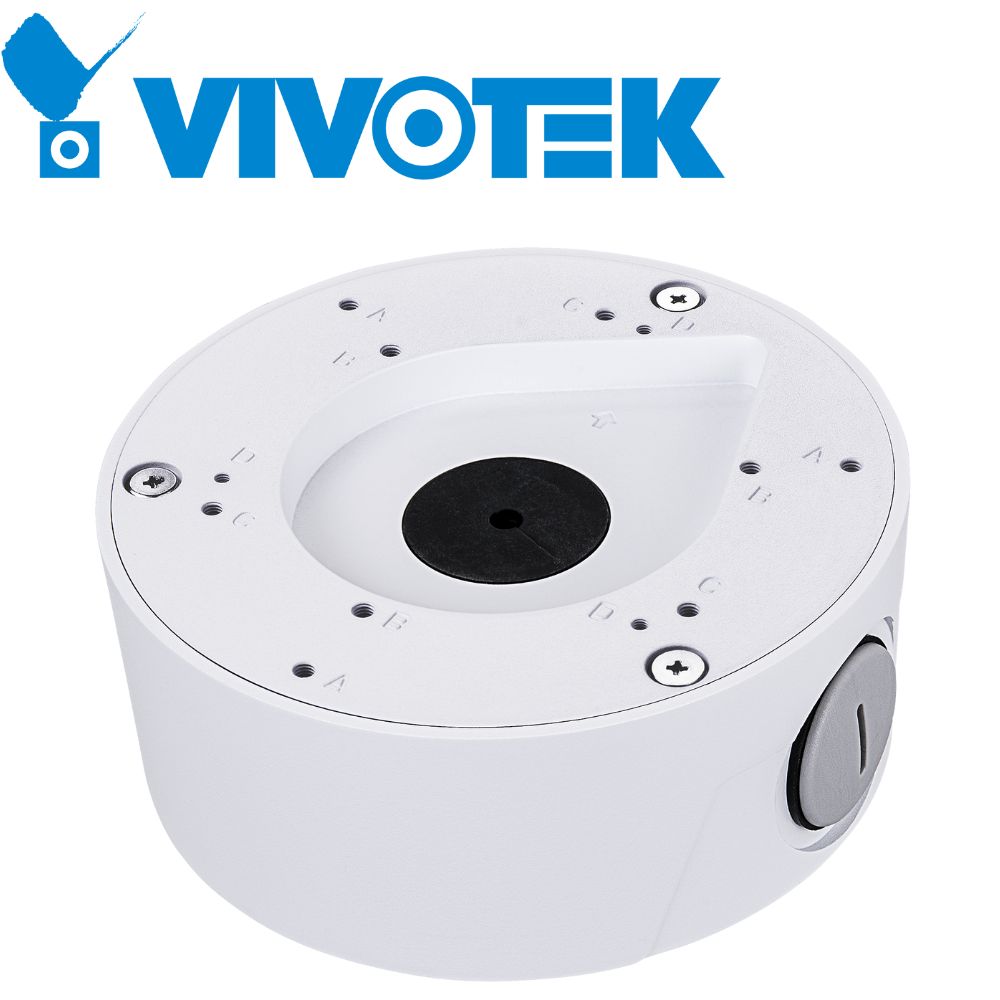

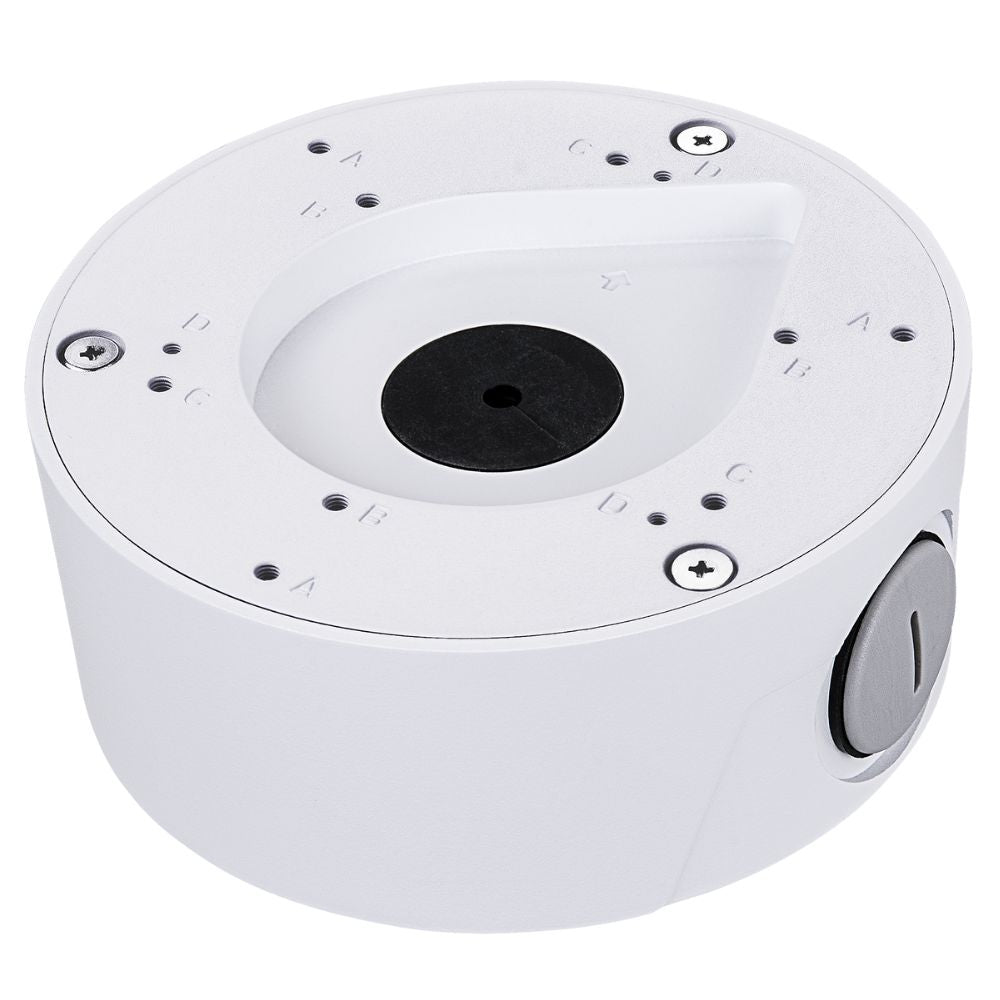

Waterproof Conduit Box
Supported Models:
V01: FD9189-H(T)-v2, FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-EH(T)V-v2, IT9388-HT
V02: FD9189-H(T)-v2, FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-EH(T)V-v2, IT9388-HT, IT9389-H-v2
Adapting Ring: AM-522
Downloads
- Vivotek Waterproof Conduit Box -AM-71B-V02
Tech Specs
Product Information |
Model |
AM-71C |
P/N |
100220500G |
| Material |
Aluminum Alloy |
| Color |
White |
| Pipe Thread |
PF 3/4” |
| Casing |
IP66 (with supported cameras) |
| Dimensions |
122 (L) x 122 (W) x 76 (H) mm |
| Weight |
745 g |
| Box Dimension |
217 (L) x 174 (W) x 94 (H) mm (1pc) |
| Box Weight |
948 g |
| Carton Dimension |
490 (L) x 367 (W) x 252 (H) mm (10pcs) |
| Carton Weight |
10,396 g |
| Note |
This product is recommended for general outdoor environments, excluding coastal areas with high salinity. |
