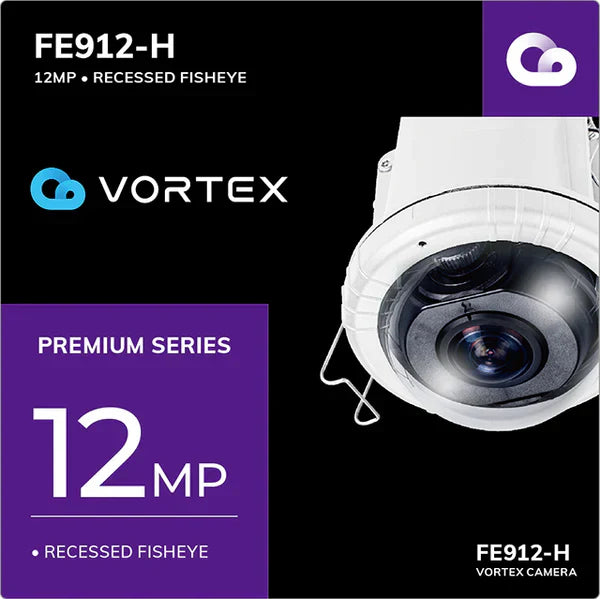

Vivotek Vortex 12MP Fixed Recessed Camera

Description

Description

VORTEX, Premium Series, 12 MP, Fixed Lens, Recessed Mount, Indoor, FCC/CE/UL/NDAA/TAA.

*SPECIAL ORDER ONLY

Key Features

  • Essential and Premium series
  • From 2 MP up to 12 MP resolution
  • Crystal clear image quality
  • Easy to install, with zero configuration
  • Embedded AI analytics
  • Onboard storage for up to 30 days
  • Weather-proof and vandal-proof
  • Subtle designs
  • NDAA compliance

Datasheet

Vivotek Vortex 12mp Fixed Recessed Camera-FE912-H- Datasheet

Vivotek Vortex 12mp Fixed Recessed Camera-FE912-H -QIG

Tech Specs

Camera Features

Image sensor

1/2.3" Progressive CMOS

Resolution

SD: 1024 x 1024
HD: 2944x2944

Lens Types

Fixed-focal

Focal Length

f = 1.22mm

Aperture

F2.0

Iris

Fixed iris

Field of View

180° (Horizontal)

180° (Vertical)

180° (Diagonal)

Camera Movement

-

Shutter Speed

1/5 sec. to 1/32,000 sec.

Day/Night

Yes

IR Cut Filter

Yes

IR Range

-

WDR Technology

WDR Pro

Minimum Illumination

0.1 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W

Onboard Storage

MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SDCard)

Standard Video Settings

Frame Rate

15FPS

Video Streaming Settings

HD Video 2944 x 2944@15fps 3Mbps upload
SD Video 1024 x 1024@15fps 300Kbps upload

Standard Audio Settings

Audio

One-way Audio

Interface

Built-in microphone

Effective Range

5 meters

Power and Network

Power input

IEEE 802.3af PoE Class 0

Power Consumption

Max. 9 W

Connectivity

RJ-45 cable connector for 10/100 Mbps PoE network connection

RTSP

WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP

Users

Up to 6 clients

*Live viewing for 6 clients

*live viewing up to 4 clients and playback 2 clients)

Security

Secure boot

Signed firmware

HTTPS/TLS encryption

Video encryption

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)

* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.





General

Operating Temperature

Starting Temperature: 0°C ~ 50°C (32°F ~122°F)

Working Temperature: -10°C ~ 50°C (14°F ~122°F)

Humidity

90% RH (non-condensing)

Certifications

EMC: CE (EN 55032 Class B, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class

B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL

62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IP54 (IEC

60529)

Warranty

120-month

Included Accessories

Quick installation guide

Mechanical

Weight

353 g

Dimensions

ø 82 x 122 mm

Body

Metal

AI Analytics

Audio detection

Yes

Tampering detection

Yes

People Analytics

Intrusion detection, Line crossing detection, Loitering detection,

Attribute Search, Scene Search, Re-Search, Profile Search

Vehicle Analytics

Intrusion detection, Line crossing detection, Loitering detection,

Attribute Search, Scene Search, Re-Search, LPR Search

Object Analytics

Unattended object detection, Missing object detection

Video

Vivotek Vortex 12MP Fixed Recessed Camera

Product form

SKU: FE912-H

$1,844.00 Incl. GST
