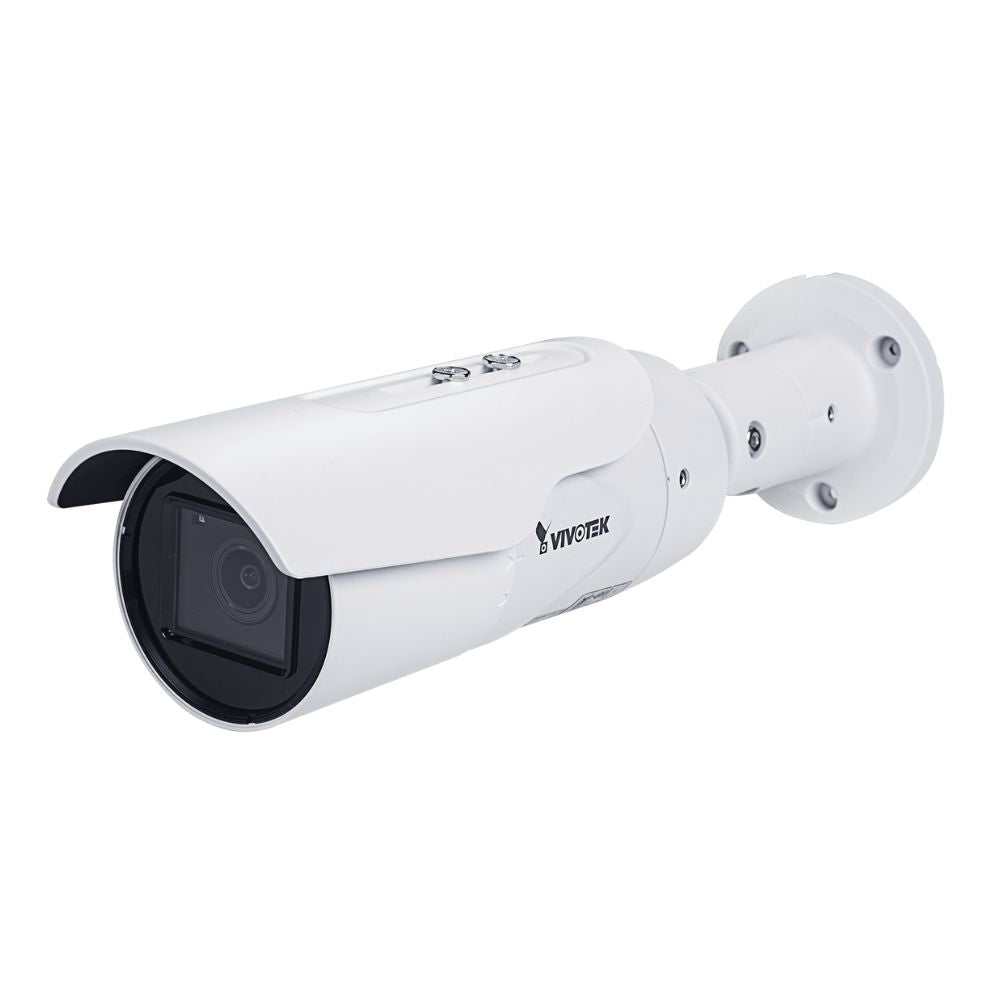

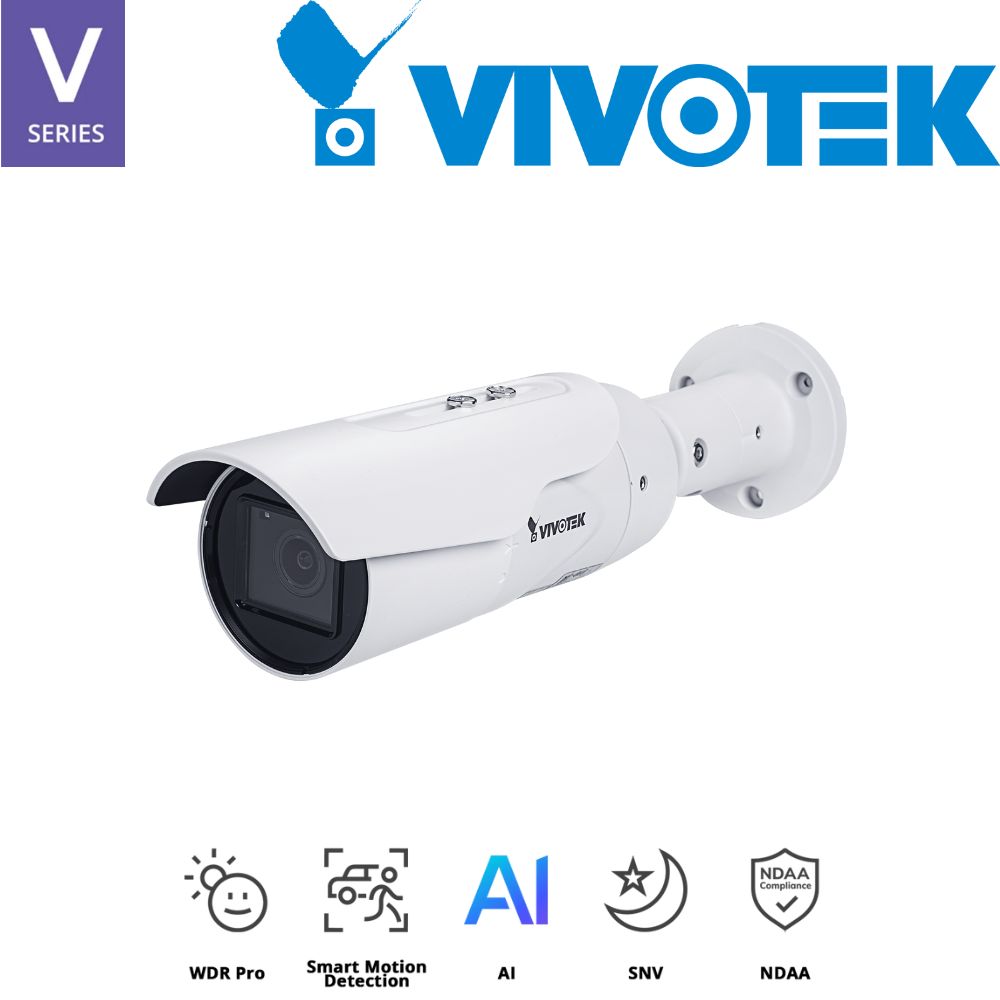

Vivotek V Series 5MP Fixed Bullet Camera - IB9389-EHT-V2

Description

Description

VIVOTEK’s IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IB9389 series is encased in IP66 and IK10 housing.

The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

* Depending on scenes

Key Features

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • Vandal-proof IK10-rated, Weather-proof IP66-rated Housing
  • 2.8 ~ 10mm Motorized Lens

Datasheet

VIVOTEK V Series 5MP Fixed Bullet Camera- IB9389-EHT-V2 Datasheet
VIVOTEK V Series 5MP Fixed Bullet Camera- IB9389-EHT-V2 QIG

Highlight Features
Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.

Tech Specs

System Information

CPU

Multimedia SoC (System on Chip)

Flash

eMMC 8 GB

Ram

DDR4 2 GB

Camera Features

Image Sensor

1/2.8" Progressive CMOS
Max. Resolution

2560x1920 (5MP)
Lens Type

Motorized, Vari-focal, Remote Focus

Focal Length

f = 2.7 ~ 13.5 mm (short range)
f = 7 ~ 22 mm (mid-range)
f = 12 ~ 40 mm (long-range)

Aperture

F1.83(W) ~ F3.32(T) (Short range)
F1.70(W) ~ F2.90(T) (Mid-range)
F2.2(W); F2.2(T) (Long range)

Iris Type

 P-iris

Field of View

 Short range
100.1° ~ 29.9° (Horizontal)
71.8° ~ 22.4° (Vertical)
135.2° ~ 37.4° (Diagonal)
-------------------------
Mid-range
39.3° ~ 15.5° (Horizontal)
28.8° ~ 11.6° (Vertical)
50.8° ~ 19.4° (Diagonal)
-------------------------
Long range
24.2° ~ 8.3° (Horizontal)
18° ~ 6.3° (Vertical)
30.5° ~ 10.4° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

 WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Short & Mid-range
Built-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4

Long range
Built-in IR illuminators, effective up to 100 meters with Smart IR III, IR LED*4

Minimum Illumination

Short range
0.04 lux @ F1.8 (Color)
<0.005 lux @ F1.8 (B/W)
0 lux with IR illumination on

Mid-range
0.035 lux @ F1.7 (Color)
<0.005 lux @ F1.7 (B/W)
0 lux with IR illumination on

Long range
0.075 lux @ F2.2 (Color)
<0.005 lux @ F2.2 (B/W)
0 lux with IR illumination on

Tilt Range

90°
Pan Range ±180°
Rotation Range ±180°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)

Built-in Installation Aids
Remote focus, remote zoom, Micro USB* , pixel calculator
*Requires Wi-Fi dongle and Micro B converter

Video

Video Compression

H.265, H.264, MJPEG
Maximum Frame Rate

30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off)

Maximum Streams

3 video streams (Up to 8 configurable profiles)

Main Stream

30 fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3);
30 fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

2nd Stream

30 fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3);
30 fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

3rd Stream

30 fps @ 1280x960, 640x480 (4:3);
30 fps @ 1280x720, 640x360 (16:9);
60 fps @ 1280x720, 640x360 (16:9)

Audio

Audio Capability

Two-way Audio (Full duplex)

Audio Compression

G.711, G.726, MPEG-2 AAC-LC

Audio Interface

External microphone input
External line output
Effective Range5 m eters

Network

Users

 Live viewing for up to 10 clients

Security

Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

AI Analytics

Compute Capability

SoC with built-in hardware deep learning accelerator

Vision Object Analytics

Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction

Application

Deep Learning VCA (Smart Motion Detection, Smart Tracking Advanced)
Smart Tracking Advanced (Intrusion detection, Loitering detection, Line crossing detection, Face detection, Unattended object detection, Missing object detection)

Application available with license

Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics

Solution Integration

Applications

Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

Event Action

Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

Connectors

Default IO
RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio line input
Audio line output
DC 12V power input
Digital input*1
Digital output*1
Micro USB

Module I/O (AO-010)*
Digital input *1
Digital output *1
AC 24V power input
*Requires extension I/O module kit (AO-010 I/O Kit for bullet cameras)

LED Indicator

System power and status indicator
Power Input AC 24V*, DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy)
*Requires extension I/O module kit (AO-010)
Power Consumption

12.95 W
Dimensions ø 153 x 285.7 mm
Weight 2.09 kg (short range)
2.20 kg (mid-range)
2.18 kg (long range)
Certifications EMC: CE (EN 55032/EN 55035 Class A, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032/BS EN 55035 Class A),RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11; IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature Starting Temperature:
-30°C ~ 60°C (-22°F ~ 140°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR off)
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity 98% RH (non-condensing)

System Requirements

Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above

Included Accessories

Packing Contents Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, adapting plate, conduit bracket, I/O cable
Optional Accessories Please refer to Accessory Selection Guide
Video
