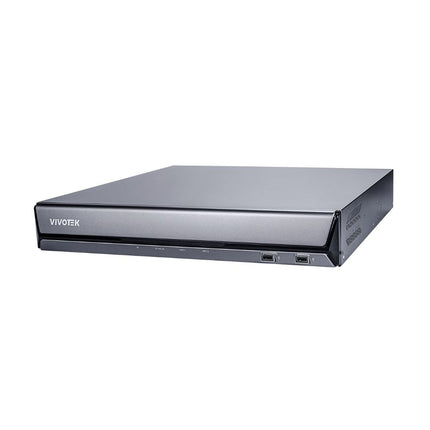

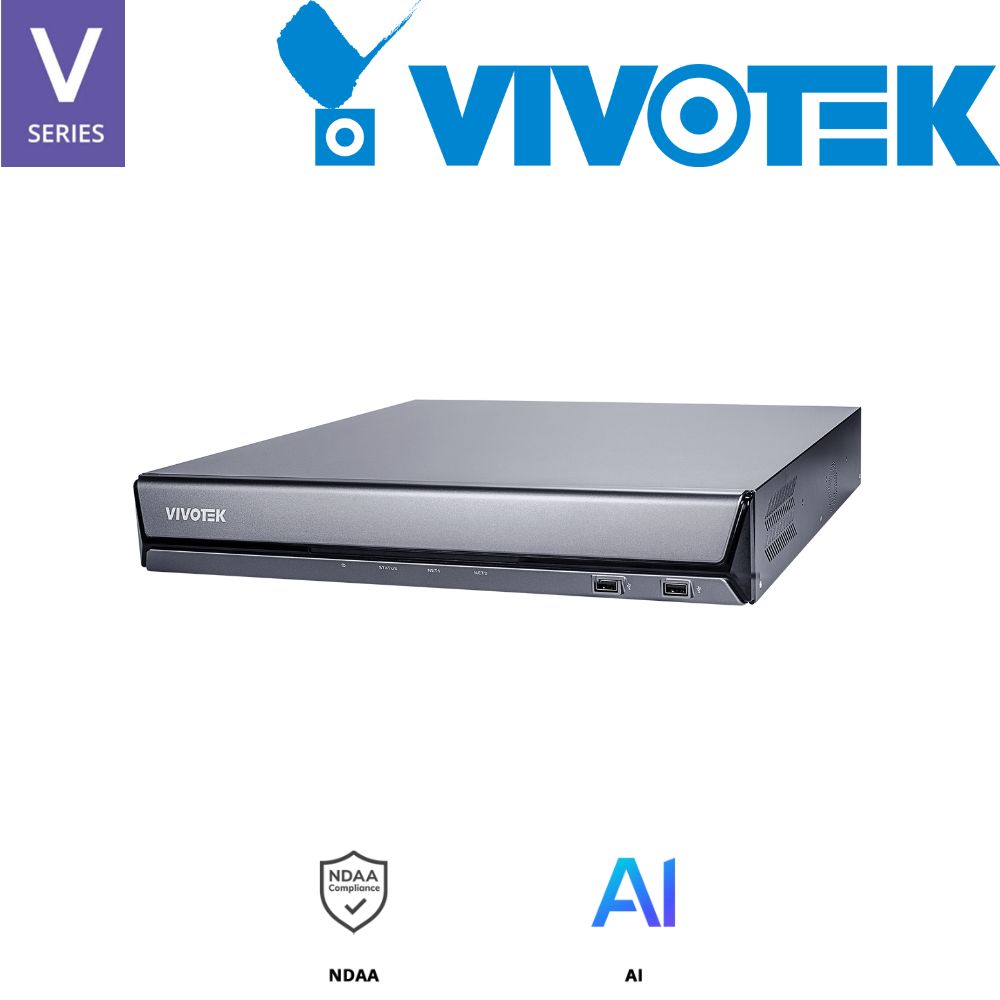

Vivotek V Series 32CH NVR - ND9542P

Description

Description

Key Features

  • 1080P 360 fps with H.265 Compression Technology
  • Up to 20MP Cameras Supported
  • 4K Video Output Display for Clear and Detailed Monitoring
  • Deep Search (Attribute Search, Scene Search)
  • VIVOTEK Smart VCA Camera Supported for Event Search & Recording
  • 802.3at/af PoE with PoE Management
  • RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
  • Alarm In *16, Alarm Out *8
  • Trend Micro IoT Security & Cybersecurity Management
  • Manage with VORTEX and VAST Security Station (VSS)
  • Made in Taiwan

Datasheet

VIVOTEK V Series 32CH NVR Without HDD-ND9542P Datasheet
VIVOTEK V Series 32CH NVR Without HDD-ND9542P QIG

Highlight Features
Next Generation NVR Firmware: Core+AI
Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

Deep Search

Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

Smart VCA Event Search

it supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.

*Requires Smart VCA enabled cameras
4K IP Camera Video Input and 4K Local Video Output
Supporting 4K IP camera video input and 4K local video output, it can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.
24/7 Monitoring Convenience through VORTEX
VORTEX makes surveillance lightweight and portable, ensuring efficient operation. This cloud cross-platform makes surveillance even more convenient, users can view live streams, play recorded clips at any time, anywhere.Equipped with the Push Notification function, users receive immediate alert messages on their Android/iOS mobile devices and can directly playback the video to inspect any suspicious activity.
Tech Specs
System Information
Watchdog Hardware+Software
Power Restoration System Restart Automatically after Power Recovery
Display
LiveView Display 32 Channels
Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4, 1M+31
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
Fisheye Dewarp Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)
Video
Video Format H.265, H.264, MJPEG
Graphic Decoder Hardware decoding
Decoding Resolution Up to 7680x2560
Decoding Capability H.265/H.264:
3840x2160 @ 90 fps
1920x1080 @ 360 fps
Audio
Audio Format G.711, G.726, MPEG-2 AAC-LC
Audio In/Out 3.5 Phone Jack Audio Output x13.5 Phone Jack Audio Input (Reserved) x1
Record
Recording Time (sec.) Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Throughout 192 Mbps
Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Storage & Backup
HDD Devices Internal x4 (3.5")*HDD purchased separately.
RAID RAID 0, 1, 5
Disk Management Create, Format and Remove Disk
HDD S.M.A.R.T.
Playback
Playback Display 4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
Playback Control Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2 CH)
Video Clip Export Supported
Network
Ethernet 10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput Input/Output Total 224Mbps
PoE 802.3at/af compliant PoE ports x 8
(total Max. 120W)
* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management Supported
External Interface
USB Front: 2 (USB 2.0)
Back: 1 (USB 3.0)
Alarm In 16
Alarm Out 8
Audio In/ Out 3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input x1 (reserved)
System
Camera Integration ONVIF Profile S
Event Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management User level: administrator, regular user
Date & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Deep Search
Object Search People, Vehicle
Scene Search Line crossing, Intrusion, Loitering
Attribute Search People: Gender, Age, Clothing Color, AccessoriesVehicles: Type, Color
Advanced Features
VCA Counting Solution Supported
VCA Event Search Supported
Smart Search II Supported
Trend Micro IoT Security Supported
Cybersecurity Management Supported
Remote Client
Software AP Shepherd, VSS (VAST Security Station)
Mobile/Tablet App iViewer , VIVOCloud, VORTEX(Android & iOS)
Web Browser Chrome
General
Power Input 100-240V AC, 50/60Hz
Power Consumption Max. 300 W
Dimensions 432 (W) x 421 (D) x 66 (H) mm
Weight 4.6 kg (without HDD)
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
Video

Read more

Vivotek V Series 32CH NVR - ND9542P

Product form

SKU: ND9542P

$1,976.00 $1,955.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet
