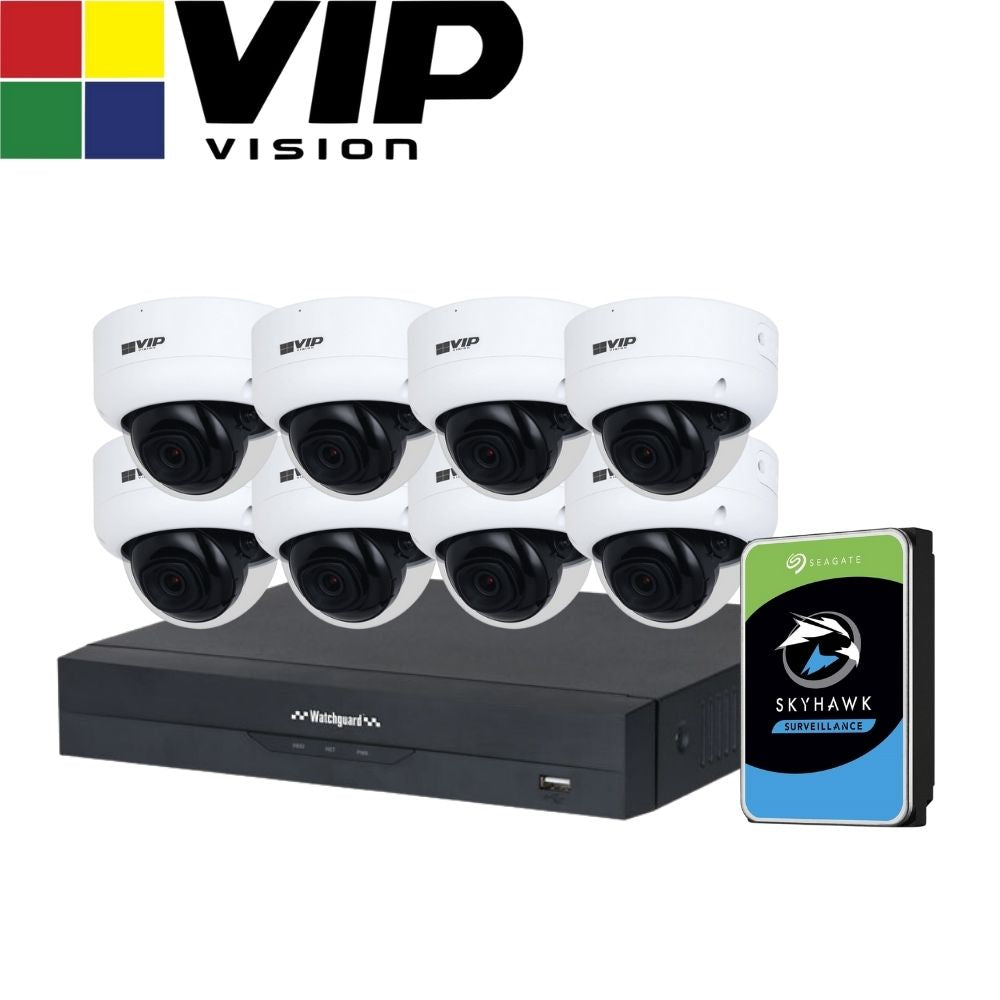

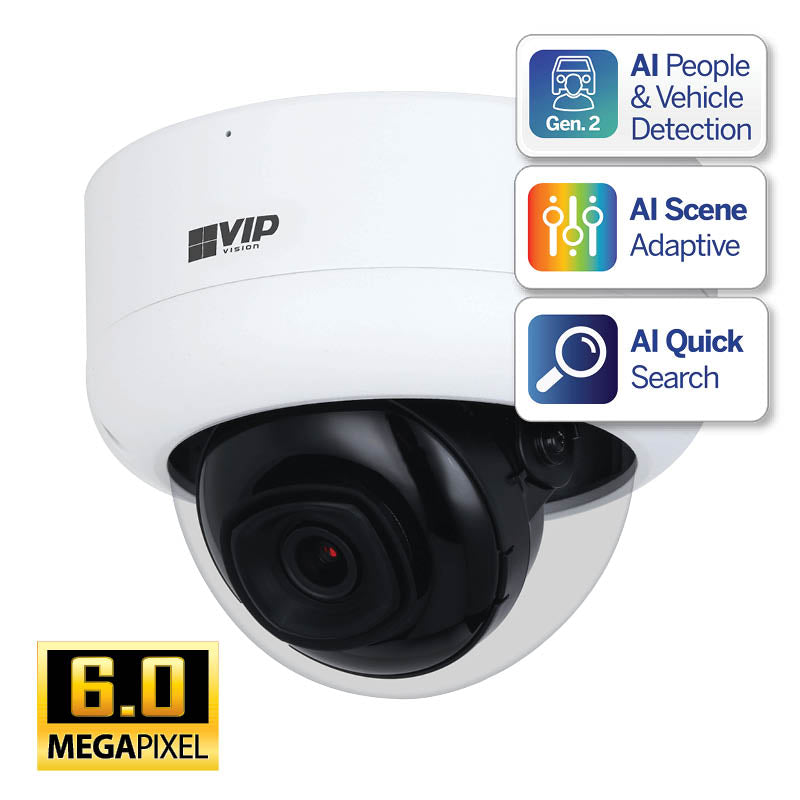

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

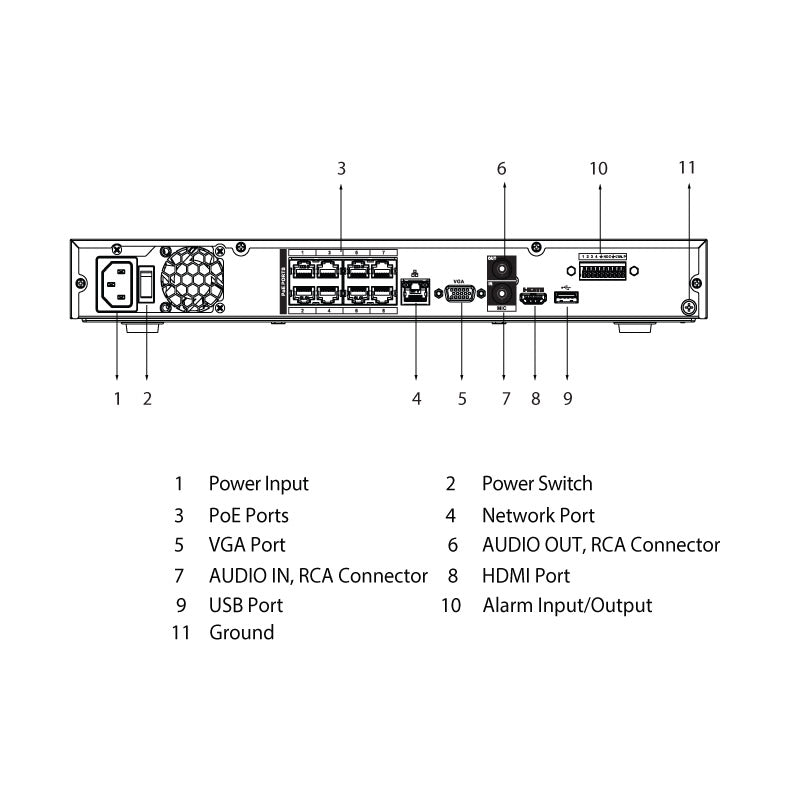

The Watchguard™ Compact AI Series brings the best of AI surveillance features in an affordable package. The NVR8COM-I allows you to bring AI face recognition or AI person/vehicle detection to your CCTV installations, guaranteeing that important events are detected and can be acted upon. This NVR is perfect for new systems or replacement of existing NVRs to upgrade to AI capable surveillance.
| Alarm Interface |
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| Audio Interface |
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC |
| Bit Rate |
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |

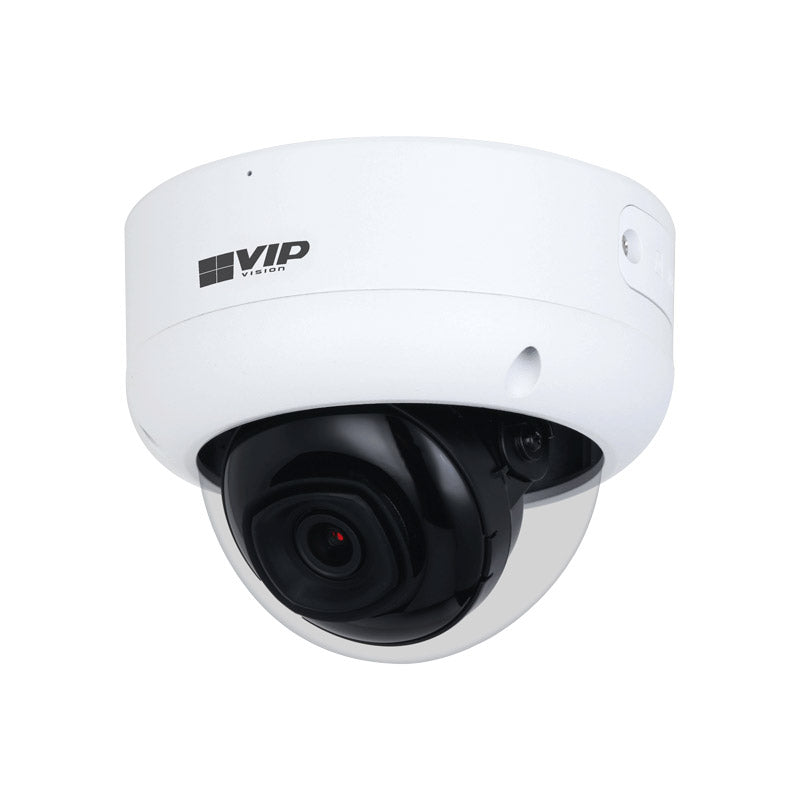

| Camera Type |
Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
64m |

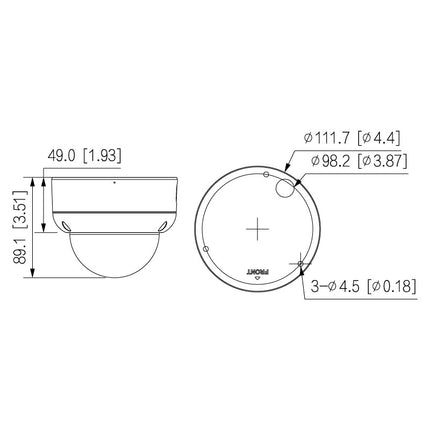

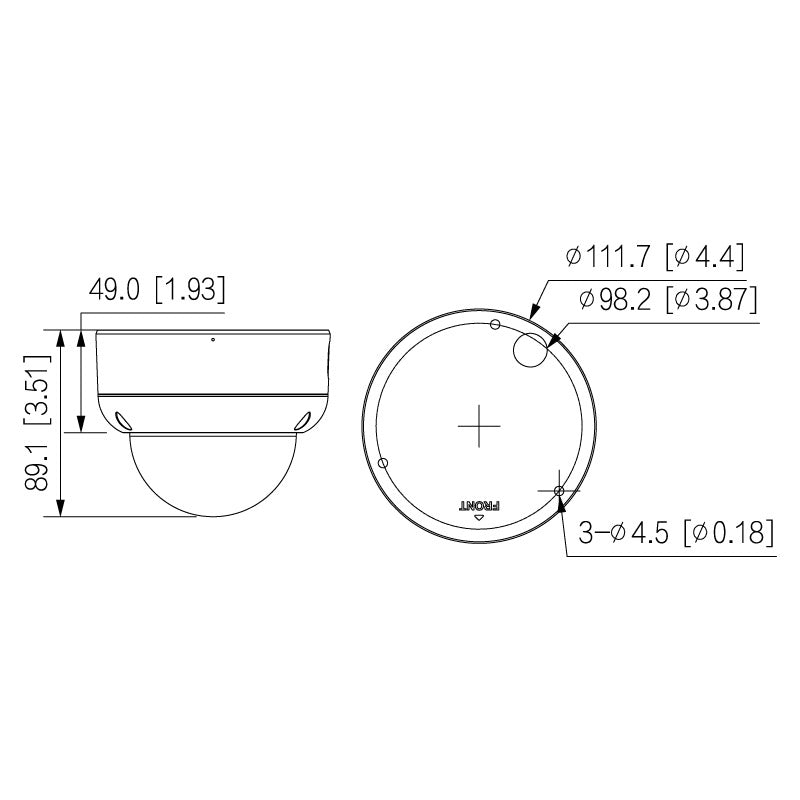

| Dimensions |
Ø111.7mm x 89.1mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS |
| Effective Pixels |
3072 (H) × 2048 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
N/A |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
Horizontal: 111°, Vertical: 58° |
| Focus |
Fixed / 1.1m Min. Focus Distance |
| Frame Rate (Main) |
6.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
6m |
| Image Sensor |
1/2.7” 6.0MP Progressive Scan CMOS |
| Infrared System |
3 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris |
2.8mm Fixed Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) / AI SSA |
| Max. Resolution |
6.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.005 Lux/F1.6 (Color) |
| Net Weight |
0.516kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
25m |
| Operating Conditions |
-30°C ~ +60°C / ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles) |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution) |
| Power Consumption |
<9.7W |
| Power Supply |
12VDC / PoE (802.3af) |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM |
1GB / 128MB |
| Recognise (125px/m) |
13m |
| Resolution |
6.0MP (3072 x 2048) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
> 56dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| AI Face Detection (by Cameras) |
8 channels |
| AI Face Detection (by Recorder) |
1 channel |
| AI Face Detection Features |
Whitelist, Blacklist, Stranger Mode |
| AI Face Detection Performance |
Up to 10 face databases with 200,000 face images |
| AI Face Recognition (by Cameras) |
8 channels |
| AI Face Recognition (by Recorder) |
1 channel (with Ultimate AI cameras) |
| AI Face Recognition Performance |
12 face images/s |
| AI Functions by Cameras |
Face detection, ANPR, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
| AI Functions by Recorder |
Face detection, face recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
| AI Motion Detection (by Cameras) |
8 channels |
| AI Motion Detection (by Recorder) |
4 channels |
| AI Search (Metadata) |
Support search target video by metadata |
| AI Tripwire/Intrusion (by Cameras) |
8 channels |
| AI Tripwire/Intrusion (by Recorder) |
2 channels, 10 IVS rules for each channel |
| Alarm Input / Output |
- |
| Auxiliary Inputs |
- |
| Backup Modes |
USB Device / Network |
| Decoding Capacity (AI Disabled) |
8CH@4MP/25fps |
| Decoding Capacity (AI Enabled) |
8CH@1080P/25fps |

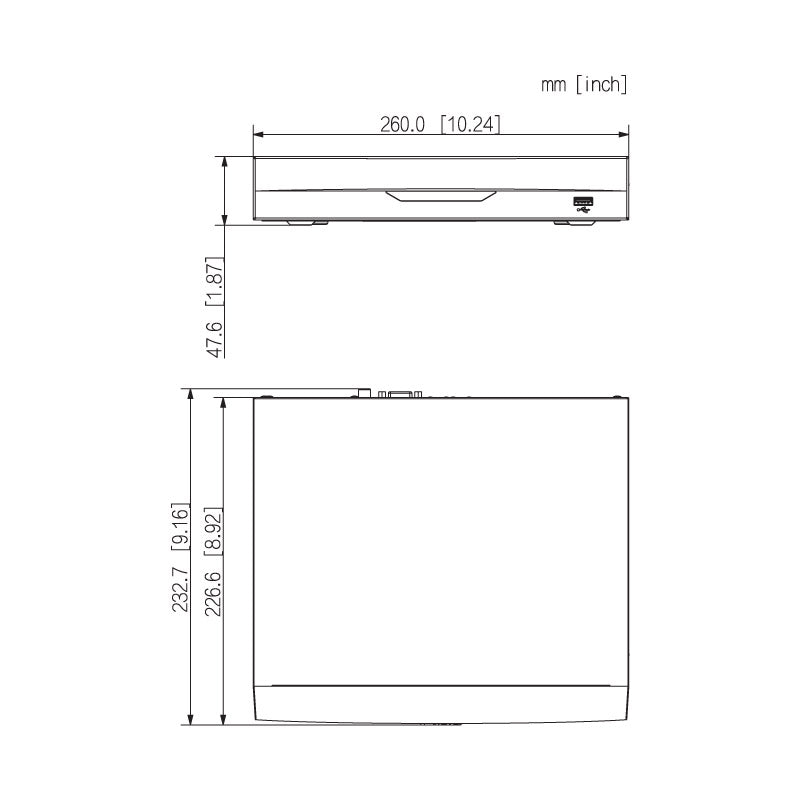

| Dimensions |
260mm x 233mm x 48mm |
| Display Resolution |
Configurable from 3840 x 2160 to 1280 x 720 |
| Display Split |
1st screen - 1/4/8/9, 2nd screen - 1/4/8/9 |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| Face |
Gender, age, glasses, beard, mask, expression |
| HDD Modes |
- |
| Human Body |
Tops style, tops colour, bottom style, bottom colour, hat , bag |
| Incoming Bandwidth (AI Disabled) |
256Mbps Mbps incoming (recording/outgoing) |
| Incoming Bandwidth (AI Enabled) |
180Mbps incoming (recording/outgoing) |
| Internal HDD |
1 SATA ports, up to 16TB, max. |
| Interoperability |
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Main Processor |
Industrial-grade processor |
| Max. User Access |
- |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support VIP Vision IP camera, DVR, NVS and etc.) |
| Non-motor Vehicle |
Type, colour, people, number |
| Operating Environment |
-10°C ~ +55°C / 10 ~ 93%RH |
| Operating System |
Embedded LINUX |
| Optical Interface |
N/A |
| OSD |
- |
| Playback Sync |
1/4/8/9 |
| PoE |
Yes |
| Power Consumption |
<10W (without HDD) / PoE: Max 25.5W for single port, 72W total |
| Power over Ethernet |
8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Power Supply |
DC53V/1.812A |
| Rackmount Units |
1U |
| Rackmountable |
- |
| Record Interval |
- |
| Record Modes |
General / motion detection / intelligent / alarm |
| Recording Resolution |
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480) |
| Remote View |
iOS (iPhone, iPad); Android devices |
| Search Modes |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Trigger Events |
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email |
| Two-way Talk |
- |
| USB Interface |
2 x USB ports (1 x Rear USB 2.0, 1 x Front USB 2.0) |
| Vehicle |
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt |
| Video Compression |
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG |
| Video Detection |
- |
| Video Input |
8 channel |
| Video Output |
1 HDMI / 1 VGA |
| Weight |
0.92kg (without HDD) |
