AI Face Detection (by Cameras) |
4 channels |
AI Face Detection (by Recorder) |
1 channel |
AI Face Detection Features |
Whitelist, Blacklist, Stranger Mode |
AI Face Detection Performance |
Up to 10 face databases with 200,000 face images |
AI Face Recognition (by Cameras) |
4 channels |
AI Face Recognition (by Recorder) |
1 channel (with Ultimate AI cameras) |
AI Face Recognition Performance |
12 face images/s |
AI Functions by Cameras |
Face detection, ANPR, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
AI Functions by Recorder |
Face detection, face recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
AI Motion Detection (by Cameras) |
4 channels |
AI Motion Detection (by Recorder) |
4 channels |
AI Search (Metadata) |
Support search target video by metadata |
AI Tripwire/Intrusion (by Cameras) |
4 channels |
AI Tripwire/Intrusion (by Recorder) |
2 channels, 10 IVS rules for each channel |
Alarm Input / Output |
- |
Auxiliary Inputs |
N/A |
Backup Modes |
USB Device / Network |
Decoding Capacity (AI Disabled) |
4CH@8MP/25fps |
Decoding Capacity (AI Enabled) |
4CH@5MP/25fps |

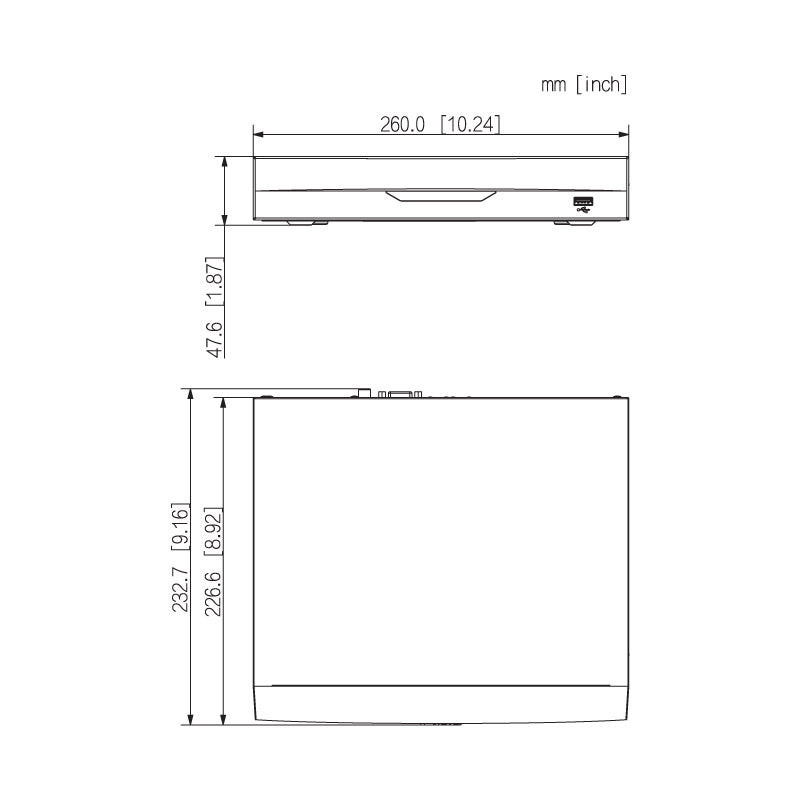

Dimensions |
260mm x 233mm x 48mm |
Display Resolution |
Configurable from 3840 x 2160 to 1280 x 720 |
Display Split |
1st screen - 1/4, 2nd screen - 1/4 |
Ethernet |
1 RJ-45 port (10/100Mbps) |
Face |
Gender, age, glasses, beard, mask, expression |
HDD Modes |
- |
Human Body |
Tops style, tops colour, bottom style, bottom colour, hat , bag |
Incoming Bandwidth (AI Disabled) |
80Mbps incoming (recording/outgoing) |
Incoming Bandwidth (AI Enabled) |
80Mbps incoming (recording/outgoing) |
Internal HDD |
1 SATA ports, up to 16TB, max. |
Interoperability |
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
Main Processor |
Industrial-grade processor |
Max. User Access |
- |
Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip |
Non-motor Vehicle |
Type, colour, people, number |
Operating Environment |
-10°C ~ +55°C / 10 ~ 90%RH |
Operating System |
Embedded LINUX |
Optical Interface |
- |
OSD |
- |
Playback Sync |
1/4 |
PoE |
Yes |
Power Consumption |
NVR: 10W (without HDD) / PoE: Max 25.5W per port, 36W total |
Power over Ethernet |
4 ports, 10/100 Mbps, IEEE 802.3 af/at |
Power Supply |
DC53V/1.226A |
Rackmount Units |
1U |
Rackmountable |
- |
Record Interval |
- |
Record Modes |
General / motion detection / intelligent / alarm |
Recording Resolution |
Configurable from 16.0MP (4920 x 3264) to CIF (352 x 288) |
Remote View |
iOS (iPhone, iPad) / Android devices |
Search Modes |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
Trigger Events |
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email |
Two-way Talk |
- |
USB Interface |
2 x USB ports (1 x Rear USB 2.0, 1 x Front USB 2.0) |
Vehicle |
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt |
Video Compression |
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG |
Video Detection |
- |
Video Input |
4 channels |
Video Output |
1 HDMI / 1 VGA |
Weight |
0.86kg (without HDD) |
