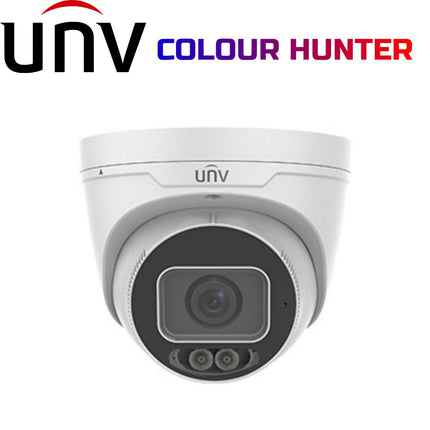

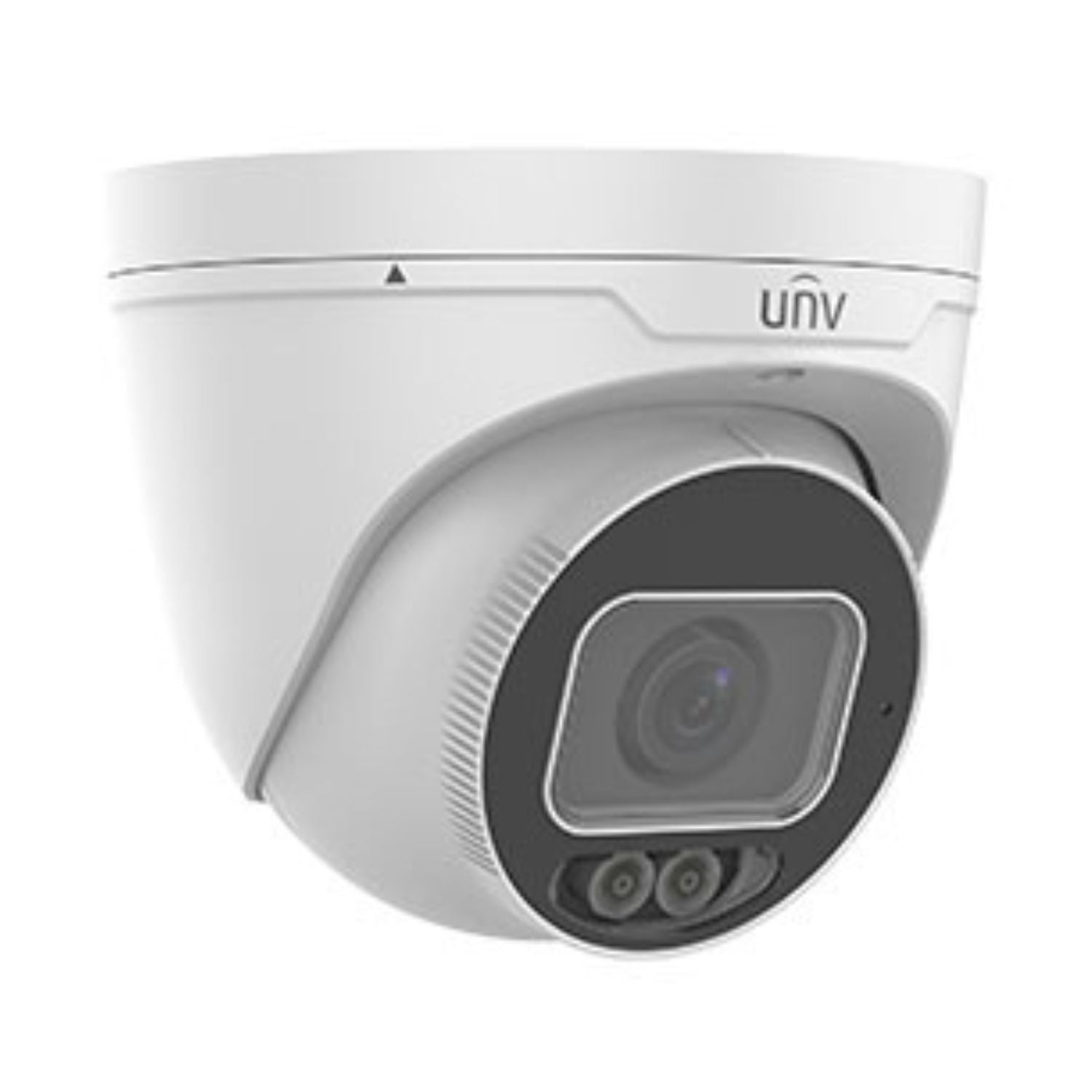

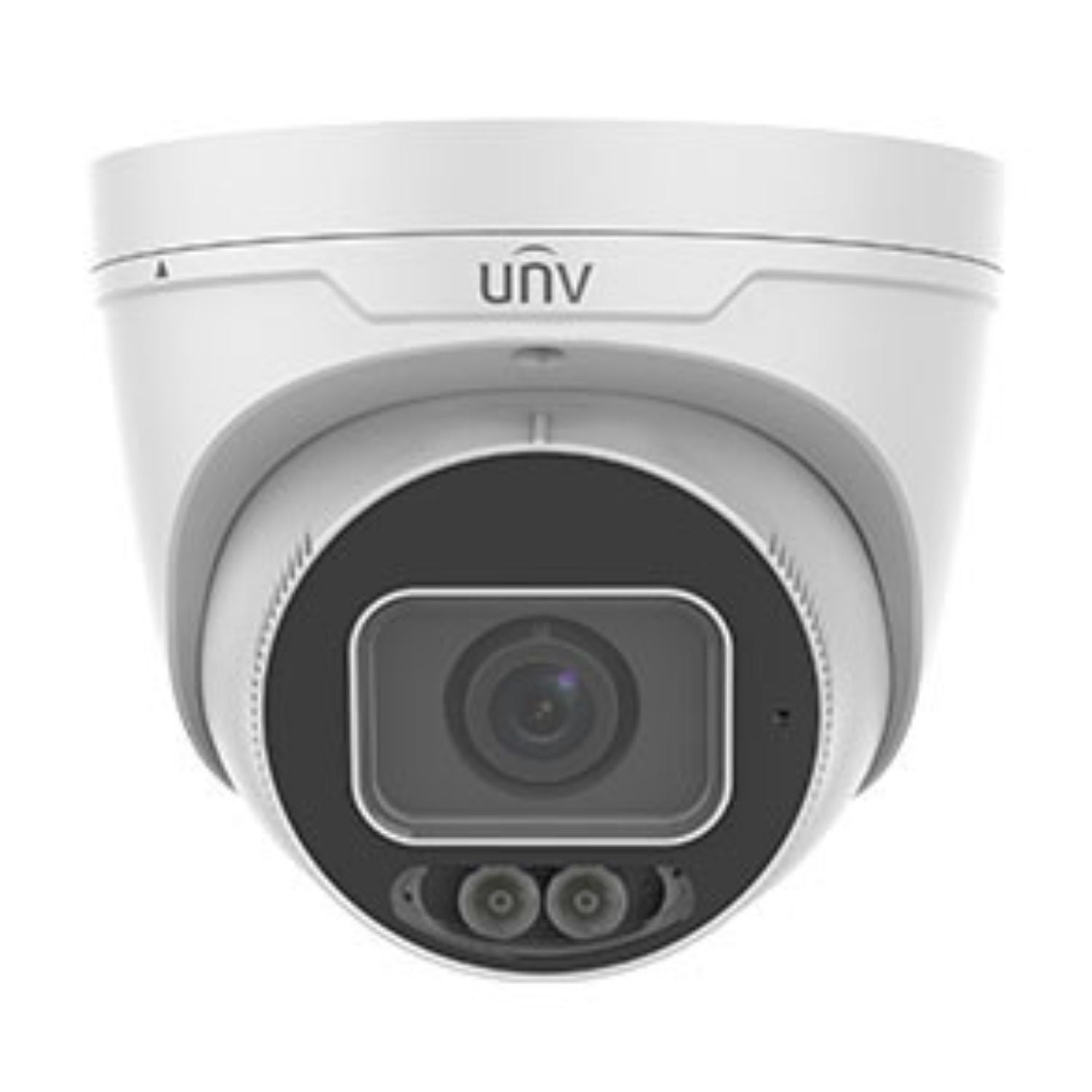

IPC3638SE-ADF28K-WL-I0 |
IPC3638SE-ADF40K-WL-I0 |
| Camera |
| Sensor |
1/1.8", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.001Lux (F1.0, AGC ON) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 72° |
Rotate: 0° ~ 360° |
| WDR |
120dB |
| S/N |
>56dB |
| Lens |
| Lens |
2.8mm@F1.0 |
4.0mm@F1.0 |
| Angle of view(H) |
110.15° |
94.29° |
| Angle of View (V) |
59.06° |
49.73° |
| Angle of View (O) |
143.19° |
115.97° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| 4.0 |
90.0 |
36.0 |
18.0 |
9.0 |
| Illuminator |
| LED Distance |
Up to 30m (98ft) |
| LEDs Number |
2 |
| LED On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Video Stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction |
2D/3D DNR |
| Smart Illumination |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Audio |
| Audio Compression |
G.711 |
| Audio Bitrate |
64 Kbps |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
1/1 |
| RS485 |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certifications |
| EMC |
FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013 |
| Safety |
IEC 62368-1
EN 62368-1
UL 62368-1 |
| Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 11W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ129 x 110mm (Φ5.1” x 4.3”) |
| Weight |
0.64kg (1.41lb) |
| Material |
Metal |
| Operating Conditions |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
Supported |
| Protection |
Ingression protection: IP67
Vandal resistant: IK10 |
