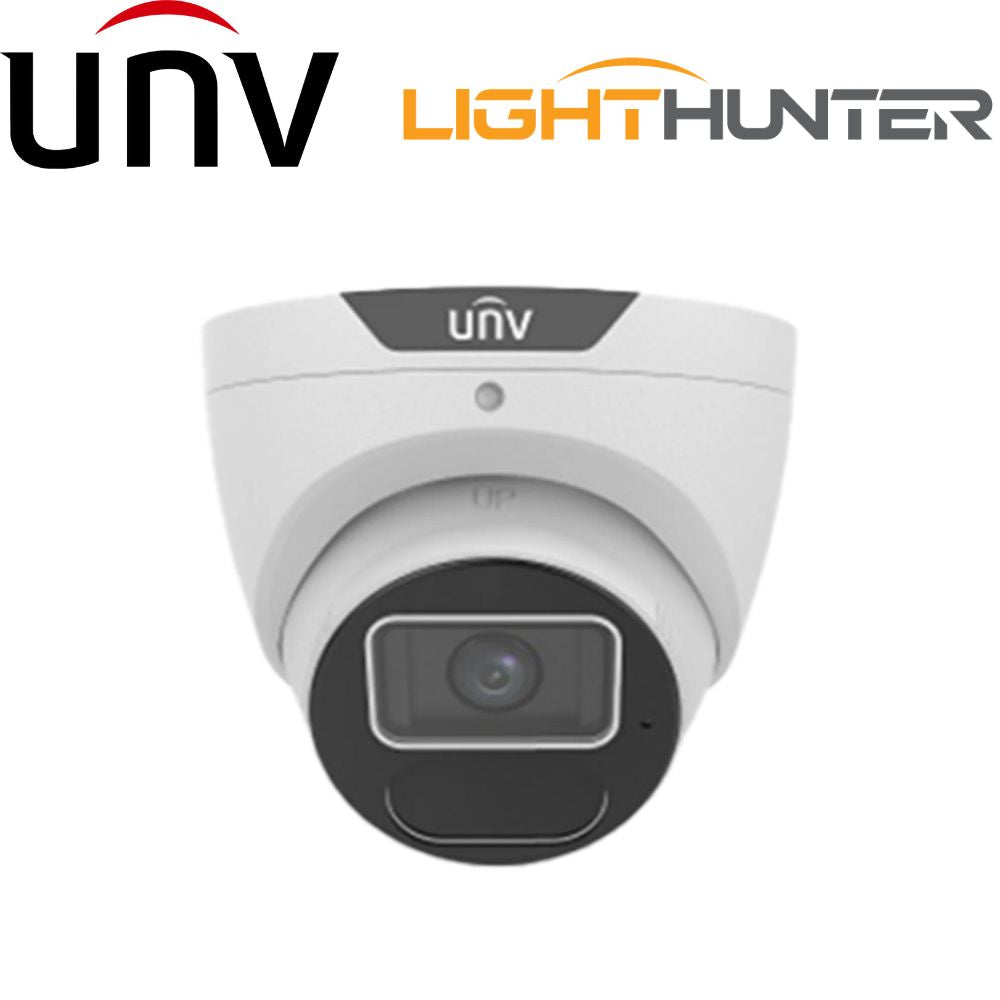

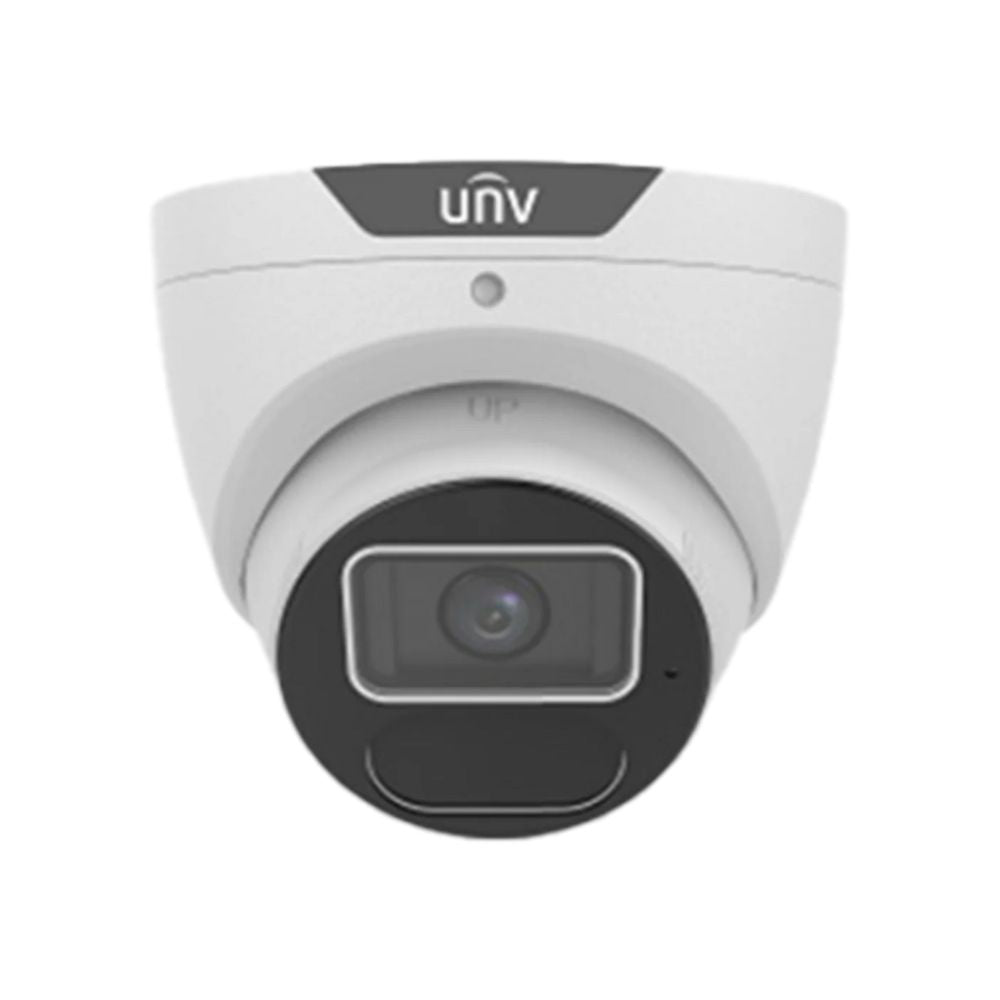

Uniview Security Camera: 6MP Turret, 2.8mm, LightHunter- IPC3616SS-ADF28K-I1

Description

Description

Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

LightHunter Technology

The main goal of video surveillance is to see clearly anytime, anywhere. Cameras need to be well prepared for providing high-resolution and colorful images in different light conditions. The LightHunter Technology is an innovative technology that delivers vivid color, appropriate brightness, and extremely clear images in ultra-low light. LightHunter Technology significantly improves the image brightness with F1.6 Large Iris design & BSI sensor. With the specially designed large size sensors, the IPCs have higher photosensitivity, and feature high SNR. UNV's uniquely patented technology U-ISP improves the definition and brightness of images. U-ISP features a new generation of noise reduction technology to improve Signal-Noise Ratio and reduce blur. It effectively reduces blur during objects moving, which ensures that the image is restored to the true scene. Combine hardware and software advantages, LightHunter Technology guarantees the image full of color under ultra-low light.

Features

  • High quality image with 6MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent face capture
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Auto Scene Match (ASM)（Only WDR）
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 130dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
Datasheet

Videos

Tech Specs

Uniview Security Camera: 5MP Turret, 2.8mm, Prime-I - IPC3615SB-ADF28KMC-I0

IPC3616SS-ADF28K-I1
Camera
Sensor 1/2.7", 6.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.002Lux (F1.6, AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
WDR 130dB
S/N >56dB
Lens
Lens type 2.8mm@F1.0
Iris Fixed
Field of View (H) 107.2°
Field of View (V) 56.39°
Field of View (D) 110.11°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
Illuminator
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 6MP (3072*2048), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fp
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
Auto Scene Match (ASM) Support（Only WDR）
Digital Noise Reduction 2D/3D DNR
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T) , API,SDK
User/Host Up to 32 users. 3 user levels: administrator,common user and operator
Security Password protection;
Strong password;
HTTPS encryption;
Export operation logs;
Basic and digest authentication for RTSP;
Digest authentication for HTTP;
TLS 1.2;
WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.5W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ129 x 110mm (Ø5.1” x 4.3”)
Weight 0.43kg (0.95lb
Material Metal+Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing
Surge Protection 4KV
Reset Button N/A

3-Years Warranty

Uniarch 3-Years Manufacturer Warranty!

Our Uniview products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!

✔️ Authorised Uniview Dealer!

✔️ Australian Stock, No Grey Imports!

✔️ 3-Years Manufacturer Warranty!

Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost.

The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.

Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.

We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.

You can contact us by email at support@secsource.com.au or phone on 1300 049 519.
