Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

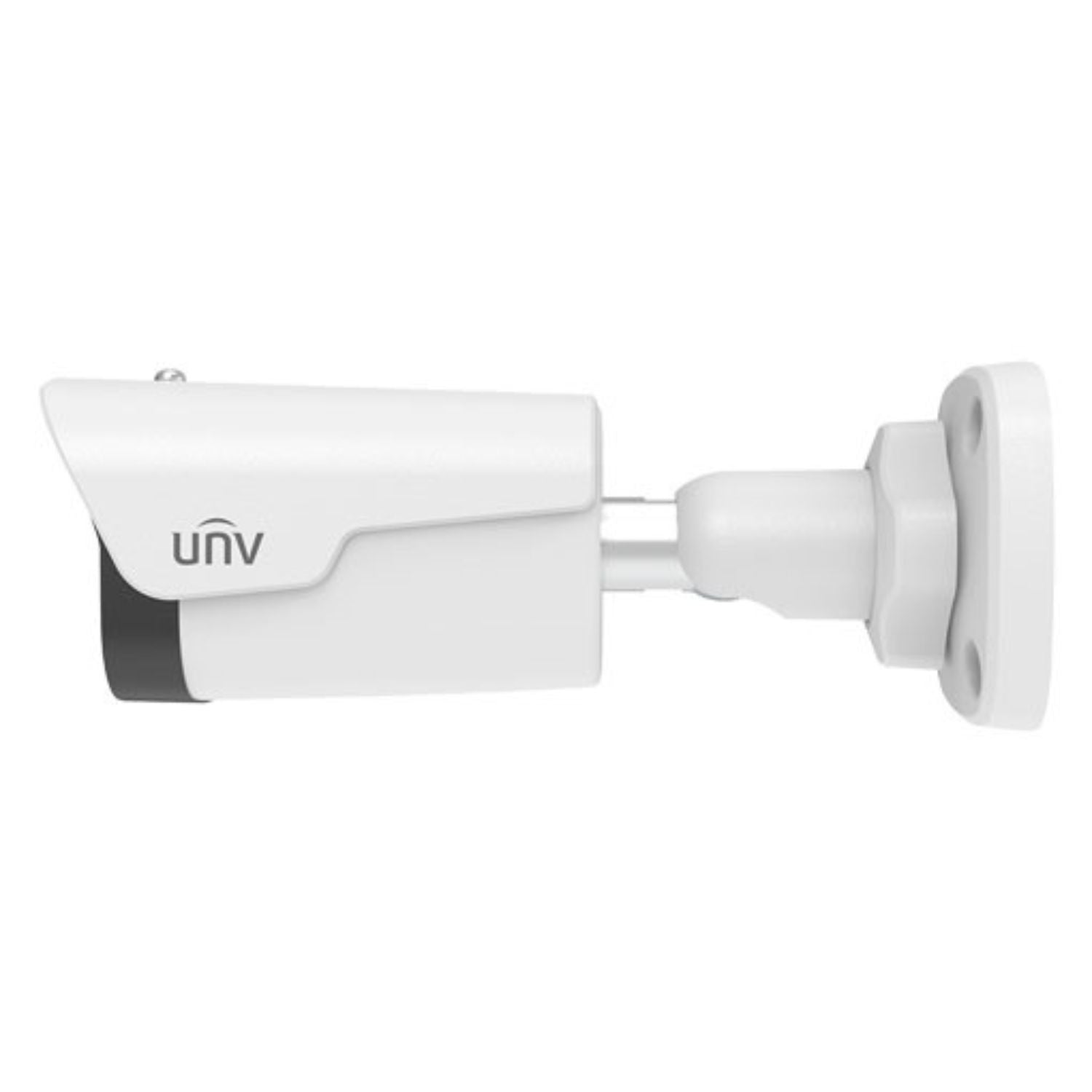

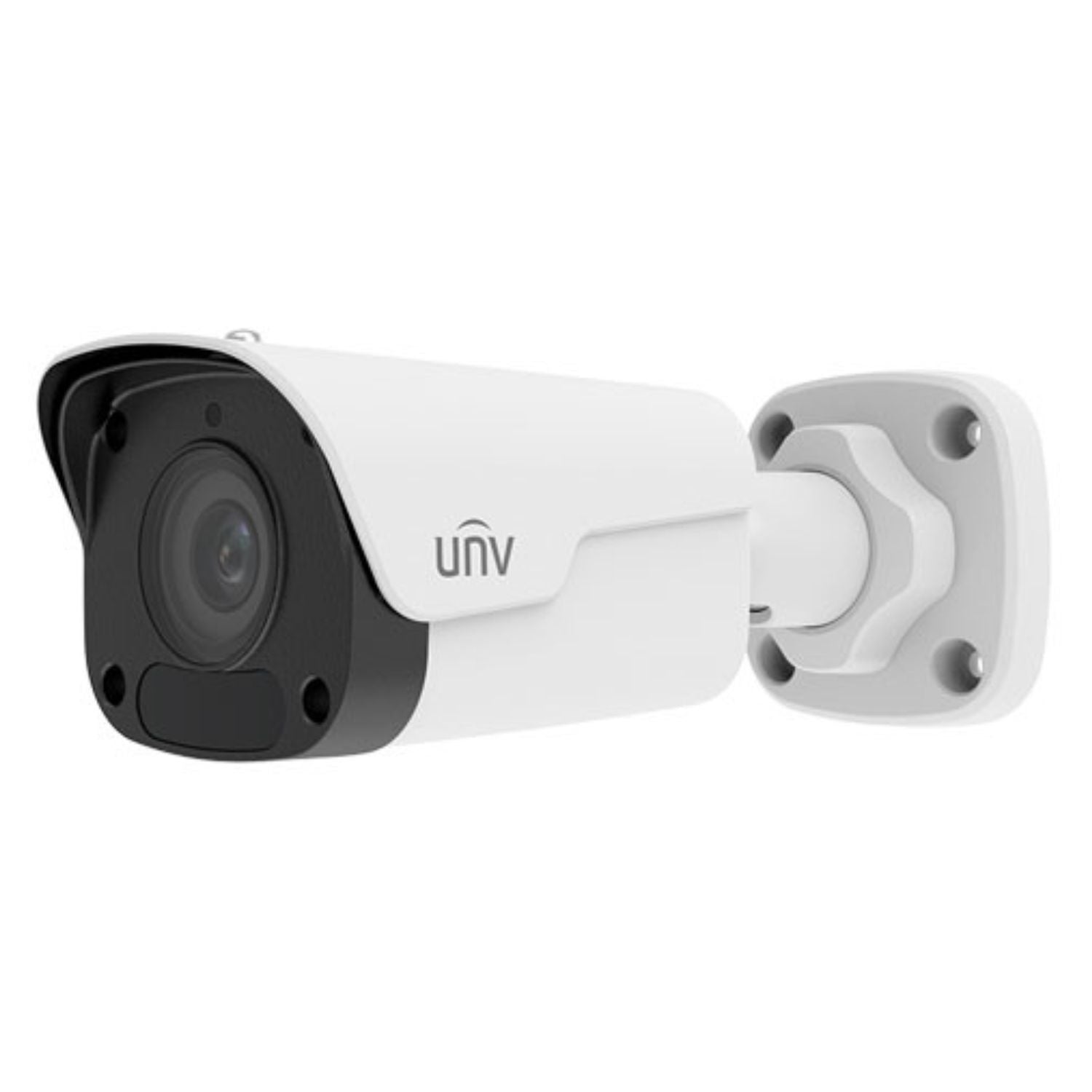

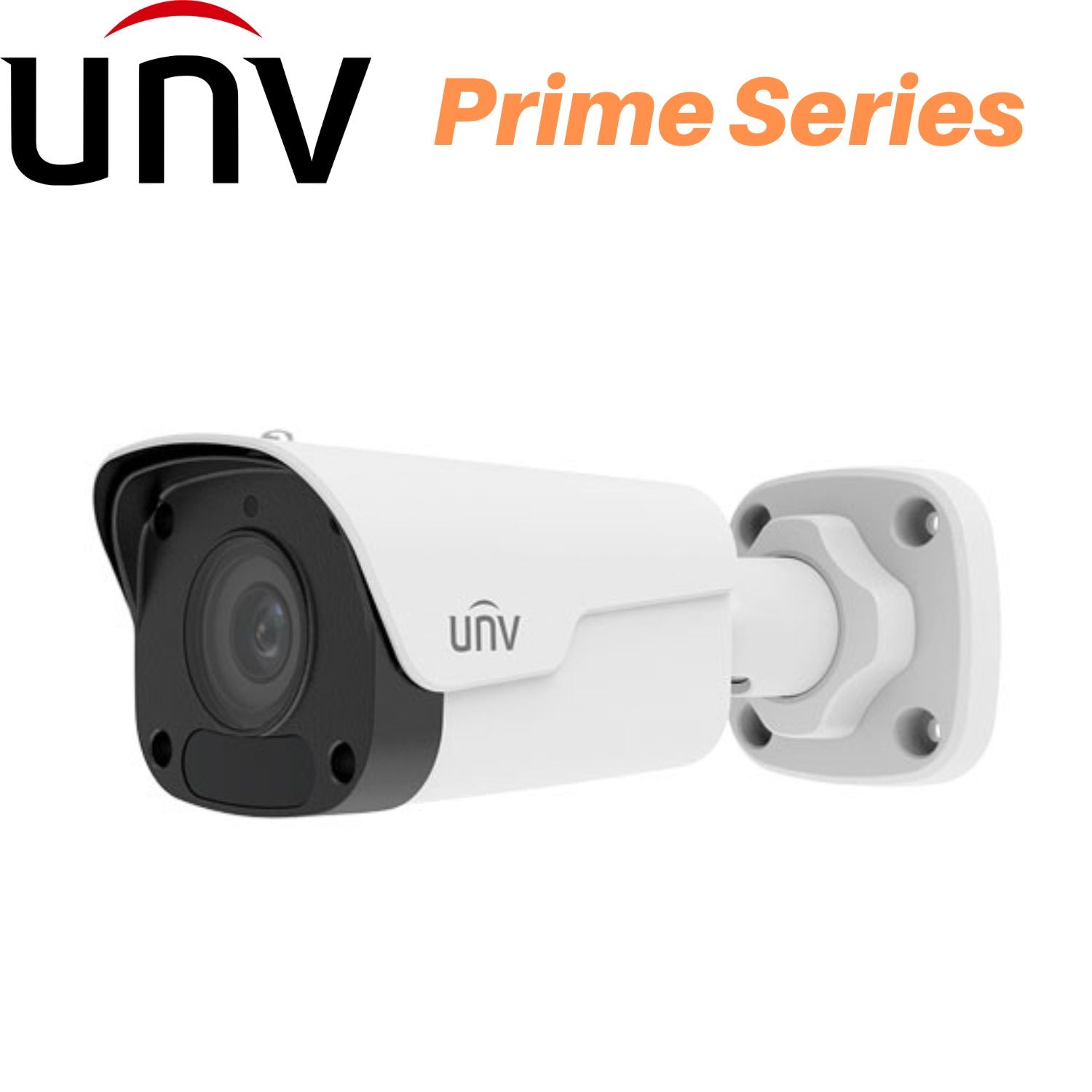

The IPC2124SR3-ADPF28M-F Uniview 4MP IP Bullet Camera has a built in PoE and up to 100 Feet of Night Vision. With an extreme temperature range of -22°F to +140°F, this IP Camera can handle a variety of harsh environments. Weatherproof ratings on this professional grade camera are IP67 so you have maximum protection against the elements. Uniview Cameras have a wide voltage range and are capable of Long Range PoE runs of up to 300 Meters (980′) when used with a Uniview NVR. Therefore, additional equipment is not required for long cable runs. In addition, this IPC2124SR3-ADPF28M-F Uniview 4MP IP Bullet Camera has a 2.8mm Lens which has an AOV of 107.8° for a wide coverage area. This Prime Sries UNV Bullet also has a Built-In Microphone for Audio Recording to your NVR. Prime Series Cameras are capable of smart functions such as Line Crossing, People Counting and more!
Features
- Day/night functionality
- Smart infrared, up to 30 m (98 ft) infrared distance
- Optical glass window with high light transmittance
- Infrared anti-reflective window to increase infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- SD Kart
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- ONVIF Compliance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- ±25% wide voltage range
- IP67
- IK10
- 3 Axis
Datasheet
Videos
Tech Specs
Uniview Security Camera: 4MP SD Card Mini Fixed Bullet Network Camera - IPC2124SR3-ADPF28M-F
| IPC2124SR3-ADPF28M-F |
IPC2124SR3-ADPF40M-F |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
| DORI Distance |
Lens |
Detection (m) |
Observation (m) |
Recognition (m) |
Detection (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| 4.0 |
90.0 |
36.0 |
18.0 |
9.0 |
| Angle of View (H) |
107.8° |
82.0° |
| Angle of View (D) |
57.0° |
41.6° |
| Angle of View (E) |
140.1° |
100.9° |
| Adjustment angle |
Panning: 0°~360° |
Tilt: 0°~90° |
Rotation: 0°~360° |
| shutter |
Automatic/Manual 1~1/100000 s |
| Minimum Illumination |
Colour: 0.01 Lux (F 2.0, AGC ON)
0 Lux with Infrared on |
| Digital noise reduction |
2D/3D DNR |
| Day and night |
Infrared cut filter (ICR) with automatic switch |
| S/N |
>56dB |
| Infrared Range |
Up to 30 m (98 ft) infrared range |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 encoding profiles |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps |
| High Light Compensation |
Supported |
| Backlight Compensation |
Supported |
| Screen Display |
Up to 4 Screen Displays |
| Privacy Mask |
Up to 4 spaces |
| Region of Interest |
up to 2 spaces |
| Motion Detection |
Up to 4 spaces |
| Ses |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8 KHZ |
| Storage |
| Edge Depolama |
Micro SD, Up to 256 GB |
| Network Storage |
ANR |
| Clever |
| Behavior Detection |
believing perception |
| White |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Interface |
| White |
1 RJ45 10M/100M Base-TX Ethernet |
| Why Mic? |
Supported |
| General |
| Strength |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 6.4W |
| Dimensions (L×W×H) |
165 × 63.1 × 62.5mm (6.5” × 2.5” × 2.5”) |
| Weight |
0.45kg (0.99lb) |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Input Protection |
IP67 |
| Shockproof |
IK10 |
