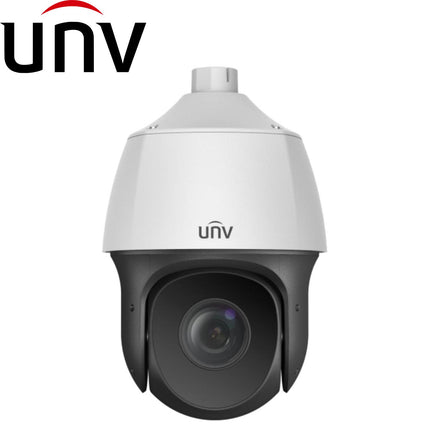

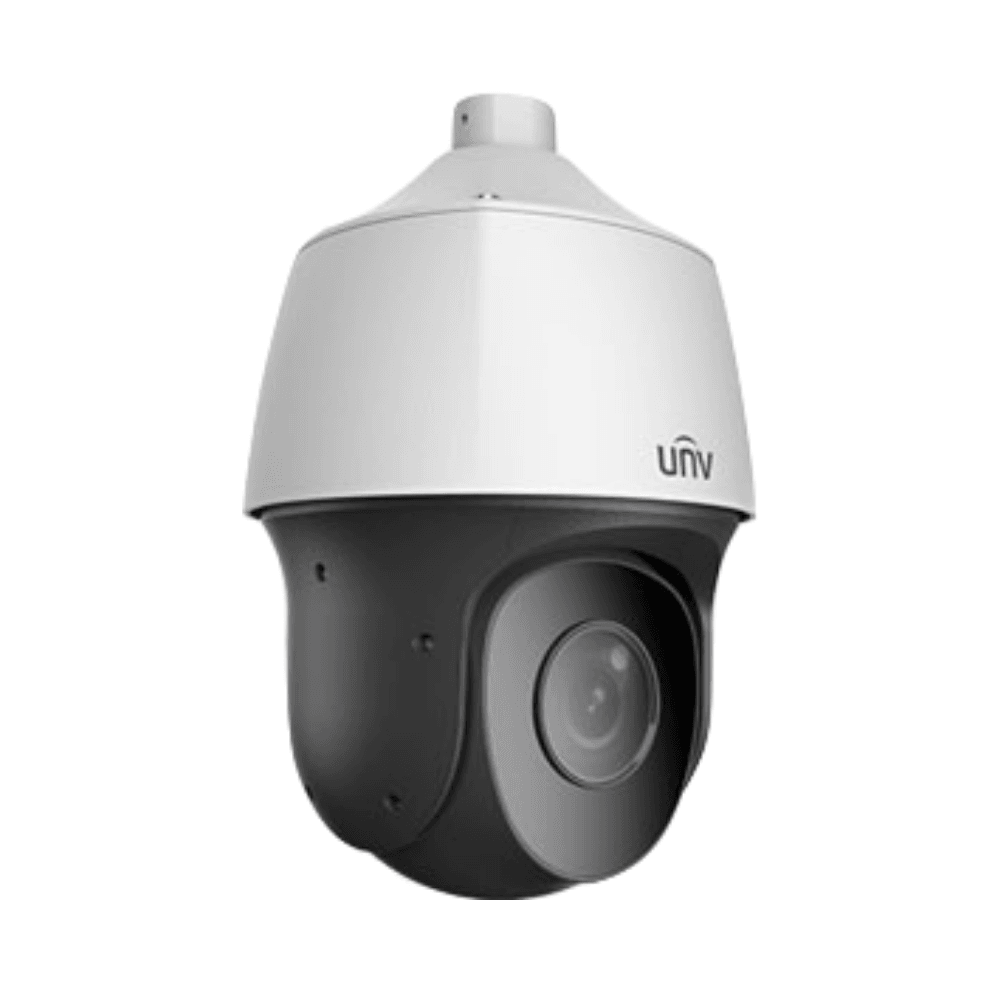

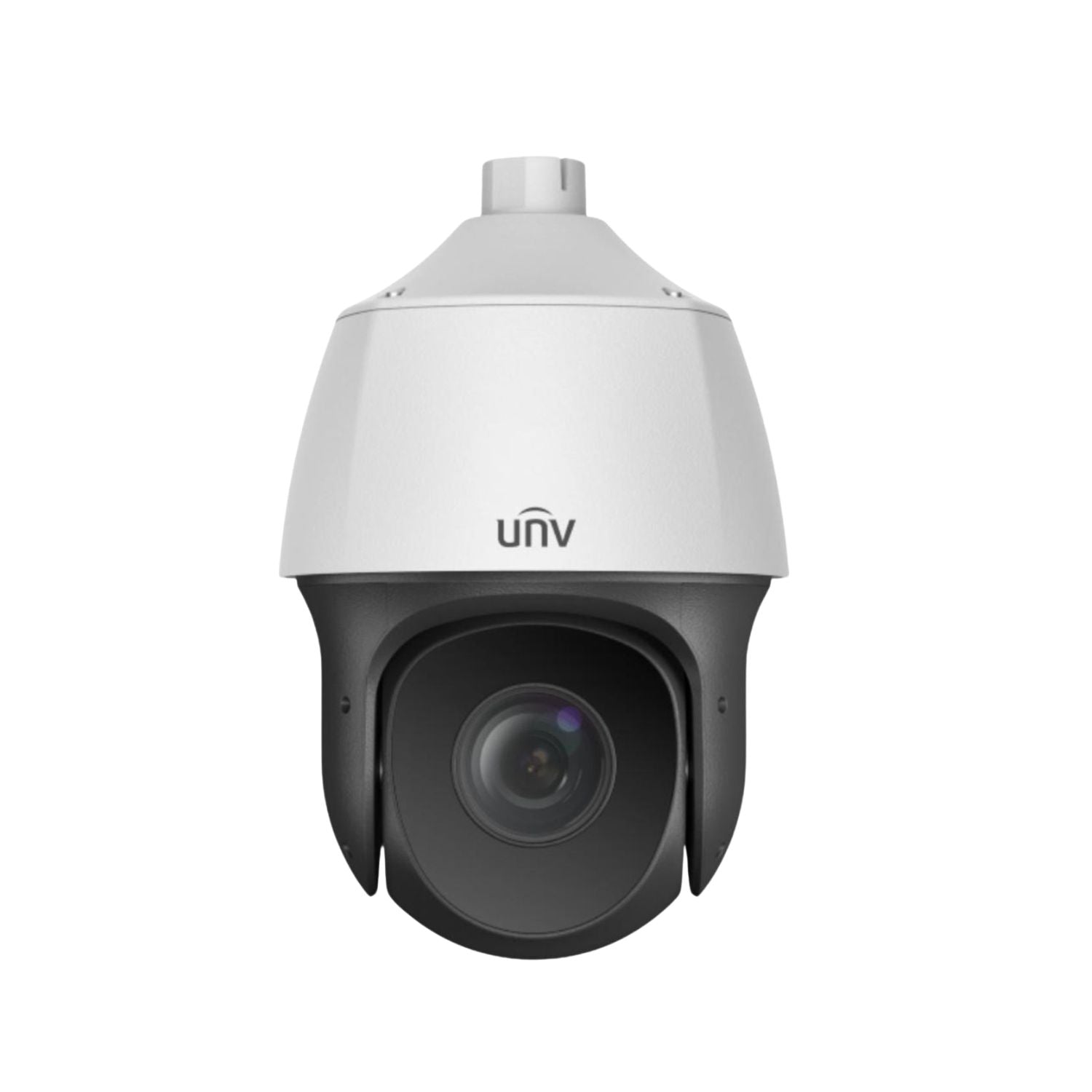

Uniview Security Camera: Navigator 2MP Starlight PTZ, 33x Zoom, 150m IR

Description

Description

Designed to excel in low-light recording conditions, the Uniview Starlight Navigator IP-IPC6322SR-X33DUP-C is a full featured 2 megapixel, motorised PTZ camera. The Navigator is capable of 33x zoom with auto focus and has extensive 150 metres infrared range, allowing for high detailed night recording. For conditions where there is minimal light, the camera produces all colour images in as low as 0.001 Lux, thanks to Starlight Illumination technology.

Enjoy total control over pan, tilt and zoom including full 360 degree panning, mitigating all blind spots. High quality stepping motors enable fast, smooth recording and are accurate to within 0.1°. Image clarity is further maintained at all times with electronic image stabilisation.

Smart detection software helps you to identify intrusions easily with the ability to set alarms and notifications, which are triggered by events. The camera can detect intrusions into predefined zones and across lines, as well as motion and face detection, and people counting. It also supports audio I/O and audio detection capability.

The Navigator is suitable for outdoor use in rain with IP66 protection. Digital defog capability uses infrared to penetrate pollution and atmospheric fog without loss of detail to the image. The camera is also equipped with a built-in fan and heater that maintains the clarity of the lens during high humid conditions, snow and fog.

Designed by industry leaders in innovation, the Uniview Navigator is a high quality, affordable PTZ camera that can be relied on to perform when it matters most.

FEATURES

  • 2MP, 1/2.8" Progressive Scan CMOS Sensor
  • Supports 33x optical zoom (4.5 ~ 148.5mm) with AF automatic focusing and motorised zoom lens + 16 X Digital Zoom
  • Starlight Illumination and Enhanced Sensor for colour recording in very low light conditions - 0.001Lux
  • Fifth-generation Smart Infrared technology, 150m IR night vision distance
  • IR anti-reflection window to increase the infrared transmittance
  • Optical glass window with higher light transmittance
  • DWDR Wide Dynamic Range, 2D/3D DNR Noise Reduction, Digital Defog
  • EIS (Electronic Image Stabilisation)
  • Preset patrol, route patrol, recorded patrol - Pan speed: 200°/s
  • Embedded Smart Algorithm
  • Smart Functions including cross-line detection, face detection, motion detection, audio detection and people counting
  • Video compression Ultra 265,H.265, H.264, MJPEG - Triple streams
  • Alarm I/O, Audio I/O - Two-Way Audio Supported
  • Intelligent temperature control technology and heat dissipation system
  • 6 KV surge protection designed for network interface, IP66 weather protection
  • Supports ANR and Micro SD
  • POE (PSE Required)
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info



Uniview Navigator 2.0, 2MP Starlight PTZ Camera 33X Zoom - IP-IPC6322SR-X33DUP-C

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy. (PSE Required)

Optics

  • Pan Range - 360°, Tilt Range –15° ~ +90° (auto reverse), Zoom - 33x optical zoom (4.5 ~ 148.5mm), AF automatic focusing.
  • Patrols - The user can set multiple patrol routes or presets for the camera to follow which then rotates to each, while the system records the movement and adds it to the action list. Patrols are a great way of covering a large area with only one camera. You can set the rotation speed, rotation direction, zoom, patrol time and stay time, including "keep rotating", which will allow it to follow the same patrol repeatedly.
  • Motorised PTZ - With built-in motorised Pan/Tilt/Zoom you can control functions on the camera remotely.
  • Smart IR night vision, up to 150m IR distance
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
  • Anti-Reflective Glass - Anti-reflective glass lenses prevent infrared reflection and the accumulation of insects that are attracted to light and obscure or dirty the lens.
  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: –40°C ~ +65°C
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP66 - Can be used outdoors. Sealed from water and dust.

Back Up Storage

  • ANR and Edge Storage - Thanks to this backup storage option the cameras have the ability to automatically record to micro SD card when the network connection is disrupted between NVR and cameras. When the connection is restored the footage is automatically transferred from the SD card back to the NVR as though there was no disruption. This is known as ANR (Automatic Network Replenishment). All cameras in the Building Kit are ANR and micro SD card compatible.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you by email.
  • Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.
Tech Specs
Uniview Navigator 2.0, 2MP Starlight PTZ Camera 33X Zoom - IP-IPC6322SR-X33DUP-C

Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 33
Angle of View (H) 76.8° ~ 2.1°
Angle of View (V) 38.4° ~ 1.2°
Angle of View (O) 94.46° ~ 2.48°
Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination Colour: 0.001Lux (F1.5, AGC ON)
0Lux with IR
Iris F1.5 ~ F4.0
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55 dB
IR Range UP to 150m (492ft)
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range 360°
Pan Speed 0.1°/s ~ 300°/s
Preset speed: 200°/s
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed 0.1° ~ 80°/s
Preset speed: 80°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O 1 Input: impedance 1k?±10%; amplitude 2V [p-p]
1 Output: impedance 600?; amplitude 2V [p-p]
Alarm I/O 2/1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (PSE Required)
Power consumption: 16 ~ 30W
Dimensions (Ø x H) ?220 × 369mm (?8.7” x 14.5”)
Weight 3kg (6.6lb)
Working Environment -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ?95% RH (non-condensing)
Ingress Protection IP66
Reset Button Supported
