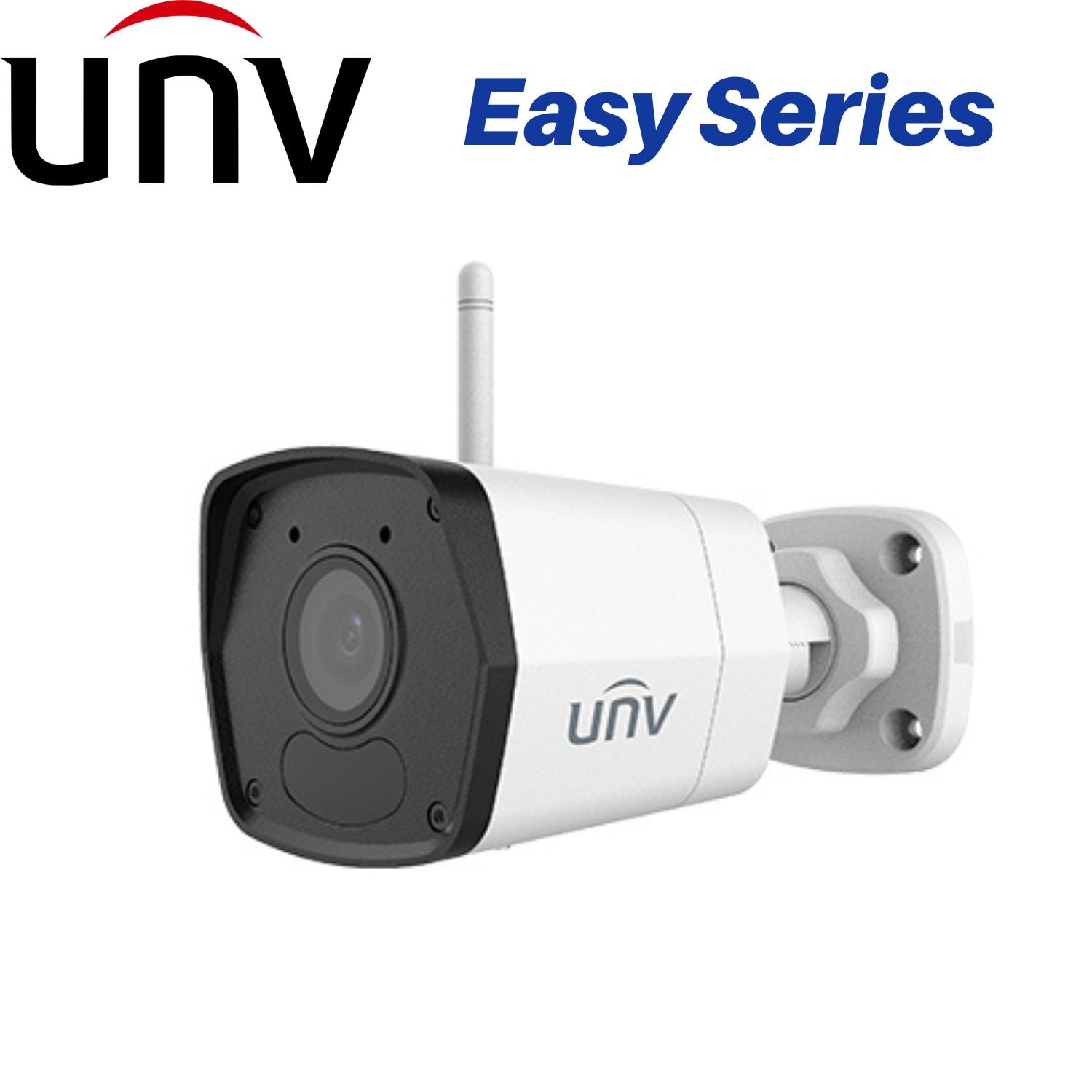

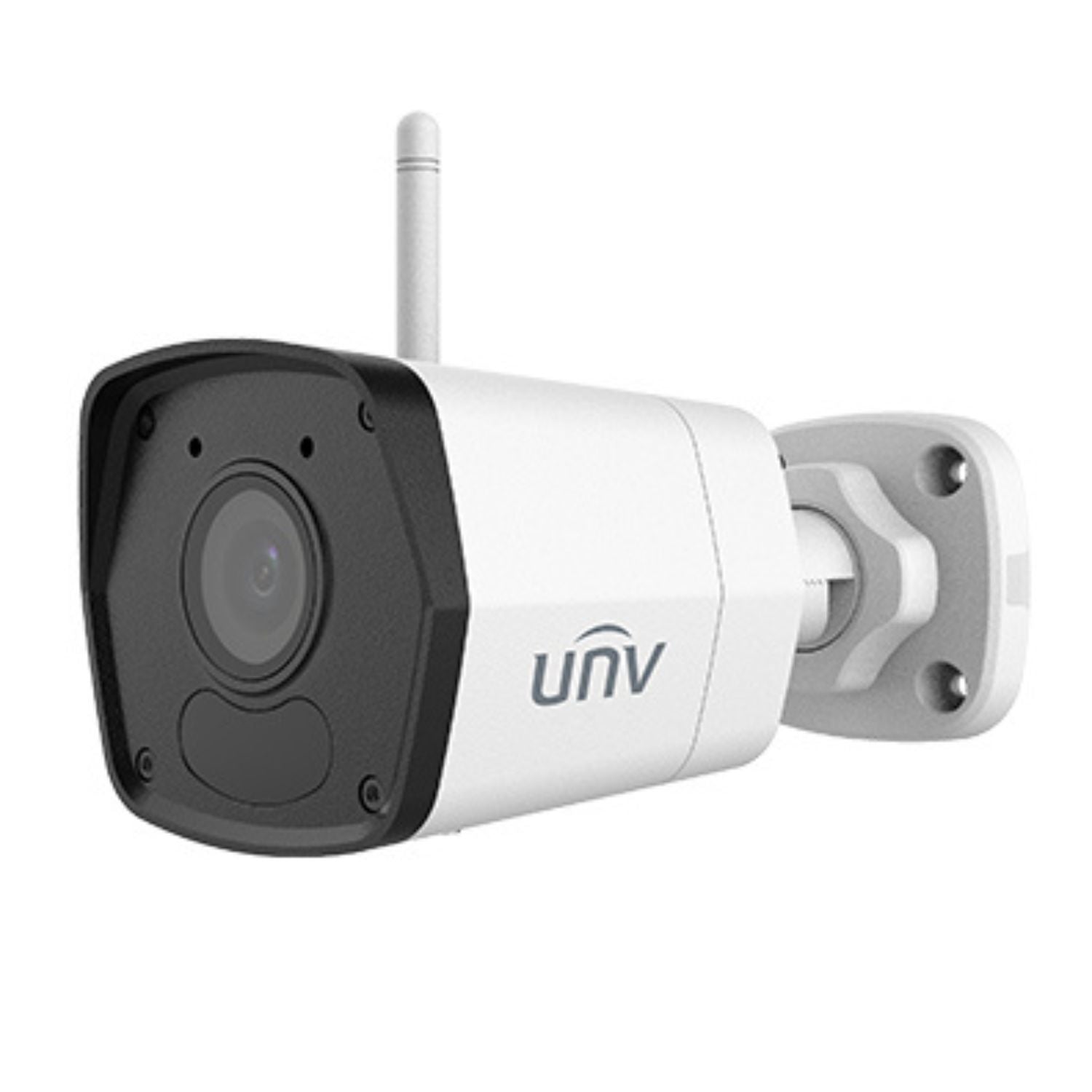

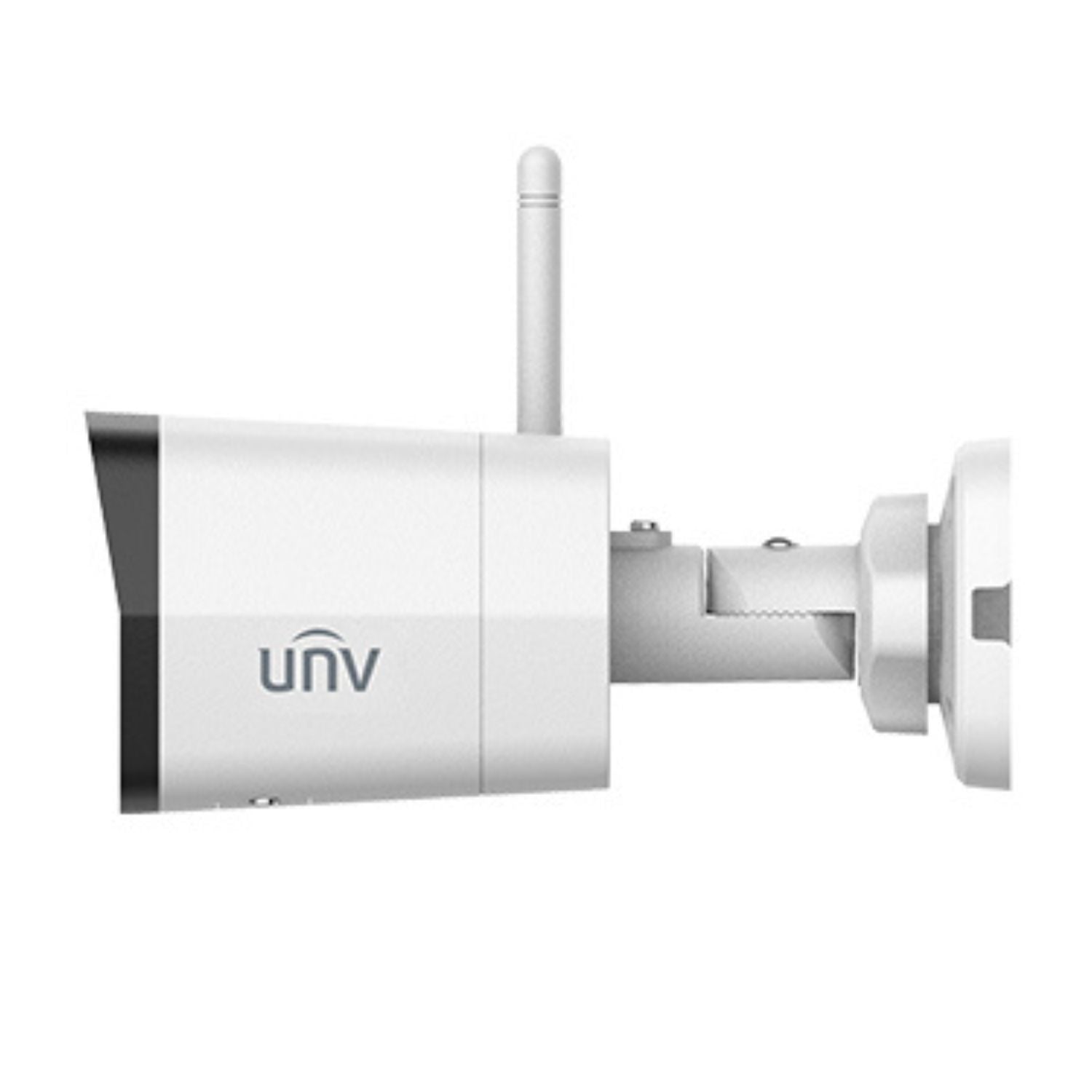

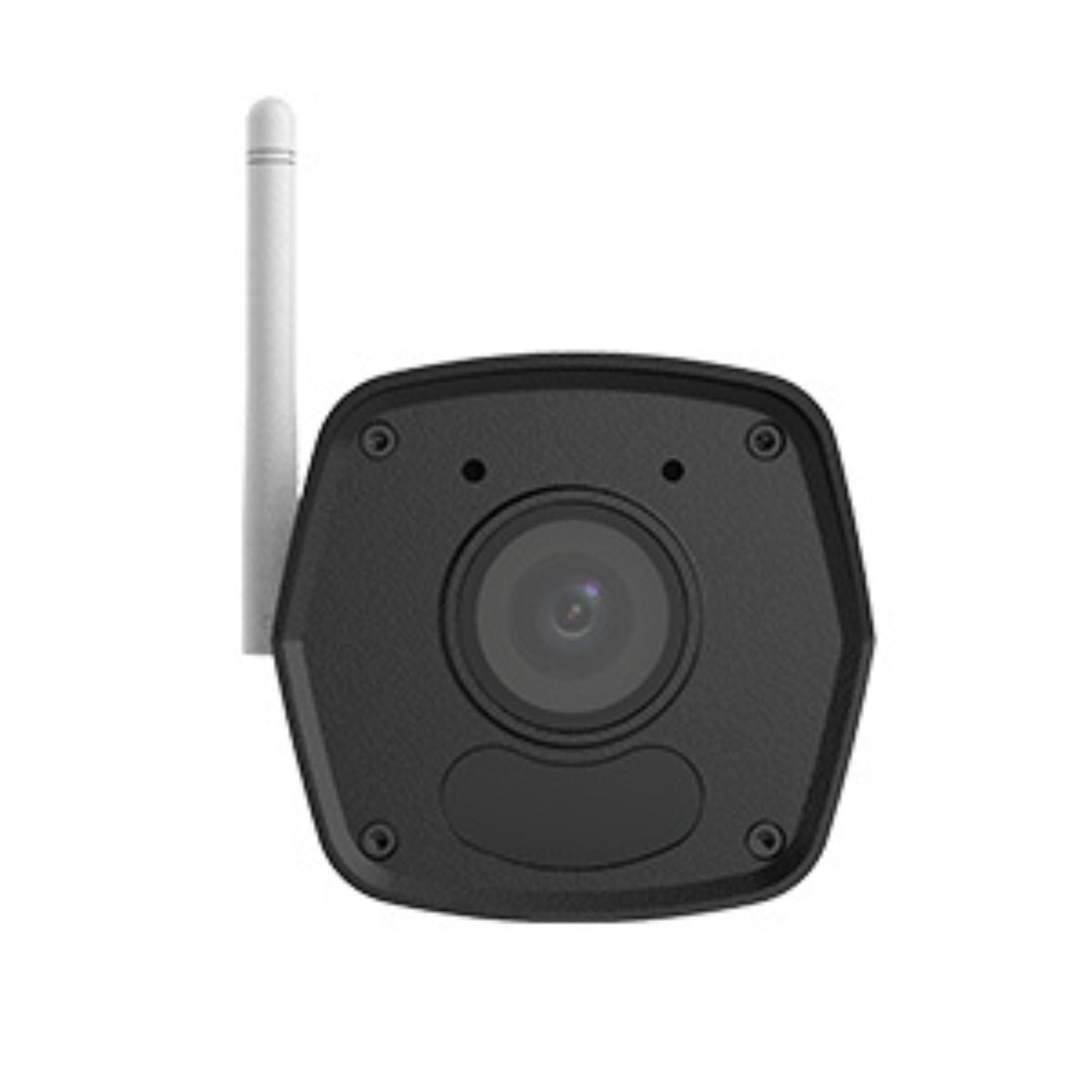

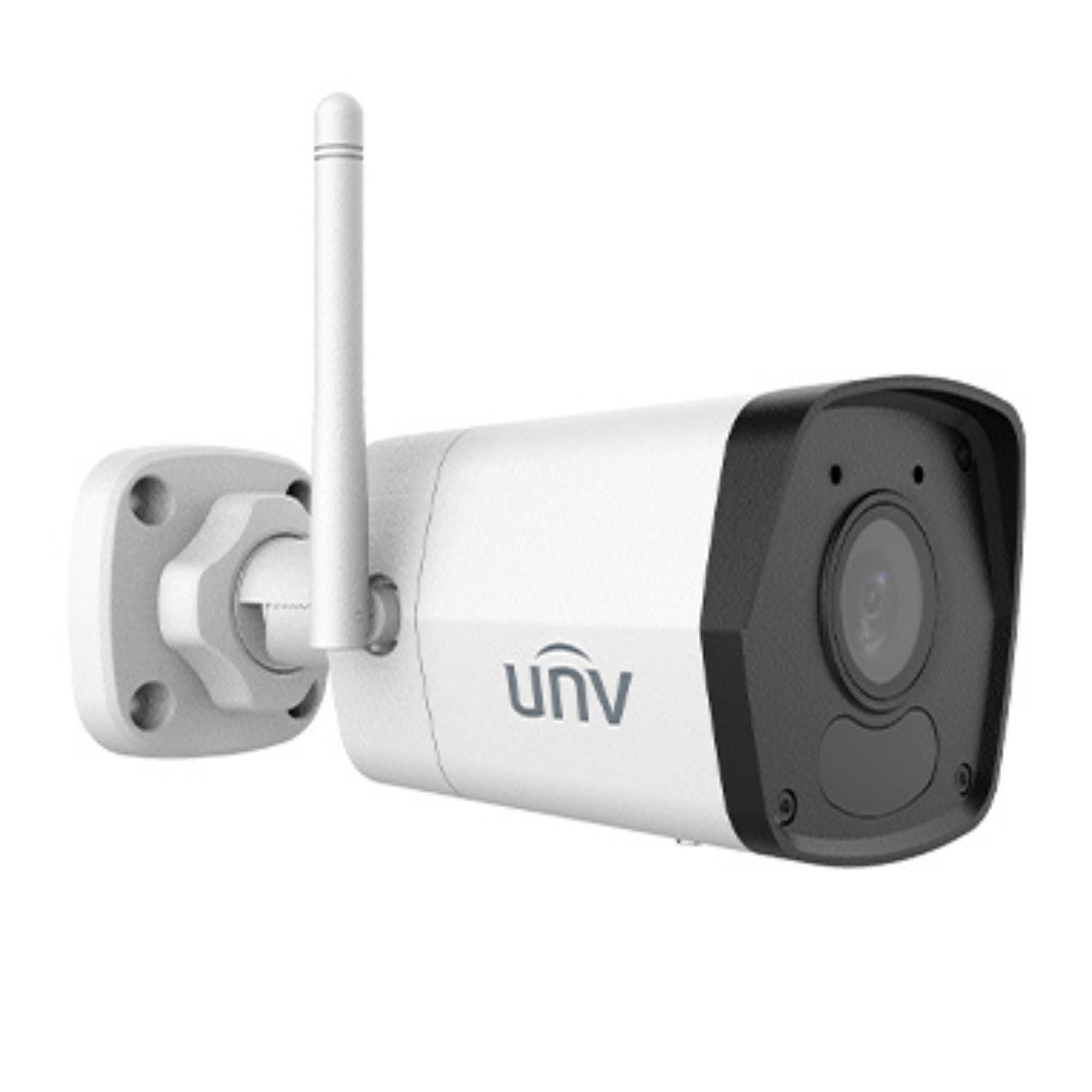

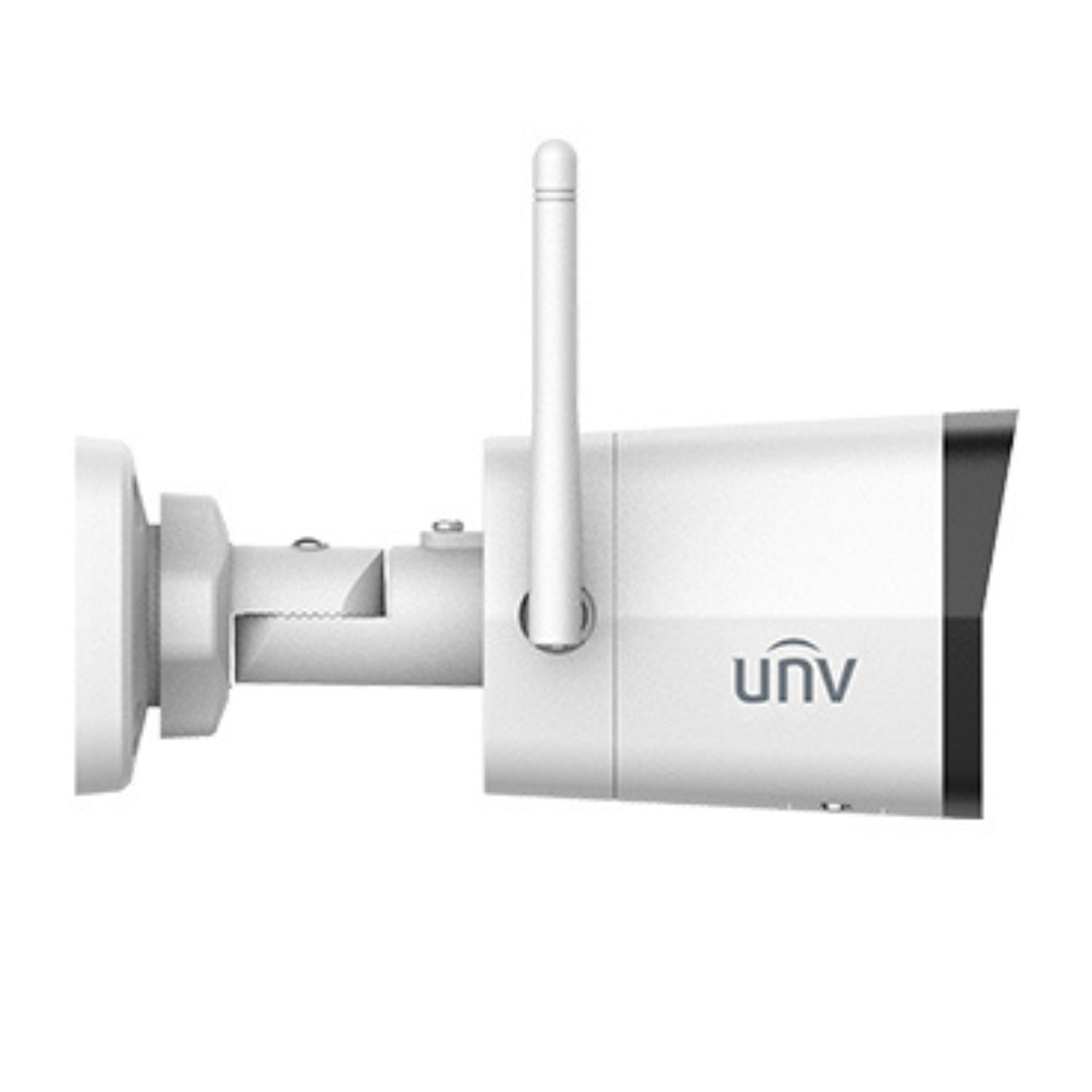

Uniview Security Camera: 2MP HD WIFI Bullet Network Camera - IPC2122LB-AF28WK-G

Description

Description

Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

The IPC2122LB-AF28WK-G Uniview 2MP Wifi IP Bullet Camera features up to 100 Feet of Night Vision and a Built In Microphone. You can use this Camera to have stunning high resolution video delivered to your mobile device or PC. You can also use the camera with your Uniview NVR if you need to add a wireless camera to your system. With an extreme temperature range of -22°F to +140°F, this IP Camera can handle a variety of harsh environments. Weatherproof ratings on this professional grade camera are IP67 so you have maximum protection against the elements.

Features
  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • 3-Axis
Datasheet
Videos

Tech Specs

Uniview Security Camera: 2MP HD WIFI Bullet Network Camera - IPC2122LB-AF28WK-G

IPC2122LB-AF28WK-G IPC2122LB-AF40WK-G
Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01 lux (F2.0 AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1~1/100000 s
Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm@F2.0 4.0mm@F2.0
Iris Fixed
Field of View (H) 101.1° 83.7°
Field of View (V) 55.0° 44.6°
Field of View (D) 111.0° 89.1°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 45.0 18.0 9.0 4.5
4.0mm 64.3 25.7 12.9 6.4
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Human body detection, Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Wireless Range Up to 130 m (The performance varies based on actual environment)
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI Support
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
RF FCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC 12V±25%
Power consumption: Max 4.0 W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 172 × 76 ×72 mm (6.8” × 3” × 2.8”)
Weight 0.25 kg (0.55 lb)
Material Metal + Plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Support

3-Years Warranty


Uniview 3-Years Manufacturer Warranty!

Our Uniarch products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!

✔️ Authorised Uniview Dealer!

✔️ Australian Stock, No Grey Imports!

✔️ 3-Years Manufacturer Warranty!


Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost.

The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.

Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.

We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.

You can contact us by email at support@secsource.com.au or phone on 1300 049 519.
