Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.
Pro Series
UNV Pro series are born with excellent ultra-smart technology, deliver superior users experience. Applied with professional smart functions, these products are able to suit for a range of tough situations. Addition to amazing cameras performance, Pro series NVRs also have outstanding ability to record and decode with professional hardware design. They are integrated with manage, store, and transfer functions. The Pro series products absolutely are the first options for enterprise and project applications.
Features
- Starlight optical sensor capable of capturing and recognizing vehicles in low light environment when collaborating with integrated built-in illuminators
- 2MP industrial quality sensor, 1920*1080 video image resolution
- Motorized zoom lens, flexible adjustment of focus range according to the scene, easy installation
- Automatic gain control, white balance, and WDR, ideal for various lighting conditions
- Supports 1080P@60fps image collection
- Supports one image stream, triple video streams
- Supports 1080P@60fps live video streams
- H.265
- Custom OSD of various vehicle information
- Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
- Recognizes vehicle body colors and features (daytime)
- Supports blacklist and whitelist configuration
- Collaborates with lanes to control the entry & exit of vehicles and trigger gate opening
- Supports the switch between road mode and entry/exit mode
- 8GB eMMC, expansion up to 256GB
- Supports edge storage to prevent data loss in case of disconnected network
- Tamper-proof info and records
- Supports identification of fake license plates
- Provides multiple 3rd-party integration methods including SDK and Socket.
- Network adaption ensures effective surveillance even in abnormal environments such as packet loss
- Supports SNMP and SIP
- UNP technology for NAT traversal
- Supports user authorization and password, detection of weak password, and account lock-up when failed login attempts reaches the limit
- Supports secure Web access through HTTPS
- Supports RTSP authentication prevents unauthorized video request
- Supports IP address filtering
- Supports gateway ARP protection to prevent MAC address spoofing
- Provides AC24V/DC12V power supply and supports PoE \Cast aluminum body, efficient heat dissipation
- IP67
- IK10
Datasheet
Videos
Tech Specs

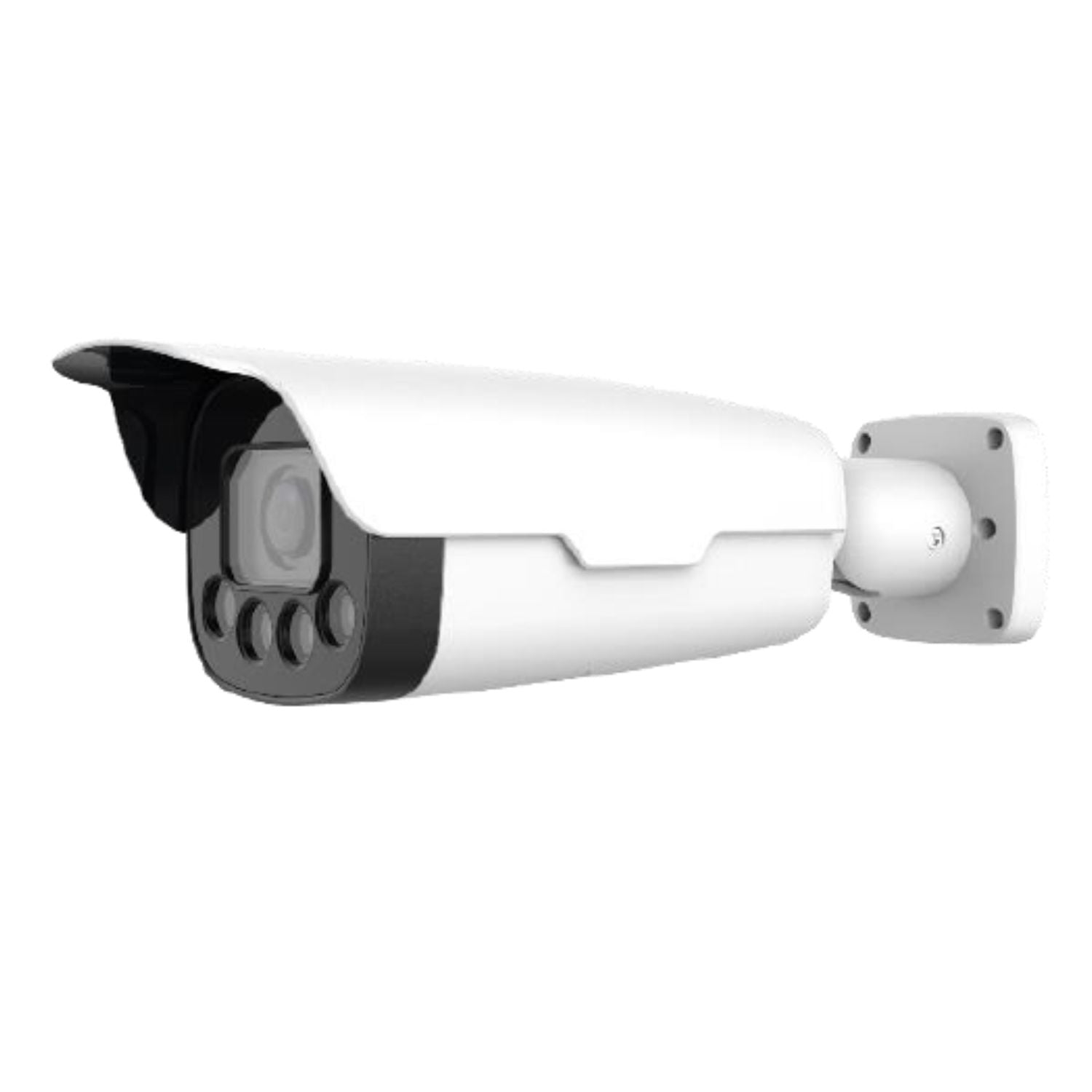

Uniview Security Camera: 2MP Bullet, 2.8-12mm, Pro - HC121@TCR-08S-Z28
| HC121 |
TCR-08S-Z28 |
| Camera |
Information |
| Sensor |
1/2.8“, 2MP CMOS |
| Focal length |
2.8-12mm, motorized zoom |
| Shutter |
Auto/Manual, range: 1/25-1/100000 s |
| Minimum illumination |
0.001lux (F1.6) |
| Image |
Information |
| Max resolution |
1920 x 1080@60fps |
| Video compression |
H.265, H.264, JPEG |
| Region of Interest (ROI) |
Support |
| Video OSD |
Supports 8 overlay areas and allows contents including date, time, date+time, custom contents |
| Photo OSD |
Allows contents including time, license plate number, device ID, camera ID, vehicle body color, whitelist, image authentication ID, custom content (3 items), location |
| Smart |
Information |
| Application |
Road, entrance & exit (default) |
| Vehicle detection mode |
Trigger by video (default) or coil |
| Intelligent recognition |
License plate number, number of characters on plate, vehicle body color (daytime) |
| List configuration |
Supports whitelist and blacklist configuration, allows import, export, add, and delete operations |
| Let through policy |
Trigger gate opening by recognized vehicles
Trigger gate opening by all vehicles
Trigger gate opening by whitelist
Trigger gate opening by non-blacklist
Configurable boolean output ID |
| Storage |
Information |
| Edge storage |
Built-in 8GB eMMC, supports Automatic Network Replenishment (ANR) |
| Storage expansion |
Supports Micro SD card expansion, up to 256GB. |
