Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

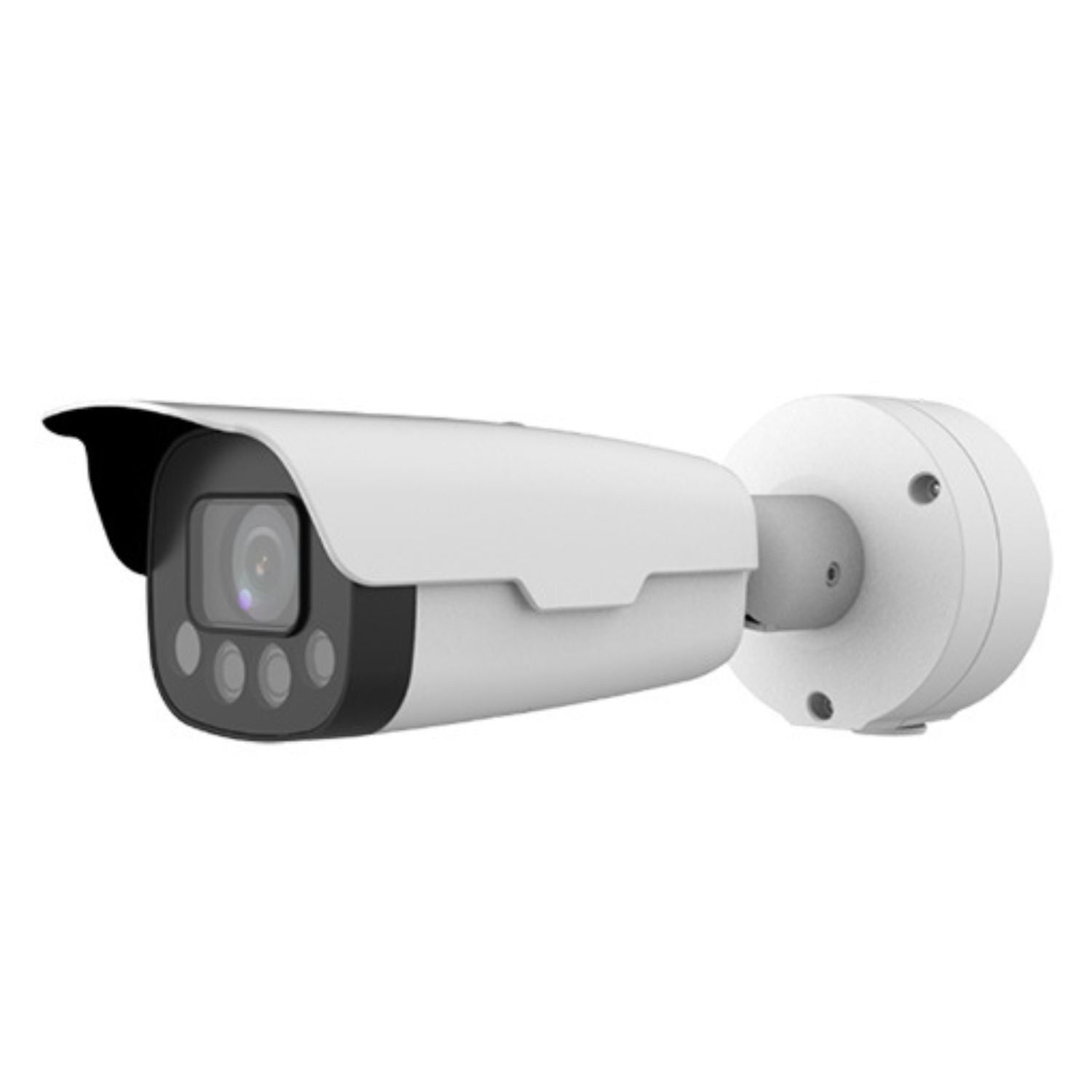

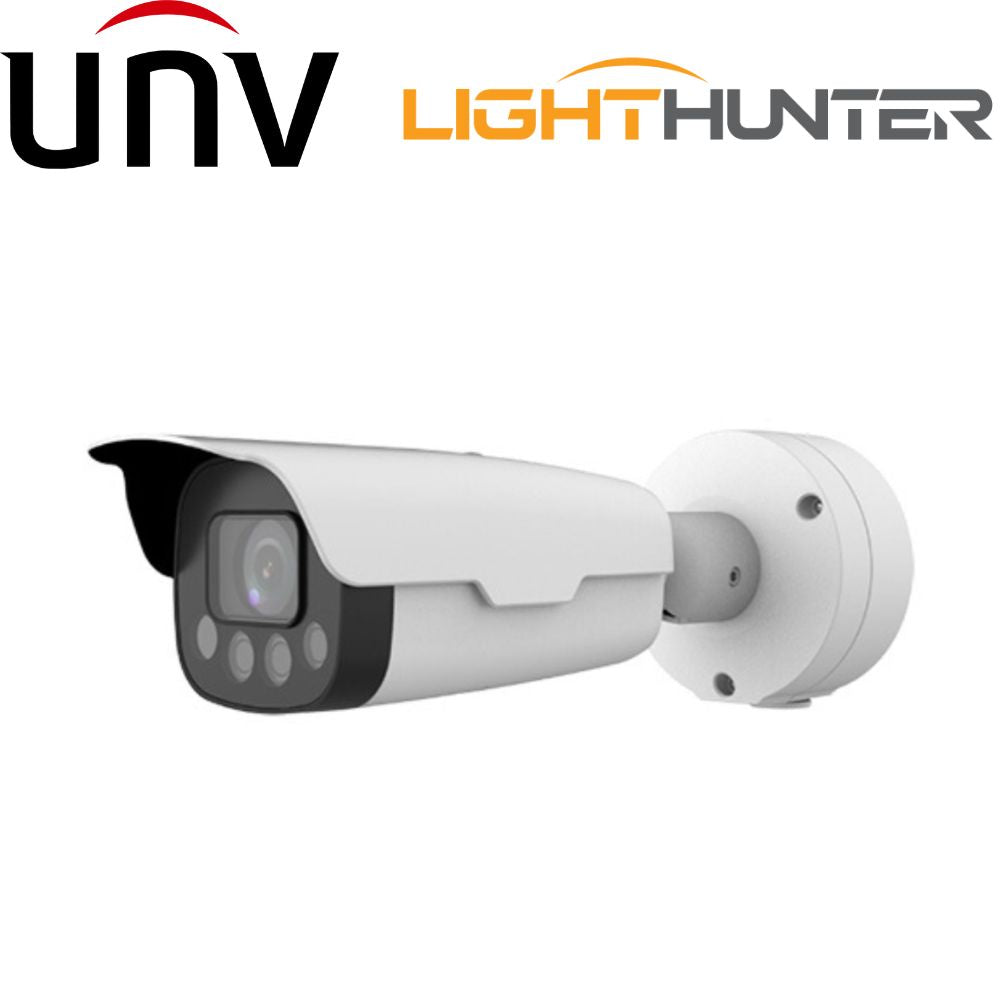

The HC121@TS8C-Z from Uniview is a 2 MP Automatic Number Plate Recognition (ANPR) camera, 0.001 Lux, with four built-in white Light LEDs with a distance of 50 meters, 12 VDC/PoE, ingress protection rated at IP67 and vandal resistance rated at IK10, 4.7-47 mm Lens.
Features
- 1/2.8” 2MP CMOS @60fps
- Focal length 4.7 to 47mm
- Motorized zoom lens
- H.264 (default), H.265
- ROI Supports up to 8 regions
- Starlight optical sensor
- 4 LED
- up to 50m illumination
- 2MP industrial-grade sensor delivers 1920 x 1080 images
- A motorized zoom lens for flexible focal length adjustment
- Easy installation
- White balance
- True WDR
- IP67, IK10 protection
- 3-axis
- ANR with a Micro SD card, up to 128GB
Datasheet
Videos
Tech Specs
Uniview Security Camera: 2MP ANPR Bullet Camera - HC121@TS8C-Z
| Camera |
Information |
| Sensor |
1/2.8” 2MP CMOS |
| Focal length |
4.7 to 47mm, motorized zoom |
| Shutter |
Auto/Manual, range: 1/25 to 1/100000 s |
| Minimum illumination |
0.001lux (F1.6) |
| Image |
Information |
| Image collection format |
1080P@25 (default), 1080P@30, 1080P@50, 1080P@60 |
| Resolution |
Main stream: 1080P (default), 720P, D1
Sub stream: 720P (default), D1, 2CIF, CIF
Third stream: D1 (default), 2CIF, CIF |
| Frame rate |
60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression |
H.264 (default), H.265 |
| ROI |
Supports up to 8 regions |
| Video OSD |
Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents |
| Image OSD |
Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Smart |
Information |
| Application scenario |
Vehicle speed ≤30km/h
Supports simultaneous application to entry/exit scenes |
| Vehicle detection mode |
Video (default) or inductive loop |
| Capture vehicle head only |
Support |
| License plate number recognition |
Supports recognition of license plates with numbers and letters by default |
| List configuration |
Supports allowlist and blocklist configuration, each list allows 20,000 items
Supports import, export, add, and delete operations |
| Barrier opening policy |
Open barrier only for the recognized vehicles
Open barrier for all vehicles
Open barrier only for vehicles on the allowlist
Open barrier for vehicles not on the blocklist
Configurable Boolean output ID |
| Storage |
Information |
| Edge storage |
Supports ANR with a Micro SD card, up to 128GB |
| Structure |
Information |
| Illumination |
Built-in integrated illumination module, including 4 white light LEDs, 50m illumination distance, automatic on/off control |
| Sunshield |
Long sunshield |
| Bracket |
3-axis mounting bracket |
| Junction box |
The camera comes with a junction box for storing tail cable |
| Interface |
Information |
| Network interface |
1 × 10M/100M RJ45 |
| Serial port |
1 × RS485 |
| Boolean output |
1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input |
2 inputs, supports level/Boolean, with max level up to DC 5V |
| Audio interface |
1 × audio input, 1 × audio output |
| Storage interface |
1 × Micro SD card slot |
| General |
Information |
| Power supply |
DC12V + 25% - 10% |
| Max. power consumption: 20W |
| Supports PoE (802.3at, class 4) |
| Dimensions (L×W×H) |
386mm x 126mm x 130mm |
| Weight |
2kg |
| Operating environment |
-40℃ to 60℃, ≤90% RH |
| Ingress protection |
IP67, IK10 |
