Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

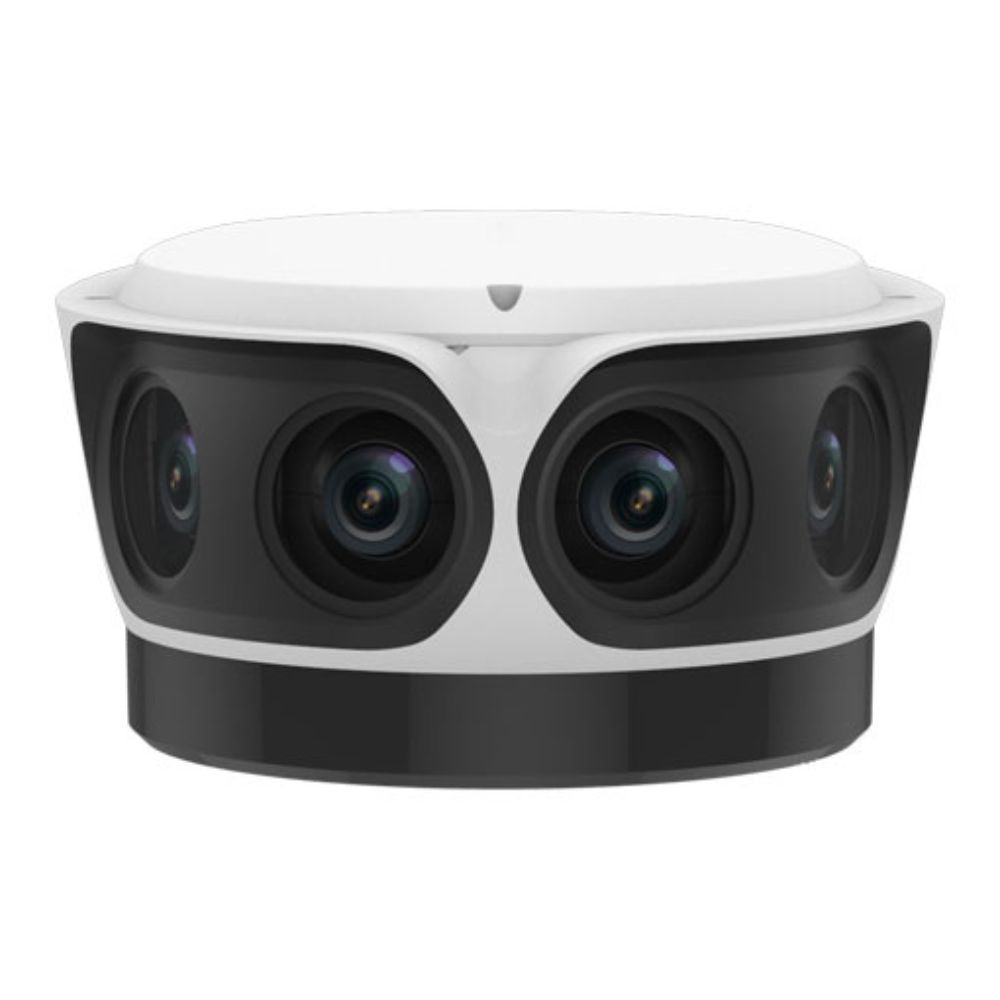

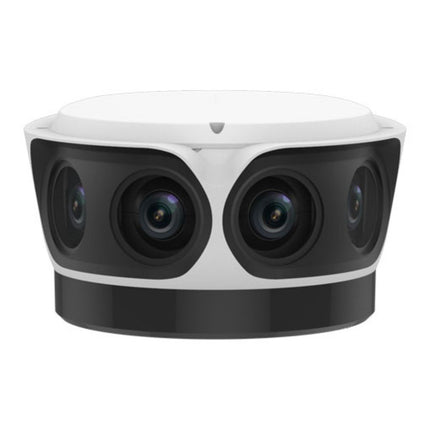

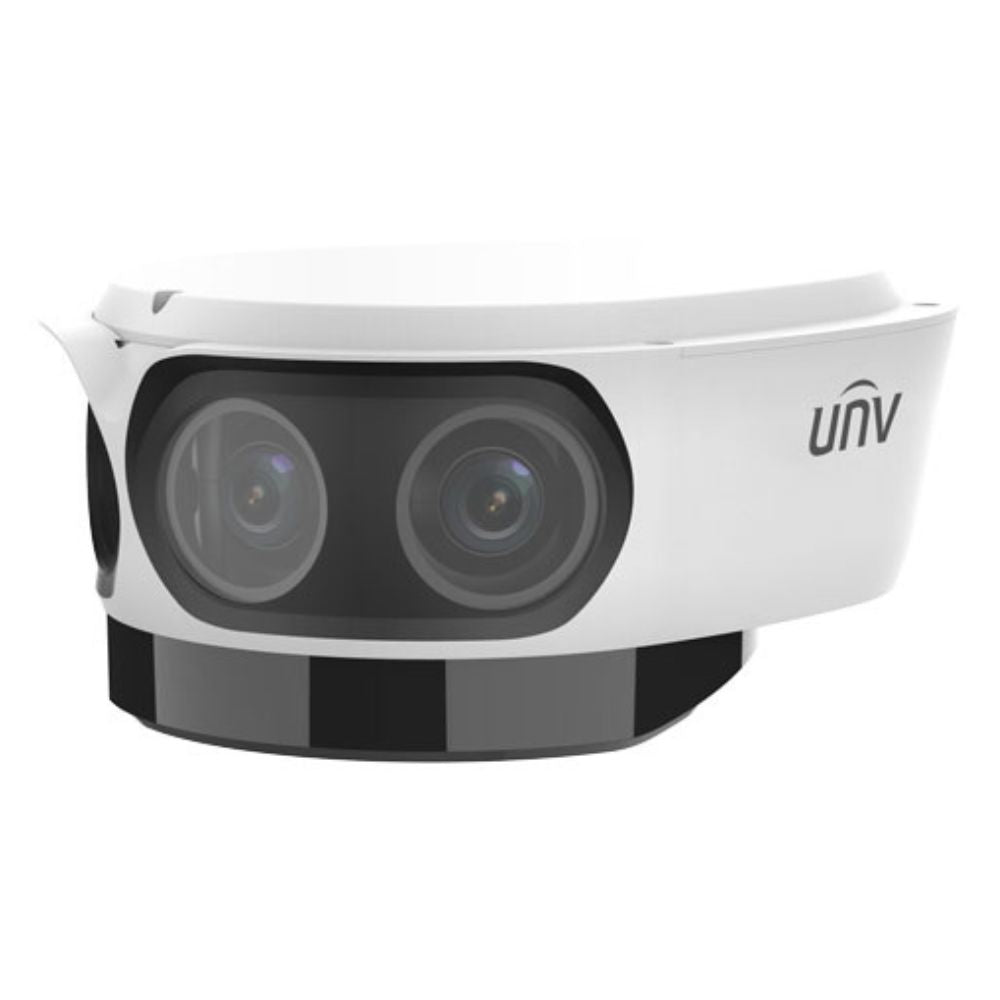

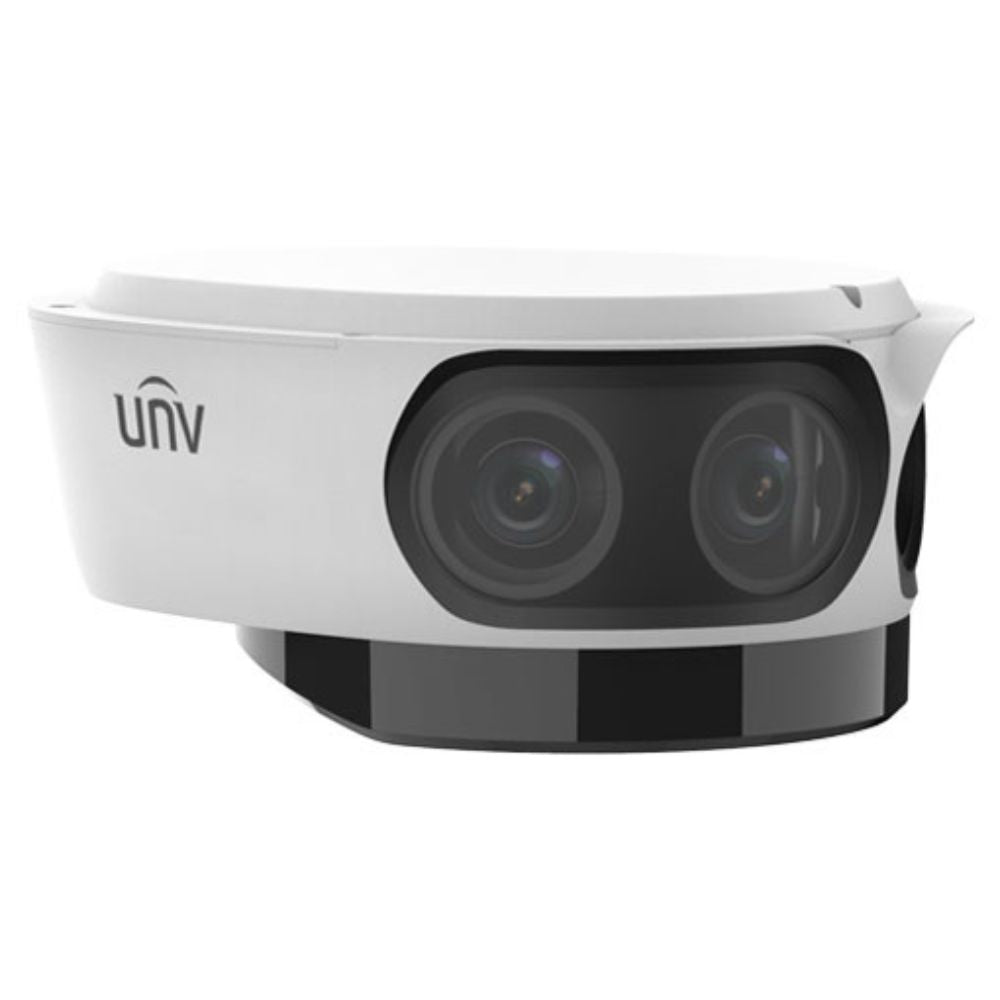

Our IPC8544EA-KM-I1 is a Multi-Sensor IP Camera with 16MP (4X4MP) of resolution. Multi-Sensor Cameras have multiple lenses, and are therefore designed to cover large areas in high resolution. If you need a single Camera to cover a wide area, this Multi Sensor Camera will do the trick! The IPC8544EA-KM-I1 has (4) X 2.8mm Lenses that cover a 180° AOV (Angle of View). In addition, each of the sensors is 4MP Resolution for a total of 16MP across the scene. In addition, True WDR allows the Camera render more perfect images in complex scenes, which means that your challenging lighting conditions are not a problem. Even better, this Multi Sensor Panoramic Camera can operate within an extreme temperature range of -40°F to +158°F.
Features
- High quality image with 16MP, 1/1.8" CMOS sensor
- 4800*2688@30fps in the main stream offers 180° panoramic view, and 16:9 ratio can better fit the screen
- Smart IR, up to 50m (164 ft) IR distance
- Built-in fan, allows dissipating heat and eliminating the mist of window
- Ultra 265,H.265, H.264, MJPEG
- 2D/3D DNR (Digital Noise Reduction)
- AC24V, DC24V or PoE(IEEE 802.3at) power supply
- Micro SD, up to 256 GB
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
Datasheet
Videos
Tech Specs

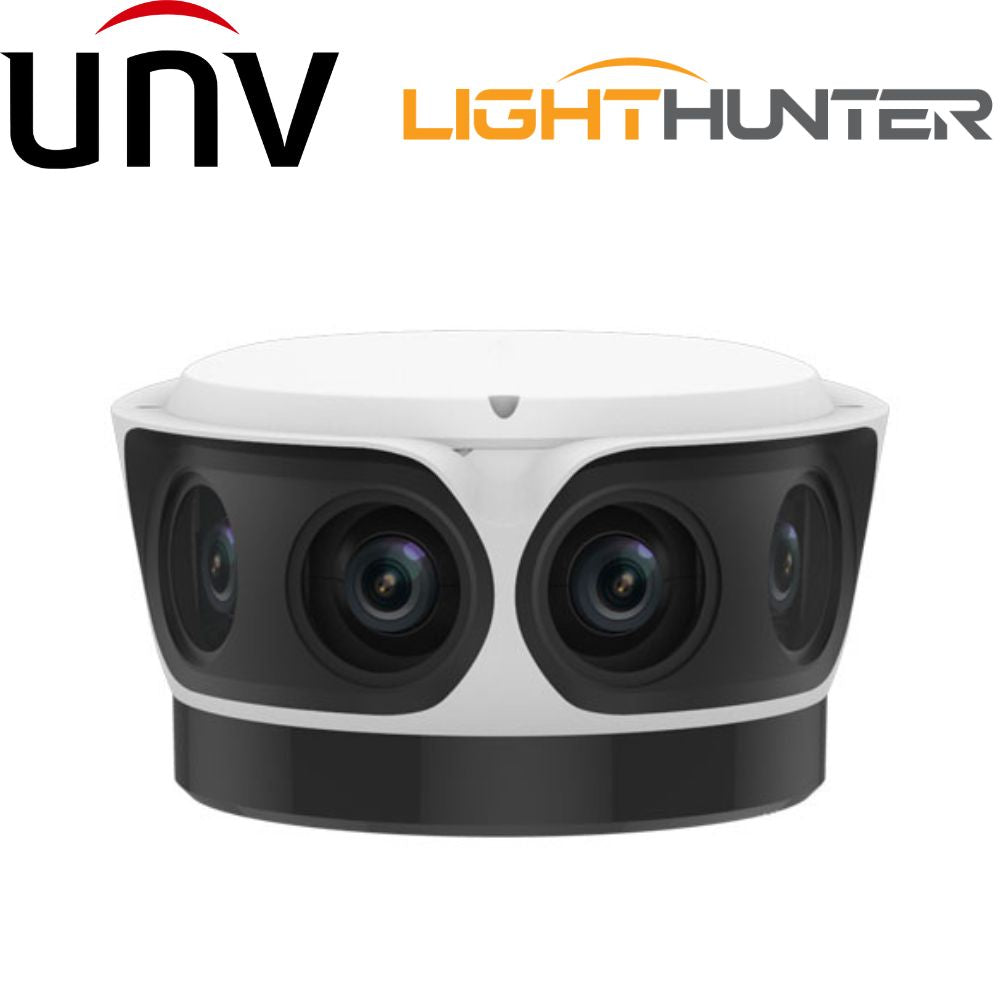

Uniview Security Camera: 16MP LightHunter 180° OmniView Network Camera - IPC8544EA-KM-I1
| IPC8544EA-KM-I1 |
| Camera |
| Sensor |
1/1.8" progressive scan, 4.0 megapixel, CMOS |
| Min. Illumination |
Colour: 0.001lux (F1.6,AGC ON)
0lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR |
Digital WDR |
| S/N |
>56dB |
| Lens |
| Lens |
4×2.8mm lens |
| Iris |
F1.6 |
| Field of View (H) |
180° |
| Field of View (V) |
90° |
| Field of View (D) |
221.4° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0(206.7ft) |
25.2(82.7ft) |
12.6(41.3ft) |
6.3(20.7ft) |
| Illuminator |
| IR Range |
Up to 50m (164ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4800×2688:Max. 30 fps;
Sub Stream: 2688×1520:Max. 30 fps;
Third Stream: 1280×720: Max. 30 fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 areas(8 blacks/8 mosaics) |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Events |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Two-way Audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation
EZLive
EZView |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Interface |
| Audio I/O |
Audio cable |
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] |
| 1 output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
2/1 |
| Network |
10M/100M/1000M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
Power
|
AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) |
| Power consumption: Max 34W |
| Dimensions (Ø x H) |
258.8mmx211.0mmx115.0mm(10.2”×8.3”×4.5”) |
| Weight |
2.271kg(5.01lb) |
| Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) |
| Storage Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) |
| surge protection |
6KV |
