Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

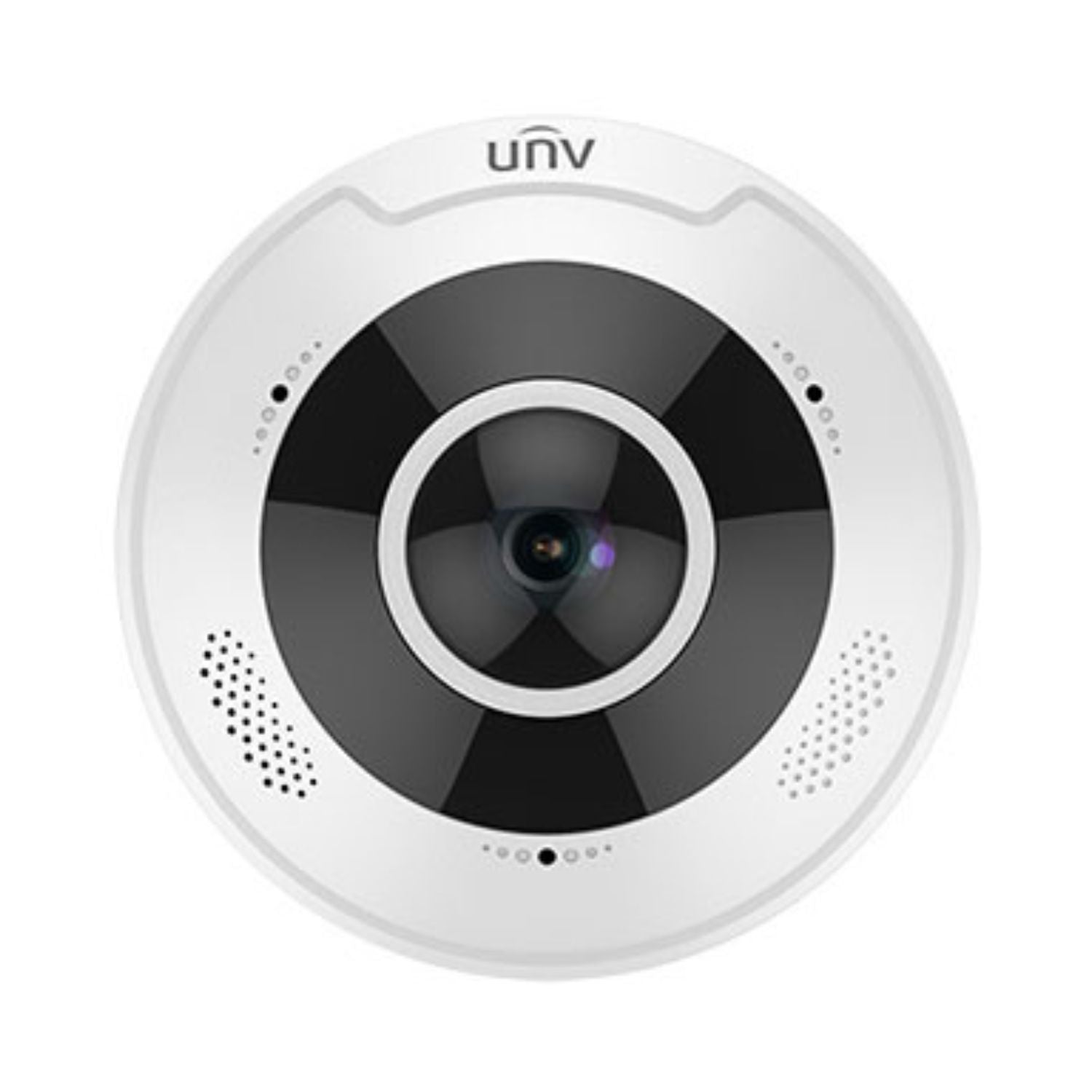

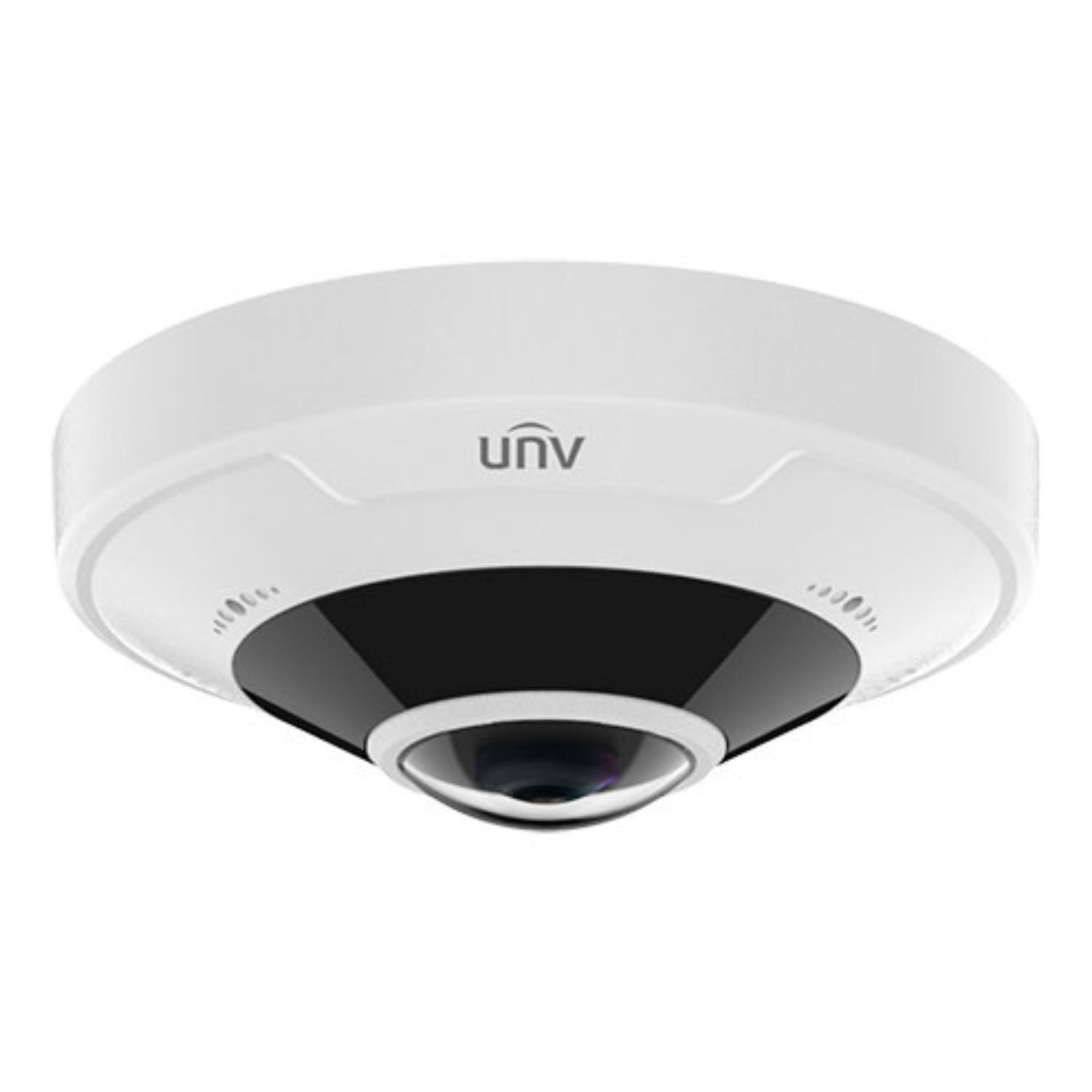

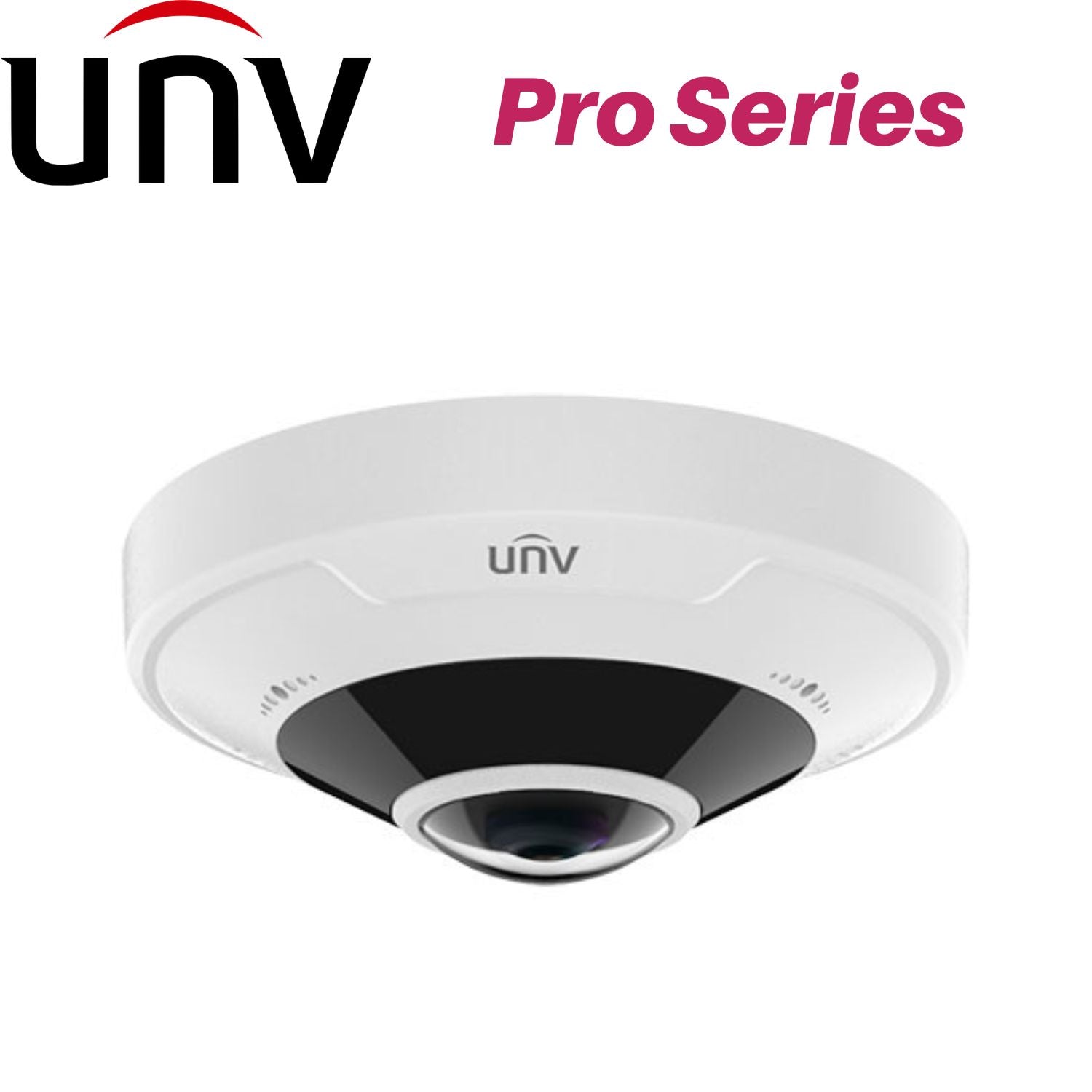

Our IPC86CEB-AF18KC-I0 Panoramic 4K Fisheye Dome Camera from Uniview, has a 360 degree ultra wide angle lens for an extremely large field of view. You may already know that Panoramic Cameras are particularly useful in applications where you need one camera to cover a wide area. However, the IPC86CEB-AF18KC-I0 takes your wide angle viewing options to a new level! You can use several decoding modes that provide an interactive dynamic view. Also, the camera has a 1.8mm Lens which gives you 360 degrees of coverage in up to 12 Megapixel Resolution. In addition, this Multi Sensor Panoramic Camera can operate within an extreme temperature range of -22°F to +140°F, which means your Pano Camera is operating even when you probably don’t want to be.
Features
- High quality image with 12MP,1/1.7’’ CMOS sensor
- Max 4000*3000 resolution
- Ultra265, H.265, H.264, MJPEG
- Ultra wide angle lens, 360° panoramic image
- Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
- Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
- Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
- Built-in microphone & speaker, two-way talk supported
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
Datasheet
Videos
Tech Specs
Uniview Security Camera: 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera - IPC86CEB-AF18KC-I0
| IPC86CEB-AF18KC-I0 |
| Camera |
| Sensor |
1/1.7", 12.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR |
| Day / Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000s |
| WDR |
DWDR |
| S/N |
>52dB |
| Lens |
| Lens type |
1.8mm@F2.0 |
| Field of View |
360° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 1.8 |
43.8 |
17.5 |
8.8 |
4.4 |
| Illuminator |
| IR Range |
Up to 15m (49ft) IR range |
| wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Main Stream |
Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
PTZ View: 1920*1080@20/25fps; |
| Sub Stream |
Fisheye View:2000*1500@20fps;2000*2000@25fps |
| Third Stream |
Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| Live View Display |
| Mount Type |
Support table, wall, and ceiling |
| Hardware Decoding |
Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view、vertical panorama view
Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view、vertical panorama view
Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
| Software Decoding |
Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/ Flip Horizontal/180° |
| Dewarping |
N/A |
| HLC |
N/A |
| BLC |
Support |
| Defog |
Digital Defog |
| Smart intrusion prevention |
Cross Line detection, Intrusion detection |
| Statistical Analysis |
Heat map(Working with management platform) |
| Basic Detection |
Motion detection, Audio detection, Tampering alarm |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
2/1 |
| Multiple Alarm linkage editable |
| Built-in Mic |
Two Mics |
| Built-in Speaker |
Support |
| Serial |
1 channel RS485 interface |
| Network |
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| Certifications |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 12W |
| Dimensions (Ø x H) |
Φ149 x 55mm (Φ5.9” x 2.2”) |
| Weight |
524g |
| Material |
Metal + Plastic |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH |
| surge protection |
4kv |
| Reset Button |
Support |
