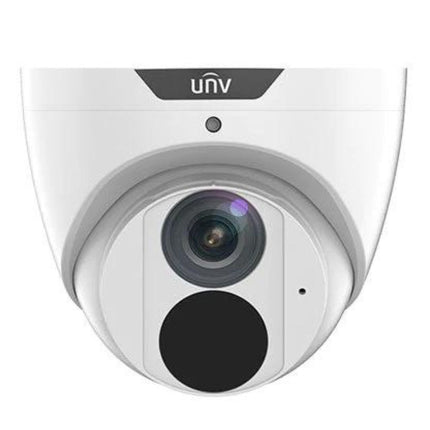

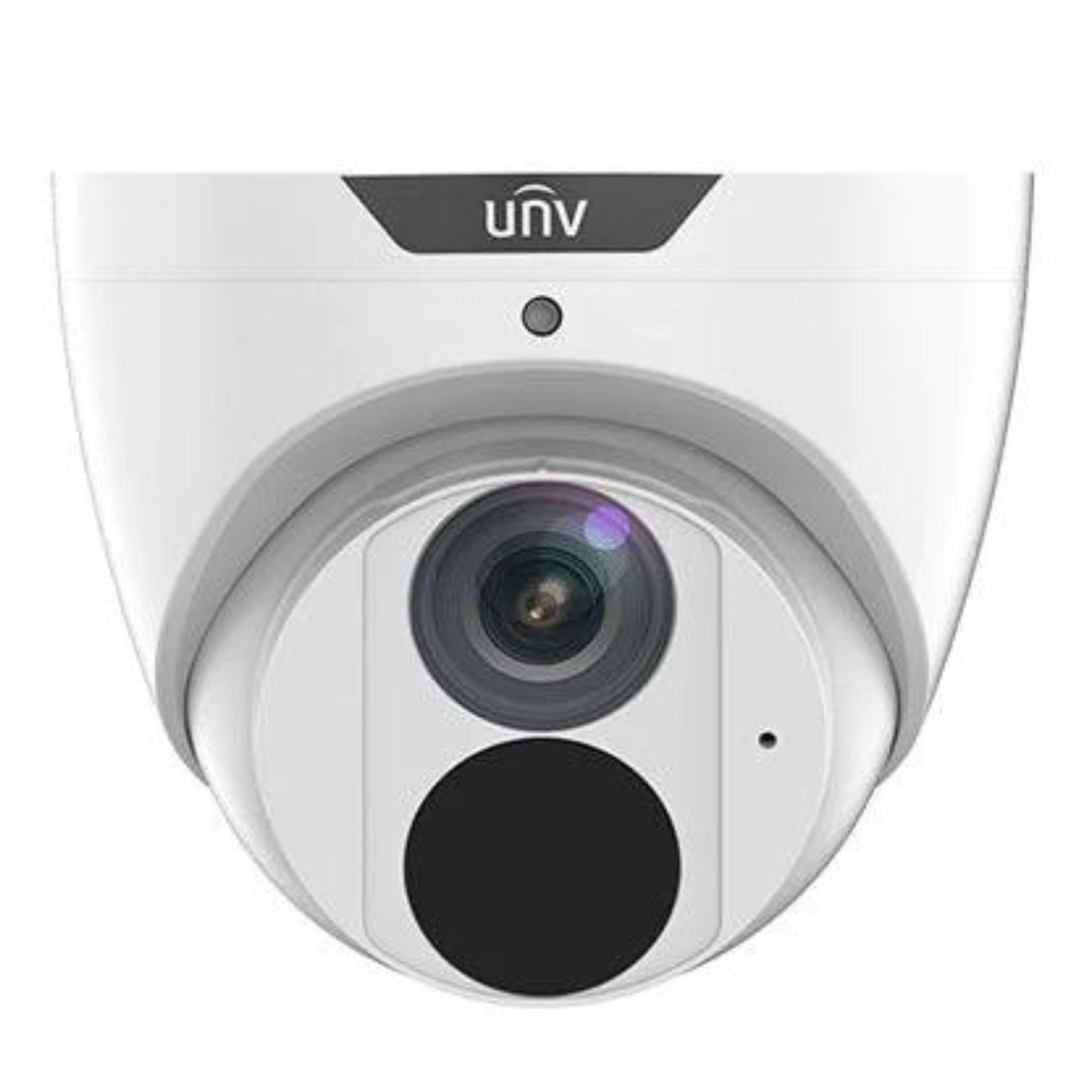

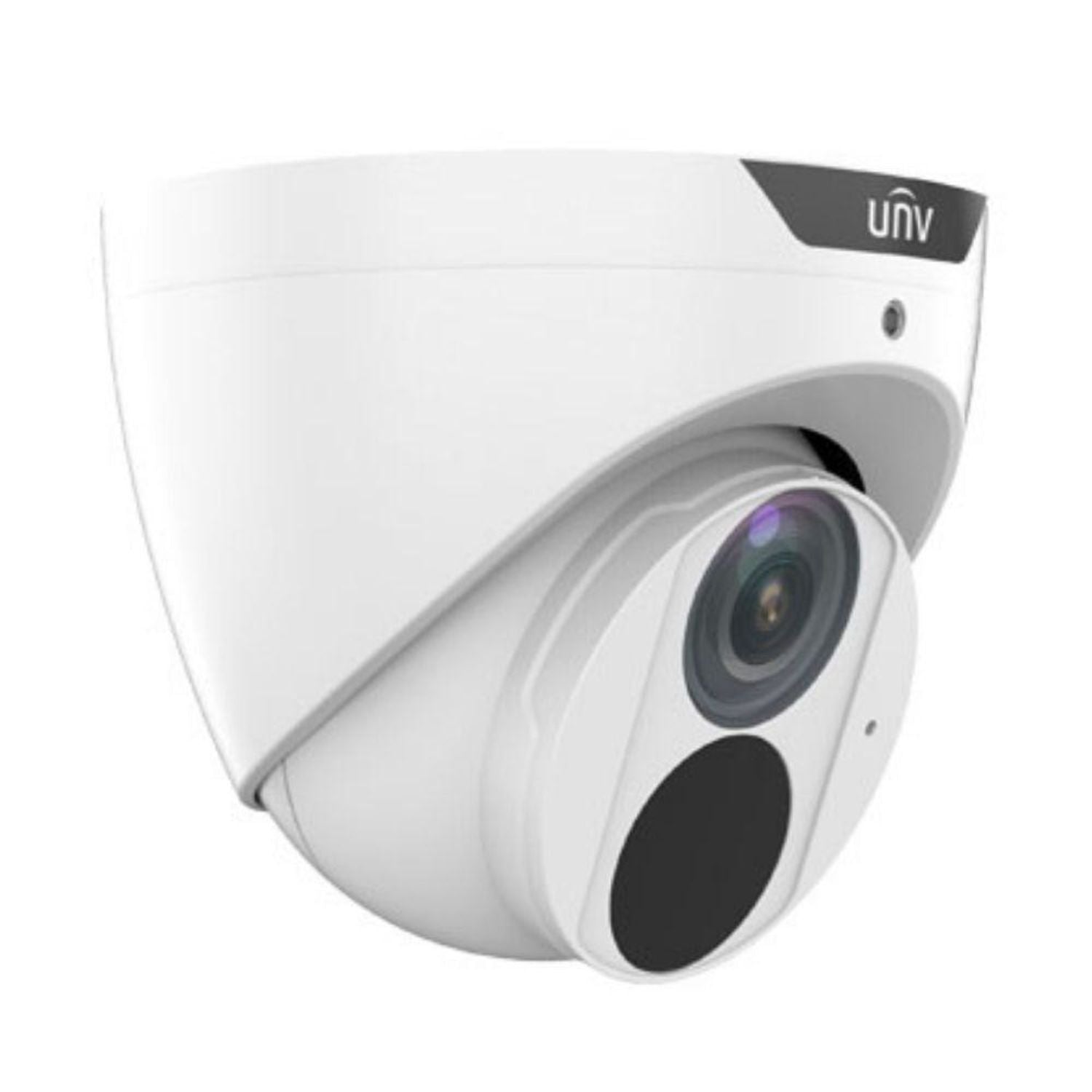

Uniview Prime-I Series IP Camera White AI People Count 6MP Turret 2.8MM Light Hunter IR PoE - IPC3616SB-ADF28KM-I0

Description

Description

Designed by Uniview, a leading innovator in the surveillance industry, the Uniview IPC3616SB-ADF28KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

Features
  • High quality image with 6MP,1/2.7’’ CMOS sensor
  • 6MP(3072*2048)@25/20fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296 ) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams offer more choices for different clients in an integrated solution
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • Face capture, automatic selection of best snapshots, support face detection masked area
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in Mic
  • Support 256 GB Micro SD card
  • DC12V or PoE(IEEE 802.3af) power supply
  • WARRANTY: 3 years back-to-base manufacturer warranty!

More Info

Uniview IPC3616SB-ADF28KM-I0 Security Camera

Uniview IPC3616SB-ADF28KM-I0 Security Camera

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy.

  • DC12V Output - No need for an extra cable to run a microphone, light or siren. DC12V output built into the camera so no need for an additional power supply.

Optics

  • LightHunter Technology ensures ultra-high image quality in a low illumination environment.
  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Smart IR - Works by auto-balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image is unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology that enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Audio

  • Supports Audio recording - Built-in mic can support recording audio.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example, the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduces the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically it's only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however, this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both points A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
  • Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.
Tech Specs

Uniview IPC3616SB-ADF28KM-I0 Security Camera

IPC3616SB-ADF28KM-I0

Camera

Sensor

1/2.7", 6.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour:0.0025lux (F1.6, AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0°~360°

Tilt: 0°~80°

Rotate: 0°~360°

WDR

120dB

S/N

>52dB

Lens

Lens type

2.8mm@F1.6

Iris

Fixed

Field of View (H)

101.34°

Field of View (V)

54.46°

Field of View (D)

119.72°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63(206.7ft)

25.2(82.7ft)

12.6(41.3ft)

6.3(20.7ft)

Illuminator

IR Range

Up to 30m (98.4 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 6MP (3072*2048),Max 25fps; 4MP(2560*1440) ,Max 30fps; 3MP(2304*1296), Max 30fps;1080P (1920*1080),

Max 30fps;720P(1280*720), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas per scene

ROI

Up to 8 areas

Video stream

Triple streams


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

Support

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart intrusion prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Recognition

Face capture

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Events

Basic Detection

Motion detection, Ultra motion detection, Audio detection, Tampering alarm

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8KHz

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation EZLive EZView

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certification

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ111 x 95mm (Ø 4.4” x 3.7”)

Weight

0.45kg(0.99lb)

Material

Metal

Working Environment

-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Surge protection

4KV

Reset button

N/A
