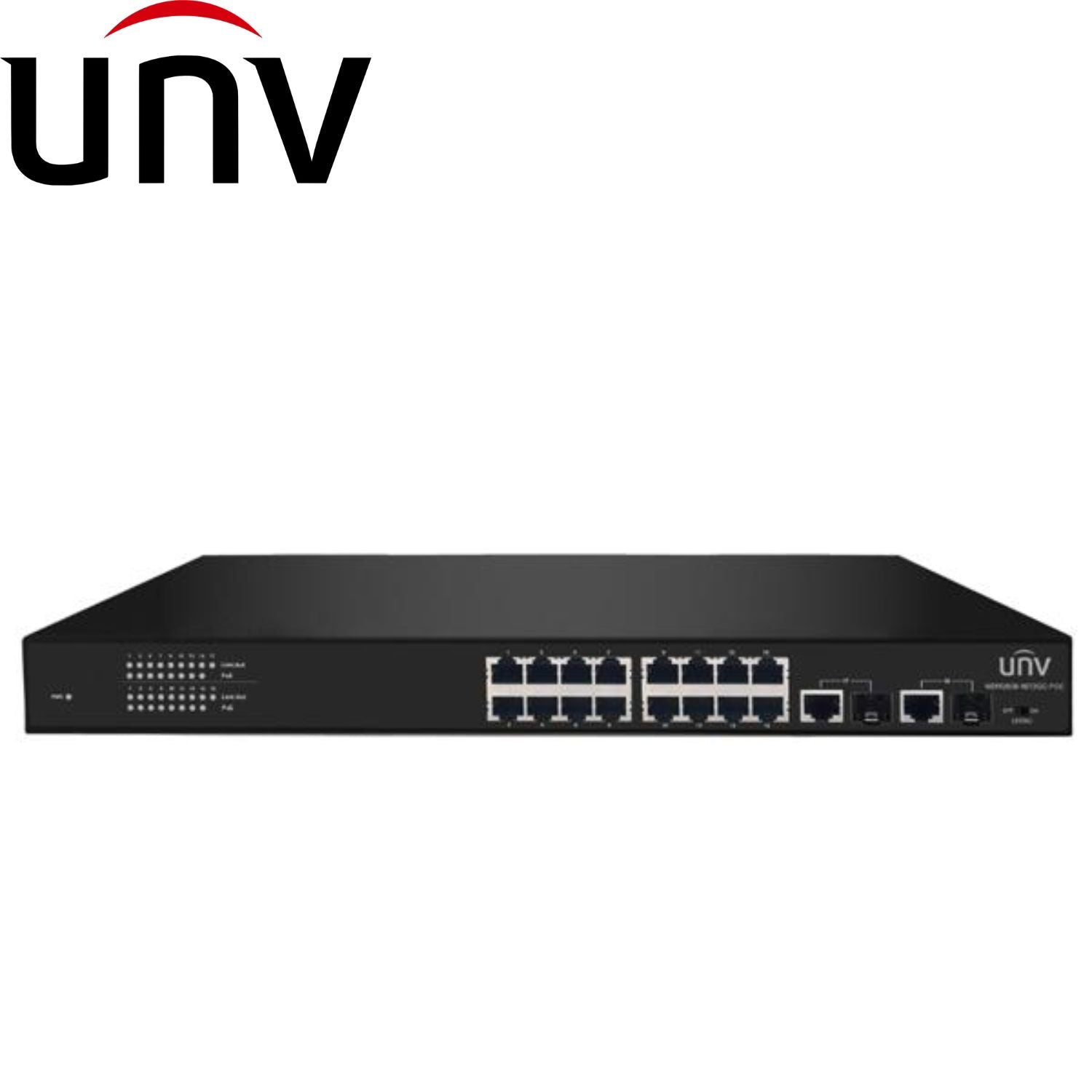

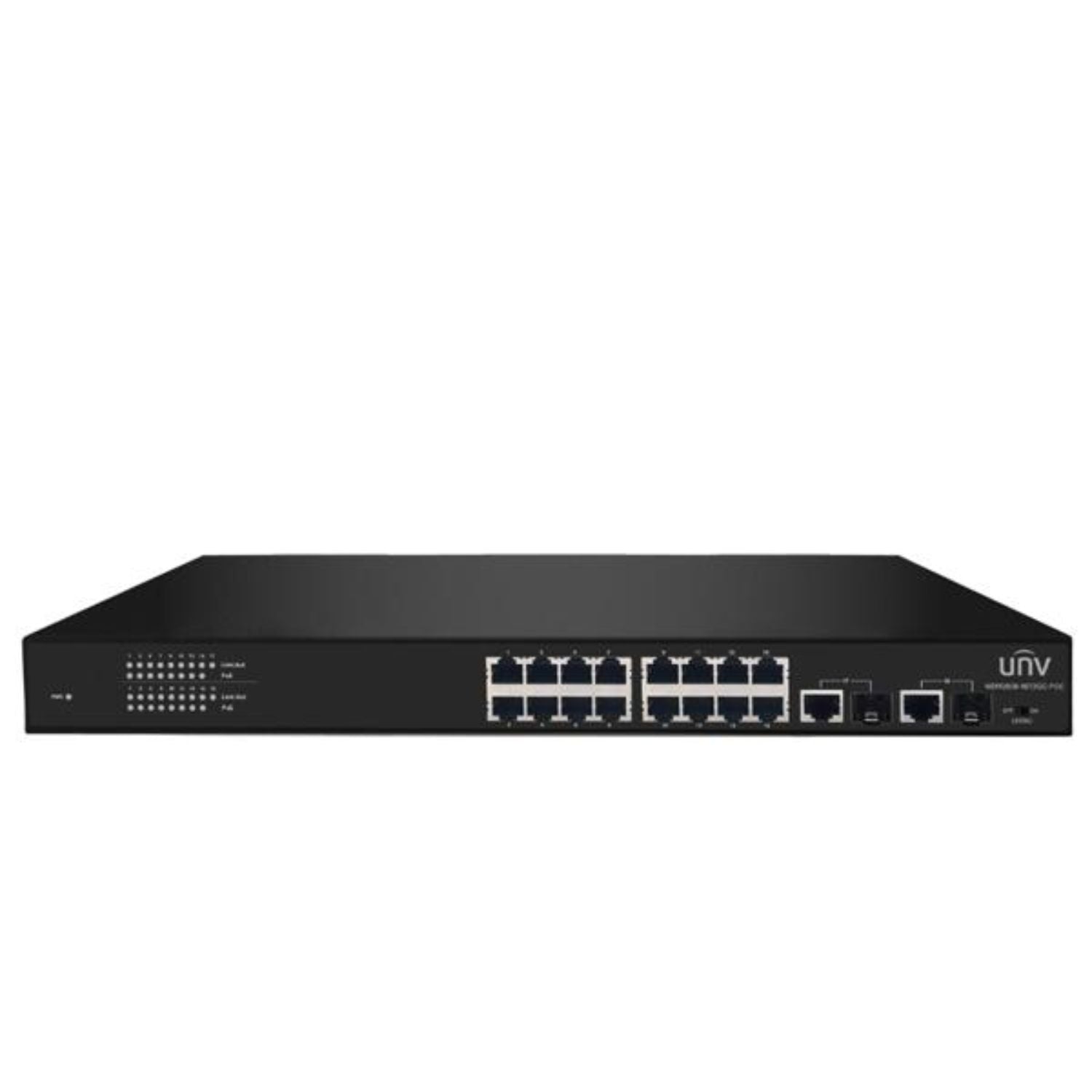

| Ports |
16×10/100Base-TX autosensing Ethernet ports(all support PoE)
2×Gigabit combo ports (RJ45 and SFP) |
| Port attribute |
10/100/1000Mbit/s transfer rate
Half-duplex, full-duplex and auto-negotiation
Auto MDI/MDIX |
| Standards |
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
ANSI/IEEE 802.3 NWay
IEEE 802.3x flow control
IEEE 802.3af PoE
IEEE 802.3at PoE |
| MAC |
4K |
| Packet forwarding rate |
6.55Mpps |
| Switching capacity |
8.8Gbps |
| EXTEND mode |
Disabled: all ports can communicate with each other, and monitoring optimization is disabled.
Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. |
| Status LEDs |
Link/Act (steady green): link is normal
Link/Act (flashing green): data is being forwarded
Link/Act (off): no link |
PoE (steady orange): the port is powering a powered device properly
PoE (off): the port is not connected to any powered device or is not supplying power |
Power (steady green): AC input is normal
Power (off): AC input is abnormal |
| PoE |
802.3at/af Max PoE capacity: 250 W |
| Consumption |
? 300 W |
| AC voltage |
100-240 V |
| Operating temperature |
0°C - 40°C (32°F - 104°F) |
| Operating humidity |
10%-85% |
| Storage temperature |
-10°C-70°C (14°F-158°F) |
| Storage humidity |
10% - 90% |
| Dimensions (W× D ×H) |
440mm × 280mm × 44mm (17.3" × 11" × 1.7") |
