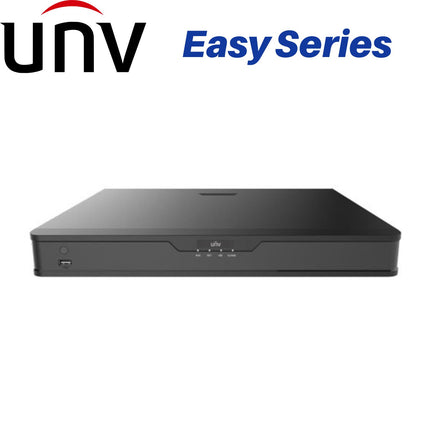

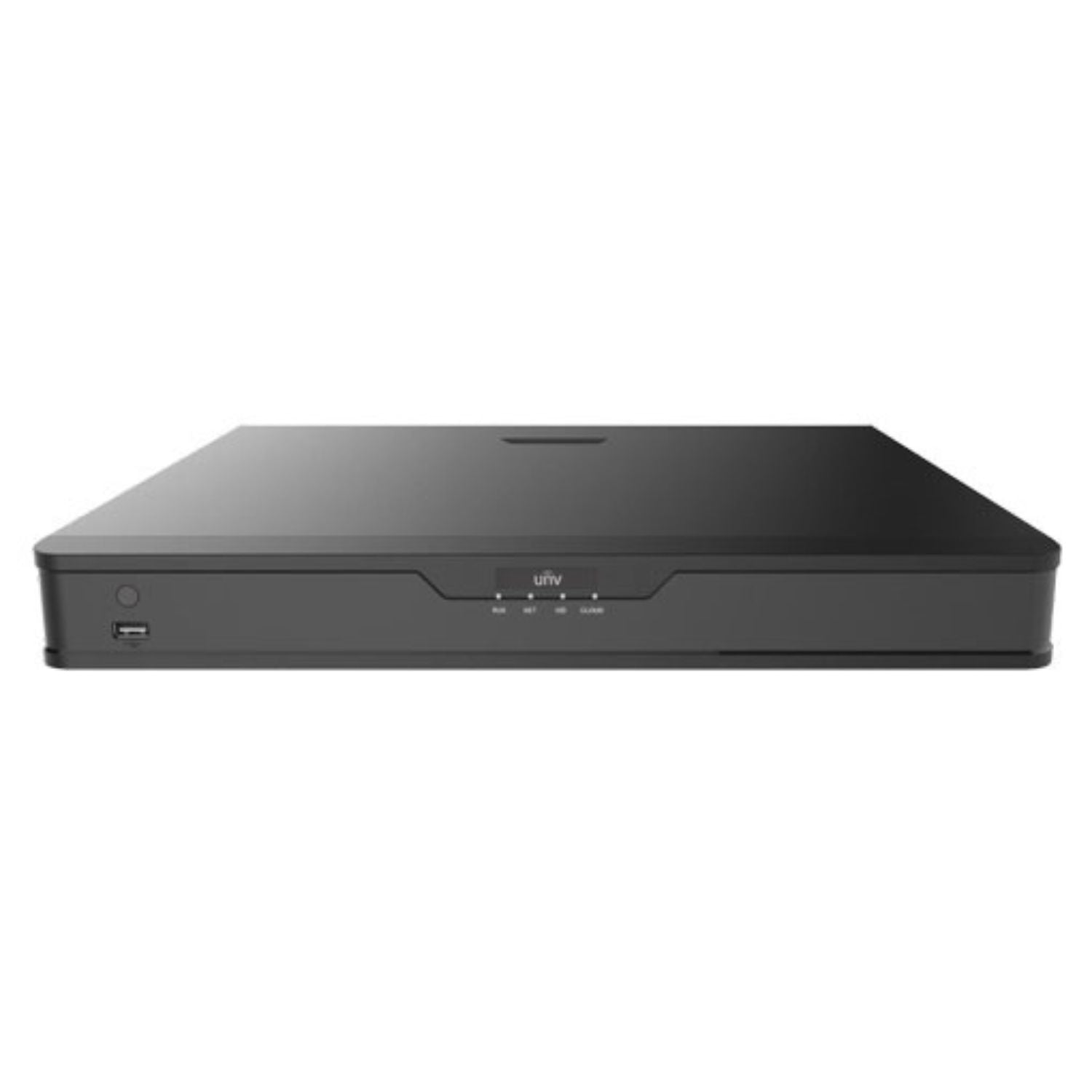

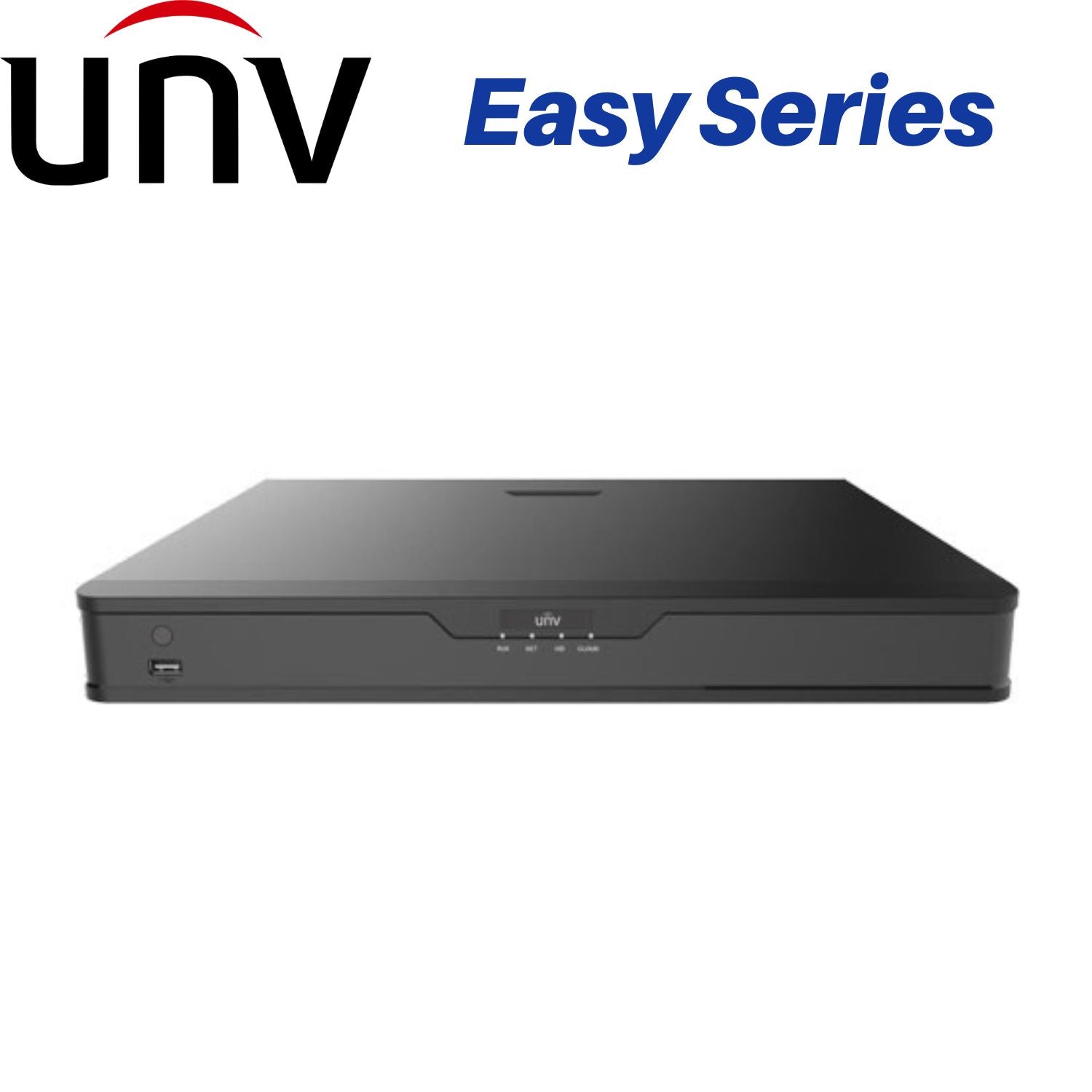

| Model |
NVR302-08S2-P8 |
NVR302-16S2-P16 |
| Video/Audio Input |
| IP Video Input |
8-ch |
16-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
80Mbps |
160Mbps |
| Outgoing Bandwidth |
64Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser |
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI:
4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA:
1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Audio Compression |
G.711A, G.711U |
| Synchronous Playback |
8-ch |
16-ch |
| Liveview display |
1/4/6/8/9 |
1/4/6/8/9/16 |
| Corridor Mode Screen |
3/4/5/7/9 |
3/4/5/7/9/10/12/16 |
| Snapshot |
| FTP/Schedule/Event Snapshot |
4-ch snapshot, up to D1 resolution |
| Decoding |
| Decoding format |
Ultra 265/H.265/H.264 |
| Live view/Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
Up to 10TB for each disk
(The maximum HDD capacity varies with environment temperature) |
| Smart |
| VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) |
| VCA Search |
Behavior Search |
| People counting |
People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), UMD by Camera |
Total 8-ch |
| General Alarm |
| General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| RS232 |
NA |
| RS485 |
NA |
| PoE |
| Interface |
8 RJ-45 10M/100M self-adaptive Ethernet Interface |
16 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power |
Max 30W for single port
Max 130W in total |
Max 30W for single port
Max 240W in total |
| Supported Standard |
IEEE 802.3af/at |
| General |
| Power Supply |
100 ~ 240 V AC
Power Consumption: ≤10W(without HDD) |
| Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") |
| Weight (without HDD) |
≤2.6kg (5.73lb) |
| Certification |
| Certification |
CE, FCC, UL, RoHS, WEEE |
| CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC |
Part15 Subpart B, ANSI C63.4 |
