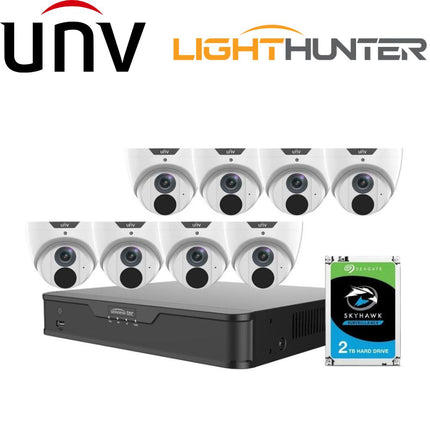

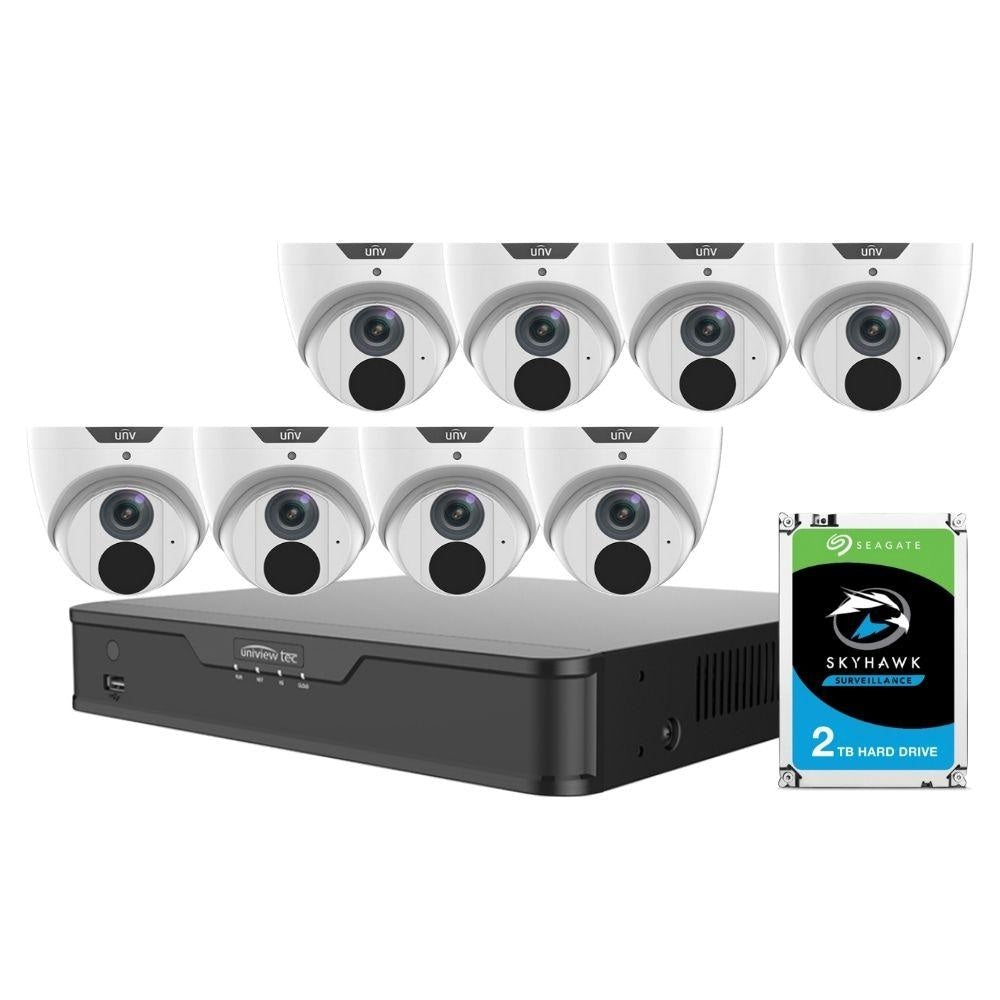

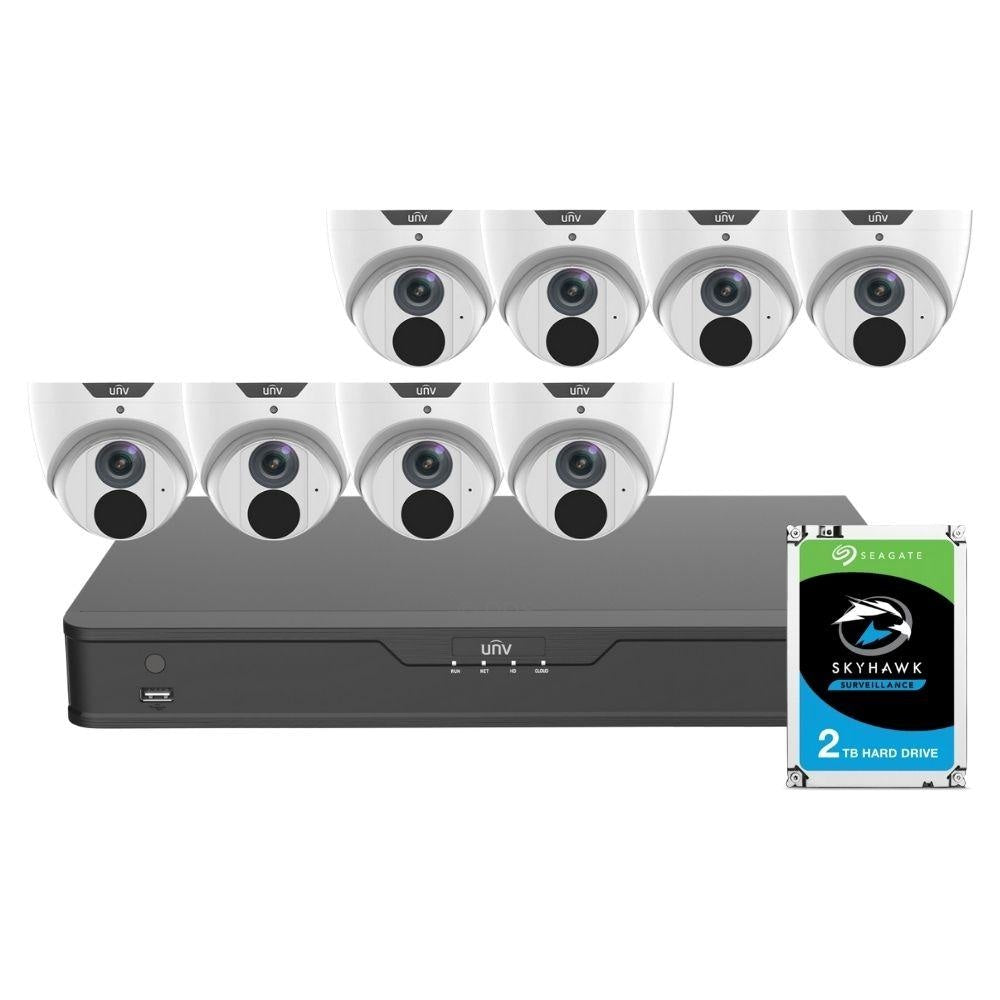

Uniview 8 Channel Security System: 8MP NVR, 8 x 8MP (4K) Turret Cameras, 2TB HDD

Description

Description

Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera is an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced built-in smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light.

Choose between an 8 channel Network Video Recorder (NVR301-08X-P8) or a 16 channel NVR (NVR302-16S-P16) both capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE, capable of connecting, powering and streaming cameras from 250-300 metres away. This system supports hard drive sizes up to 10TB and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by internet explorer web browser on desktop computer, also allowing set up and control of various functions of your system.

Designed for home or business owners on a moderate budget, this is a professional security investment that can be relied upon for years to come. Uniview's quality products come with 3 years manufacturer warranty.

FEATURES

  • 8 x 8 megapixel (8MP, 4K Ultra HD) Turret Cameras, 2.8mm or 4mm lens
  • 8 Channel 8MP(4K) NVR with 8 x Power Over Ethernet Ports
  • OPTIONAL UPGRADE: 16 channel NVR (NVR302-16S-P16). Supports 8MP(4K) Recording with 16 independent POE ports (Plug and Play)
  • 2 Terabyte hard drive (upgradable to 10TB)

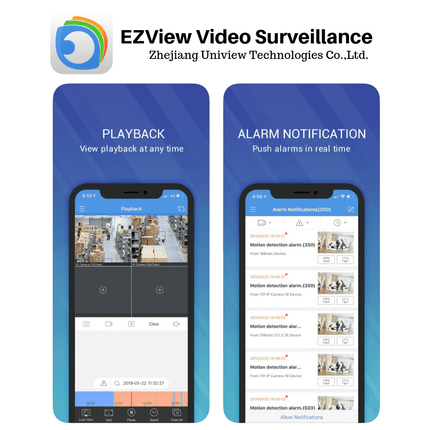

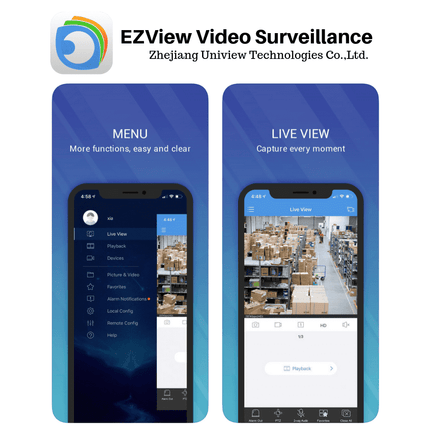

  • Access your Live video feed on your smart device with the EZView app. Supports android and ios
  • Support 1-ch HDMI at up to 4K(3840x2160) resolution
  • Accurate Retrieval, Instant Playback NVR
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
  • Supports Audio Recording and comes with Built-In Mic.
  • 120 dB Optical WDR (Wide Dynamic Range), 2D/3D DNR (Digital Noise Reduction), accurate retrieval, instant playback, ROI, 9:16 corridor mode
  • Smart IR night vision, (Turret) up to 30m
  • Video Compression Ultra H.265, H.265, H.264, MJPEG - Triple Streams
  • Supports PoE (Long Distance POE up to 250 - 300 metres)
  • 4 KV surge protection, IP67 weather protection

  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

Remote Access

  • Access your Live camera footage from anywhere in the world with your smart device. Just download the EZ-View app and connect to your network. For android and ios.

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

  • DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

    Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.

  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -30°C to 60°C
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

    2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008

    • Built to record 90% of the time — supports up to 64 cameras
    • Up to 10 TB or 2,000+1 hours of HD video
    • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
    • NVR ready drives deliver robust drive design for multi-drive environments
    Tech Specs

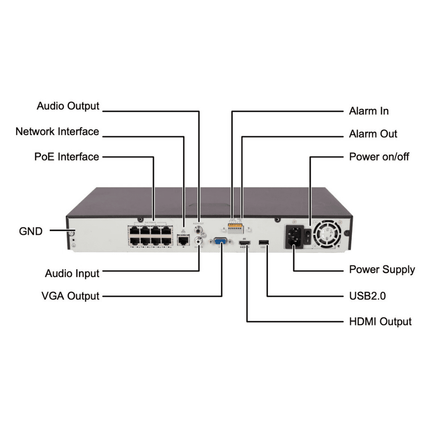

    UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

    Model NVR301-08X-P8
    Video/Audio Input
    IP Video Input 8-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 80Mbps
    Outgoing Bandwidth 64Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA Output HDMI:
    3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    VGA:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 8-ch
    Corridor Mode Screen 3/4/5/7/9
    Decoding
    Decoding format Ultra 265/H.265/H.264
    Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 10TB for each disk
    External Interface
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
    PoE
    Interface 8 independent 100 Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 108W in total (13.5W for each)
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 52V DC
    Power Consumption: ?8 W (without HDD)
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
    Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
    Weight (without HDD) 1kg (2.20 lb)



    OPTIONAL:

    Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

    NVR302-16S-P16
    Video/Audio Input
    IP Video Input 16-ch
    Two-way Audio Input 1-ch, RCA
    Network
    Incoming Bandwidth 160Mbps
    Outgoing Bandwidth 96Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA
    Output    		 VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
    4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
    1920X1080@60
    Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Audio Output 1-ch, RCA
    Synchronous Playback 16-ch
    Corridor Mode Screen 3/4/5/7/9/10/12/16
    Decoding
    Decoding format Ultra265/H.265/H.264
    Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
    Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
    Hard Disk
    SATA 2 SATA interfaces
    Capacity up to 10TB for each disk
    Smart
    VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
    VCA Search Face search, Behavior search
    Statistical Analysis People counting
    External Interface
    Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
    USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
    Alarm In 4-ch
    Alarm Out 1-ch
    PoE
    Interface 16 independent 100Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 240W in total ( 15W for each )
    Supported Standard IEEE 802.3af/at
    General
    Power Supply 220V AC
    Power Consumption: ?9 W( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
    Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
    Weight
    ( without HDD )    		 ?2.4kg (5.29 lb)

    Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera

    Camera
    Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
    Lens 2.8mm@F2.0 / 4.0mm@F2.0
    Shutter Auto/Manual, 1 ~ 1/100000s
    Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
    Digital Noise Reduction 2D/3D DNR
    Day/Night IR-cut filter with auto switch (ICR)
    S/N >56dB
    IR Range Up to 30m (98 ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Defog Digital Defog
    WDR 120dB
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main Profile, High profile
    Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Motion Detection Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping Supported
    HLC Supported
    BLC Supported
    Audio
    Audio Compression G.711
    Suppression Supported
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
    Client EZStation EZView EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
    Interface
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Built-in Mic Supported
    Certifications
    Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 5.0W
    Dimensions (L × W × H) ?110.5 x 94.1mm (?4.4” x 3.7”)
    Net Weight 0.44kg (0.97lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
    Surge Protection 2KV
    Ingress Protection IP67
    Reset Button N/A
