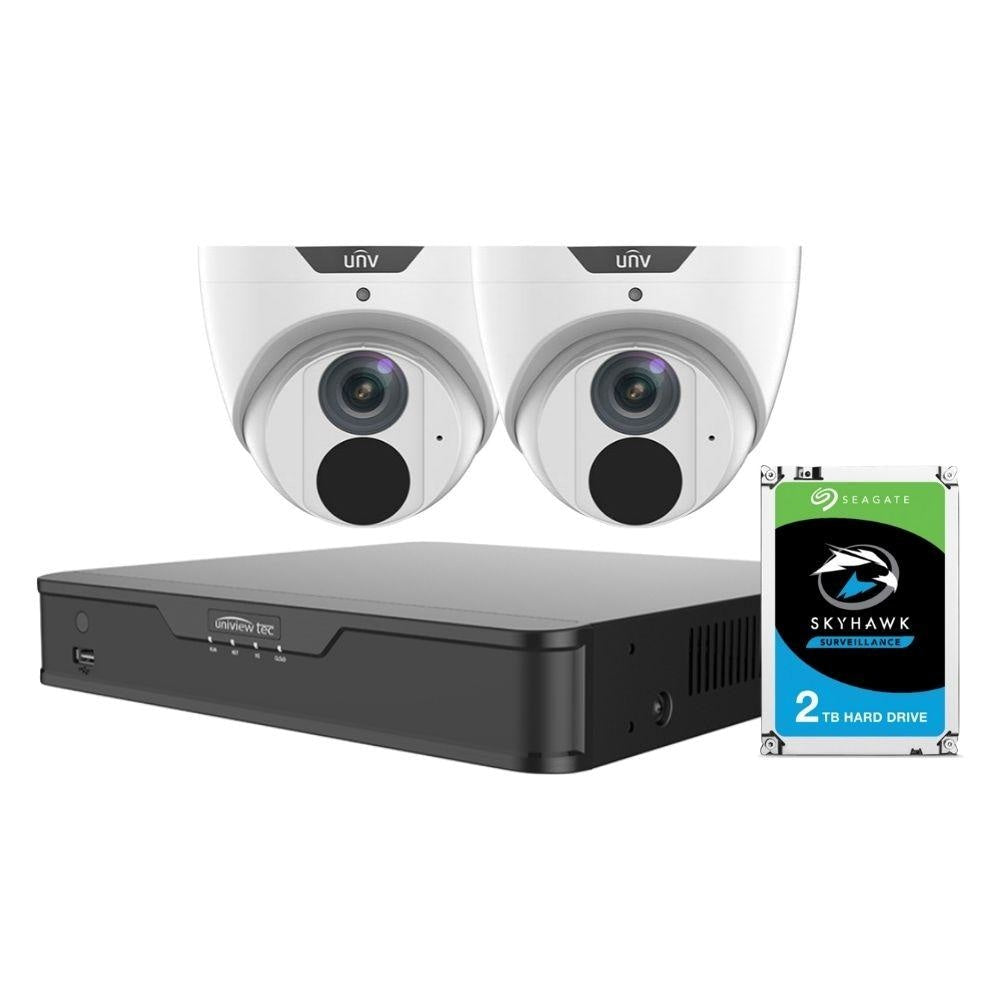

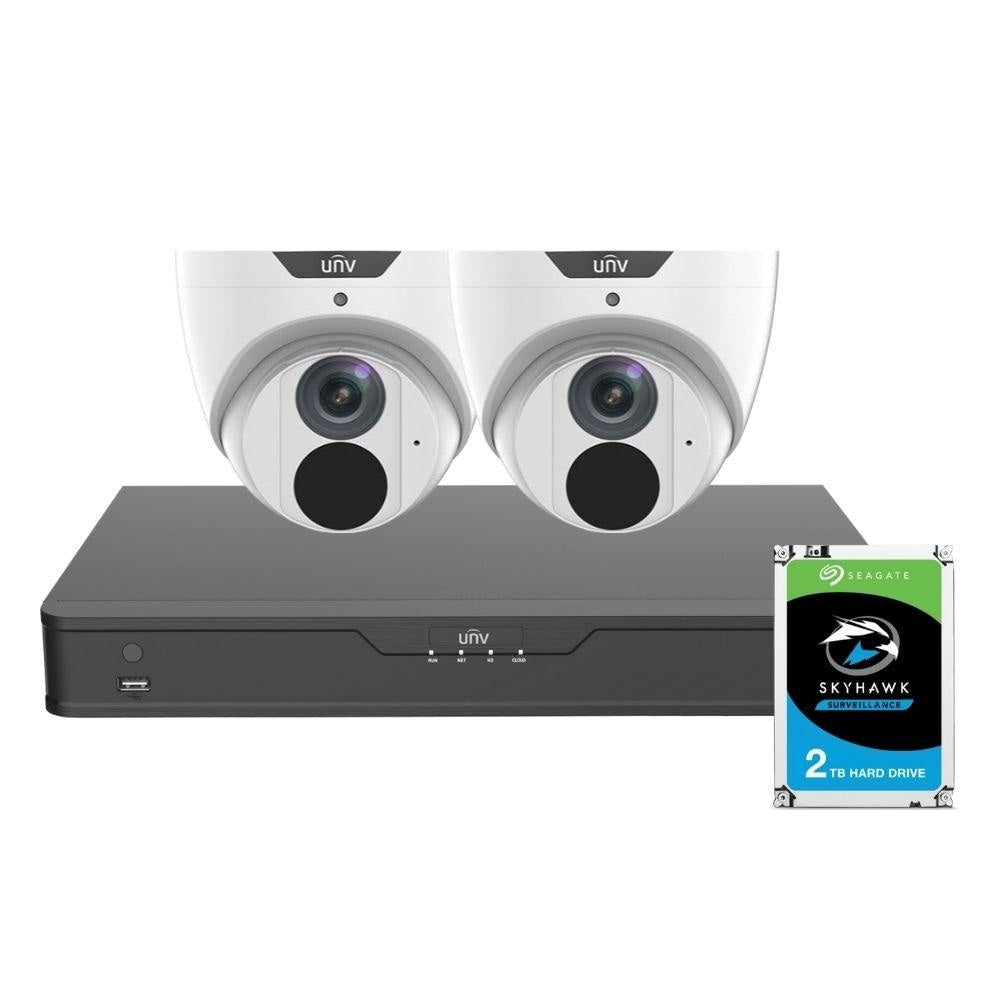

Uniview 4 Channel Security System: 8MP NVR, 2 x 8MP (4K) Turret Cameras, 2TB HDD

Description

Description

Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera is an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced built-in smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light.

Choose between a 4 channel (NVR301-04-P4), 8 channel (NVR301-08X-P8) or 16 channel (NVR302-16S-P16) network video recorder, all capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE, called POE+, capable of connecting, powering and streaming cameras from 250-300 metres away. Uniview NVR's support Ultra265 video compression, an exclusive Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on desktop computer, also allowing set up and control of various functions of your system.

Uniview are popular with our customers for their exceptionally well built cameras and innovative technology. Our kits include 3 years manufacturer warranty.

FEATURES

  • 2 x 8 megapixel (4K Ultra HD) Turret Cameras, 2.8mm or 4mm lens
  • 4 Channel 8MP(4K) NVR with 4 x Power Over Ethernet Ports
  • OPTIONAL UPGRADE: 8 channel or 16 channel NVR. Both support 8MP (4K) Recording with 8 or 16 independent POE ports (Plug and Play)
  • NVR Options Models are NVR301-04-P4, NVR301-08X-P8 or NVR302-16S-P16
  • 2 Terabyte hard drive (Upgradeable to 10TB)

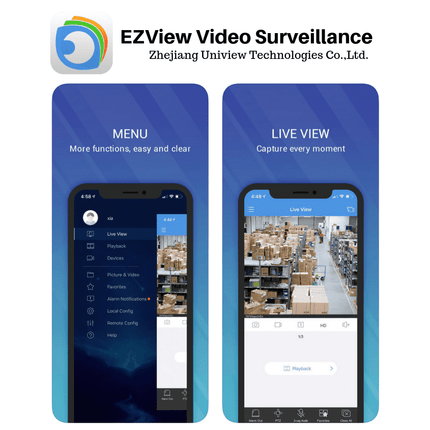

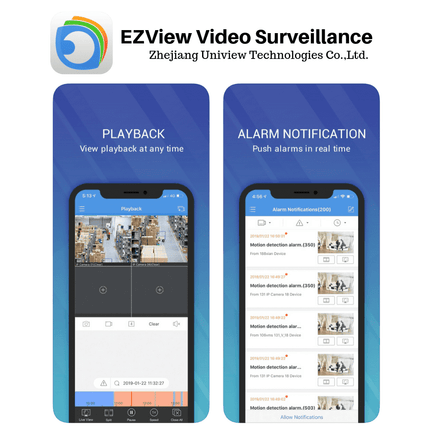

  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Accurate Retrieval, Instant Playback NVR
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
  • Supports Audio Recording and comes with Built-In Mic.
  • 120 dB WDR (Wide Dynamic Range), 3DDNR
  • Smart IR night vision, up to 30m IR distance
  • Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
  • 4 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

    Remote Access

    • Access your Live camera footage from anywhere in the world with your smart device. Just download the EZ-View app and connect to your network. For android and ios.

    Easy Set-up

    • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

      DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

      Optics

    • Day/night functionality - Designed to operate just as good in total darkness as well as light.

    • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

    • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

    • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
    • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

    • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

    Compression

    • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
    • Embedded smart algorithm
    • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
    • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
    • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

    • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

    Network

    • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

    Structure

    • Wide temperature range: -30°C to 60°C
    • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
    • IP67 - Cameras are sealed against extreme weather, water and dust.

      2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX010

      • Built to record 90% of the time — supports up to 64 cameras
      • Up to 10 TB or 2,000+1 hours of HD video
      • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
      • NVR ready drives deliver robust drive design for multi-drive environments
      Tech Specs

      Uniview 4 Channel 8MP 4K Ultra HD Network Video Recorder: NVR301-04-P4

      Model NVR301-04-P4
      Video/Audio Input
      IP Video Input 4-ch
      Two-way Audio Input 1-ch, RCA
      Network
      Incoming Bandwidth 40Mbps
      Outgoing Bandwidth 64Mbps
      Remote Users 128
      Protocols P2P, UPnP, NTP, DHCP, PPPoE
      Video/Audio Output
      HDMI/VGA Output HDMI:
      4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
      VGA:
      1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
      Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
      Audio Output 1-ch, RCA
      Synchronous Playback 4-ch
      Corridor Mode Screen 3-Apr
      Decoding
      Decoding format Ultra 265, H.265, H.264
      Live view 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
      /Playback
      Capability 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1
      Hard Disk
      SATA 1 SATA interface
      Capacity up to 10TB for each disk
      Smart
      VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
      VCA Search Face search, Behavior search
      Statistical Analysis People counting

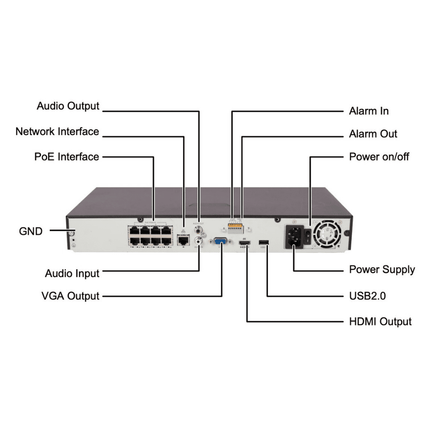

      External Interface
      Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
      USB Interface Rear panel?2 x USB2.0, Front panel?1 x USB2.0
      Alarm In 4-ch
      Alarm Out 1-ch
      PoE
      Interface 4 independent 100 Mbps PoEnetwork interfaces
      Max Power Max 30W for single port
      Max 54W in total ( 13.5W for each )
      Supported Standard IEEE 802.3at, IEEE 802.3af
      General
      Power Supply 48V DC
      Power Consumption: ? 5 W( without HDD )
      Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
      Dimensions(W×D×H) 260mm ×240mm × 44mm (10.2" ×9.4" ×1.7")
      Weight ( without HDD ) ? 1.12 Kg ( 2.47 lb )




      UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

      Model NVR301-08X-P8
      Video/Audio Input
      IP Video Input 8-ch
      Two-way Audio Input 1-ch, RCA
      Network
      Incoming Bandwidth 80Mbps
      Outgoing Bandwidth 64Mbps
      Remote Users 128
      Protocols P2P, UPnP, NTP, DHCP, PPPoE
      Video/Audio Output
      HDMI/VGA Output HDMI:
      3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
      VGA:
      1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
      Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
      Audio Output 1-ch, RCA
      Synchronous Playback 8-ch
      Corridor Mode Screen 3/4/5/7/9
      Decoding
      Decoding format Ultra 265/H.265/H.264
      Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
      Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
      Hard Disk
      SATA 1 SATA interface
      Capacity up to 10TB for each disk
      External Interface
      Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
      USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
      PoE
      Interface 8 independent 100 Mbps PoE network interfaces
      Max Power Max 30W for single port
      Max 108W in total (13.5W for each)
      Supported Standard IEEE 802.3at, IEEE 802.3af
      General
      Power Supply 52V DC
      Power Consumption: ?8 W (without HDD)
      Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
      Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
      Weight (without HDD) 1kg (2.20 lb)

      Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

      NVR302-16S-P16
      Video/Audio Input
      IP Video Input 16-ch
      Two-way Audio Input 1-ch, RCA
      Network
      Incoming Bandwidth 160Mbps
      Outgoing Bandwidth 96Mbps
      Remote Users 128
      Protocols P2P, UPnP, NTP, DHCP, PPPoE
      Video/Audio Output
      HDMI/VGA
      Output      		 VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
      4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
      1920X1080@60
      Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
      Audio Output 1-ch, RCA
      Synchronous Playback 16-ch
      Corridor Mode Screen 3/4/5/7/9/10/12/16
      Decoding
      Decoding format Ultra265/H.265/H.264
      Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
      Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
      Hard Disk
      SATA 2 SATA interfaces
      Capacity up to 10TB for each disk
      Smart
      VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
      VCA Search Face search, Behavior search
      Statistical Analysis People counting
      External Interface
      Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
      USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
      Alarm In 4-ch
      Alarm Out 1-ch
      PoE
      Interface 16 independent 100Mbps PoE network interfaces
      Max Power Max 30W for single port
      Max 240W in total ( 15W for each )
      Supported Standard IEEE 802.3af/at
      General
      Power Supply 220V AC
      Power Consumption: ?9 W( without HDD )
      Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
      Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
      Weight
      ( without HDD )      		 ?2.4kg (5.29 lb)

      Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera

      Camera
      Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
      Lens 2.8mm@F2.0 / 4.0mm@F2.0
      Shutter Auto/Manual, 1 ~ 1/100000s
      Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
      Digital Noise Reduction 2D/3D DNR
      Day/Night IR-cut filter with auto switch (ICR)
      S/N >56dB
      IR Range Up to 30m (98 ft) IR range
      Wavelength 850nm
      IR On/Off Control Auto/Manual
      Defog Digital Defog
      WDR 120dB
      Video
      Video Compression Ultra 265, H.265, H.264, MJPEG
      H.264 code profile Baseline profile, Main Profile, High profile
      Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
      Video Bit Rate 128 Kbps~16 Mbps
      OSD Up to 8 OSDs
      Privacy Mask Up to 4 areas
      ROI Up to 8 areas
      Motion Detection Up to 4 areas
      White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
      Smart IR Support
      Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
      Dewarping Supported
      HLC Supported
      BLC Supported
      Audio
      Audio Compression G.711
      Suppression Supported
      Sampling Rate 8KHZ
      Storage
      Edge Storage Micro SD, up to 256GB
      Network Storage ANR
      Network
      Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
      Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
      Client EZStation EZView EZLive
      Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
      Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
      Interface
      Network 1 RJ45 10M/100M Base-TX Ethernet
      Built-in Mic Supported
      Certifications
      Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
      General
      Power DC 12V±25%, PoE (IEEE 802.3af)
      Power consumption: Max 5.0W
      Dimensions (L × W × H) ?110.5 x 94.1mm (?4.4” x 3.7”)
      Net Weight 0.44kg (0.97lb)
      Material Metal
      Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
      Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
      Surge Protection 2KV
      Ingress Protection IP67
      Reset Button N/A


      Videos

      Uniview Company Introduction

      Downloads

      DataSheets

      Read more

      Uniview 4 Channel Security System: 8MP NVR, 2 x 8MP (4K) Turret Cameras, 2TB HDD

      Product form

      SKU: 4CH28MP-2TB

       SPY MONKEY B2B
      For pricing please Log In or see our Quote Form or email us at info@spymonkey.com.au.

      • Guaranteed secure & safe checkout.

        paypal
      • FREE Express Courier Shipping for all orders over $100
      • 30-Day Returns Policy
      • Back to Base Australian Warranty & Tech Support
      • Australian Stock, No Grey Import Products

      Product Datasheet

      Product Datasheet

      Product Datasheet

      Product Datasheet

      Description

      Description

      Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera is an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced built-in smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light.

      Choose between a 4 channel (NVR301-04-P4), 8 channel (NVR301-08X-P8) or 16 channel (NVR302-16S-P16) network video recorder, all capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE, called POE+, capable of connecting, powering and streaming cameras from 250-300 metres away. Uniview NVR's support Ultra265 video compression, an exclusive Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on desktop computer, also allowing set up and control of various functions of your system.

      Uniview are popular with our customers for their exceptionally well built cameras and innovative technology. Our kits include 3 years manufacturer warranty.

      FEATURES

      • 2 x 8 megapixel (4K Ultra HD) Turret Cameras, 2.8mm or 4mm lens
      • 4 Channel 8MP(4K) NVR with 4 x Power Over Ethernet Ports
      • OPTIONAL UPGRADE: 8 channel or 16 channel NVR. Both support 8MP (4K) Recording with 8 or 16 independent POE ports (Plug and Play)
      • NVR Options Models are NVR301-04-P4, NVR301-08X-P8 or NVR302-16S-P16
      • 2 Terabyte hard drive (Upgradeable to 10TB)
      • Access your Live video feed on your smart device with EZView app. Supports android and ios
      • Accurate Retrieval, Instant Playback NVR
      • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
      • Supports Audio Recording and comes with Built-In Mic.
      • 120 dB WDR (Wide Dynamic Range), 3DDNR
      • Smart IR night vision, up to 30m IR distance
      • Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
      • 4 KV surge protection, IP67 weather protection
      • WARRANTY: 3 years back-to-base manufacturer warranty

      More Info

        Remote Access

        • Access your Live camera footage from anywhere in the world with your smart device. Just download the EZ-View app and connect to your network. For android and ios.

        Easy Set-up

        • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

          DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.

          Optics

        • Day/night functionality - Designed to operate just as good in total darkness as well as light.

        • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

        • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

        • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
        • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

        • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

        Compression

        • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
        • Embedded smart algorithm
        • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
        • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
        • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

        • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

        Network

        • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

        Structure

        • Wide temperature range: -30°C to 60°C
        • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
        • IP67 - Cameras are sealed against extreme weather, water and dust.

          2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX010

          • Built to record 90% of the time — supports up to 64 cameras
          • Up to 10 TB or 2,000+1 hours of HD video
          • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
          • NVR ready drives deliver robust drive design for multi-drive environments
          Tech Specs

          Uniview 4 Channel 8MP 4K Ultra HD Network Video Recorder: NVR301-04-P4

          Model NVR301-04-P4
          Video/Audio Input
          IP Video Input 4-ch
          Two-way Audio Input 1-ch, RCA
          Network
          Incoming Bandwidth 40Mbps
          Outgoing Bandwidth 64Mbps
          Remote Users 128
          Protocols P2P, UPnP, NTP, DHCP, PPPoE
          Video/Audio Output
          HDMI/VGA Output HDMI:
          4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
          VGA:
          1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
          Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
          Audio Output 1-ch, RCA
          Synchronous Playback 4-ch
          Corridor Mode Screen 3-Apr
          Decoding
          Decoding format Ultra 265, H.265, H.264
          Live view 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
          /Playback
          Capability 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1
          Hard Disk
          SATA 1 SATA interface
          Capacity up to 10TB for each disk
          Smart
          VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
          VCA Search Face search, Behavior search
          Statistical Analysis People counting
          External Interface
          Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
          USB Interface Rear panel?2 x USB2.0, Front panel?1 x USB2.0
          Alarm In 4-ch
          Alarm Out 1-ch
          PoE
          Interface 4 independent 100 Mbps PoEnetwork interfaces
          Max Power Max 30W for single port
          Max 54W in total ( 13.5W for each )
          Supported Standard IEEE 802.3at, IEEE 802.3af
          General
          Power Supply 48V DC
          Power Consumption: ? 5 W( without HDD )
          Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
          Dimensions(W×D×H) 260mm ×240mm × 44mm (10.2" ×9.4" ×1.7")
          Weight ( without HDD ) ? 1.12 Kg ( 2.47 lb )




          UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR

          Model NVR301-08X-P8
          Video/Audio Input
          IP Video Input 8-ch
          Two-way Audio Input 1-ch, RCA
          Network
          Incoming Bandwidth 80Mbps
          Outgoing Bandwidth 64Mbps
          Remote Users 128
          Protocols P2P, UPnP, NTP, DHCP, PPPoE
          Video/Audio Output
          HDMI/VGA Output HDMI:
          3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
          VGA:
          1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
          Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
          Audio Output 1-ch, RCA
          Synchronous Playback 8-ch
          Corridor Mode Screen 3/4/5/7/9
          Decoding
          Decoding format Ultra 265/H.265/H.264
          Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
          Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
          Hard Disk
          SATA 1 SATA interface
          Capacity up to 10TB for each disk
          External Interface
          Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
          USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
          PoE
          Interface 8 independent 100 Mbps PoE network interfaces
          Max Power Max 30W for single port
          Max 108W in total (13.5W for each)
          Supported Standard IEEE 802.3at, IEEE 802.3af
          General
          Power Supply 52V DC
          Power Consumption: ?8 W (without HDD)
          Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing)
          Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
          Weight (without HDD) 1kg (2.20 lb)

          Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

          NVR302-16S-P16
          Video/Audio Input
          IP Video Input 16-ch
          Two-way Audio Input 1-ch, RCA
          Network
          Incoming Bandwidth 160Mbps
          Outgoing Bandwidth 96Mbps
          Remote Users 128
          Protocols P2P, UPnP, NTP, DHCP, PPPoE
          Video/Audio Output
          HDMI/VGA
          Output          		 VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
          4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
          1920X1080@60
          Recording Resolution 8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
          Audio Output 1-ch, RCA
          Synchronous Playback 16-ch
          Corridor Mode Screen 3/4/5/7/9/10/12/16
          Decoding
          Decoding format Ultra265/H.265/H.264
          Live view/ Playback 8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
          Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
          Hard Disk
          SATA 2 SATA interfaces
          Capacity up to 10TB for each disk
          Smart
          VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
          VCA Search Face search, Behavior search
          Statistical Analysis People counting
          External Interface
          Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
          USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
          Alarm In 4-ch
          Alarm Out 1-ch
          PoE
          Interface 16 independent 100Mbps PoE network interfaces
          Max Power Max 30W for single port
          Max 240W in total ( 15W for each )
          Supported Standard IEEE 802.3af/at
          General
          Power Supply 220V AC
          Power Consumption: ?9 W( without HDD )
          Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
          Dimensions(W× D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
          Weight
          ( without HDD )          		 ?2.4kg (5.29 lb)

          Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera

          Camera
          Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
          Lens 2.8mm@F2.0 / 4.0mm@F2.0
          Shutter Auto/Manual, 1 ~ 1/100000s
          Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
          Digital Noise Reduction 2D/3D DNR
          Day/Night IR-cut filter with auto switch (ICR)
          S/N >56dB
          IR Range Up to 30m (98 ft) IR range
          Wavelength 850nm
          IR On/Off Control Auto/Manual
          Defog Digital Defog
          WDR 120dB
          Video
          Video Compression Ultra 265, H.265, H.264, MJPEG
          H.264 code profile Baseline profile, Main Profile, High profile
          Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
          Video Bit Rate 128 Kbps~16 Mbps
          OSD Up to 8 OSDs
          Privacy Mask Up to 4 areas
          ROI Up to 8 areas
          Motion Detection Up to 4 areas
          White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
          Smart IR Support
          Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
          Dewarping Supported
          HLC Supported
          BLC Supported
          Audio
          Audio Compression G.711
          Suppression Supported
          Sampling Rate 8KHZ
          Storage
          Edge Storage Micro SD, up to 256GB
          Network Storage ANR
          Network
          Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL
          Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
          Client EZStation EZView EZLive
          Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
          Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
          Interface
          Network 1 RJ45 10M/100M Base-TX Ethernet
          Built-in Mic Supported
          Certifications
          Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
          General
          Power DC 12V±25%, PoE (IEEE 802.3af)
          Power consumption: Max 5.0W
          Dimensions (L × W × H) ?110.5 x 94.1mm (?4.4” x 3.7”)
          Net Weight 0.44kg (0.97lb)
          Material Metal
          Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
          Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
          Surge Protection 2KV
          Ingress Protection IP67
          Reset Button N/A


          Videos

          Uniview Company Introduction

          Downloads

          DataSheets

          Read more

          Recently viewed products

          © 2024 Spy Monkey Surveillance, Powered by Shopify

            • American Express
            • Apple Pay
            • Google Pay
            • Mastercard
            • PayPal
            • Shop Pay
            • Union Pay
            • Visa

            Login

            Forgot your password?

            Don't have an account yet?
            Create account
