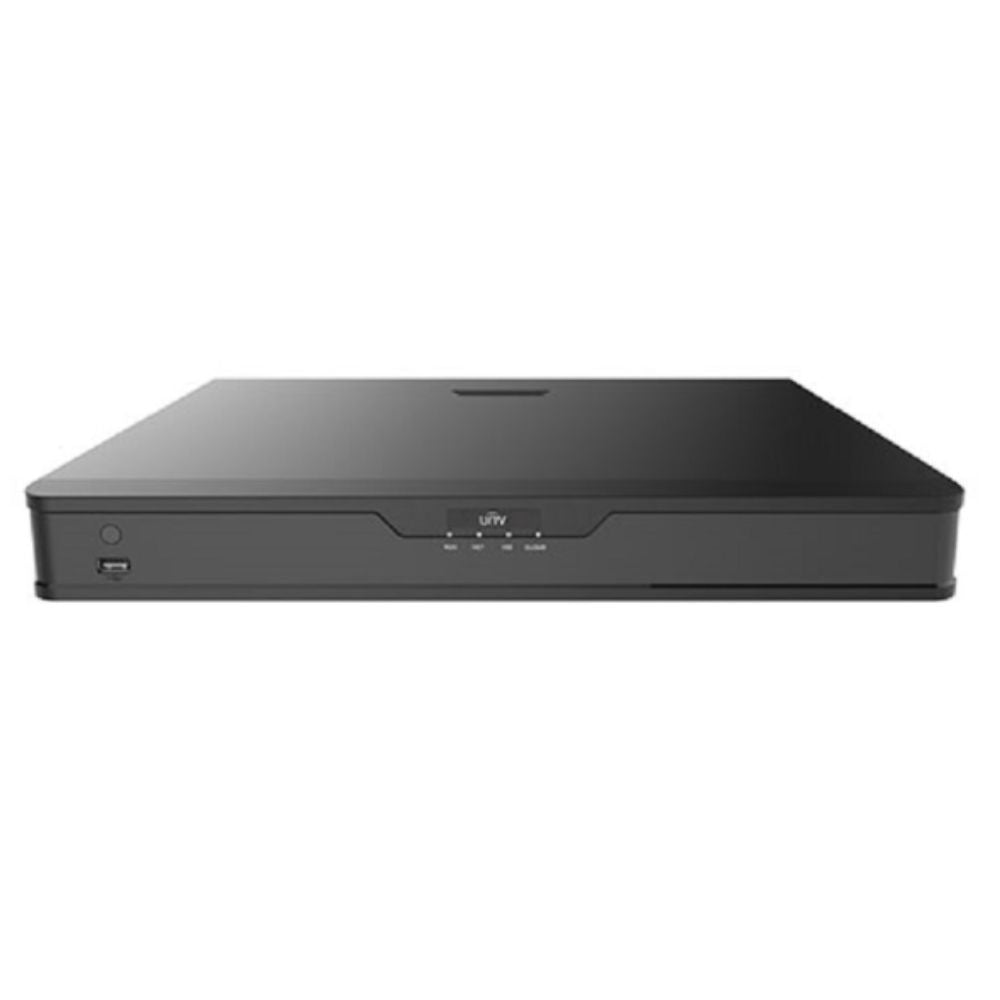

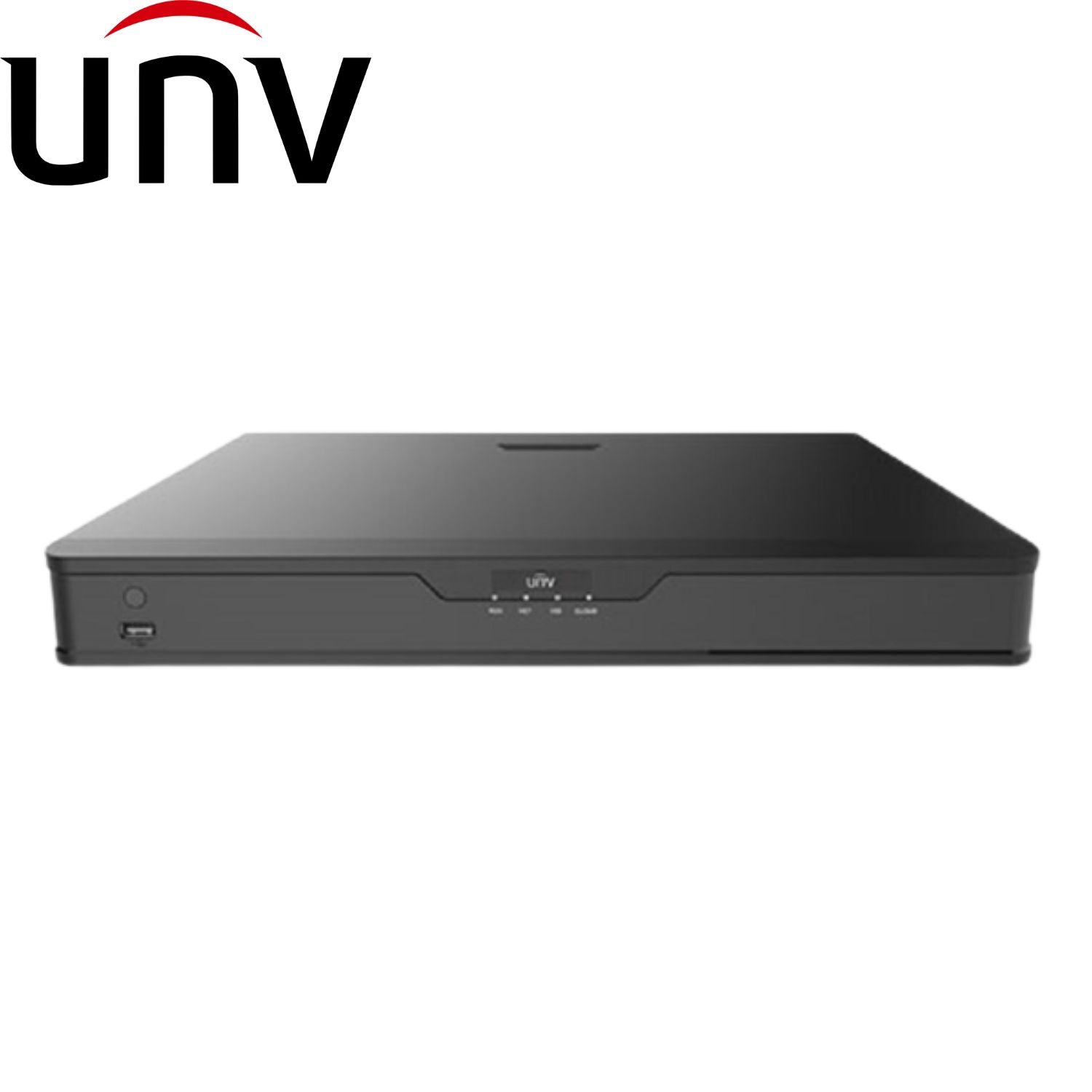

Uniview 16CH Network Video Recorder: upto 12MP, 320MBPS INPUT, 2-SATA HDD, Easy Series - NVR302-16E2-P16

Description

Description

UNIVIEW EASY SERIES 16CH BLACK AI NVR 16x POE UPTO 12MP ULTRA265/H.265/4 1x NIC 320Mbps INPUT 1CH@12MP DECODING METAL 2x SATA HDD PORT UP TO 10TB EACH 1x HDMI/ 1x VGA 1x AUDIO IN 1x AUDIO OUT 8x ALARM IN 2x ALARM OUT 1x FRONT/ 1x REAR USB PORT 240VAC RS485

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 8/16 independent PoE network interfaces
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution
  • HDMI and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, Up to 6TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Datasheet
Tech Specs

Uniview 16 Channel Network Video Recorder: 2 SATA 16 POE E2 No HDD - NVR302-16E2-P16

Video/Audio Input
IP Video Input 9-ch 16-ch 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 180Mbps 320Mbps
Remote Users TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Prortocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display 1/4/6/8/9 1/4/6/8/9/16 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event
Snapshot		 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 9 x 1080P@30		 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 10 x 1080P@30, 16 x
720P@30		 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 10 x 1080P@30, 22 x
720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 6TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention
(SIP), Vehicle Detection by
Camera		 Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard
Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
General
Power Supply 12VDC/3.3A
Power Consumption: ≤ 12 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤1.8Kg (3.97lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4



Read more
