Description

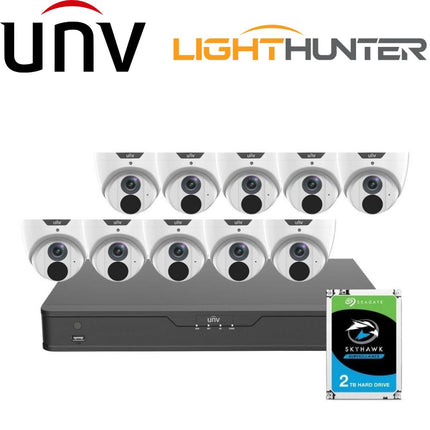

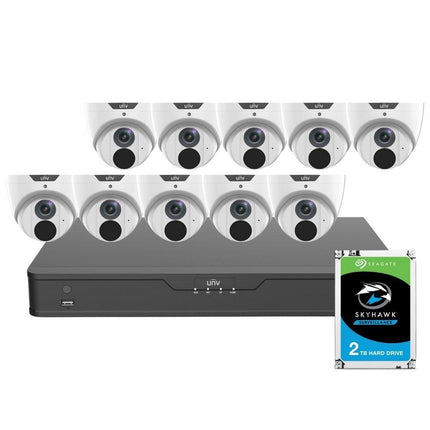

Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera is an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced built-in smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation techniques such as WDR and 3D DNR actively minimise noise and balances light.
This kit features a 16 channel NVR (NVR302-16S-P16) capable of recording in 8MP 4K Ultra HD resolution. Or as an optional upgrade, you may choose the Prime series 16 channel NVR (NVR302-16E-P16) with higher bandwidth (320Mbps) and decoding capacity as well as the ability to record in 12MP resolution.
Both NVR's support long-range Power Over Ethernet connections, capable of connecting, powering and streaming cameras from 250-300 metres away. Both NVR models support 2 SATA Hard Disks up to 10 Terabytes each and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by the web browser on a desktop computer, also allowing set up and control of various functions of your system.
Designed for home or business owners on a moderate budget, this is a professional security investment that can be relied upon for years to come. Uniview's quality products come with 3 years manufacturer warranty.
FEATURES
More Info
Remote Access

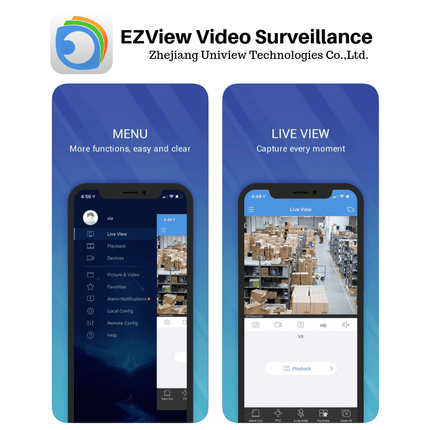

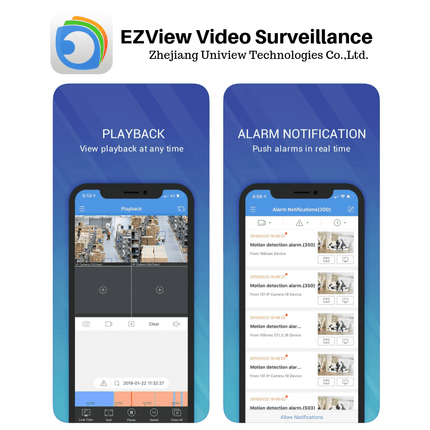

- Access your Live camera footage from anywhere in the world with your smart device. Just download the EZ-View app and connect to your network. For android and ios.
Easy Set-up
-
POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports extended POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.
DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.
Optics
-
Day/night functionality - Designed to operate just as good in total darkness as well as light.
Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
-
Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
-
2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.
Compression
Network
-
ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.
Structure
-
Wide temperature range: -30°C to 60°C
-
Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
-
IP67 - Cameras are sealed against extreme weather, water and dust.
UNIVIEW 16 CHANNEL 8MP (4K) NVR - NVR302-16S-P16
This 16 channel network video recorder can record in up to 8 Megapixel resolution. It also supports mobile client access, so you can access your Live camera footage through a smart device, using the EZ View app.
This NVR can support Visual Content Analysis VCA smart functions as well as search and statistical analysis functions with compatible cameras. They include Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behaviour search and People counting.
OPTIONAL UNIVIEW 16 CHANNEL 12MP (4K) NVR - NVR302-16E-P16-B
This 16 channel network video recorder is a Prime series NVR that can record up to 12 megapixel resolution. Prime series NVR's have a higher decoding capability and bandwidth then standard models, so that it can handle the higher demand of multiple, high resolution cameras.
It also supports mobile client access, so you can access your Live camera footage through a smart device, using the EZ View app.
This NVR can support Visual Content Analysis VCA smart functions as well as search and statistical analysis functions with compatible cameras. They include Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behaviour search and People counting.
2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008
-
Built to record 90% of the time — supports up to 64 cameras
-
Up to 10 TB or 2,000+1 hours of HD video
-
180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
-
NVR ready drives deliver robust drive design for multi-drive environments
Tech Specs
Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16
| NVR302-16S-P16 |
| Video/Audio Input |
| IP Video Input |
16-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
160Mbps |
| Outgoing Bandwidth |
96Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
HDMI/VGA
Output |
VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
1920X1080@60 |
| Recording Resolution |
8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
| Decoding |
| Decoding format |
Ultra265/H.265/H.264 |
| Live view/ Playback |
8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Capability |
1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
up to 10TB for each disk |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| PoE |
| Interface |
16 independent 100Mbps PoE network interfaces |
| Max Power |
Max 30W for single port
Max 240W in total ( 15W for each ) |
| Supported Standard |
IEEE 802.3af/at |
| General |
| Power Supply |
220V AC
Power Consumption: ?9 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing) |
| Dimensions(W× D×H) |
380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) |
Weight
( without HDD ) |
?2.4kg (5.29 lb) |
OPTIONAL: UNIVIEW 16 CHANNEL PRIME SERIES 12MP (4K) NVR - NVR302-16E-P16-B
| Model |
NVR302-16E-P16-B |
| Video/Audio Input |
| IP Video Input |
16-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
320Mbps |
| Outgoing Bandwidth |
320Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
HDMI/VGA
Output |
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024
/60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution |
12MP/8MP/ 6MP /5MP/4MP /3MP /1080p /960p /720p /D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
| Decoding |
| Decoding format |
Ultra 265, H.265, H.264 |
| Live view/ Playback |
12MP/8MP/ 6MP/5MP /4MP/3MP /1080p /960p /720p/D1 /2CIF/CIF |
| Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
up to 10TB for each disk |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M/ 1000M self-adaptive Ethernet Interface |
| USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| PoE |
| Interface |
16 independent 100 Mbps PoE network interfaces |
| Max Power |
Max 30W for single port
Max 240W in total ( 15W for each ) |
| Supported Standard |
IEEE 802.3af/at |
| General |
| Power Supply |
100 ~ 240 V AC
Power Consumption: ? 20 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing) |
| Dimensions (W× D×H) |
380 mm × 315mm × 46 mm(15" × 12.4"×1.8") |
Weight
( without HDD ) |
?2.48kg?5.47lb? |
Uniview IPC3618SB-ADF28(40)KM-I0 Security Camera
| Camera |
| Sensor |
1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 / 4.0mm@F2.0 |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on |
| Digital Noise Reduction |
2D/3D DNR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>56dB |
| IR Range |
Up to 30m (98 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High profile |
| Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
Supported |
| HLC |
Supported |
| BLC |
Supported |
| Audio |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation EZView EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic |
Supported |
| Certifications |
| Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.0W |
| Dimensions (L × W × H) |
?110.5 x 94.1mm (?4.4” x 3.7”) |
| Net Weight |
0.44kg (0.97lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
| Reset Button |
N/A |
