Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniarch devices combine convenience, durability, and cost-efficiency. Designed to provide optimal security solutions to small and medium applications, it is a perfect system for those looking for a simple, reliable, feature-rich, and affordable solution.
- Authorised Uniarch Dealer, Australian Stock, No Grey Imports!
- Uniarch 3 years Manufacturer Warranty!
- Free Express Courier Shipping!
Easystar - The Simple Choice for Reliable Night Vision
Easystar is engineered to provide colourful images in low-light environments. Easystar IP cameras adopt the backside-illuminated CMOS Sensor, which greatly improves light utilization. F1.6 iris design improves light gathering capability. The minimum illumination is down to 0.005Lux. Most importantly, UNV's uniquely patented technology U-ISP improves the definition and brightness of images. With a perfect combination of hardware and software, Easystar IP cameras deliver high-quality colourful images at low illumination.
Reliable Performance - Weatherproof and Dustproof
The IP cameras of the Easystar series are also excellent in other environmental conditions. The entire series of products support IP67 waterproof and dustproof levels, which can meet the needs of outdoor environments. They all support long IR distance, combined with lowlight technology to deliver high-quality images around the clock.
This security system is built around the Uniarch Network Video Recorder: 16-Channel, 4K Ultra HD, Pro - NVR-216E-P16 and comes with 16 x Uniarch Security Camera: 6MP Bullet EasyStar - IPC-B1E6-AF28K along with Western Digital Purple Surveillance Hard Drive.

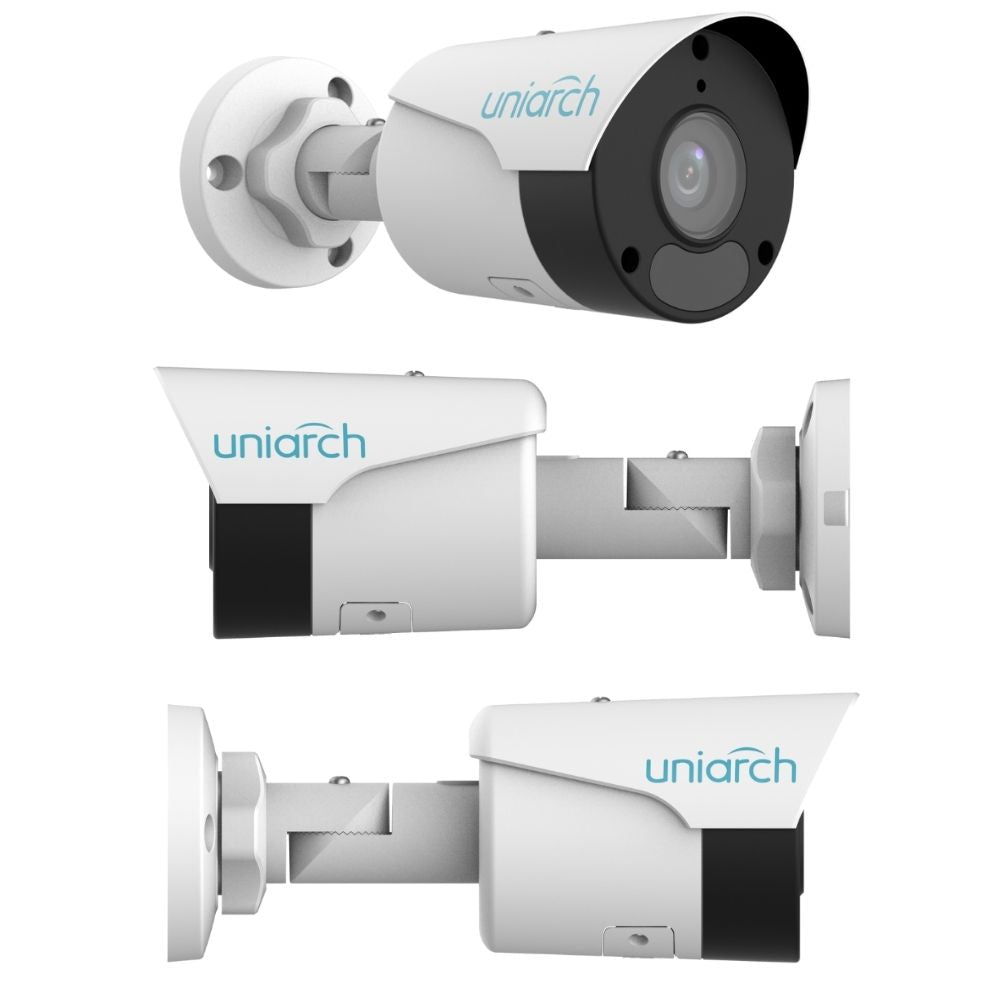

Security Camera Features
- High quality image with 5MP, 1/2.7"CMOS sensor
- 6MP(3072*2048)@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps; 2MP(1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis

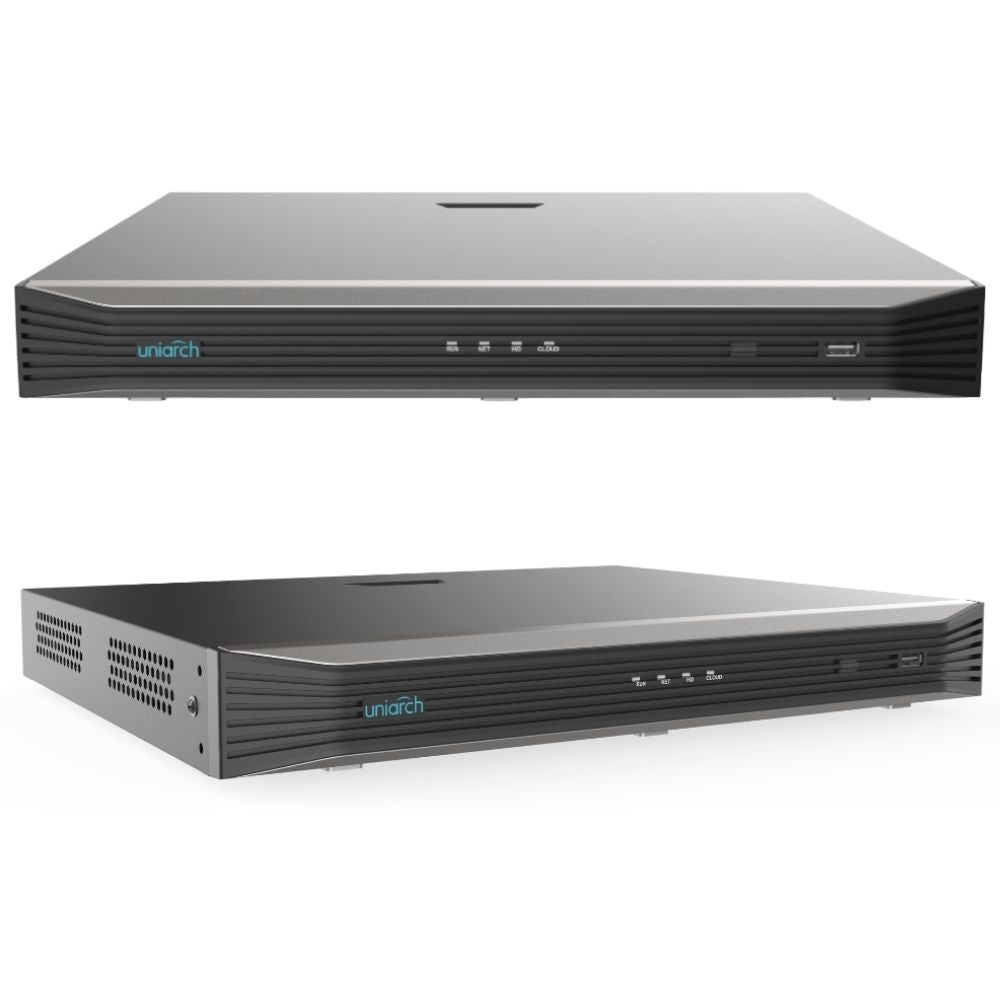

Network Video Recorder Features
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Up to 8MP resolution recording
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- 1 SATA HDD up to 6TB
- Support cloud upgrade

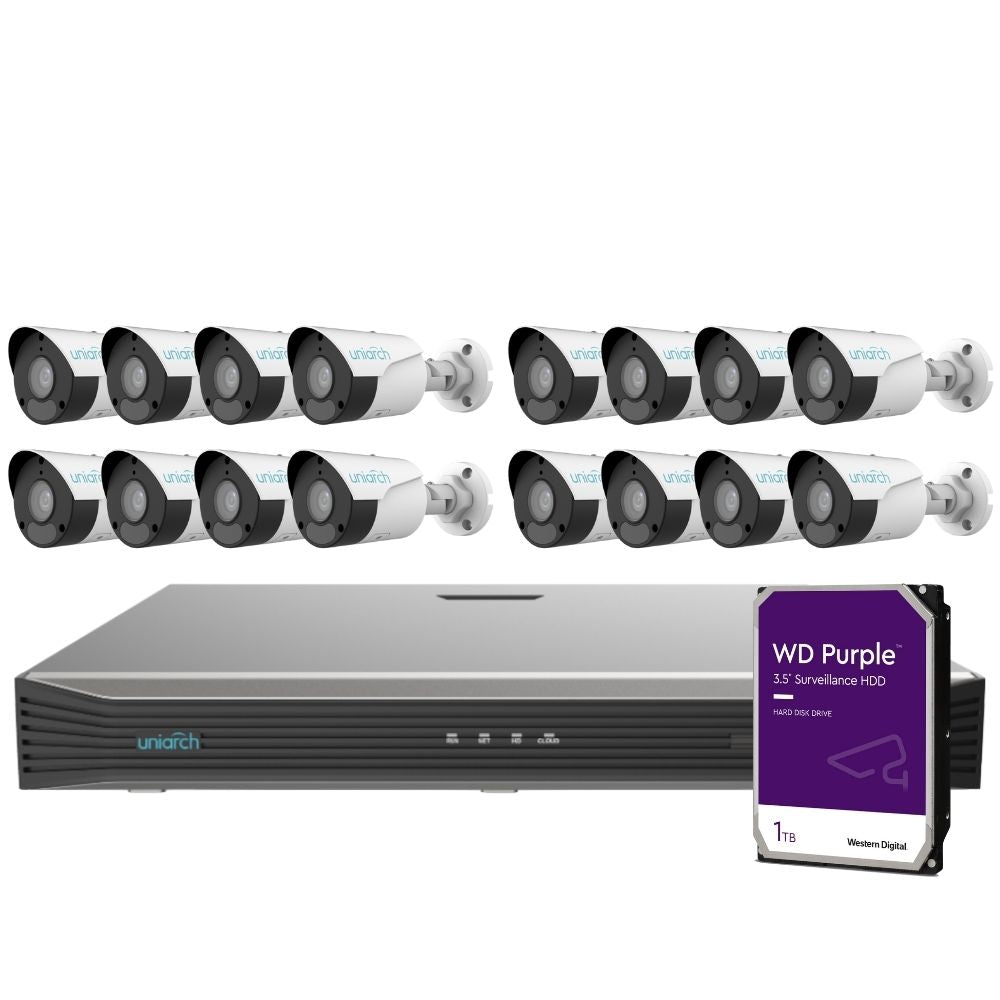

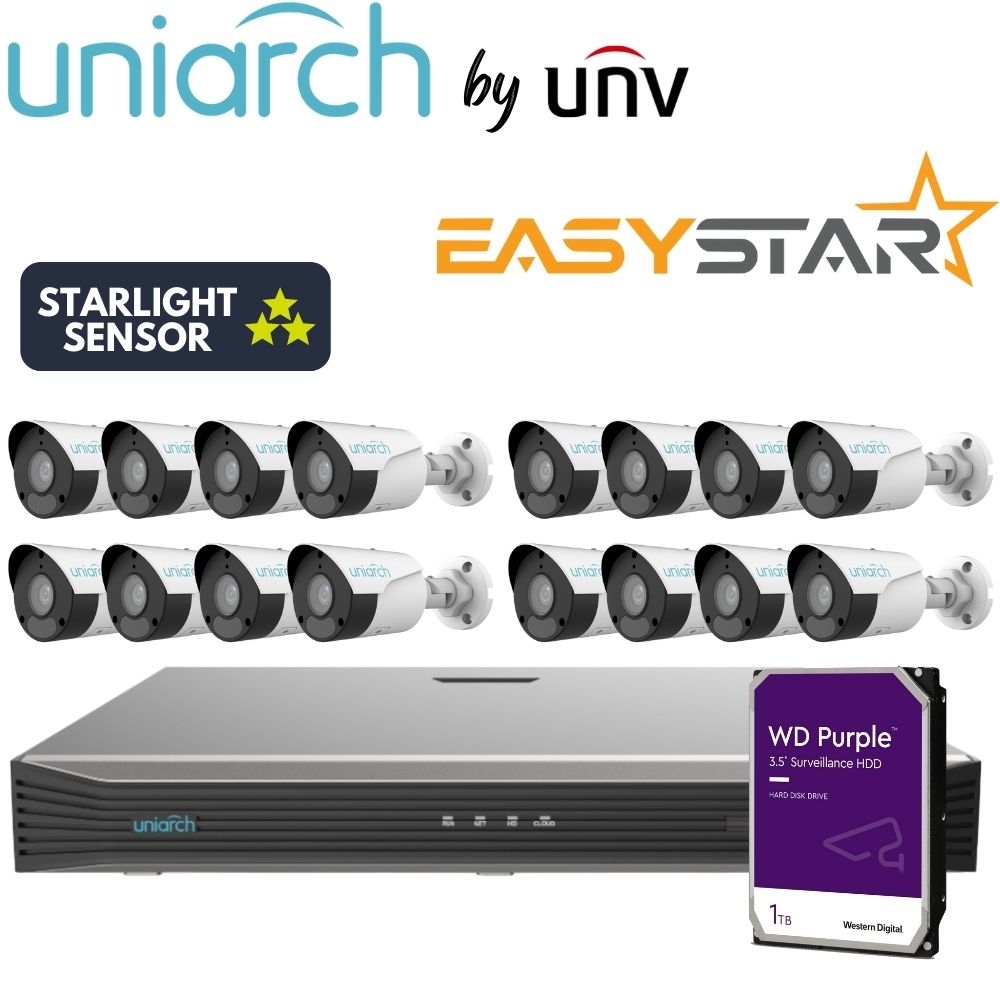

Kit Includes
1 x Uniarch Network Video Recorder: 16-Channel, 4K Ultra HD, Pro - NVR-216E-P16
16 x Uniarch Security Camera: 6MP Bullet EasyStar - IPC-B1E6-AF28K
1 x Western Digital Purple Surveillance Hard Drive
More Info
Uniarch Security Camera: 6MP Bullet EasyStar - IPC-B1E6-AF28K Datasheet Download
Uniarch Network Video Recorder: 16-Channel, 4K Ultra HD, Pro - NVR-216E-P16 Datasheet DownloadIf you have any questions, please email us at support@SpyMonkey.com.au and let's build a system customized to your preference.
• Send us an Email!
• Fill out a Quote Form!
• Talk to us via Phone!
• Chat with us via Live Chat!
Videos
Tech Specs
Uniarch Security Camera: 6MP Bullet EasyStar - IPC-B1E6-AF28K
| Camera |
| Sensor |
1/2.7", 6.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| S/N |
>56dB |
| WDR |
120dB |
| Lens |
| Lens Type |
2.8mm @1.6, Fixed-focal |
| Lens Mount |
M12 |
| Angle of View (H) |
112.9° |
| Angle of View (V) |
59.1° |
| Angle of View (O) |
121.2° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| Illuminator |
| IR Range |
Up to 50m (164ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 6MP (3072*2048), Max 20fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Events |
| Basic Detection |
Intrusion(based on human body detection) |
| motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication |
| Audio |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Uniarch Client Uniarch APP |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic |
Supported |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 7.0W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) |
179×71×70mm (7.0”×2.8”×2.8”) |
| Weight |
0.45kg (0.99lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
N/A |
| Ingress Protection |
Ingression protection: IP67 |
Uniarch Network Video Recorder: 16-Channel, 4K Ultra HD, Pro - NVR-216E-P16
| NVR |
|---|
| NUMBER OF CHANNELS |
16CH |
| NUMBER OF POE PORTS |
16*POE PORTS |
| NUMBER OF HARD DISK BAY |
2*HDD |
| TECHNOLOGY |
Uniarch Pro Series |
| NETWORK BANDWIDTH |
80Mbps Incoming, 64Mbps Outgoing |
| MAXIMUM RESOLUTION SUPPORT |
8MP |
Downloads
Uniarch Security Camera: 6MP Bullet EasyStar - IPC-B1E6-AF28K Datasheet DownloadUniarch Network Video Recorder: 16-Channel, 4K Ultra HD, Pro - NVR-216E-P16 Datasheet Download
