Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniarch devices combine convenience, durability, and cost-efficiency. Designed to provide optimal security solutions to small and medium applications, it is a perfect system for those looking for a simple, reliable, feature-rich, and affordable solution.
- Authorised Uniarch Dealer, Australian Stock, No Grey Imports!
- Uniarch 3 years Manufacturer Warranty!
- Free Express Courier Shipping!
Easystar - The Simple Choice for Reliable Night Vision
Easystar is engineered to provide colourful images in low-light environments. Easystar IP cameras adopt the backside-illuminated CMOS Sensor, which greatly improves light utilization. F1.6 iris design improves light gathering capability. The minimum illumination is down to 0.005Lux. Most importantly, UNV's uniquely patented technology U-ISP improves the definition and brightness of images. With a perfect combination of hardware and software, Easystar IP cameras deliver high-quality colourful images at low illumination.
Reliable Performance - Weatherproof and Dustproof
The IP cameras of the Easystar series are also excellent in other environmental conditions. The entire series of products support IP67 waterproof and dustproof levels, which can meet the needs of outdoor environments. They all support long IR distance, combined with lowlight technology to deliver high-quality images around the clock.
Features
- High quality image with 8MP, 1/2.7""CMOS sensor
- 8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
More Info
Uniarch Security Camera: 8MP Dome Starlight - IPC-D1E8-AF28K Datasheet Download
If you have any questions, please email us at support@SpyMonkey.com.au and let's build a system customized to your preference.
Send us an Email! Fill out a Quote Form! Chat with us via Live Chat!
Videos
Tech Specs

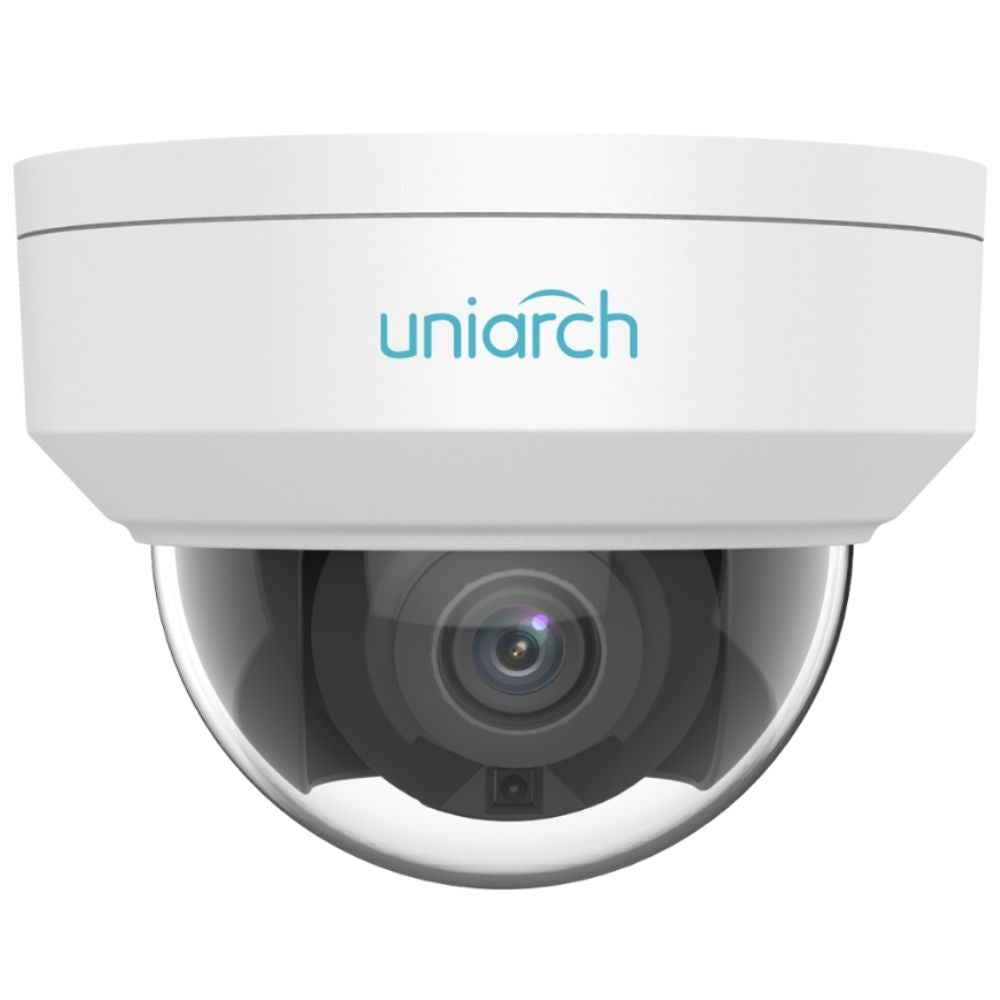

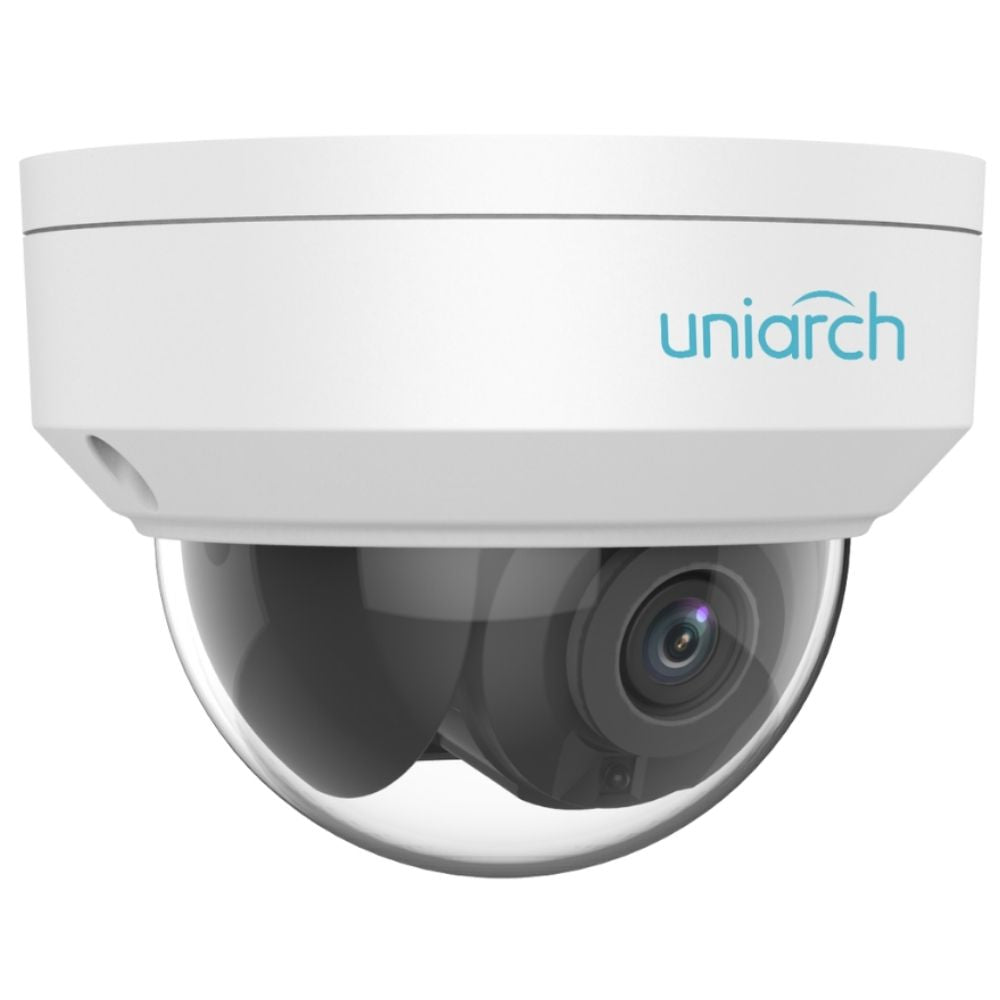

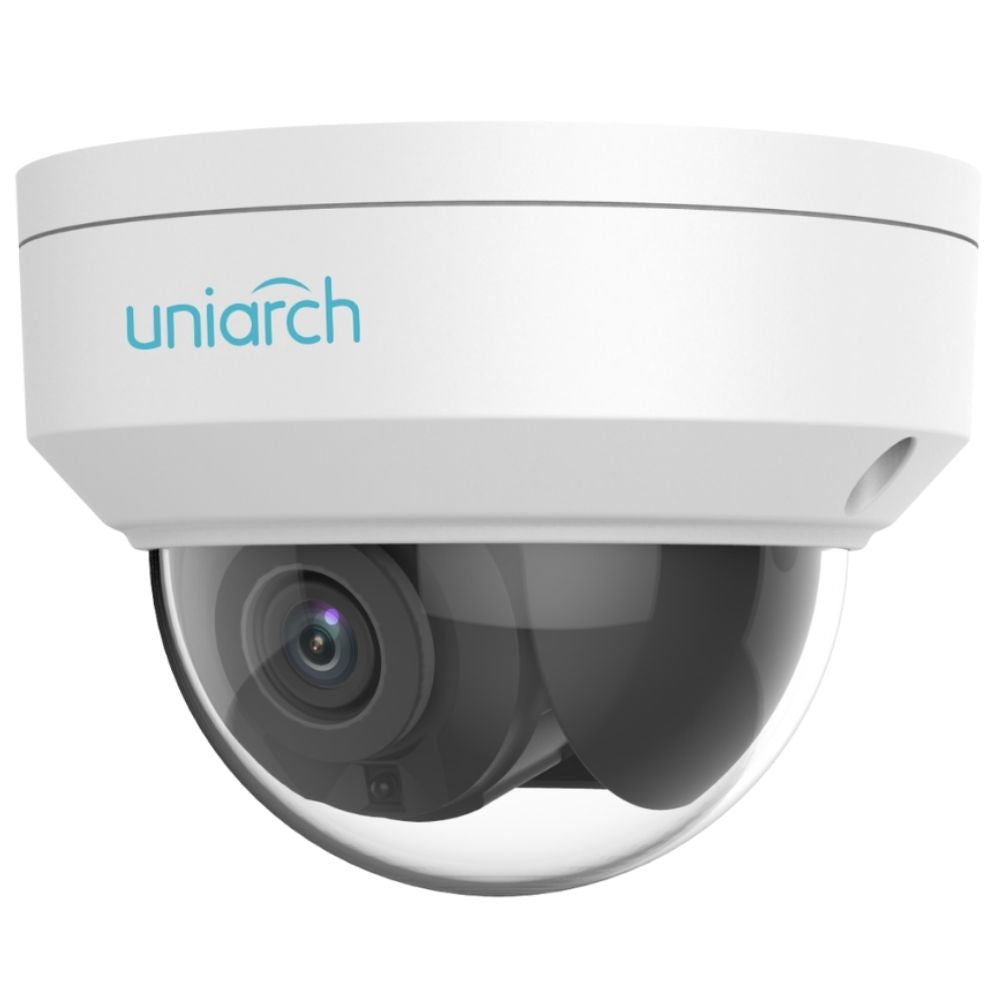

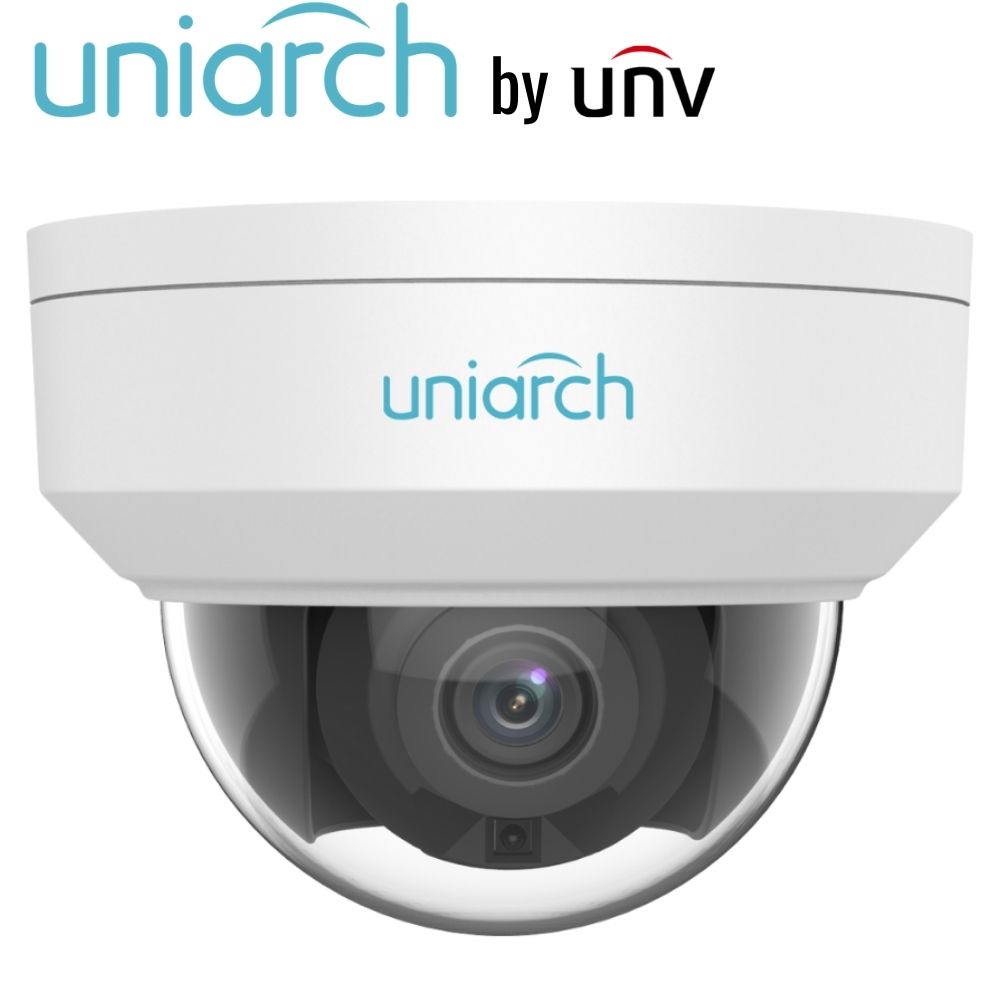

Uniarch Security Camera: 8MP Dome Starlight - IPC-D1E8-AF28K
| Camera |
| Sensor |
1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° |
| S/N |
>56dB |
| WDR |
120dB |
| Lens |
| Lens Type |
2.8mm @1.6, Fixed-focal |
| Lens Mount |
M12 |
| Angle of View (H) |
112.9° |
| Angle of View (V) |
59.1° |
| Angle of View (O) |
121.2° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
84.0 |
33.6 |
16.8 |
8.4 |
| Illuminator |
| IR Range |
Up to 30m (98 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Events |
| Basic Detection |
Intrusion(based on human body detection) |
| motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication |
| Audio |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Uniarch Client Uniarch APP |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic |
Supported |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.5W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ109 x 83mm (Ø4.3” x 3.3”) |
| Weight |
0.37kg (0.82lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
Supported |
| Ingress Protection |
Ingression protection: IP67 Vandal resistant: IK10 |
