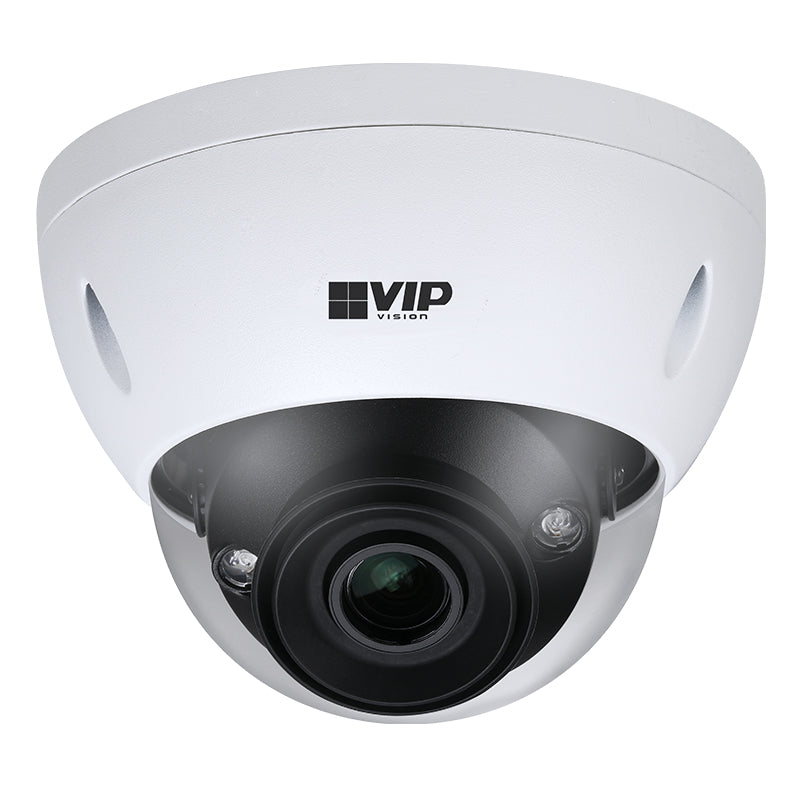

VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome - VSIPU-4DIRM-I2

Description

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera features:
  • Stream up to 4.0MP (2688 x 1520) at 25fps
  • 2.7 ~ 12mm motorised lens with 115 ~ 47° viewing angles
  • H.265 encoding for efficient storage & streaming
  • 40m infrared range; true day/night (auto ICR)
  • Back/highlight compensation & true WDR (140dB)
  • MicroSD slot for recording at the edge up to 256GB
  • Internal face detection & capture to extend recognition
  • Perimeter Protection to identify people & vehicles
  • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with
  • any VIP Vision NVR
  • Intelligent AI-enhanced people counting for retail capacity management and flow
  • control
  • Extend PoE up to 800m (requires ePoE NVR/switch)
  • IP67 weather rated & IK10 vandal rated housing
  • Built-in heater to prevent condensation in cold environments
Tech Specs

-

Camera
Image Sensor 1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2688 (H) x 1520 (V)
RAM / ROM 1GB / 4GB
Min Illumination 0.003 Lux / F1.8 (Color)
S/N Ratio > 56dB
Infrared System 3 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type Motorised Varifocal
Lens / Iris 2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Field of View Horizontal: 115°~47°, Vertical: 62°~26°, Diagonal: 136°~56°
Focus Auto Focus / 1.5m Min. Focus Distance
DORI
Detect (25px/m) 58m (wide) / 131m (tele)
Observe (63px/m) 23m (wide) / 52m (tele)
Recognise (125px/m) 12m (wide) / 26m (tele)
Identify (250px/m) 6m (wide) / 13m (tele)
Video
Resolution 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 50fps)
Frame Rate (Third) 1080p (1 ~ 50fps)
Video Compression H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA) Yes
White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control Auto / Manual
Noise Reduction 3D NR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR
(16 total)
Face Attributes Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map Yes
Event Trigger Motion Detection, Video Tampering, Scene
Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP;
RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method Multicast
Max. User Access 20 Users
Interface
Video Interface N/A
Audio Interface 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485 N/A
Edge Storage MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply 12 VDC (±30%) / 24 VAC (±30%); PoE+
(802.3at) / ePoE
Power Consumption <18W (Heater on)
Operating Conditions -40°C ~ +60°C (Heater on), ≤95% RH
Ingress Protection IP67
Vandal Resistance IK10
Series Ultimate AI Series
Camera Type Dome
Housing Metal, Plastic
Pan/Tilt/Rotation Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
ePoE Yes
Dimensions Ø159mm x 118mm
Net Weight 0.95kg
Other
Category Network Surveillance
Warranty (Years) 4
Videos

4-Year Warranty

This purchase comes with a 4-Year warranty!

SpyMonkey - All our products are 100% genuine with no grey imports! Our devices are eligible for support and software updates from their manufacturers.

✔️ Authorised Australian Dealer!
✔️ Australian Stock, No Grey Imports!
✔️ Full Manufacturer Warranty!

VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome - VSIPU-4DIRM-I2

Product form

SKU: VSIPU-4DIRM-I2

$669.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
