Description

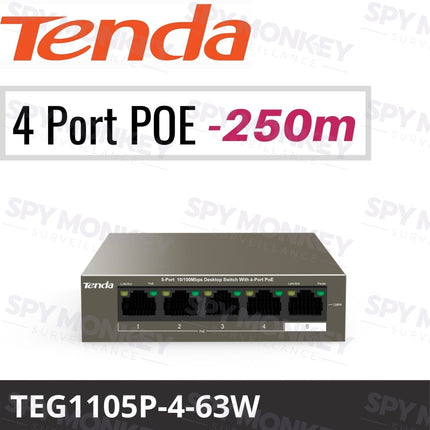

TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
FEATURES
- 5-Port Gigabit Desktop Switch with 4-Port PoE Switch
- Desktop, steel case
- One-key VLAN
- 5 10/100/1000 Mbps Base-T RJ45 port; Ports 1-4: IEEE 802.3af/at PoE ports
- maximum power output of each PoE port: 30W; maximum power output of the switch: 58W
- Desktop size,Power Adapter Output 63W
- Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 port
Lightning Protection 6kV
Tech Specs
Tenda Digital Video Recorder: 5-Port Gigabit Desktop Switch with 4-Port PoE - TEG1105P-4-63W
| Standards&Protocols |
IEEE 802.3? IEEE 802.3u?IEEE 802.3x? IEEE 802.3af?IEEE 802.3at |
| Switching capacity |
10 Gbps |
| Throughput |
7.44Mpps |
| Dimensions (W × D × H) |
100mm*100mm*26mm |
| Lightning protection |
6KV |
| Indicators |
Link/Act , PoE Status, Power?PoE Max |
| Interfaces |
4 10/100/1000Mbps RJ45 Ports(Data/PoE) 1 10/100/1000Mbps RJ45 Ports(Data) (Auto Negotiation/Auto MDI/MDIX) |
| Wire-speed forwarding |
Support |
| Capacity Forwarding mode |
Store-forward and cut-through |
| Mac Address Table |
2K |
| PoE Supply |
Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W)? PoE power type is end-span(12+, 36- and 45+, 78- line pair) |
| Input Voltage |
AC?100-240V~50/60Hz DC?51V /1.25A?Power Adapter Output? |
| Power consumption |
in full configuration?<63.7W Power Suppl?y: ?57.8W |
| Environment |
Operating Temperature: : 0?~40?(32?~104?) Storage Temperature:: -40?~70?(-40?~158?) Operating Humidity: : 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| One-key mode |
VLAN Mode:If "vlan mode" is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively but can communicate with the Uplink port. Default Mode:If Default mode is enabled, the device works as a general switch and all ports support 10/100/1000Mbps auto-negotiation |
| Certification |
FCC?CE?RoHS |
Videos
Switch PoE Tenda TEF1105P-4-63W Unboxing
Switch PoE Tenda TEF1105P-4-63W
Downloads
Datasheet
Tenda Digital Video Recorder: 5-Port Gigabit Desktop Switch with 4-Port PoE -TEG1105P-4-63W
