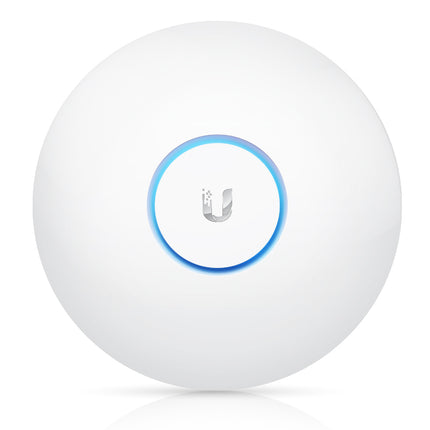

The Ubiquiti UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range (183m), symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.
At the front-center of the device is a status LED ring which can provide the administrator with location tracking and alerts for each device. After the UniFi server is installed on a Mac or PC, the UniFi controller can be accessed through any device using a web browser. The UniFi controller allows the operator to instantly provision thousands of UniFi APs, map out networks, quickly manage system traffic, and further provision individual Unifi AP devices.
Datasheets
Tech Specs
| Antennas |
Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
| BSSID |
Up to Four per Radio |
| Dimensions |
175.7 x 175.7 x 43.2 mm |
| Maximum Power Consumption |
6.5W |
| Maximum TX Power(2.4 GHz) |
24 dBm |
| Mounting |
Wall/Ceiling (Kits Included) |
| Networking Interface |
10/100/1000 Ethernet Port |
| Operating Humidity |
5 to 95% Noncondensing |
| Operating Temperature |
-10 to 70° C |
| Power Method |
Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return) |
| Power Supply |
24V, 0.5A Gigabit PoE Adapter (Only the single-pack of the UAP-AC-LR includes a PoE adapter.) |
| Weight |
315 g |
| Wi-Fi Standards |
802.11 a/b/g/n/ac |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
