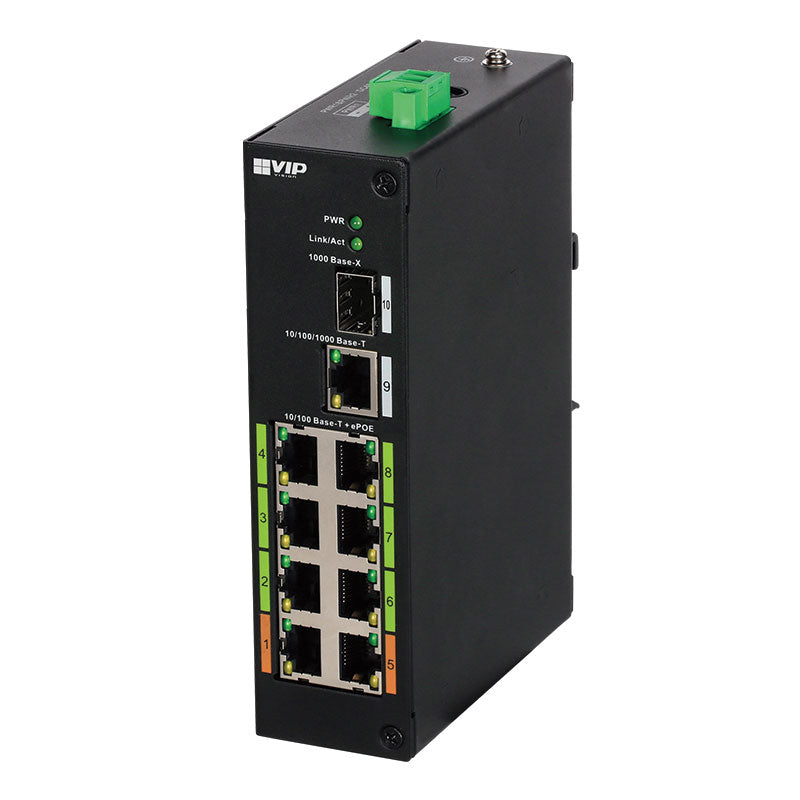

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.
• 8 x PoE+ device ports with 100Mbps per port (ePoE capable)
• 1 x Hi-PoE device port with 100Mbps per port (ePoE capable)
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 120W
• Extend up to 300m@100Mbps and 800m@10Mbps
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
* Refer to datasheet for ePoE transmission performance tables
Datasheets
Tech Specs
| Device Ports | 8 x 10/100 Base-T (PoE power supply ports) |
| DHCP | N/A |
| Dimensions | 150 x 100 x 42mm |
| Exchange Mode | Store & forward |
| Extend Mode | N/A |
| Flow Control | Enabled |

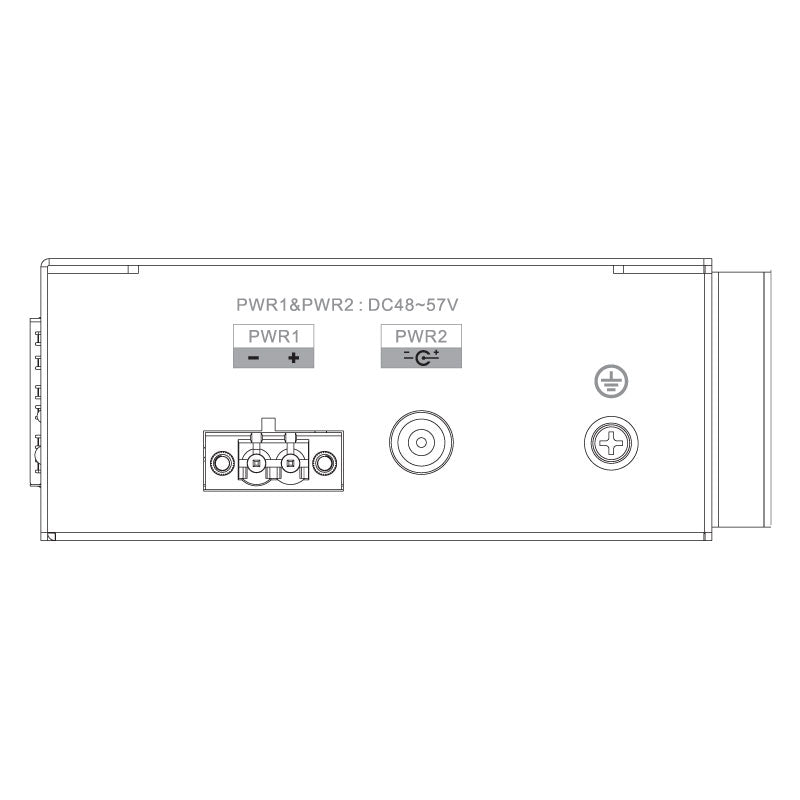

| Input Power | 48 ~ 57VDC |
| Lightning Protection | Common Mode: 4kV / Differential Mode: 2kV |
| LLDP | N/A |
| MAC Address Capacity | 8K |
| Mounting Options | DIN rail |
| Network Management | N/A |
| Network Time Protocol | N/A |
| Operating Environment | -30°C~65°C / RH10%~90% |
| Packet Forwarding Rate | 4.17Mpps |
| PoE | Yes |
| PoE Management | N/A |
| PoE Protocol | PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE |
| Port Aggregation | N/A |
| Port Mirroring | N/A |
| Ports | 8 ports |
| Quality of Service | N/A |
| Security Features | N/A |
| Spanning Tree Protocol | N/A |
| Speed | Fast 10/100 |
| Switch Management | Unmanaged |
| Switch Power Load | Ports 1, 5: ?60W / Port 2, 3, 4, 6, 7, 8: ?30W (Total: ?120W) |
| Switching Capacity | 8.8Gbps |
| System Maintenance | N/A |
| Uplink Ports | 1 x 1000 Base-X / 1 x 10/100/1000 Base-T |
| Virtual LAN | N/A |
| Weight | 0.59kg |
