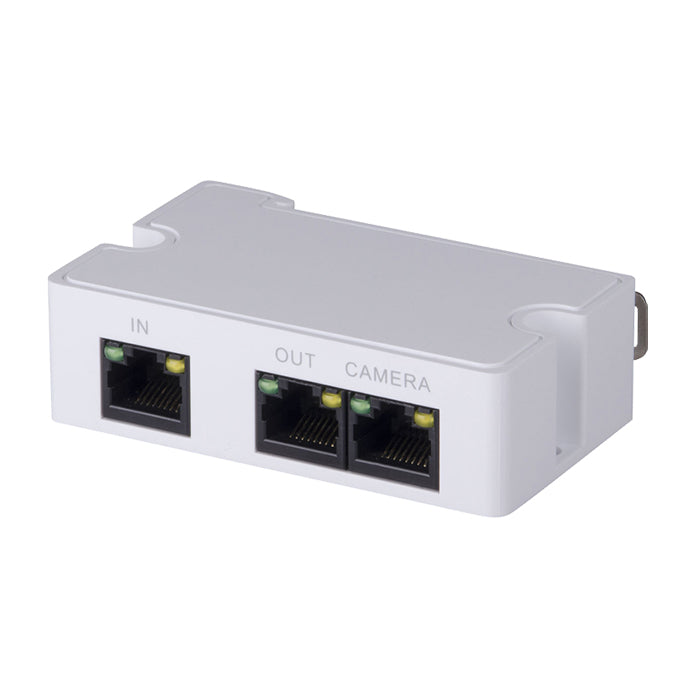

The VSPOE-EX is an extender for the VSPOE-MS 60W PoE Midspan. It enables the cascading of PoE to up to three IP cameras, up to a maximum distance of 300m from the network switch. Hi-PoE ports from capable PoE switches can be used in place of the VSPOE-MS midspan.
• 1 x 10/100 Base-T PoE receiver port
• 1 x 10/100 Base-T PoE supply port for following VSPOE-EX extender
• 1 x 10/100 Base-T PoE supply for IP camera / device
• Active extender provides PoE to up to 3 IP surveillance cameras*
• IEEE 802.3af/at standard for IP camera PoE power supply
• Supports Ethernet data exchange
• Junction box or DIN rail mounting
*Device power consumption must be ≤8W
Datasheets
Tech Specs
| Dimensions | 79 x 52 x 23mm |
| Ethernet Ports | 3 x 10/100 Base-T (receiver port / extender port / device port) |
| Exchange Mode | N/A |
| Indicators | Power indicator / PoE status indicator |
| Lightning Protection | N/A |
| Mounting Options | Desktop / DIN Rail |
| Operating Environment | -30° ~ 65°C / 10 ~ 90% RH (max.) |
| PoE Power Supply | Cascades from midspan |
| PoE Protocol | PoE (IEEE802.3af) / PoE+ (IEEE802.3at) |
| Weight | 0.06kg |
