| Alarm Interface | 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC |
| Audio Interface | 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723 |
| Bit Rate | H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |

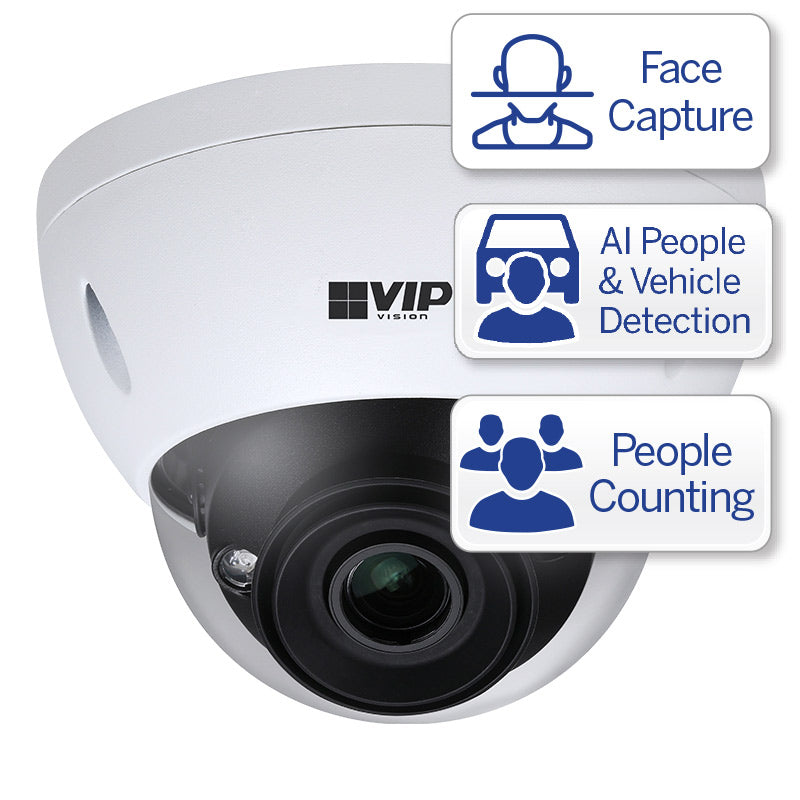

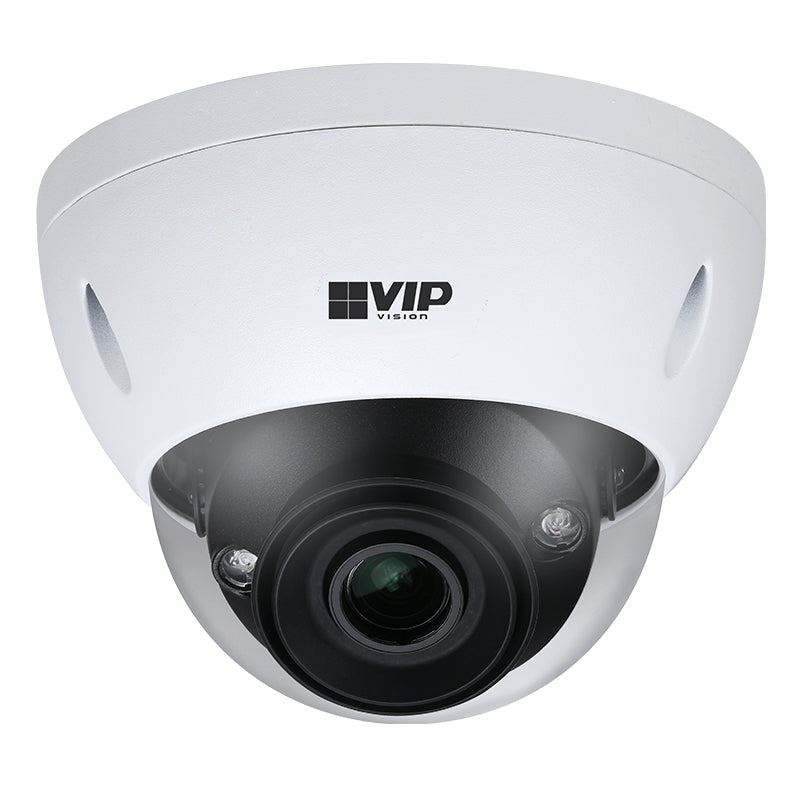

| Camera Type | Dome |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 58m (wide) / 131m (tele) |

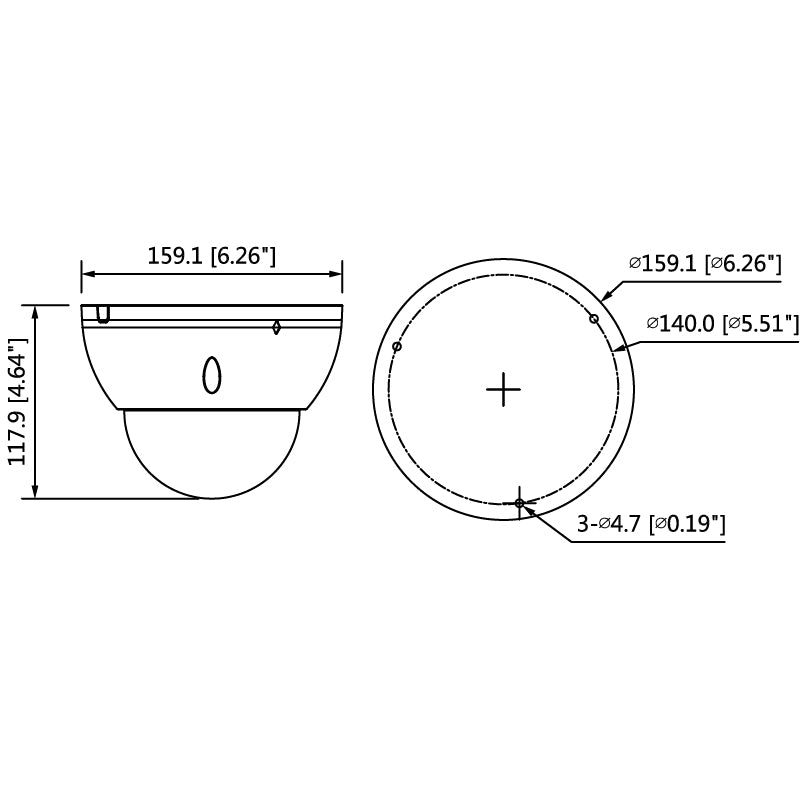

| Dimensions | Ø159mm x 118mm |
| Edge Storage | MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ePoE | Yes |
| Ethernet | RJ-45 (10/100Base-T) |
| Event Trigger | Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access |
| Face Attributes | Age, Gender, Expression, Glasses, Face Mask, Facial Hair |
| Face Detection | Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total) |
| Field of View | Horizontal: 114°~47°, Vertical: 62°~26°, Diagonal: 136°~56° |
| Focus | Auto Focus / 1.2m Min. Focus Distance |
| Frame Rate (Main) | 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) | D1 (1 ~ 50fps) |
| Frame Rate (Third) | 1080p (1 ~ 50fps) |
| Gain Control | Auto / Manual |
| Heat Map | Yes |
| Housing | Metal, Plastic |
| Identify (250px/m) | 6m (wide) / 13m (tele) |
| Image Sensor | 1/1.8’’ 4.0MP Progressive Scan CMOS |
| Infrared System | 3 x Infrared LED, 45m range, Auto/manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object |
| Intelligent Search | Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
| Interoperability | ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris | 2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (140dB) |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | 20 Users |
| Min Illumination | 0.003 Lux / F1.8 (Color) |
| Net Weight | 0.95kg |
| Noise Reduction | 3D NR |
| Observe (63px/m) | 23m (wide) / 52m (tele) |
| Operating Conditions | -40°C ~ +60°C (Heater on), ?95% RH |
| Pan/Tilt/Rotation | Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355° |
| People Counting | Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection |
| Perimeter Protection | Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption | <18W (Heater on) |
| Power Supply | 12 VDC (±30%) / 24 VAC (±30%); PoE+ (802.3at) / ePoE |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM | 1GB / 128MB |
| Recognise (125px/m) | 12m (wide) / 26m (tele) |
| Resolution | 4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 | N/A |
| S/N Ratio | > 56dB |
| Series | Ultimate AI Series |
| Smart Scene Adaptive (SSA) | Yes |
| Streaming Method | Multicast |
| Vandal Resistance | IK10 |
| Video Compression | H.265, H.264, H.264B, H.264H, MJPEG |
| Video Interface | N/A |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
