Alarm Interface | N/A |
Audio Interface | 1 Input, 1 Output / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
Auto Tracking | N/A |
Bit Rate | H.264 /H.265 /MJPEG: 3 ~ 20480Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |

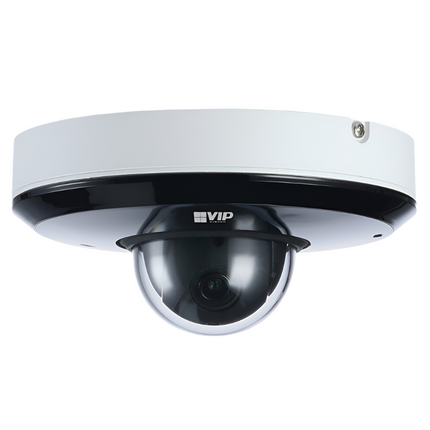

Camera Type | PTZ Dome |
Day/Night | Auto (ICR) / Color / B&W |
Detect (25px/m) | 147m |

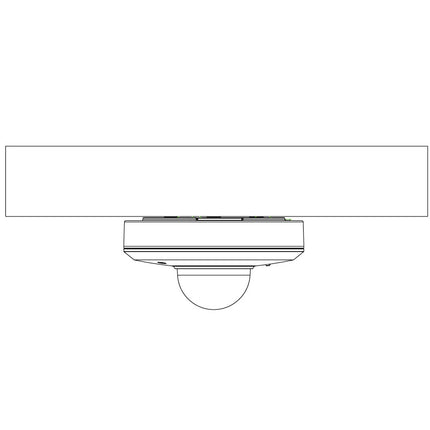

Dimensions | Ø128mm x 65mm |
Edge Storage | MicroSD Card (up to 256GB) / FTP / P2P |
Effective Pixels | 2560 (H) x 1440 (V) |
ePoE | No |
Ethernet | RJ-45 (10Base-T/100Base-TX) |
Event Trigger | Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
Field of View | Horizontal: 32~97°, Vertical: 18°~51° (4x Optical Zoom) |
Focus | Auto/Manual / 0.2m Min. Focus Distance |
Frame Rate (Main) | 4.0MP (1 ~ 25fps) |
Frame Rate (Sub) | D1 (1 ~ 25fps) |
Frame Rate (Third) | D1 (1 ~ 25fps) / 720p (1 ~ 25fps) |
Gain Control | Auto / Manual |
Heat Map | N/A |
Housing | Metal |
Identify (250px/m) | 15m |
Image Sensor | 1/2.8" 4.0MP Progressive Scan CMOS |
Infrared System | 3 x Infrared LED, 15m range, Auto/manual on/off control |
Ingress Protection | IP66 |
Intelligent Functions | Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog |
Intelligent Search | Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
Interoperability | ONVIF/ CGI |
Lens / Iris | 2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris |
Lens Type | Motorised Varifocal |
Lighting Compensation | BLC / HLC / WDR (120dB) |
Max. Resolution | 4.0 Megapixel |
Max. User Access | 20 Users |
Min Illumination | 0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on) |
Modes / Presets | Up to 300 presets / 8 tour |
Net Weight | 0.49kg |
Noise Reduction | 2D / 3D |
Observe (63px/m) | 59m |
Operating Conditions | -30° ~ +60° C / ?95% RH |
Pan / Tilt Range | Pan: 0 ~ 355° / Tilt: 5 ~ 90° |
Pan/Tilt/Rotation | N/A |
People Counting | Supports Line Crossing/Region/Queuing People Counting, Report Generation |
Perimeter Protection | Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
Picture Control | Flip 180° |
Power Consumption | <3W / <8.5W (IR on) |
Power Supply | 12VDC / 1.5A / PoE (802.3af) |
Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
PTZ Speed | Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s |
RAM / ROM | 1GB / 4GB |
Recognise (125px/m) | 29m |
Resolution | 4.0MP (2560 x 1440) to CIF(352 x 288) |
RS485 | N/A |
S/N Ratio | N/A |
Series | Specialist AI Series |
Smart Scene Adaptive (SSA) | No |
Start-up Action | Auto-restore to previous PTZ/lens status |
Streaming Method | Unicast / Multicast |
Vandal Resistance | IK08 |
Video Compression | H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+ |
Video Interface | N/A |
White Balance | Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp |
