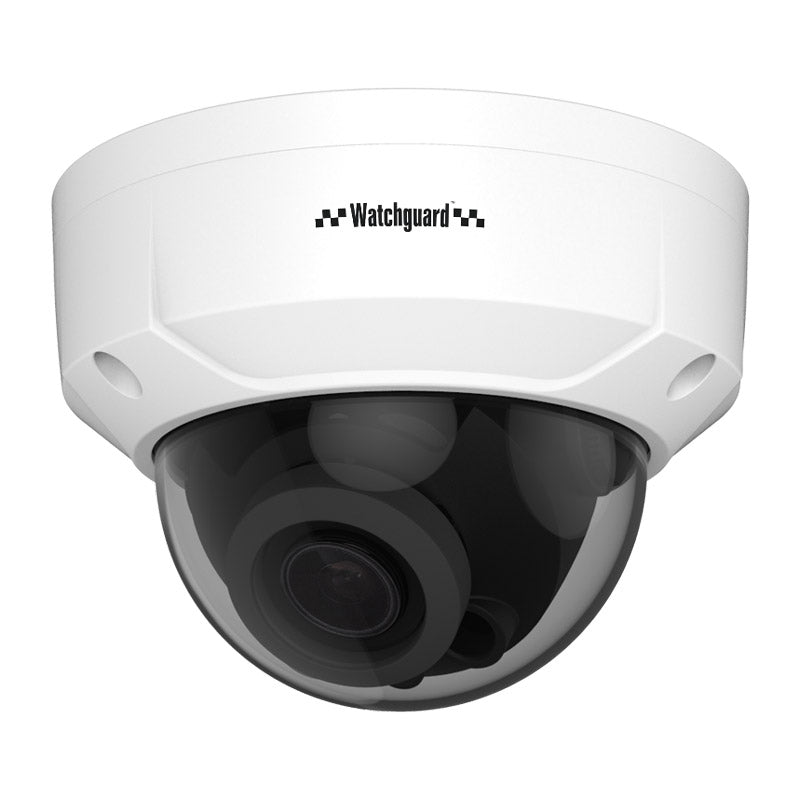

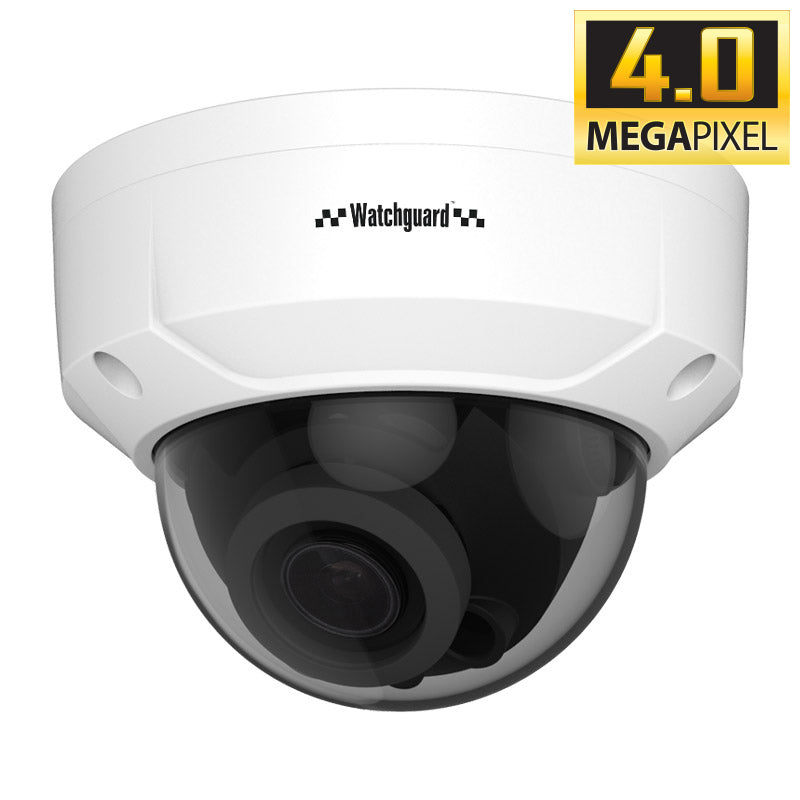

The VSIPC-4DIRMD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.
Camera features:
• Stream up to 4.0MP (2560 x 1440) at 20fps
• 2.8~12mm motorised varifocal lens (94°~33°)
• Up to 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• Motion detection, region of interest and more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67/IK10 weather & vandal rated metal housing
Datasheets
Tech Specs
| Alarm Interface | N/A |
| Audio Interface | N/A |
| Bit Rate | H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 66m (wide) / 200m (tele) |

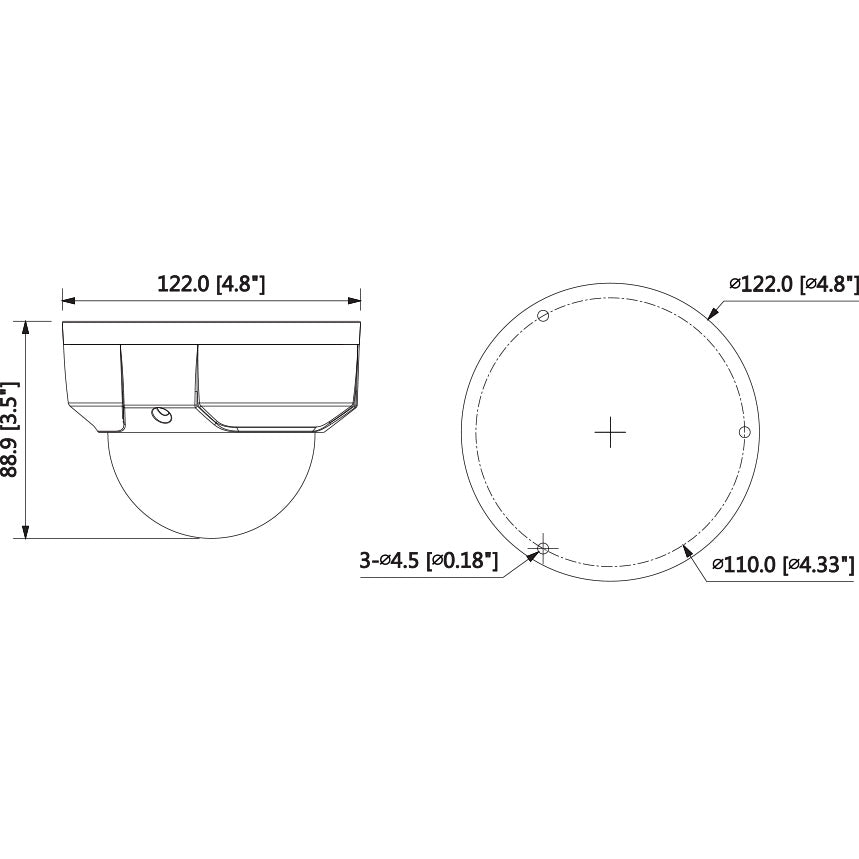

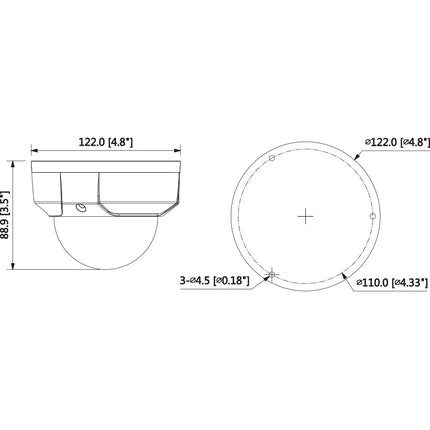

| Dimensions | Ø122mm x 89mm |
| Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
| Effective Pixels | 2560 (H) x 1440 (V) |
| ePoE | No |
| Ethernet | RJ-45 (10/100Base-T) |
| Field of View | Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom) |
| Focus | Fixed |
| Frame Rate (Main) | 4.0MP (1 ~ 20fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | N/A |
| Gain Control | Auto / Manual |
| Housing | Metal |
| Identify (250px/m) | 7m (wide) / 20m (tele) |
| Image Sensor | 1/3" 4.0MP Progressive Scan CMOS |
| Infrared | Yes |
| Infrared System | 2 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Interoperability | ONVIF Profile S&G / API |
| IVS | No |
| Lens / Iris | 2.8mm~12mm F1.8 Motorised Varifocal Lens |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / Digital WDR |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | 10 Users / 20 Users |
| Min Illumination | 0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on) |
| Net Weight | 0.45kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 26m (wide) / 80m (tele) |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation | Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360° |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption | <2.2W / 6.5W (IR On) |
| Power Supply | 12VDC / PoE (802.3af) (Class 0) |
| Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH |
| RAM / ROM | 256MB / 16MB |
| Recognise (125px/m) | 13m (wide) / 40m (tele) |
| Resolution | 4.0MP (2560 x 1440) to CIF (352 x 288) |
| RS485 | N/A |
| RTMP Support | No |
| S/N Ratio | > 50dB |
| Series | Compact Series |
| Smart Scene Adaptive (SSA) | No |
| Streaming Method | Unicast / Multicast |
| Tri-Axis Mounting | Yes |
| Ultra Low Light Colour | No |
| Vandal Resistance | IK10 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Interface | N/A |
| Weather Resistance | Yes |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
