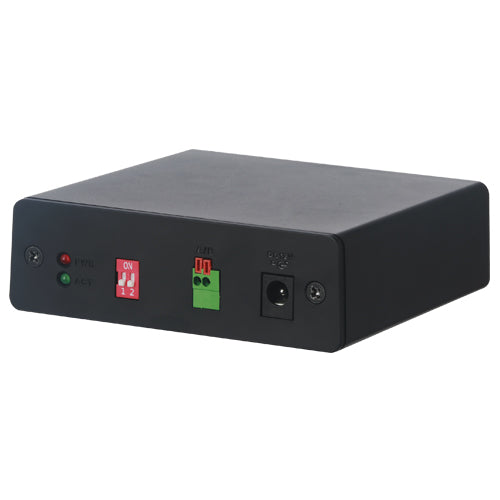

The VSCVIARB is the perfect solution for adding additional alarm outputs to any Digital Video Recorder.
Product features:

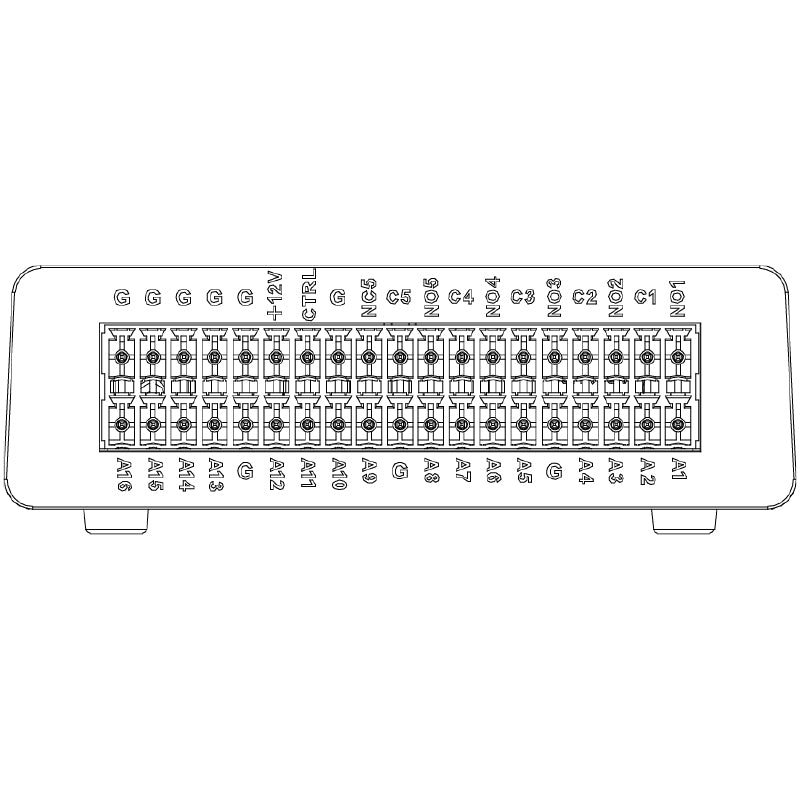

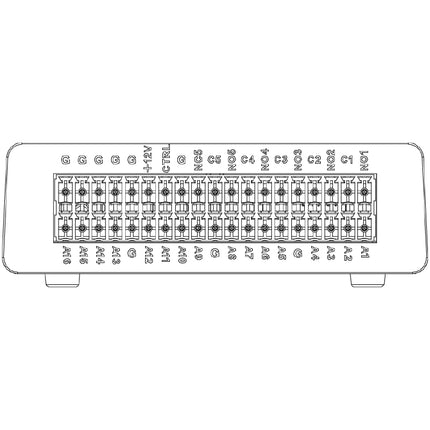

• 16 channel alarm input
• 6 channel alarm output

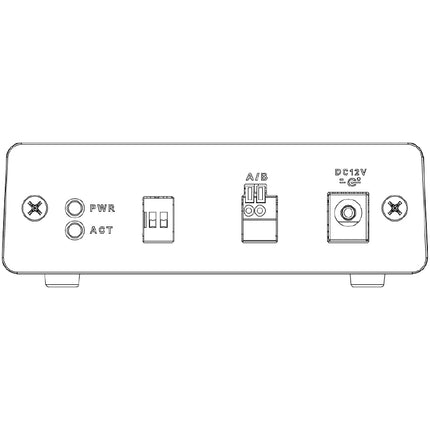

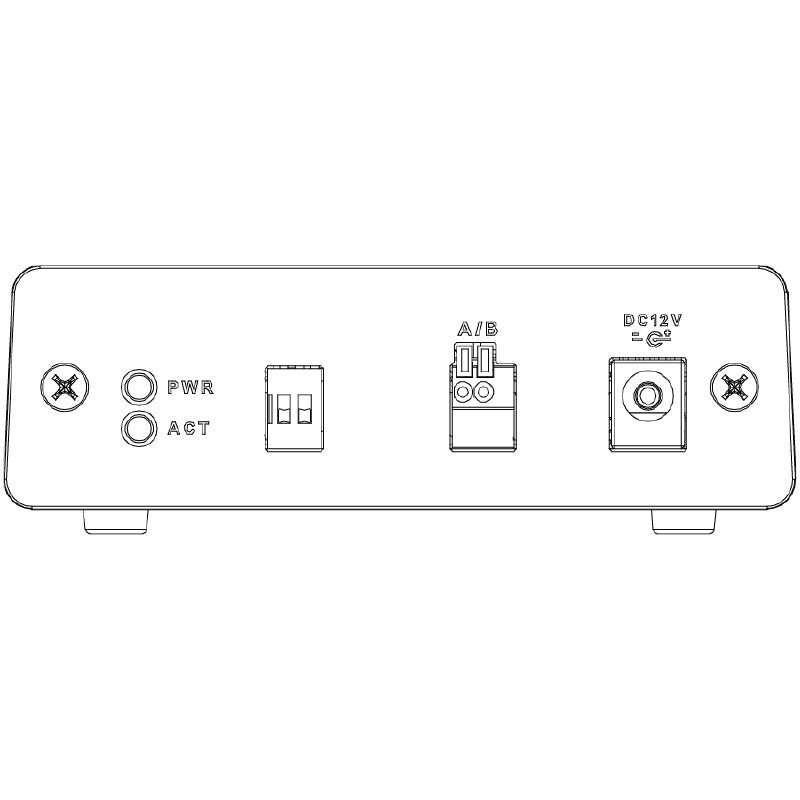

• Supports 2-bit DIP switch (1/2) to determine different alarm box access
• Power indicator (PWR) when device is powered on
• Signal communication indicator (ACT) lights up every 1 second during communication between the alarm box and DVR equipment
• 12VDC power input (PSU not included)
Datasheets
Tech Specs
| Channel In | 16 |
| Channel out | 6 |
| Communication | 1 x RS485 |

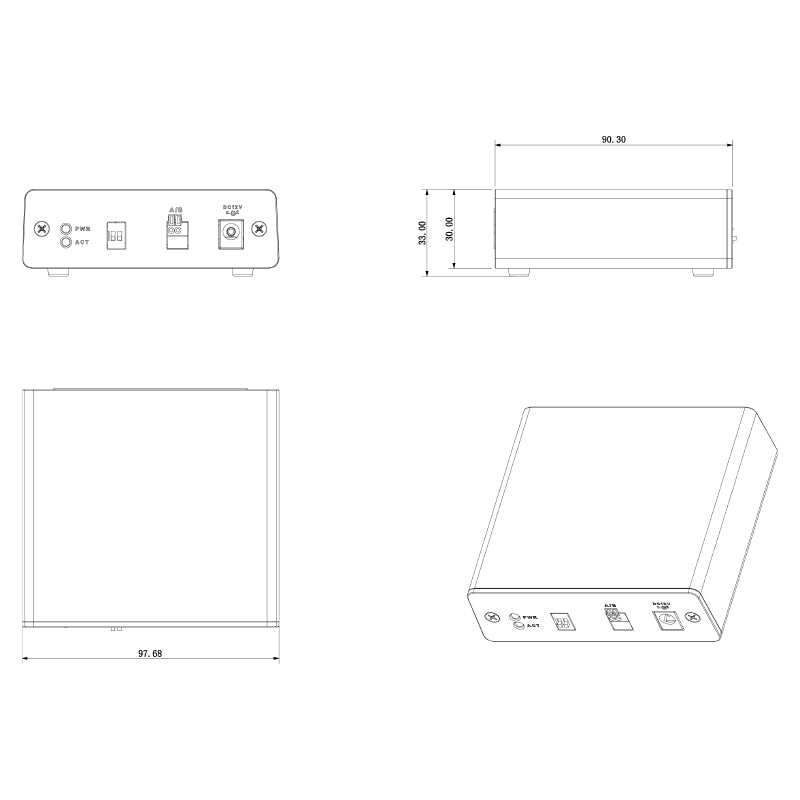

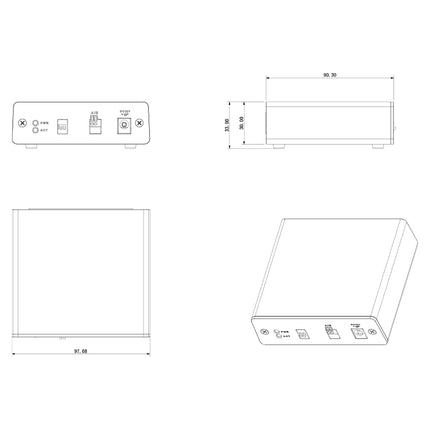

| Dimension | 97.68mm x 90.3mm x 33mm |
| DIP Switch | 2-bit |
| Operating Humidity | 10%~ 90% |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Power Consumption | 0.2W |
| Power Input | 12VDC |
| Weight | <0.2kg |
