Description

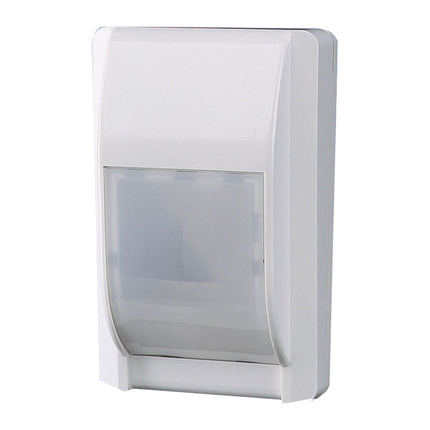

The PIR-T46C Vertical Curtain PIR Sensor from Takex is built with adjustable infrared detection up to 16.5 meters to detect intruders. Choose from three coverage settings by matching the PCB (printed circuit board) to the index marks (refer to manual). Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. It's vertical curtain infrared makes it ideal to be installed above entrances and windows.
Product Features:
• Passive infrared detection up to 16.5m

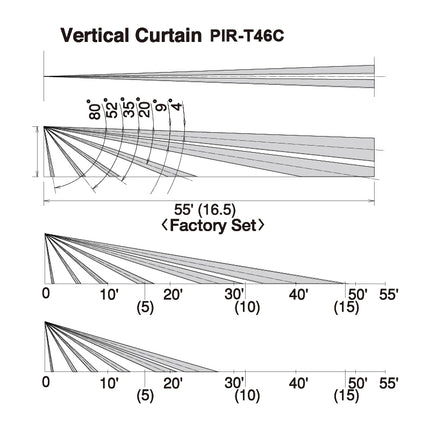

• Adjust the coverage area for different mounting heights
• Sensitive Zones - 6 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan
* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)
Datasheets
Tech Specs
| Alarm Output | Yes |
| Dimensions | 70 x 45 x 110mm |
| Housing | ABS Plastic (Body) , PE Plastic (Lens) |
| Infrared Detection Range | 16.5m |
| Infrared Type | Passive Infrared - Vertical Curtain |
| Input Voltage | 9~18VDC |
| Mounting Options | Wall / Ceiling (bracket sold separately) |
| Operating Conditions | -15°C ~ +55°C without condensation |
| Pet Immunity | No |
| Sensitive Zones | 6 pairs |
| Tamper Protection | Yes |
| Transmitting Current | 25mA Max. |
| Type | Motion Sensor |
