Description

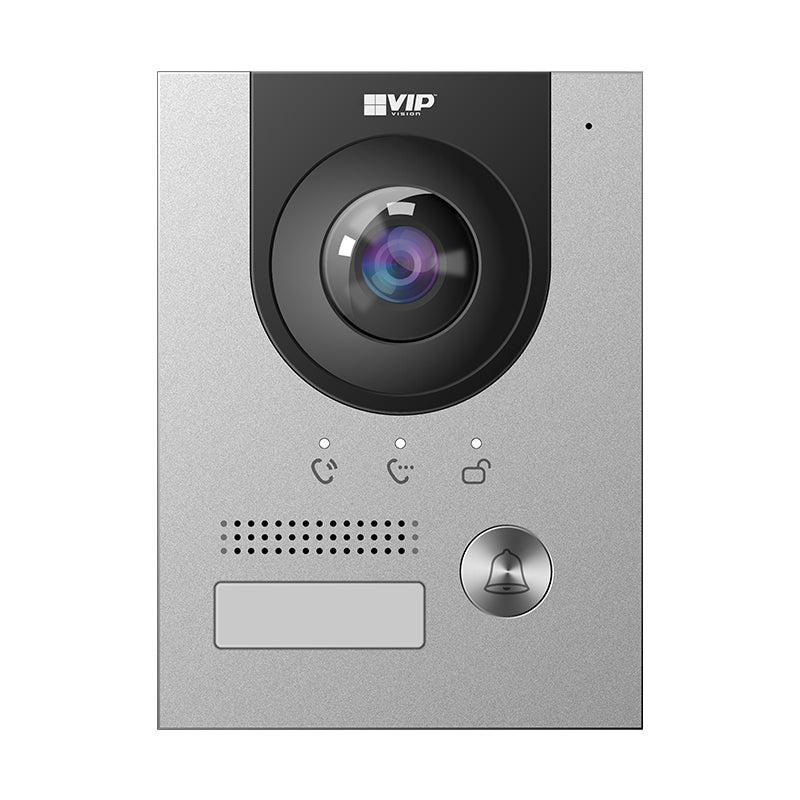

The INTIPRDSG is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.
Product features:
• 1/2.8’’ 2.0MP 1.95mm lens camera with 160° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 48VDC or Power over Ethernet (802.3af)

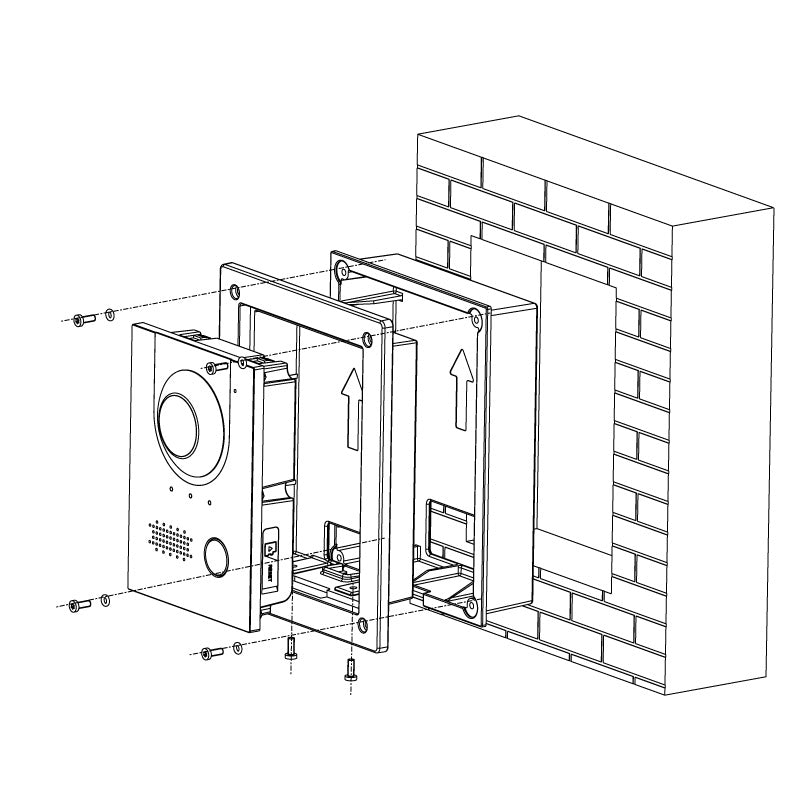

• Flush and surface mount installation options
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
*2-Wire connection requires the INTIPPOE2W. Note it is one device per terminal (6 total).
*Gen.3 INTIPRDSG is 48VDC; Gen.2 is 12VDC.
Datasheets
Tech Specs
| App Connection | QR Code |
| Audio / 2-Way Talk | Omni-directional Microphone & Embedded Loudspeaker for 2-way talk |
| Button Illumination | None |
| Camera System | 2.0 Megapixel CMOS camera with 1.95mm lens (Horizontal FoV: 160°), WDR |
| Card Support | N/A |
| Construction | Aluminium |

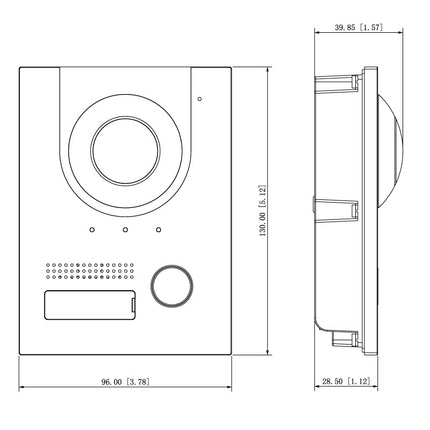

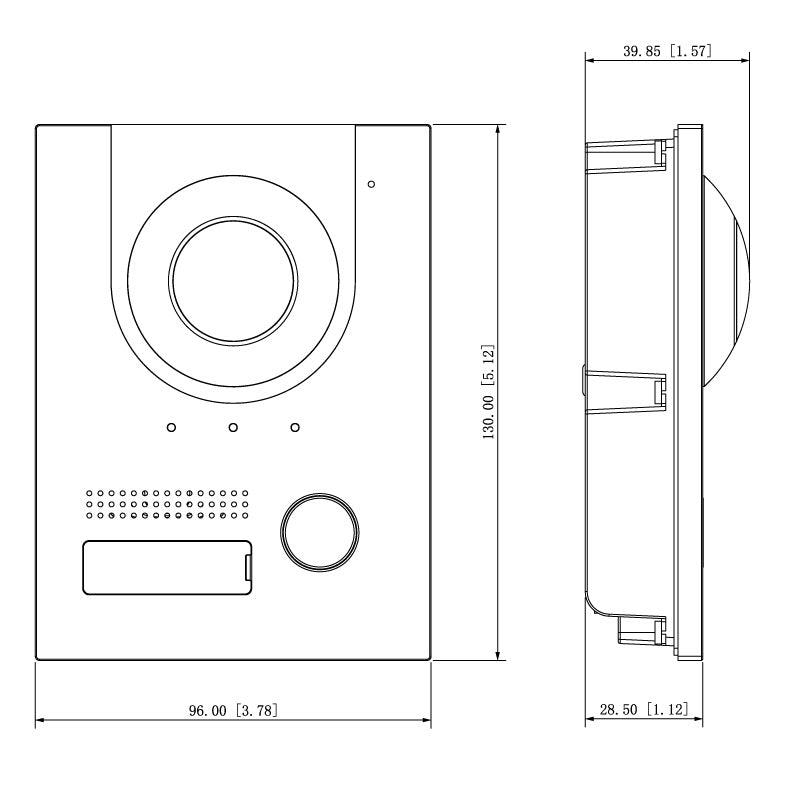

| Dimensions | 130 x 96 x 29mm |
| Ethernet / Network | N/A |
| Ingress Protection | IP55 |
| Input / Output | 1 x alarm input / 1 x alarm output / 1 x RS485 |
| Installation Options | Supports surface box and flush box mount |
| Internal MicroSD Slot | Yes, up to 64GB |
| Keypad | N/A |
| Low-Light Application | Infrared |
| Main Processor | Embedded Microprocessor |
| Max. Additional Door Stations | 20 |
| Max. Indoor Monitors | 10 |
| Power Consumption | <12W |
| Power Input | 48VDC 1A / PoE (802.3af) |
| Series | G Series |
| Tamper Detection | Yes |
| Vandal Resistant | IK07 |
| Weight | 0.35kg |
