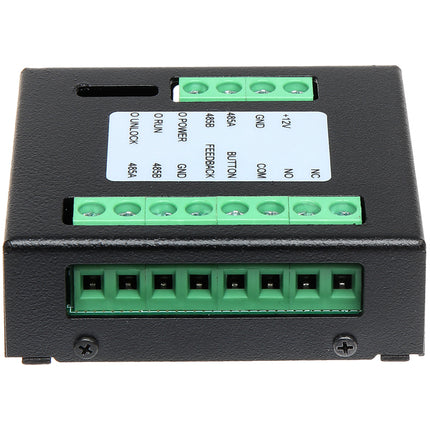

The INTIPDM Door Unlock Expander Module enables an intercom monitor to control a second door or gate. Built-in relay output allows the control of any NO / NC device, which can be activated via intercom monitor or smartphone.
The INTIPDM is compatible with all VIP Vision Intercoms.
Product features:
• RS485 communication with door stations
• NO / NC relay receivers for door control
• Input for door status monitoring
• Input for external door control
• Powered by 12VDC
• Operating power consumption <1W
Datasheets
Tech Specs
| 01-Black | GND |
| 02-Orange | Alarm Input |
| 03-Brown | Door sensor response |
| 04-Yellow | Open button |
| 05-Grey | NC |
| 06-Purple | NO |
| 07-Blue | Public port |
| 08-Green | Door station, cascading 485+ |
| 09-White | Door station, cascading 485- |
| 10-Black | Power ground |
| 11-Red | +12V |
| 12-Pink | Card reader 485+ |
| 13-Yellowgreen | Card reader 485- |
