Description

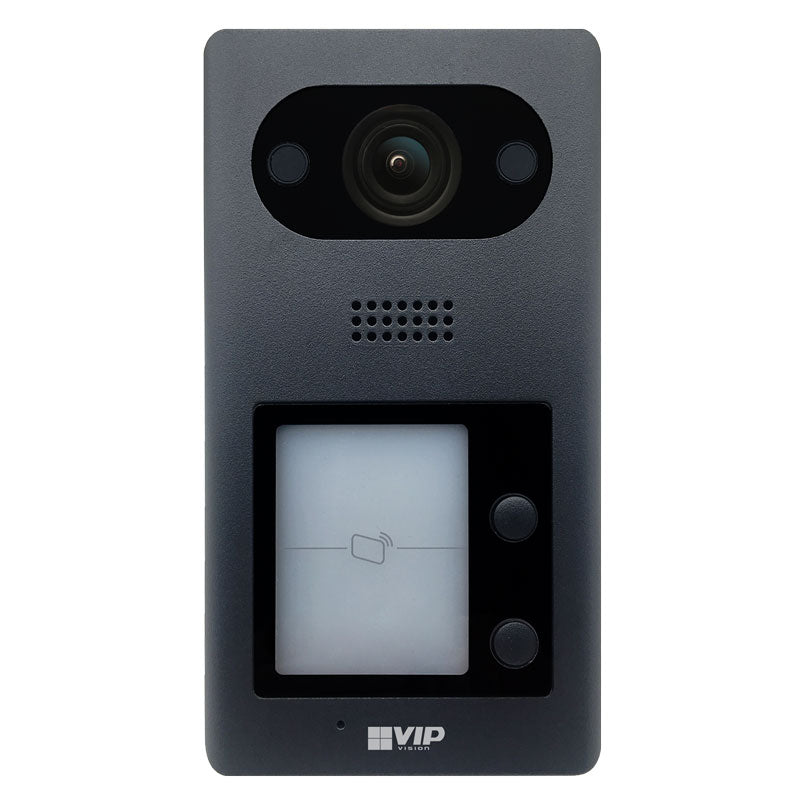

The INTIPDDS2 is a single channel video intercom solution ideal for homes and dual-premises buildings such as duplexes. This door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium weather/vandal resistant body.
Product features:
• 1/2.8’’ 2.0MP 1.9mm lens camera with 140° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
Datasheets
Tech Specs
| App Connection | QR Code |
| Audio / 2-Way Talk | Omni-directional Microphone & Embedded Loudspeaker for 2-way talk |
| Button Illumination | None |
| Camera System | 1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 140°) |
| Card Support | Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards |
| Construction | Aluminium |

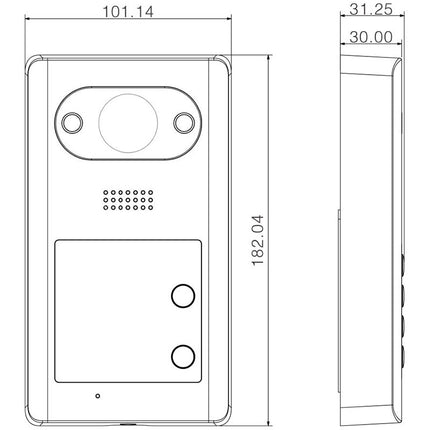

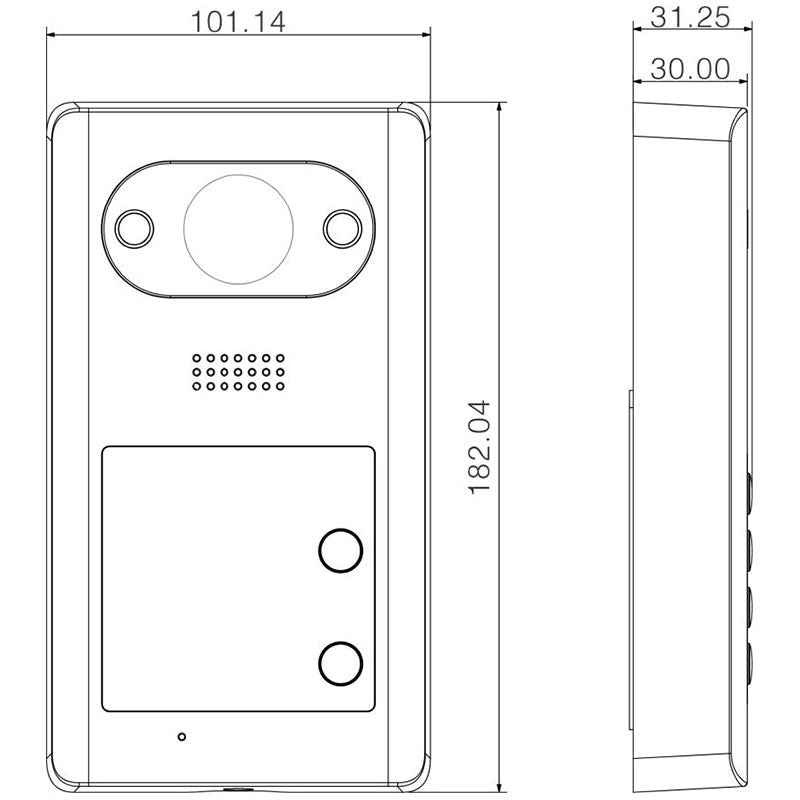

| Dimensions | 182 x 101 x 30mm |
| Ethernet / Network | 10M/100Mbps Self-adaptive / TCP/IP protocol |
| Ingress Protection | IP65 |
| Input / Output | 1 x relay for door control / 2 x channel alarm interface / 1 x RS485 |
| Installation Options | N/A |
| Internal MicroSD Slot | N/A |
| Keypad | 2 Mechanical Buttons |
| Low-Light Application | Day/Night ICR |
| Main Processor | Embedded Microprocessor |
| Max. Additional Door Stations | 20 |
| Max. Indoor Monitors | 22 (11 per button) |
| Power Consumption | Standby < 1W / Operation < 7W |
| Power Input | 12VDC, PoE (802.3af) |
| Series | D Series |
| Tamper Detection | Yes |
| Vandal Resistant | IK08 |
| Weight | 0.80kg |
